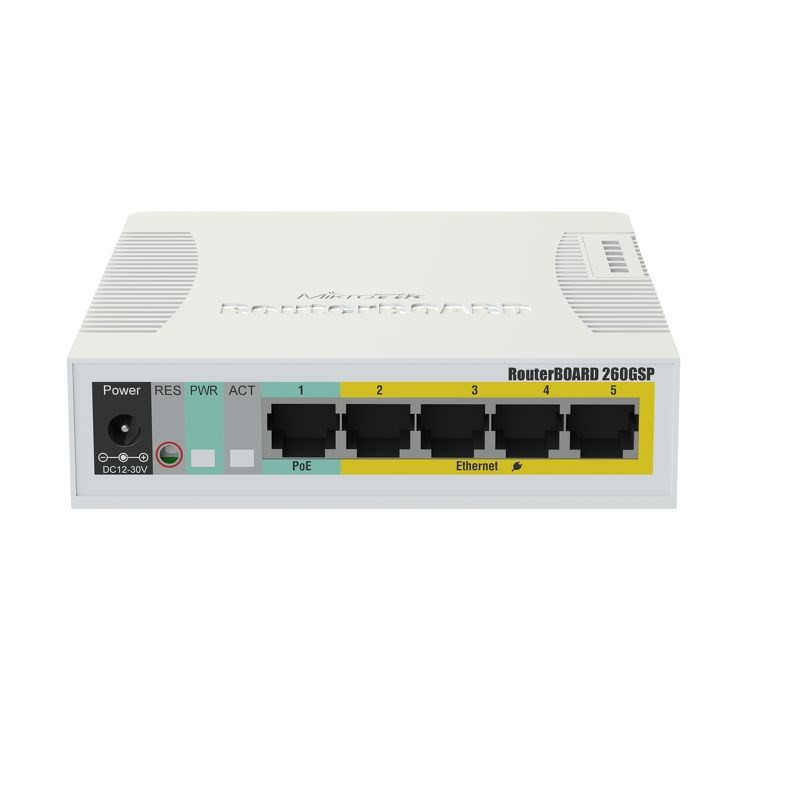

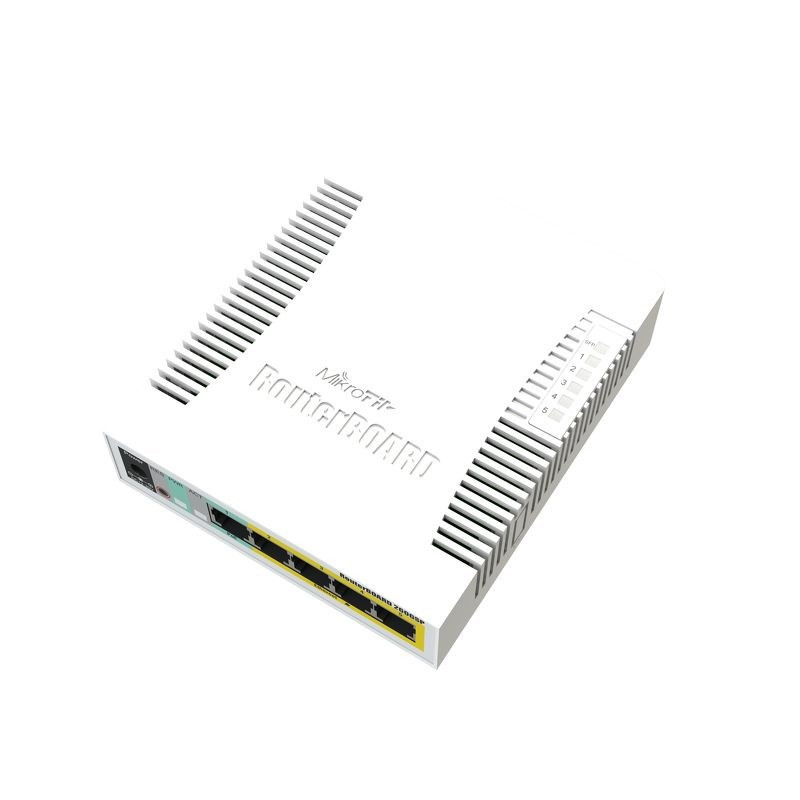

MikroTik RB260GSP Switch, CSS106-1G-4P-1S, 5x RJ45 1000Mb / s, 1x SFP, 4x Passive PoE

MikroTik RB260GSP (CSS106-1G-4P-1S)
System solutions for platforms of the company MikroTik for providers of wireless internet connection.
B PREHĽADB
RouterBOARD RB260GSP is a 5-portový gigabit web management smart switch with a new proprietary software solution Mikrotik SwOS.
Ports 2-5 enable POE powering of connected active elements with the same power supply as the switch.
Dodáva sa ako komplet v plastovom kryte for internal use spolo so zdrojom ako hotové solution SOHO.
Jeden gigabitový ethernetový port SFP.
Some supported functions a parameters:
• port-to-port forwarding
• MAC filter
• mirror traffic
• limited speeds (bandwidth limitation)
• adjustment policies MAC a IP
VLAN management through 4 basic modes:
• Disabled - ignore the VLAN table
• Optional - drop packets with restricted VLAN tags
• Enabled - receive packets with allowed VLAN tags
• Strict - the same as Enable, but in addition controls the support of VLAN for the incoming interface
B SPECIFIKÁCIEB
• CPU: Taifatech TF470
• Memory: Vstavaná 96K SRAM
• Ethernet: Päť portov 10/100/1000 Ethernet, switch Atheros AR8327
• PoE output: Iba RB260GSP: Passive PoE output on ports 2-5. Maximum current 500 mA na port
• SFP: One fixed slot Gigabit Ethernet SFP with DDMI support (Mini-GBIC; module SFP is not part of the package)
• LED diode: Power supply, NAND activity, 5 LED diode activity Ethernetu
• Extra: Hardvérový watchdog

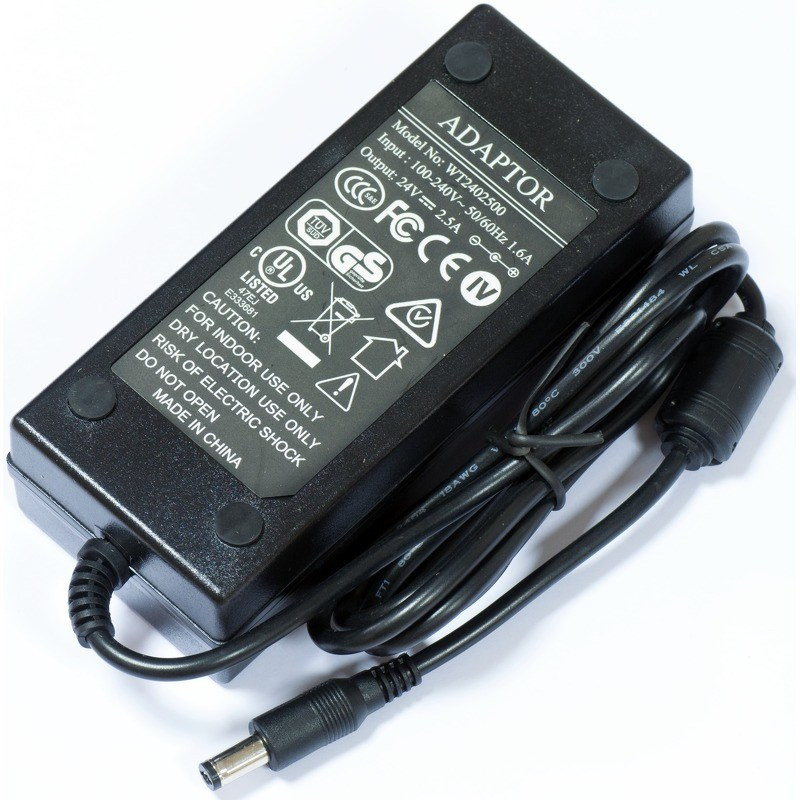

• Power supply options: PoE: 8-30 V DC na Ether1 (Non 802.3af). Connector: 8-30 V DC
• Rozmery: 113x138x29mm. Bez obalu a napájacieh zdroja: 212g
• Spotreba energy: Až 6W
• Prevádzková temperature: -25°C .. +65°C
• Operating system: MikroTik SwOS
! WARNING !
The manufacturer Mikrotik does not provide a guarantee for the device damaged by the product.
The device must be properly protected against induced electrostatic damage or voltage spikes on the power supply line.
For outdoor installation, use only shielded cables (FTP/SFTP) a device properly earthed (presedníctvom integrého zemňőovéché elemenť alebov uštěním ethernetovéj práťovévej próchny).
