Mikrotik CRS320-8P-8B-4S+RM network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Mikrotik CRS320-8P-8B-4S+RM network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn't have that. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!
4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures - CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we've reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.
There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port port for management purposes. There's also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip - the same one you've seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you've been looking for a way to simplify your cable management - this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power "802.3af/at/bt-compatible" Powered Devices, you must avoid specific grounding scenarios. Please refer to the official Help page. .

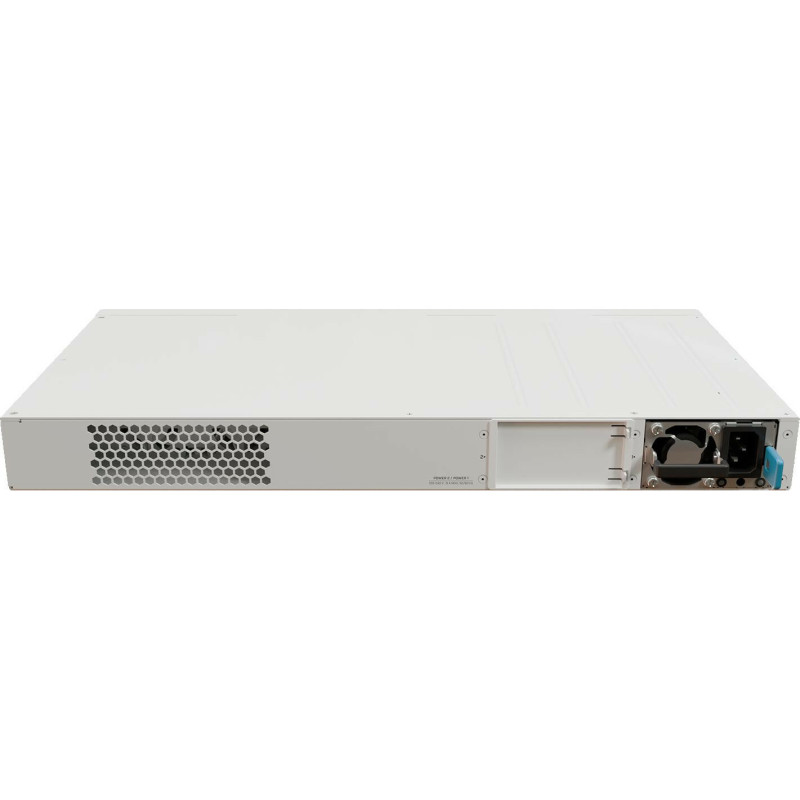

A hot-swappable PSU is included.
| Summary: | Mikrotik CRS320-8P-8B-4S+RM. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 17, Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting |
| Vendor Homepage: | https://mikrotik.com/product/crs320_8p_8b_4s_rm#fndtn-specifications |
| Category Code: | SWI |
| CnCode: | 85176200 |
| Unit Box Height: | 0.06 |
| Unit Box Length: | 0.485 |
| Unit Box Width: | 0.31 |
| Basic switching RJ-45 Ethernet port quantity: | 17 |
| Basic switching RJ-45 Ethernet port type: | Gigabit Ethernet (10/100/1000) |
| Console port: | RJ-45 |
| SFP+ module slots quantity: | 4 |
| 10G support: | Yes |
| Networking standards: | IEEE 802.3af/IEEE 802.3at |
| Rack mounting: | Yes |
| Reset button: | Yes |
| Built-in processor: | Yes |
| Flash memory: | 32MB |
| Internal memory: | 256MB |
| Mean time between failures (MTBF): | 200000h |
| Operating system installed: | RouterOS |
| Processor frequency: | 800MHz |
| Processor manufacturer: | ARM |
| Processor model: | 98DX226S |
| AC input frequency: | 50/60Hz |
| AC input voltage: | 100 - 240V |
| Power consumption (max): | 600W |
| Power consumption (typical): | 36W |
| Power source: | AC |
| Power supply included: | Yes |
| Power over Ethernet (PoE): | Yes |
| Operating temperature (TT): | -10 - 50°C |
| Depth: | 235mm |
| Height: | 44mm |
| Width: | 444mm |
| Compliance certificates: | CE/EAC/RoHS |
| Model name: | CRS320-8P-8B-4S+RM |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.009021m³ |
| Unit Calculated Weight: | 3.06kg |
