Mikrotik CRS112-8P-4S-IN network switch Gigabit Ethernet (10 / 100 / 1000) Power over Ethernet (PoE) White

B PopisB
CRS112-8P-4S-IN je osemportový gigabitový PoE router/switch, which offers various PoE-Out power options. In addition to passive PoE, the standard 802.3af/at is also offered, but not all eight ports. In addition to metal ports, you can use 4 optical SFP ports to connect devices to the network at speeds up to 1 Gbps. The first connector 18 - 28 V is used to connect the attached DC adapter and through CRS it is then possible to connect other devices connected to PoE ports using passive PoE. Optionally, you can buy a power supply with a voltage of 48 - 57 V, then the CRS112 allows you to power it via PoE port devices supporting the standard 802.3af/at.

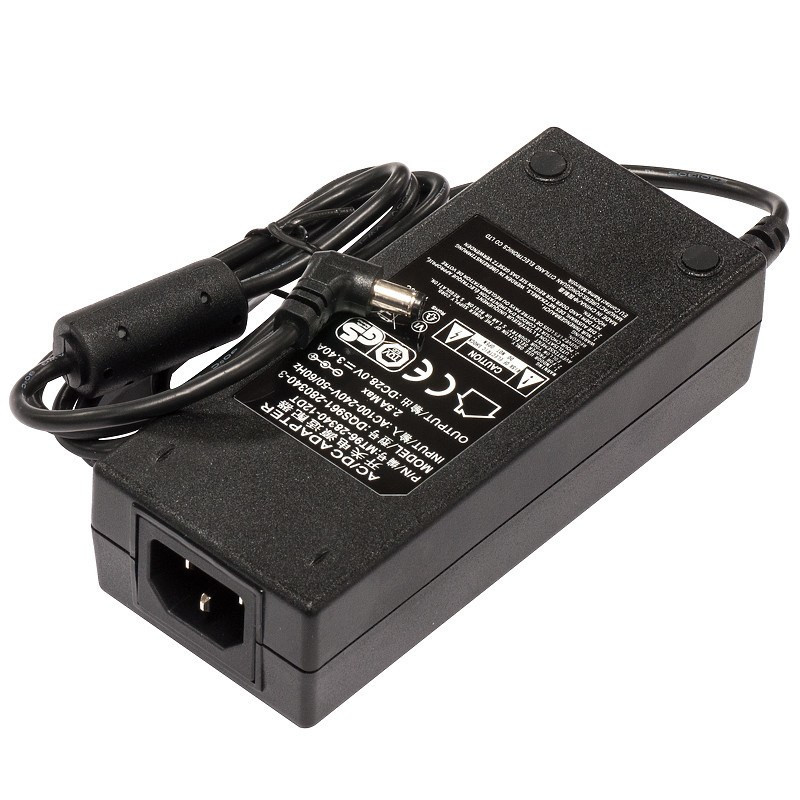

For the 24 V output power supply, just connect the included power adapter. If you need a 48 V power supply, you need to buy a power supply, eg. GM-4820. If you need to connect a combination of devices that require both types of power supply, you need to have both power sources connected at the same time! / 3,4 A

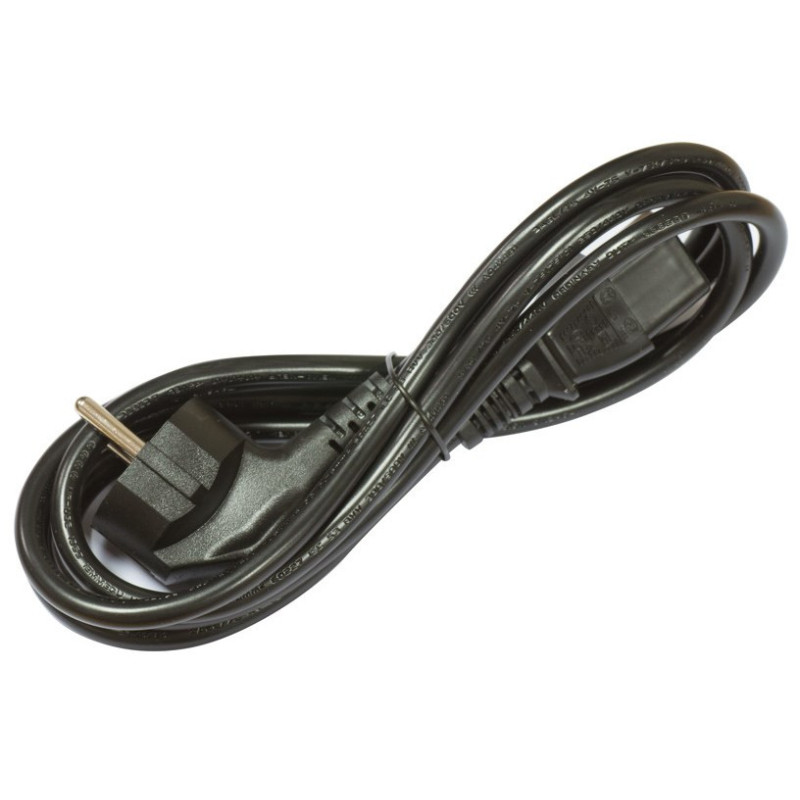

Napájací kábel

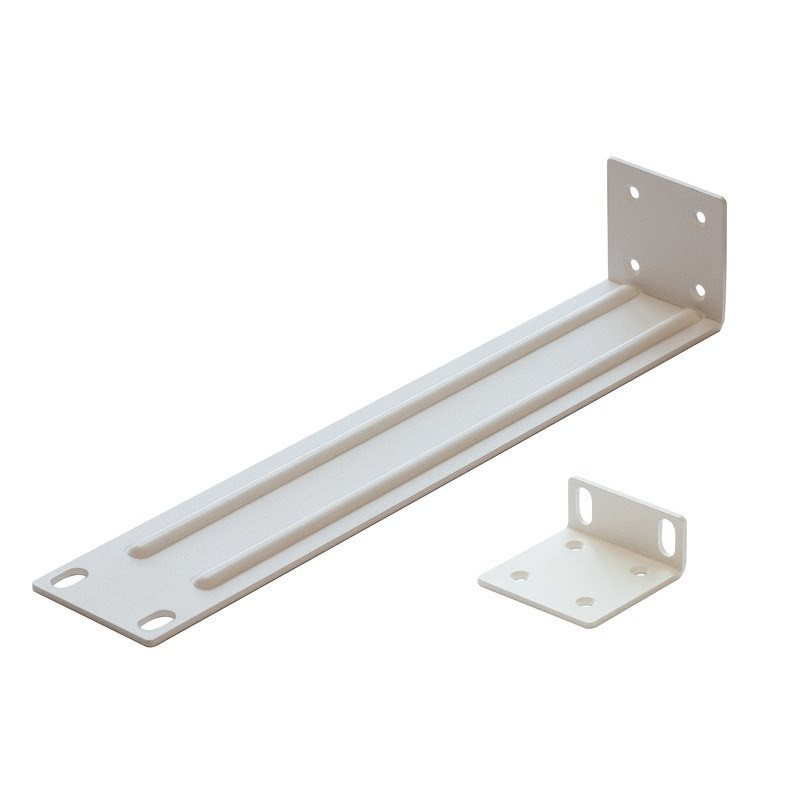

Úchyty do 19" racku

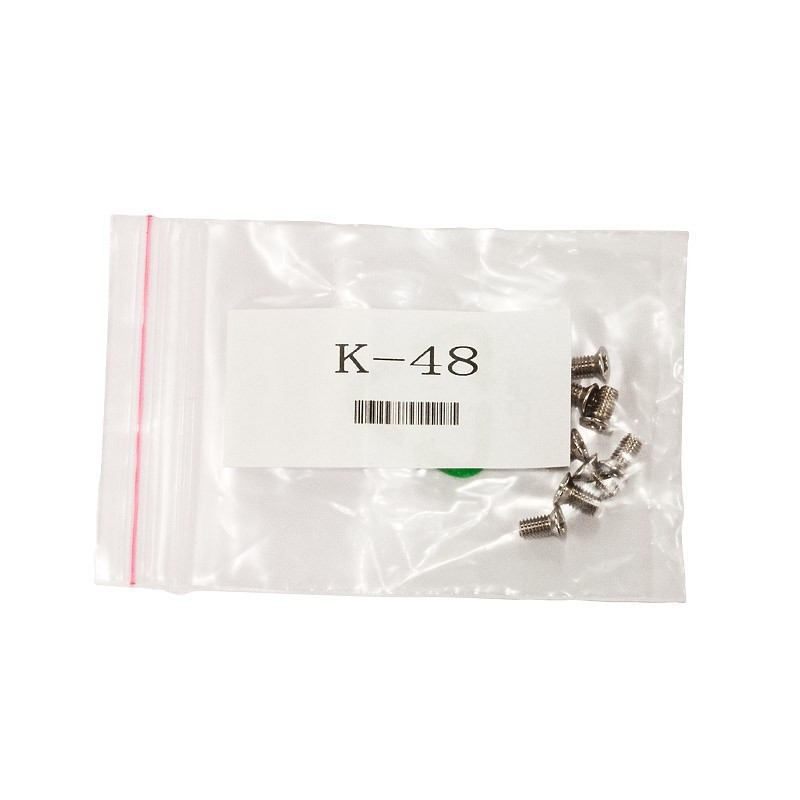

Skrutky
B Technical specification:B
Fyzikálne characterization
Vyhotovenie: Stolný, Rackmount
Chladenie: Pasívne
Chassis: Kovové
Length [mm]: 143
Width [mm]: 200
Height [mm]: 40
Hardware
RAM [MB]: 128
CPU: QCA8511
Size interného úložiska [MB]: 16
Konektory a rozhrania
Sériový port: RJ45
LAN speeds: (8) 10/100/1000 Mbps
Gigabit LAN: Áno
Optical interface: (4) 1000 Mbps
Napájanie
Power supply typ: DC konektor
Typy PoE: PoE-Out (len)
Podporované standarty PoE-Out: 802.3af, 802.3at, Pasívne 24 V
Počet portov PoE Out: 8
PoE budget [W]: 95
Max. energy consumption [W]: 10
Supply via connector/svorkovnicu: 18 .. 57 V DC
Softvér
Webové řídené: Áno
Functions: VLAN, QoS, L3
Operating system: RouterOS - L5
Default IP address: 192.168.88.1
Default name: admin / -
Warning:
The manufacturer MIKROTIK does not provide a warranty for equipment damaged by electricity.
The equipment must be adequately protected at the entrance against induced electrostatic interference or voltage spikes on the power line.
For outdoor installations if it is necessary to use the supplied cable (FTP/SFTP), the appropriate surge protectors (if they are integrated) and to ensure proper and effective earthing.
