Managed industrial switch TSW202 2xSFP 8xPoE+ L2 / L3
Product reference:
3-4779051840281
Managed industrial switch TSW202 2xSFP 8xPoE+ L2/L3
Managed industrial switch TSW202 2xSFP 8xPoE+ L2 / L3
Product reference:
3-4779051840281
Managed industrial switch TSW202 2xSFP 8xPoE+ L2/L3
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| DIN rail mounting | Yes |
| Power over Ethernet (PoE) port quantity | 8.0000 |
| Operating temperature (TT) | -40 to 75 °C |
| Installed SFP modules quantity | 2.0000 |
| Basic switching RJ-45 Ethernet port type | gigabit_ethernet_10_100_1000 |
| Basic switching RJ-45 Ethernet port quantity | 8.0000 |
| Total Power over Ethernet (PoE) budget | 240.0000 |
| Height | 122.0000 |
| LED indicators | power, status |
| Width | 132.0000 |
| Depth | 44,2000 |
| Auto-negotiation | Yes |
| Product colour | aluminum, blue |
| Switching capacity | 20,0000 |
| Networking standards | ieee_802_1p, ieee_802_3af, ieee_802_3at, ieee_802_3z |
| Jumbo frames | 10000.0000 |
| Active link detection | Yes |
| Power over Ethernet (PoE) power per port | 30.0000 |
| Power connector | terminal_block_3_pin |
| Power over Ethernet (PoE) | Yes |
| Switch layer | l2 |
| Quality of Service (QoS) support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Stackable | No |
| Jumbo frames support | Yes |
| Web-based management | Yes |
| Switch type | managed |
| Gigabit Ethernet (copper) port quantity | 8.0000 |
| Reset button | Yes |
| DHCP features | dhcp_client |
| Power over Ethernet (PoE) type supported | active_poe |
| Rack mounting | No |
| Housing material | aluminum |
| Full duplex | Yes |
| MAC address table | 8000.0000 |
| IGMP snooping | Yes |
| VLAN support | Yes |
| 10G support | No |
| International Protection (IP) code | ip30 |
| Weight | 610.0000 |
| Power supply included | No |

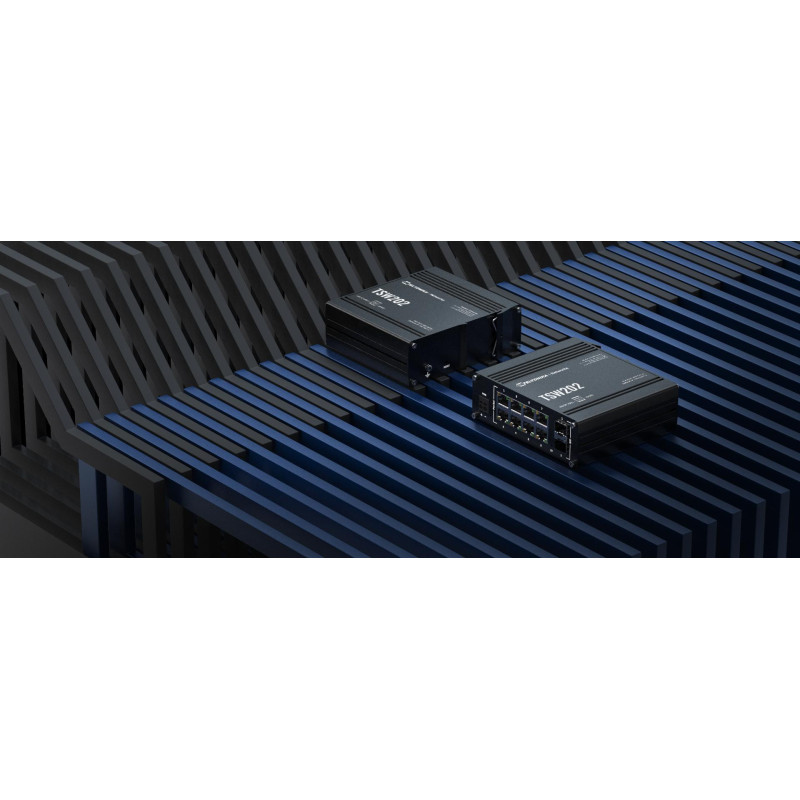

Teltonika TSW202 - Reliability and Performance in Any Industrial Network
The Teltonika TSW202 (TSW202000000) is an industrial-grade managed switch that offers eight Gigabit Ethernet PoE port and two SFP slots for long-range fiber communications. This advanced device is ideal for demanding industrial applications where reliability and performance are key.
Power and Flexibility with PoE Technology
Each of the eight Gigabit Ethernet port on the Teltonika TSW202 is equipped with PoE technology, allowing up to 30 watts of power to be delivered to each port. With a total power budget of 240 watts, you can easily power most end devices, eliminating the need for additional cabling. It's ideal for extensive deployments where devices are located in hard-to-reach locations.
Advanced Management Features
Teltonika's TSW202 managed switch offers a range of port management and Quality of Service (QoS) features to give you precise control over your network. You can adjust link speed settings, implement port isolation, support PoE and Energy Efficient Ethernet (EEE) (802.3az), and configure port duplication. QoS allows you to set port priorities, DSCP and 802.1p to optimize network bandwidth and organize the switch's operational processes.
Solid Construction and Durability
The Teltonika TSW202 is encased in a rugged aluminum housing that provides resistance to extreme temperatures and strong vibrations. With an integrated DIN rail mount, installation of the switch is quick and easy. This reliable device is designed for the harshest industrial environments, guaranteeing uninterrupted operation.
Compatibility with Industrial Protocols
The TSW202 switch supports many key industrial protocols, including EtherNet/IP, PROFINET and MRP. The Profinet protocol enables seamless automated data processing and in-depth network diagnostics, which is key to monitoring the performance of the entire network. EtherNet/IP improves response time and data throughput, while MRP ensures reliability in a ring topology.
