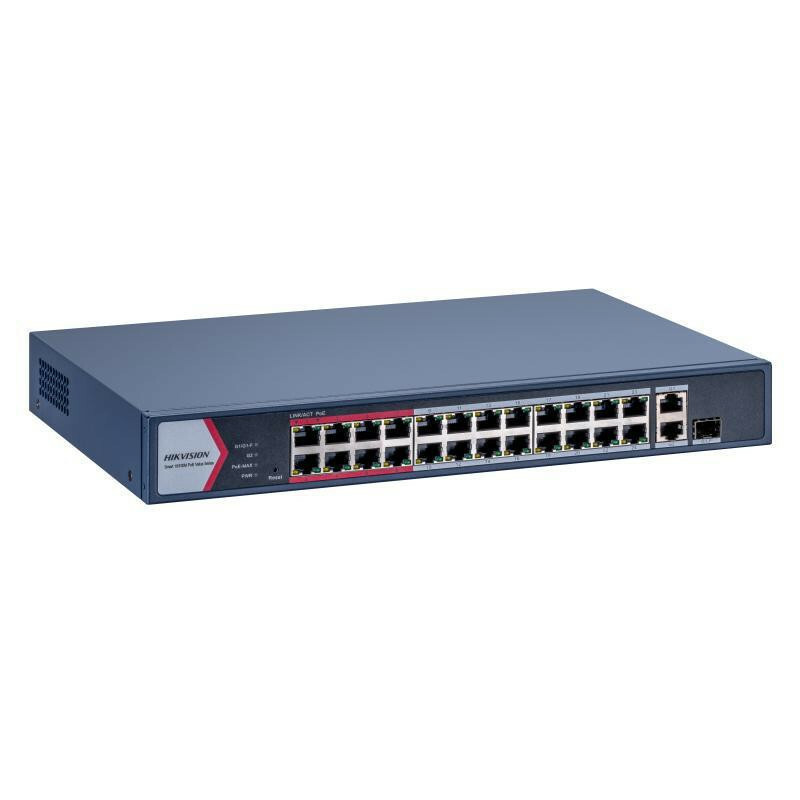

Hikvision PoE Switch DS-3E1326P-EI / M

24 Port Fast Ethernet Smart POE Switch



Model

• DS-3E1326P-EI/M



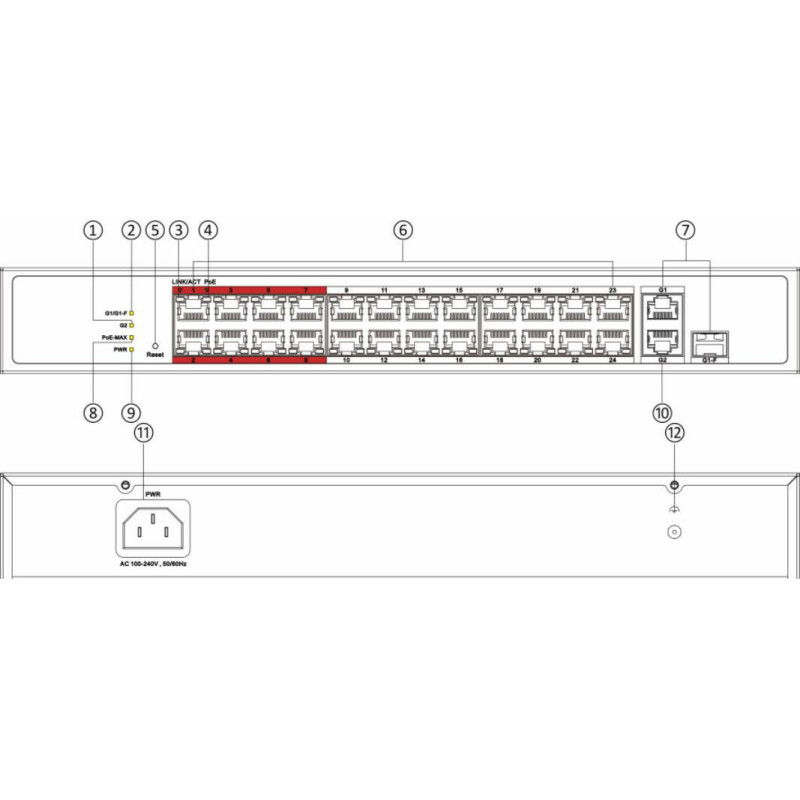

Features

• 24 × 10/100M PoE ports, 1 × Gigabit combo, 1 × Gigabit RJ45 port

• Total PoE Power Budget 230 W

• Support 802.1Q VLAN

• Support PoE watchdog to detect and restart the cameras that do not respond

• Support STP/RSTP Loop prevention

• Support cable detection to locate failure

• Up to 300 m Long Range PoE Transmission

• 6 kV Surge Protection



Specifications



General

• Shell: Metal material

• Net Weight: 2.13 kg (4.7 lb)

• Gross Weight: 3.1 kg (6.8 lb)

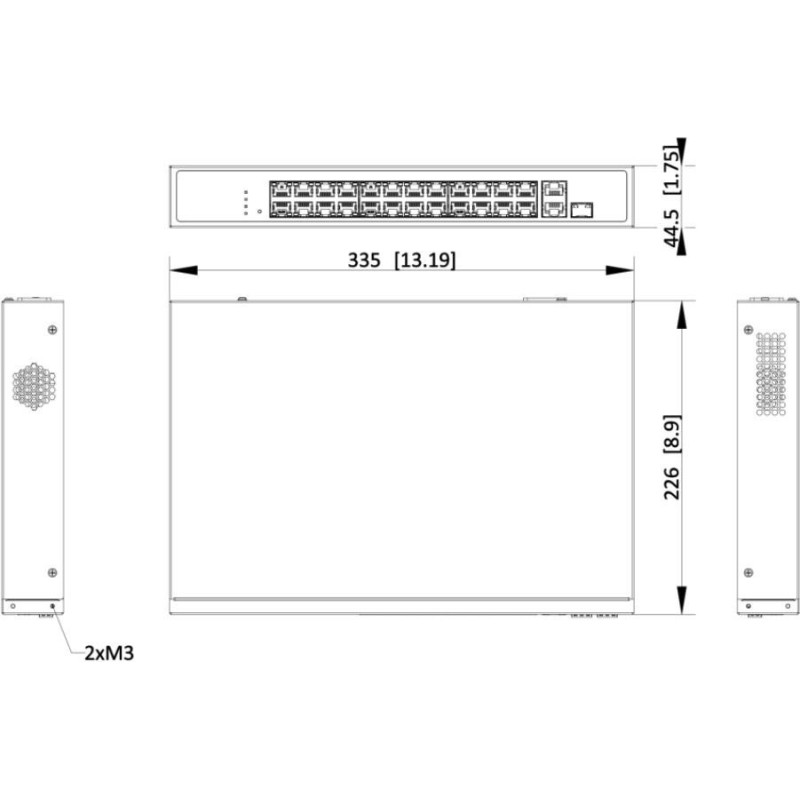

• Dimension (W x D x H): 440.00 mm x 44.00 mm x 220.80 mm (17.32'' x 1.73'' x 8.69'')

• Working Temperature: 0 °C to 45 °C (32 °F to 113 °F)

• Storage Temperature: -40 °C to 85 °C (-40°F to 185 °F)

• Relative Humidity: 5% to 95% (no condensation)

• Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A

• Max. Power Consumption: 250 W

• Power Consumption in Idle: 20 W

• Installation Mode: Rack (equipped with mounting ears)

• Surge Protection: 6 KV



Network Parameters

• Ports: 24 x 10/100 Mbps PoE port, 1 x Gigabit combo, 1 x Gigabit RJ45 port

• MAC Address Table: 16 K

• Switching Capacity: Whole-Device Performance: 14.8 Gbps; Port Performance: 8.8 Gbps

• Packet Forwarding Rate: Whole-Device Performance: 11.01 Mpps; Port Performance: 6.55 Mpps

• Internal Cache: 4 Mbits



PoE Power Supply

• PoE Standard: IEEE 802.3af; IEEE 802.3at

• PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE Port: Ports 1 to 24

• Max. Port Power: 30 W

• PoE Power Budget: 230 W



Software Function

• Long Range: Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition.

• VIP Port: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient

• Port Isolation: Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.

• Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

• Support static link aggregation.

• Support 1 aggregation group(s).

• Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

• Support 802.1D STP.

• Suppport 802.1w RSTP.

• VLAN: VLAN is used for network scale planning and network health improvement.

• Support 802.1Q.

• Configurable VLAN ID from 1-4094.

• Support Trunk, Access port mode.

• Support Max. 4094 VLAN.

• HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

• Display the port rate.

• Display the port bandwidth utilization rate.

• Display the PoE power usage.

• Display topology information.

• Display the alarm status.

• Restart ports and devices.

• Enable port long-rage mode.

• Remotely upgrade the device.

• System Maintenance: Support device management via web.

• Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

• Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

• Support management via Hik-Central Pro.

• Support remote management via Hik-Partner Pro.

• Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

• Supports 802.1ab LLDP for peer device discovery.

• Support port mirroring for fault locating.



Approval

• EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)

• Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

• Chemistry: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
