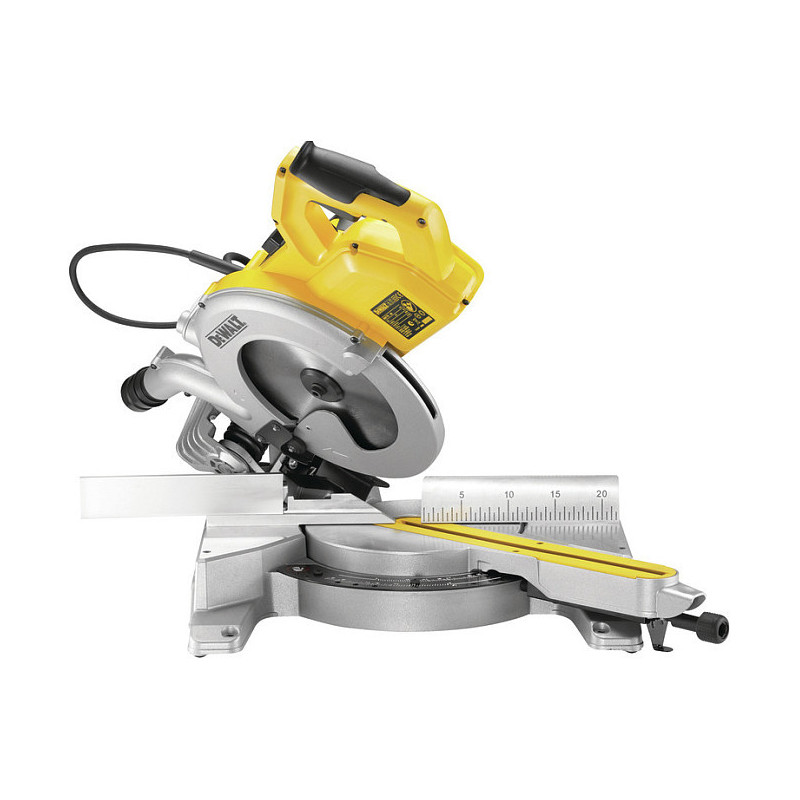

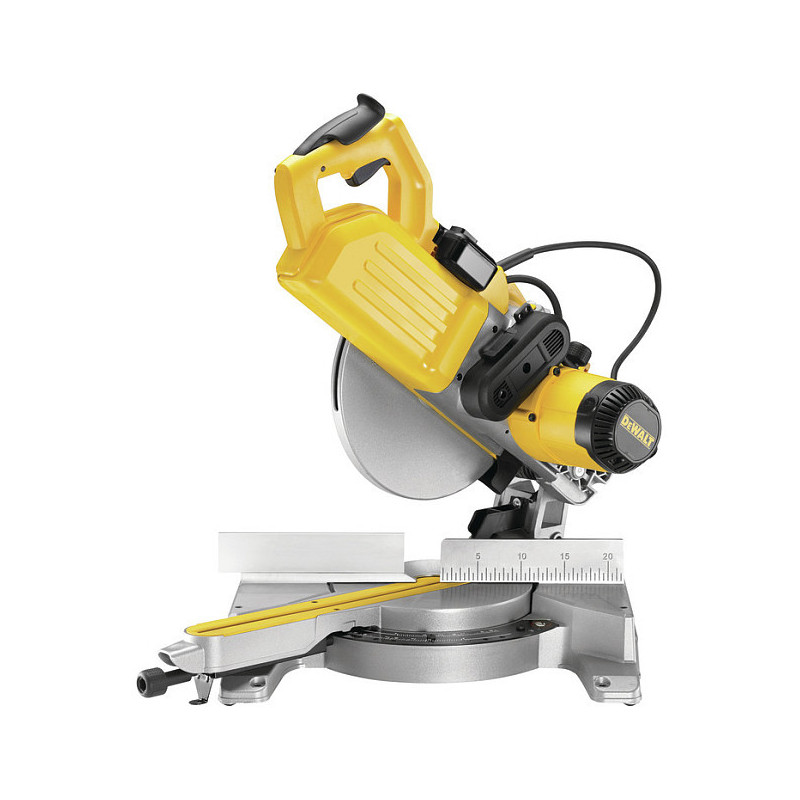

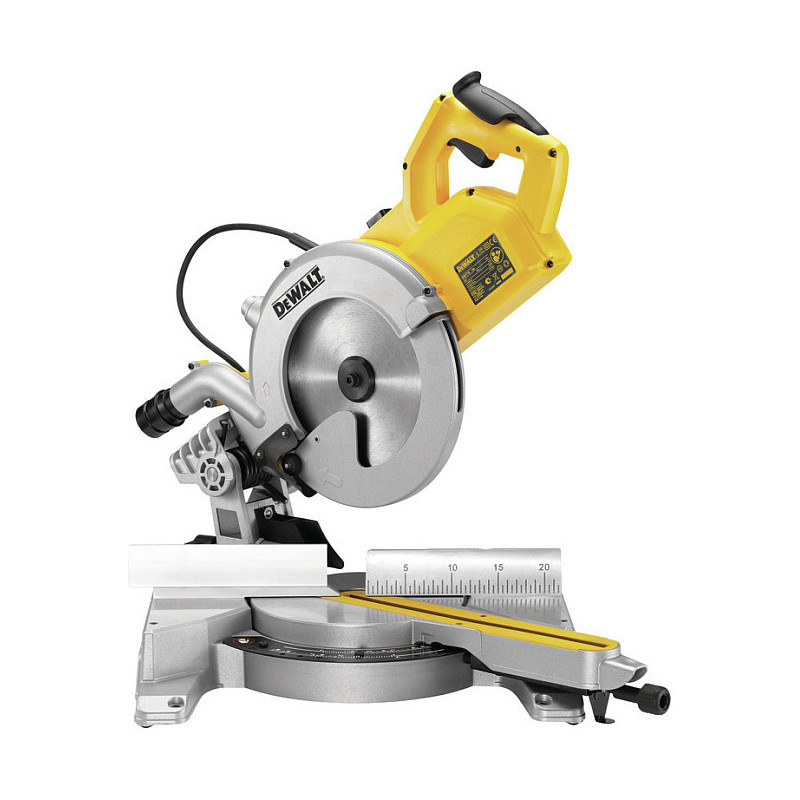

DeWALT DWS778-QS miter saw

DeWALT DWS778-QS. Idle speed (max): 4300 RPM, Mitre setting (left): 50°, Mitre setting (right): 50°. Power source: AC, Input power: 1850 W. Width: 615 mm, Depth: 465 mm, Height: 390 mm. Blade diameter: 25 cm, Blade bore: 3 cm. Cutting depth (max): 8.5 cm, Angle setting range: -48 - 48°
- Built on classic pull saw design improved and updated for the modern user
- Dust extraction specifically designed to meet the needs of the professional user in heavy use applications, protection from airborn dust particles minimises health risk over long periods
- New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
- Sliding left hand fence with measuring scale for improved material support and management
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
- New 1850 Watt motor for powerful cutting in all materials (1650 Watt Low Voltage version UK Only)
- The base and fence have been machined to meet the accuracy requirements of the most demanding applications
- Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
- Compact internal rail design for huge cutting capacity in a highly transportable format
-

Features

Dust extraction: Yes
Table saw mode: Yes

Performance

Idle speed (max): 4300 RPM
Mitre setting (left): 50°
Mitre setting (right): 50°
Cross cut capacity (0° x 0°): 305 x 85 mm
Bevel cut capacity (0° x 45°): 215 x 85 mm
Miter cut capacity (45° x 0°): 215 x 85 mm
Compound cut capacity (45° x 45°): 215 x 58 mm
Sound power level: 107.2 dB
Sound pressure level: 94.2 dB

Power

Input power: 1850 W
Power source: AC

Weight dimensions

Width: 615 mm
Depth: 465 mm
Height: 390 mm
Weight: 17.2 kg

Packaging content

Saw blade included: Yes
Blade diameter: 25 cm
Blade bore: 3 cm

Other features

Cutting depth (max): 8.5 cm
Angle setting range: -48 - 48°
