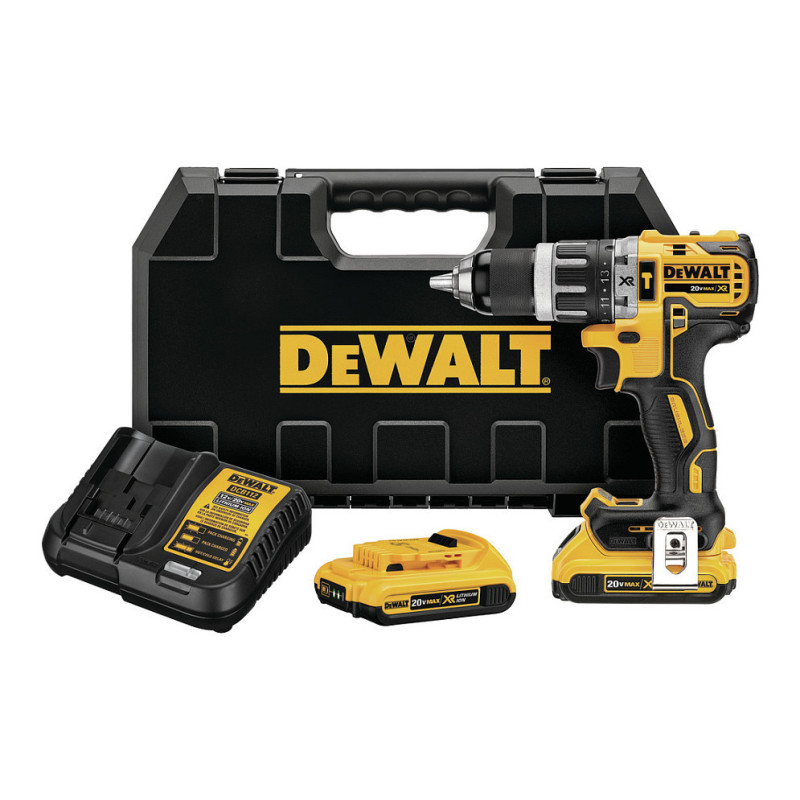

DeWALT DCD796D2-QW drill

DeWALT DCD796D2-QW. Product design: Pistol grip drill, Chuck type: Keyless, Product colour: Black, Yellow. Chuck capacity (max): 1.3 cm, Drilling diameter in wood (max): 4 cm, Drilling diameter in steel (max): 1.3 cm. Power source: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2 Ah. Weight: 1.6 kg, Width: 67 mm, Depth: 190 mm. Number of batteries included: 2 pc(s)
Overview
- 18V XR Li-Ion compact hammer drill driver featuring 2.0Ah XR Li-Ion battery technology
- Brushless Motor Technology for excellent efficiency
- Ultra compact, lightweight design allows use in confined spaces
- Two speed all metal transmission for increased runtime and longer tool life
- Drill Driver and Hammer feature for multiple applications
- 15 position adjustable torque control for consistent screw driving into a variety of materials
- Intelligent trigger design allows for total control of application
- Improved ergonomic design with rubber grip over mould improving users comfort
- Li-Ion battery packs allows for superior insertion and removal with state of charge indicator
- Steel belt hook and magnetic bit holder ensures strong storage solutions
- Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster
- Multi voltage charger for use with 18V, 14.4V and 10.8V XR Li-Ion battery packs

Features

Drilling: Yes
Hammer drilling: Yes
Product design: Pistol grip drill
Chuck type: Keyless
Product colour: Black, Yellow

Performance

Chuck capacity (min): 1.5 mm
Chuck capacity (max): 1.3 cm
Idle speed (1st gear): 550 RPM
Idle speed (2nd gear): 2000 RPM
Impact rate (low speed): 9350 bpm
Impact rate (high speed): 34000 bpm
Torque settings: 15
Maximum torque (soft applications): 27 N m
Maximum torque (hard applications): 70 N m
Drilling diameter in wood (max): 4 cm
Drilling diameter in steel (max): 1.3 cm
Drilling diameter in concrete (max): 1.3 cm
Sound power level: 100 dB
Sound pressure level: 89 dB
Sound level uncertainty: 3 dB
Vibration level (concrete drilling): 11.5 m/s²
Vibration level (metal drilling): 2.5 m/s²

Power

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 2 Ah
Battery voltage: 18 V
Battery type: XR Li-Ion
Power source: Battery

Technical details

Uncertainty K: 1.5 m/s²

Weight dimensions

Width: 67 mm
Depth: 190 mm
Height: 203 mm
Weight: 1.6 kg

Packaging content

Battery included: Yes
Number of batteries included: 2 pc(s)
Battery charger included: Yes
Carrying case: Yes
Auxiliary handle: Yes
