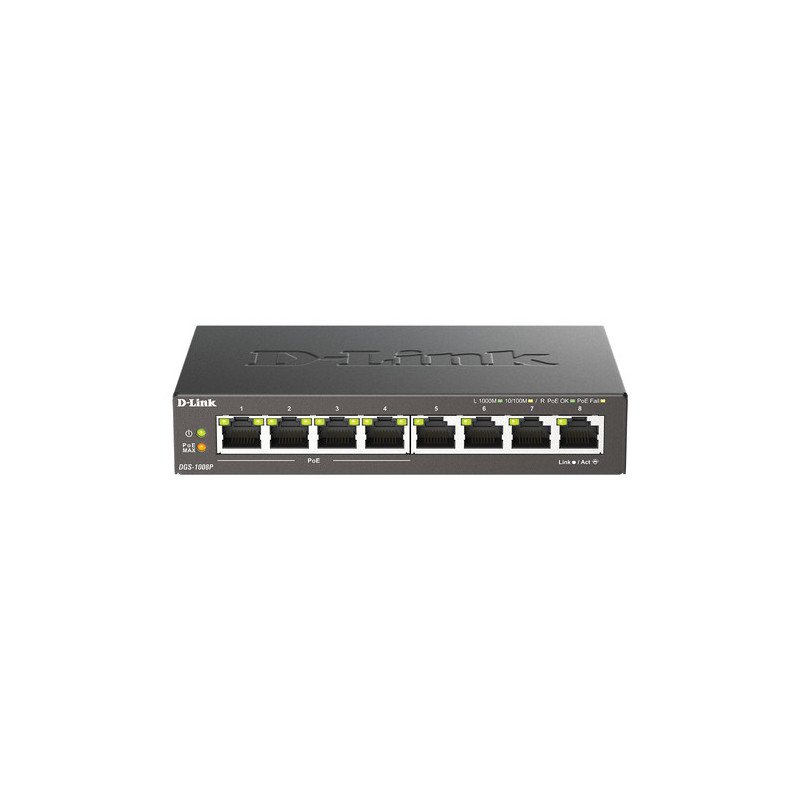

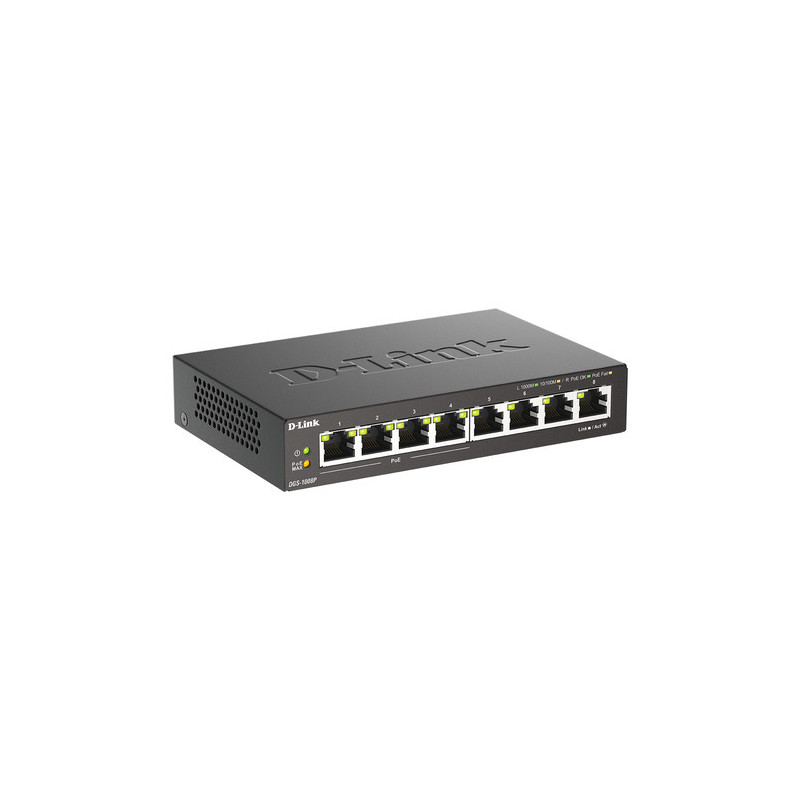

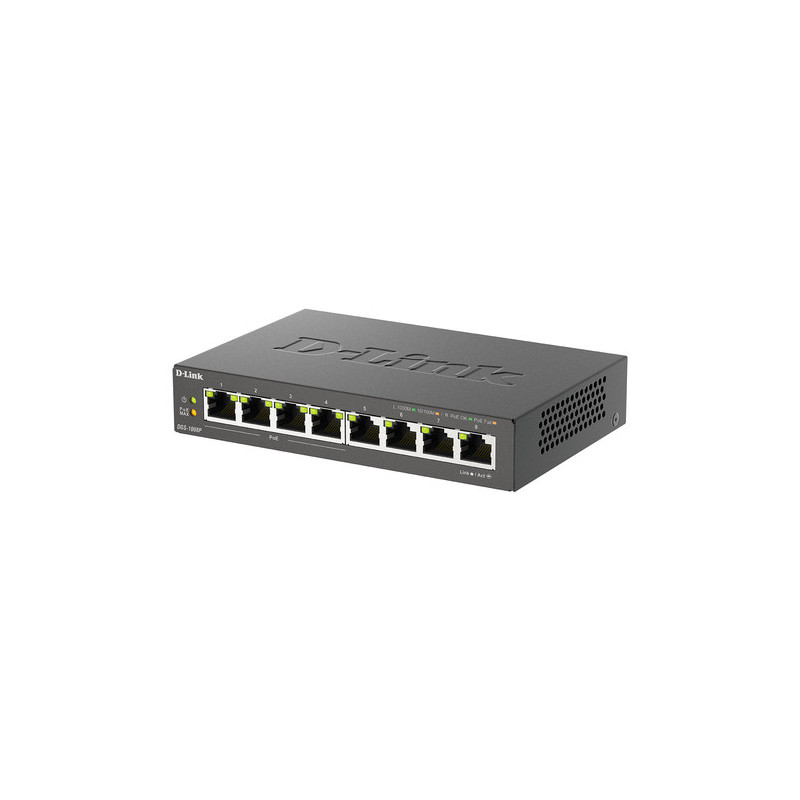

D-Link DGS-1008P

The 8-port gigabit PoE wireless desktop switch DGS-1008P allows users in homes and offices to easily connect to Power over Ethernet (PoE) powered devices, such as wireless access points (AP), IP cameras and IP phones, and to connect to seven other Ethernet devices, such as computers, printers and NAS (Network Attached Storage). This compact PoE switch, designed with household and small business users in mind, works quietly, making it ideal for use in virtually every room or office.
Power over Ethernet
DGS-1008P contains 4 ports 10/100/1000BASE-T, which support protocol IEEE 802.3at PoE. Each of the 4 PoE ports can deliver up to 30 watts with a total PoE budget of 68 watts, which allows users to connect devices compatible with IEEE 802.3at to the DGS-1008P without the need for additional power. PoE is suitable especially for devices that are far from electrical outlets, or if you want to minimize cable clutter. If the device is not compatible with PoE, the D-Link DWL-P50 PoE adapter can turn any regular Ethernet port into a PoE Ethernet port.
Excellent performance
No configuration is required and installation is quick and easy. Auto MDI/MDI-X support on all ports eliminates the need for crossed cables when connecting to another switch or router. The Auto-Negotiation function on each port detects the connection speed of the network device (either 10, 100 or 1000) and intelligently adapts compatibility to optimal performance. The switch was designed without fans, so you can operate it quietly wherever you install it. The DGS-1008P also includes diagnostic LEDs that display status and activity, allowing you to quickly detect and repair network problems. Thanks to the filtering of connection speeds, uploading and sending, the DGS-1008P also maximizes network performance while minimizing the transmission of faulty network packets. The 8-port Gigabit PoE wireless desktop switch, which combines the convenience of PoE, excellent performance and ease of use, is the ideal choice for connecting PoE devices to your home network or small business network.
Problem setting
The 8-port Gigabit PoE wireless switch is a Plug-and-Play device that does not require any configuration, so the setup is simple and hassle-free. However, setting the switch is only the beginning; you may want to share more computers, share files, music and video in a home or small office network, or even create a gaming environment for multiple players. Therefore, the company D-Link provides web support, which answers all your questions and helps you use your network in the best way. Nájdite oppusje na často kladené otázky, download si aktuativie produktov a lágňe spolá frívnívý tím kúzníckej supporti D-Link .
Compact and quiet

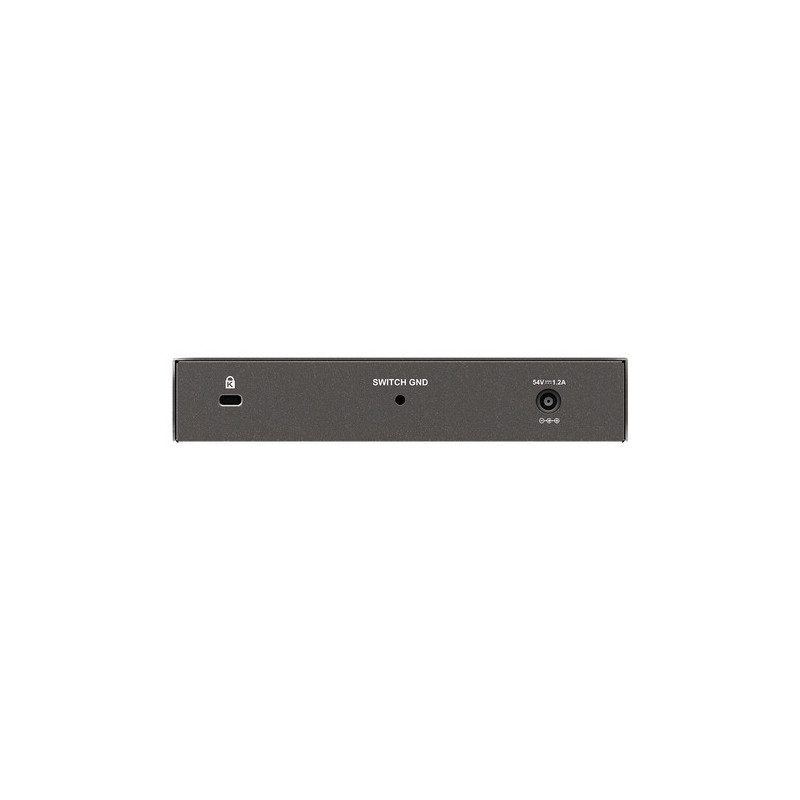

The DGS-1008P has a compact design, so you can place it in any easily accessible place so that it does not disturb you. The power connector and the port are located on the back of the switch, which allows for convenient connection of cables. The DGS-1008P does not use a fan, so the switch works quietly but effectively and allows you to watch movies streamed from the Internet or browse the web in a room without interruption.
B TECHNICAL SPECIFICATIONS
B FunctionsB
High-speed networks
*8 gigabit ethernet ports 10/100/1000 Mbps
*Full/Half-duplex over speed Ethernet/Fast Ethernet/Gigabit Ethernet
Reliability
* IEEE 802.3x flow control
*Schéma prepínania Store-and-forward
* RoHS compliant
Easy setup
*Plug-and-Play installation
*Automatic MDI/MDI-X crossover for all ports
*Porty placed comfortably on the rear side
* Noiseless operation
B Technical specificationsB
General
Norms
*IEEE 802.3 10BASE-T Ethernet (twisted pair)
*Automatic negotiation ANSI/IEEE 802.3 NWay
* IEEE 802.3x flow control
*IEEE 802.3u 100BASE-TX Fast Ethernet (krútená dvojlinka z medi)
Switching capacity
* 16 Gbps switching structure
Data transfer rates
*Ethernet
**10 Mbps (half duplex)
**20 Mbps (full duplex)
* Fast Ethernet
**100 Mbps (half duplex)
**200 Mbps (full duplex)
*Gigabit Ethernet
**2000 Mbps (full duplex)
Media interface replacement
*Automatic setting MDI/MDI-X for all ports
Network cables
*10BASE-T:
**UTP CAT 3/4/5/5e (max. 100 m)
**EIA/TIA-586 100-ohm STP (max. 100 m)
*100BASE-TX
**UTP CAT 5/5e (max. 100 m)
**EIA/TIA-568 100-ohm STP (max. 100 m)
*1000BASE-T
**UTP CAT 5/5e (max. 100 m)
**EIA/TIA-568 100-ohm STP (max. 100 m)
LED indicators
*Na device: Power supply / PoE Max
*Na porte: Aktivita / Link a Rykłosť
*On port: Power / Status
Transmission method
*Save and forward
MAC address table
*8,000 records per device
Filtrovanie paketov / transmission speed
*Ethernet: 14,880 bps per port
*Fast Ethernet: 148,800 pps per port
*Gigabitový Ethernet: 1,488,000 pps per port
RAM cache
*256 KB per device
PoE-enabled ports
*802.3af/802.3at PoE up to 30 watts per port (len ports 1-4)
PoE power budget
*68W
Physical
Dimensions
*190mm x 120mm x 38mm
DC input
