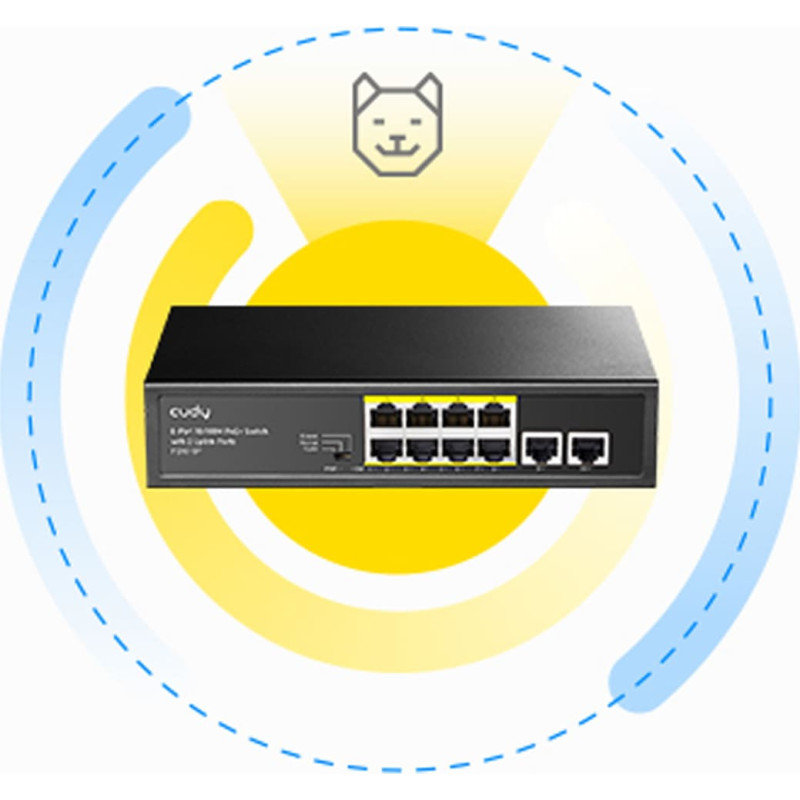

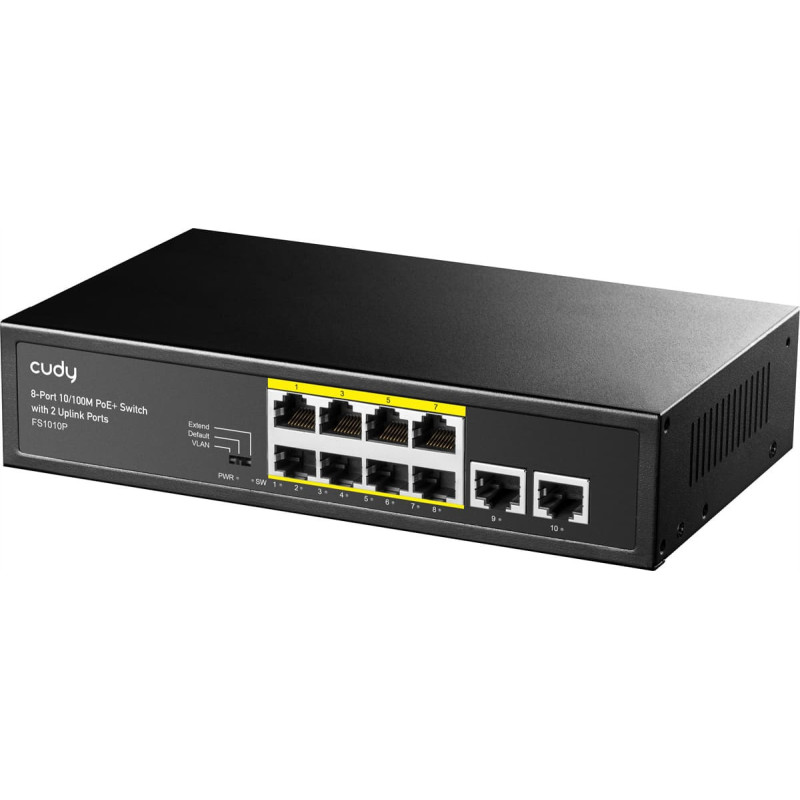

Cudy FS1010P network switch Fast Ethernet (10 / 100) Power over Ethernet (PoE) Black
Product reference:
3-6971690790974
Cudy FS1010P network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Cudy FS1010P network switch Fast Ethernet (10 / 100) Power over Ethernet (PoE) Black
Product reference:
3-6971690790974
Cudy FS1010P network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Technical details | |
|---|---|
| Products per shipping (inner) case | 16 pcs. |
| Design | |
| LED indicators | Power, PoE, Link, Activity |
| Product colour | Black |
| Housing material | Metal |
| Power | |
| Power source | AC |
| Power consumption (max) | 120W |
| AC input voltage | 100 - 240V |
| AC input frequency | 50/60Hz |
| Power consumption (typical) | 2W |
| Surge protection | Yes |
| Power supply included | Yes |
| Surge protection voltage | 4 kV |
| Operational conditions | |
| Operating relative humidity (HH) | 10 - 90% |
| Operating temperature (TT) | 0 - 40 °C |
| Storage temperature (TT) | -40 - 70 °C |
| Storage relative humidity (HH) | 5 - 90% |
| Management features | |
| Quality of Service (QoS) support | From |
| Cloud-managed | From |
| Weight dimensions | |
| Weight | 642 g |
| Height | 44 mm |
| Width | 200mm |
| Depth | 118 mm |
| Network | |
| Cable types supported | Cat4, Cat3, Cat5, Cat5e |
| Ethernet LAN data rates | 10,100 Mbps |
| Full duplex | Yes |
| Flow control support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3az, IEEE 802.3x, IEEE 802.3at |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| VLAN support | Yes |
| Half duplex | Yes |
| Performance | |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 50000 hours |
| Fanless | Yes |
| Packaging data | |
| Package weight | 1.02 kg |
| Package width | 249 mm |
| Package depth | 207 mm |
| Package type | Box |
| Package height | 60mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Ports interfaces | |
| Power connector | AC-in jack |
| Basic switching RJ-45 Ethernet port type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet port quantity | 8 |
| Uplink ports quantity | 2 |
| Other features | |
| Bandwidth | 2 Gbps |
| Warranty period | 1 year(s) |
| Data transmission | |
| Jumbo frames support | Yes |
| Jumbo frames | 1528 |
| Forwarding rate | 1.48 Mpps |
| Packet buffer memory | 0.25 MB |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 120W |
| Power over Ethernet plus (PoE+) port quantity | 2 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) port quantity | 8 |
| Power over Ethernet (PoE) power per port | 30W |
| Safety warning | |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling center in accordance with local regulations., Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself. |
