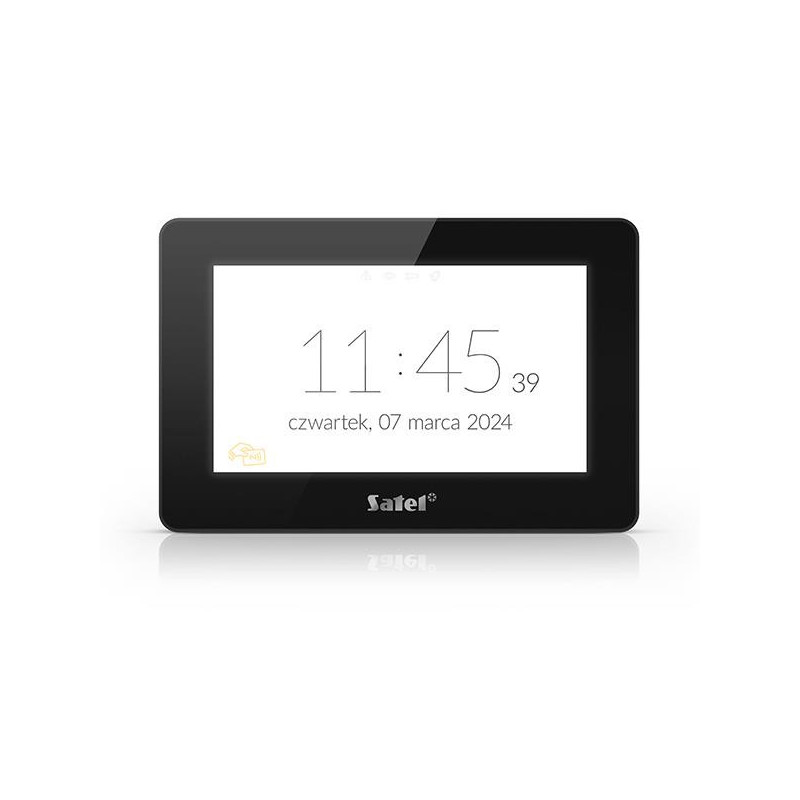

KEYPAD TOUCHSCREEN INTEGRA / MIFARE INT TSH2R-B SATEL

- 7" capacitive glass touchscreen with swipe gestures support

- 1024x600 screen resolution, 16.7 million colours (true colour)






- multi-level user customisable graphic interface

- up to 24 user screens






- customisable and adaptable interface screens


- more than 20 preset graphic themes


- custom themes support


- widgets for keypad operation, control of the alarm system and automation devices connected to the control panel


- system control via MACRO functions, which activate an entire chain of different commands (including building automation commands)


- quick activation of PANIC, FIRE, AND MEDICAL alarms


- integration with the INTEGRA (INTEGRA Firmware 1.20 or higher), VERSA (VERSA Firmware 1.10 or higher) and PERFECTA 64 M control panels


- screensaver with options to display clock, date, system component statuses (zones, doors, exits), and temperatures (INTEGRA, INTEGRA Plus, PERFECTA 64 M)


- option to display a slideshow (photo frame function)


- current system status notifications displayed on the taskbar


- built-in MIFARE® proximity card reader (13.56 MHz) (supported by INTEGRA and INTEGRA Plus control panels only):

- Ultralight CSN/SSN


- Classic CSN/SSN/MSN


- DESFire (EV1 / EV2 / EV3) CSN/MSN






- 2 programmable hardwired zones (INTEGRA and INTEGRA Plus only)

- support for NO and NC type detectors, as well as roller shutter and vibration detectors;


- support for EOL, 2EOL and 3EOL configuration (3EOL in with the INTEGRA Plus only);


- programming of end-of-line resistor values






- built-in speaker for acoustic signalling


- adjustment of acoustic signalling volume


- adjustable screen brightness with day/night mode


- built-in microSD memory card slot (for storing photo frame pictures, additional screen wallpapers and custom sounds for audible signals of zone violations - chimes)


- tamper contact responding to the enclosure opening or detaching from the wall


- available in white (INT-TSH2R-W) and black (INT-TSH2R-B) enclosure
