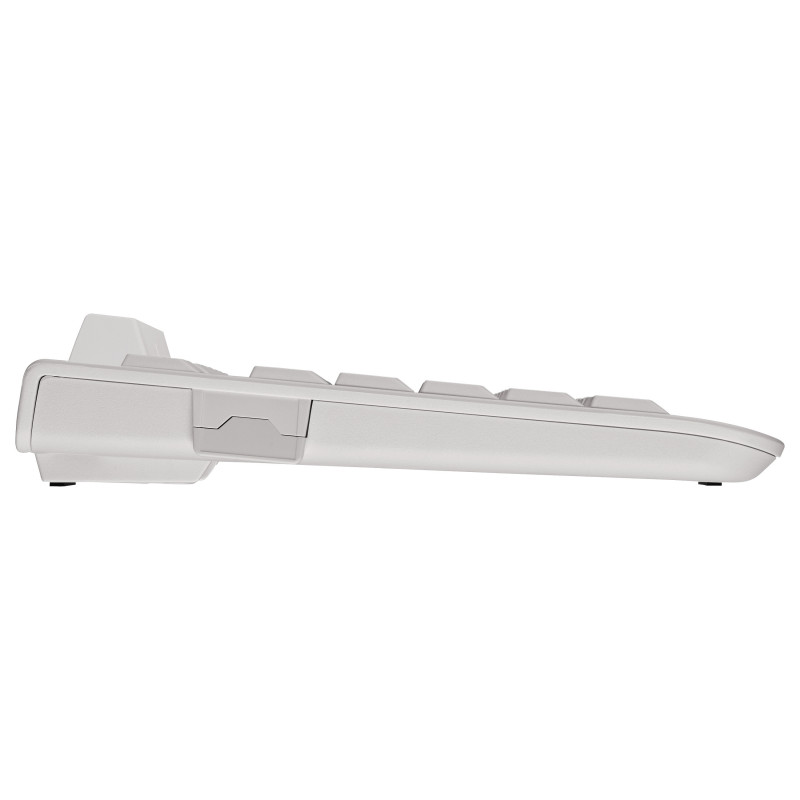

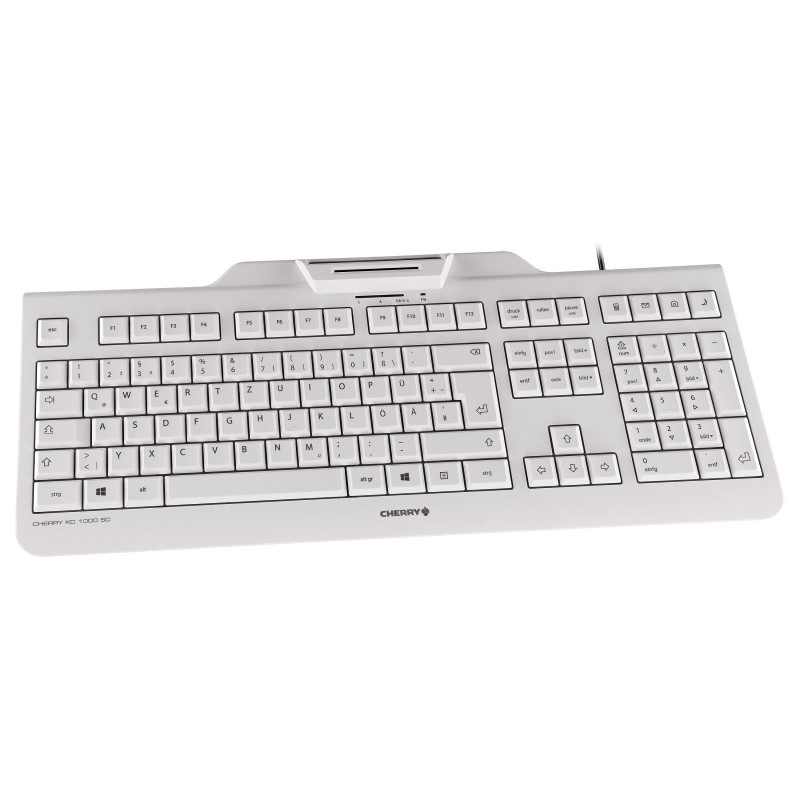

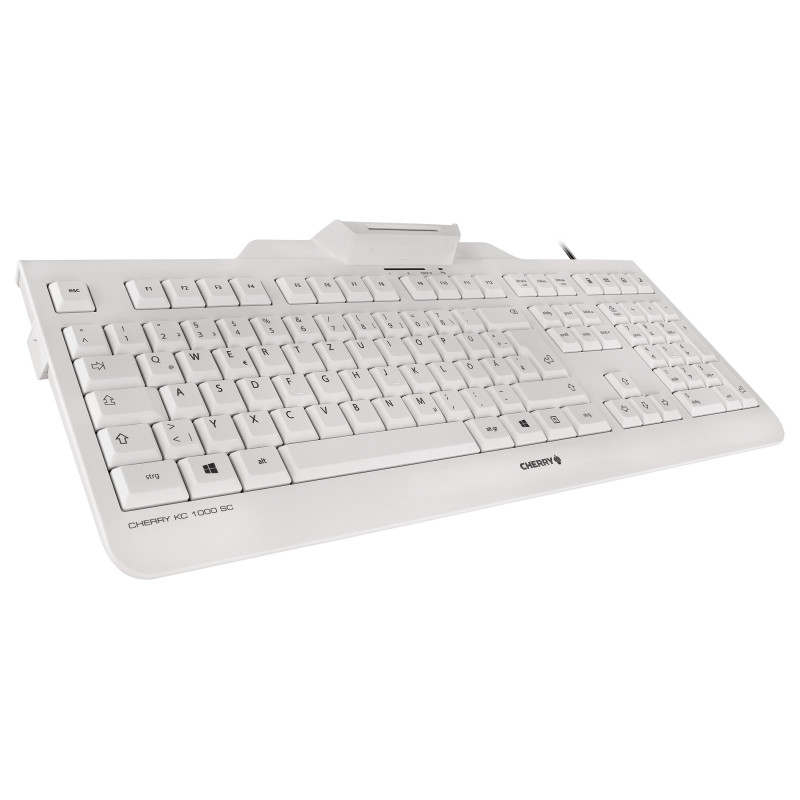

Contour Design KC 1000 SC keyboard

Contour Design KC 1000 SC. Keyboard form factor: Full-size (100%). Keyboard style: Straight. Connectivity technology: Wired, Device interface: USB, Keyboard layout: QWERTZ, Keyboard number of keys: 105. Cable length: 1.8 m. Recommended usage: Office. Product colour: Grey

- Smart, wired security keyboard with integrated chip card terminal.
- Secure PIN entry.
- PC/SC smartcard reader.
- Protocols: T=0, T=1, S=8, S=9, S=10.
- EMV 2000 Level 1 approved.
- CCID compatible.
- Reading/writing ISO 7816 compliant smartcards.
- Supports firmware update in the field (through flash controller).
- Flat design, low smart card contacting unit.
- Satisfies requirements defined by FIPS-201 (approval process ongoing).
- German version with DIN/GS compliant layout.
- Driver support for Windows/MacOS-X/Linux.
- One-handed operation of smart card module.
- German version complies with BGI 650 guidance for ergonomics.

Keyboard

Recommended usage: Office
Connectivity technology: Wired
Device interface: USB
Keyboard layout: QWERTZ
Keyboard language: German
Pointing device: No
Keyboard form factor: Full-size (100%)
Feature: Numeric keypad
Keyboard number of keys: 105
Keyboard keys operating life: 10 million characters
Feature: Windows keys
Feature: Hot keys
Number of hot keys: 4
Purpose: PC/Server
Feature: Smart card reader
Certification: cURus, VDE GS, c-tick, VCCI, CE, FCC

Design

Keyboard style: Straight
Product colour: Grey
Surface coloration: Monochromatic

Features

Cable length: 1.8 m

Power

Power source type: USB
Power consumption: 100 mA

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 65 °C

Weight & dimensions

Keyboard dimensions (WxDxH): 458 x 188 x 46 mm
Keyboard weight: 840 g

Packaging data

Package width: 472 mm
Package depth: 232 mm
Package height: 55 mm
Package weight: 1.15 kg
Package type: Box

Packaging content

Feature: User guide

Logistics data

Harmonized System (HS) code: 84716060
Products per master (outer) case: 56 pc(s)
