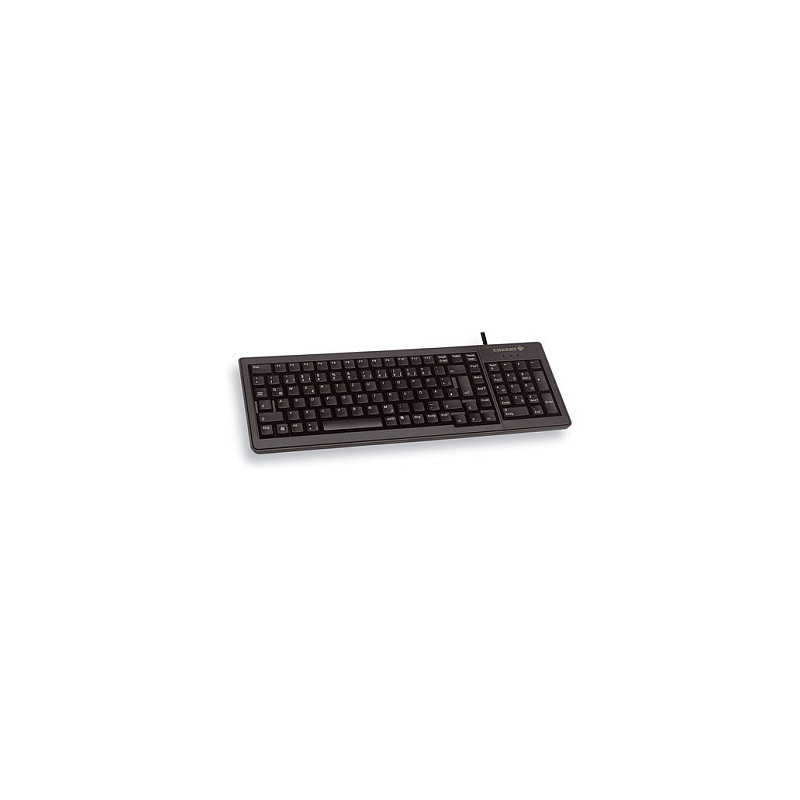

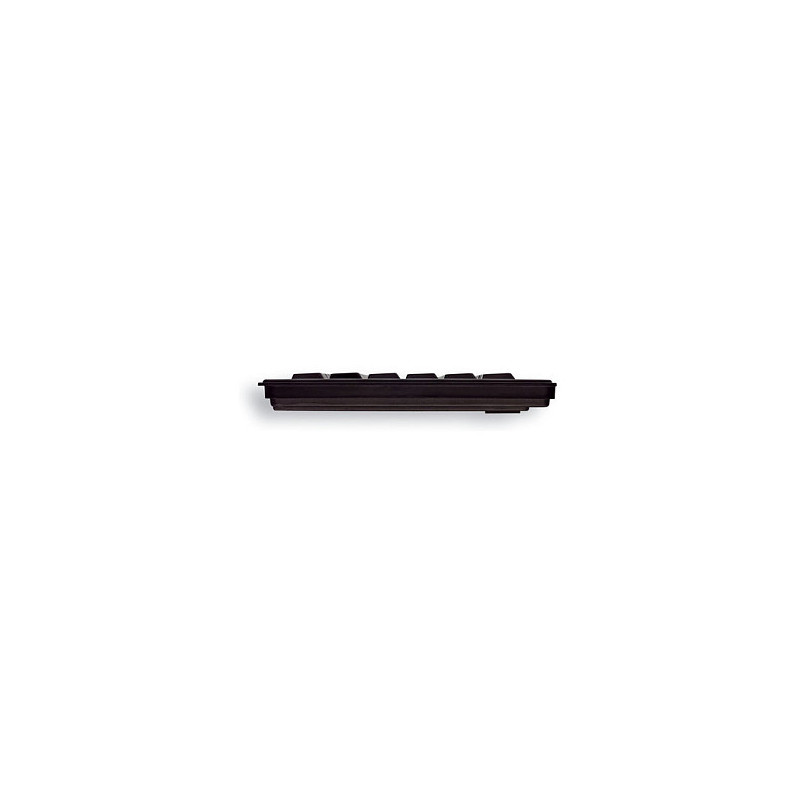

CHERRY XS Complete keyboard

CHERRY XS Complete. Keyboard form factor: Full-size (100%). Keyboard style: Straight. Connectivity technology: Wired, Device interface: USB, Keyboard layout: QWERTZ, Keyboard number of keys: 104. Cable length: 2.5 m. Recommended usage: Universal. Product colour: Black

The compact keyboard "XS Complete" (G84-5200) offers a full keyboard layout complete with number block and is ideal for all applications with limited space and requiring frequent number entries.

- Complete layout with numeric keypad. Ideal for applications requiring the frequent input of figures
- High degree of reliability and precise keystroke feel thanks to individual keys with Gold Crosspoint contacts (Cherry ML technology)
- Ideal for continuous usage due to the long operating life in excess of 20 million key confirmations per individual key
- Compact dimensions and very low overall build height, ideal for restricted spaces and for 19" applications
- Standardised measurements and installation dimensions of the complete XS product family - the keyboard can be adapted to every application
- Lightweight - for applications where every gram counts
- Plug & Play - can be used with the operating system's standard drivers
- Supports Code Set 3 and UnifiedPOS
- Fastening option for permanent installation
- Detachable pluggable feet for individually adjusting the tilt of the keyboard
- Freely programmable keys for even more time-saving operation

Keyboard

Recommended usage: Universal
Connectivity technology: Wired
Device interface: USB
Keyboard layout: QWERTZ
Keyboard language: German
Pointing device: No
Keyboard form factor: Full-size (100%)
Feature: Numeric keypad
Keyboard number of keys: 104
Keyboard keys operating life: 20 million characters
Feature: Windows keys
Feature: Programmable hot keys
Purpose: Universal
Certification: cURus, c-tick, VCCI, CE, FCC, VDE, BSMI

Design

Keyboard style: Straight
Product colour: Black
Surface coloration: Monochromatic

Features

Cable length: 2.5 m
Feature: Plug and Play

Power

Power consumption: 25 mA

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Keyboard dimensions (WxDxH): 374 x 139 x 18 mm
Keyboard weight: 550 g

Packaging data

Package width: 393 mm
Package depth: 196 mm
Package height: 33 mm
Package weight: 680 g

Packaging content

Interface adapters included: USB female - PS/2 male
Feature: User guide

Logistics data

Harmonized System (HS) code: 84716060
Products per master (outer) case: 21 pc(s)
Master (outer) cases per pallet: 12 pc(s)
