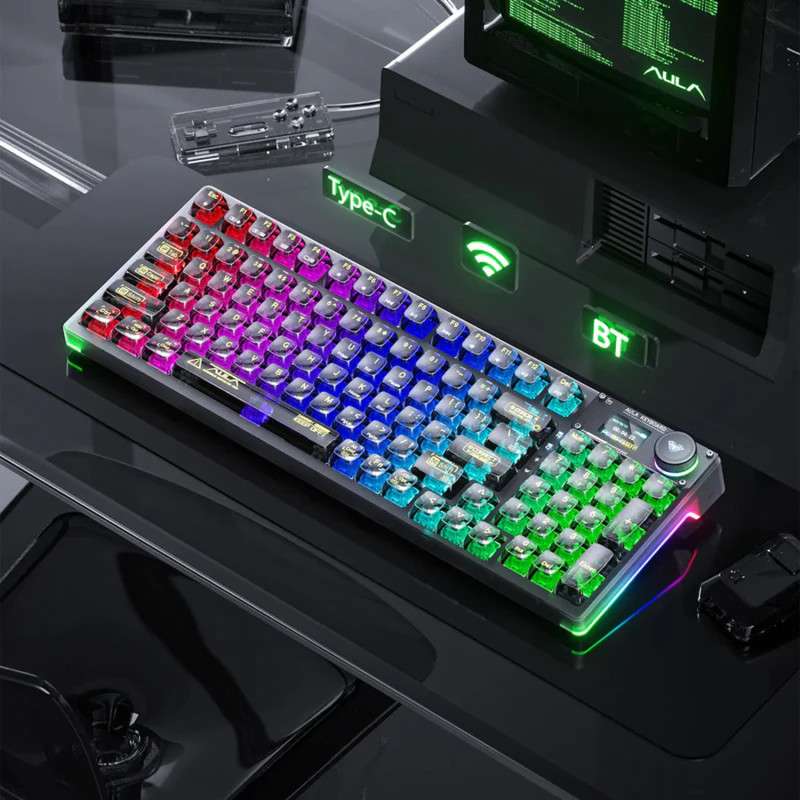

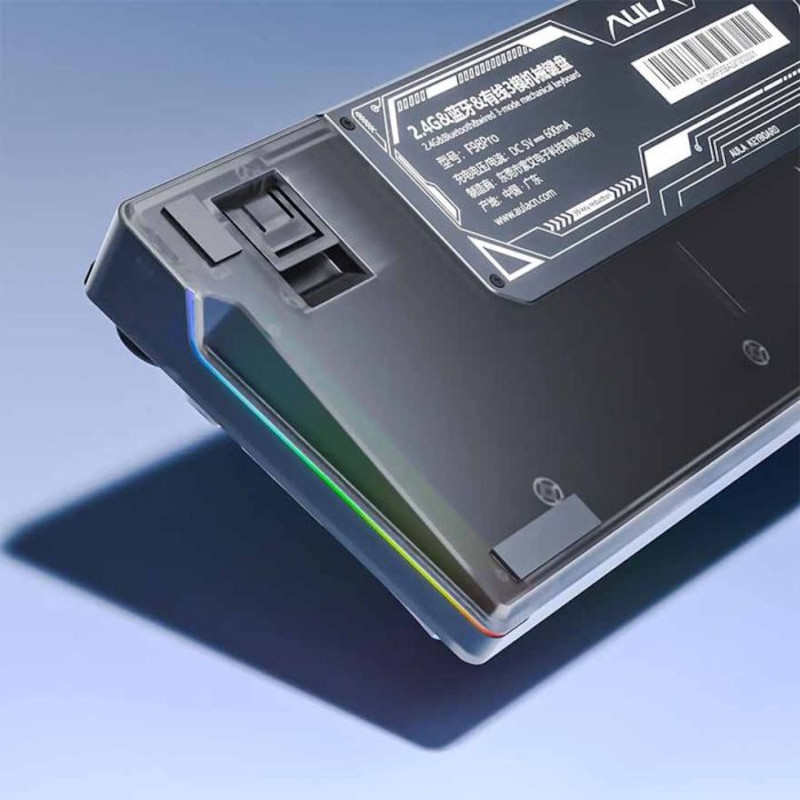

Aula F98 Pro Wireless & Bluetooth 99 Keys 3In1 Hot-Swappable Mechanical Keyboard Black

Supports three connection modes, switching between wired and wireless modes, and supports multi-platform operations such as WIN/Mac/IOS/Android, without the need for complex operations, allowing for:

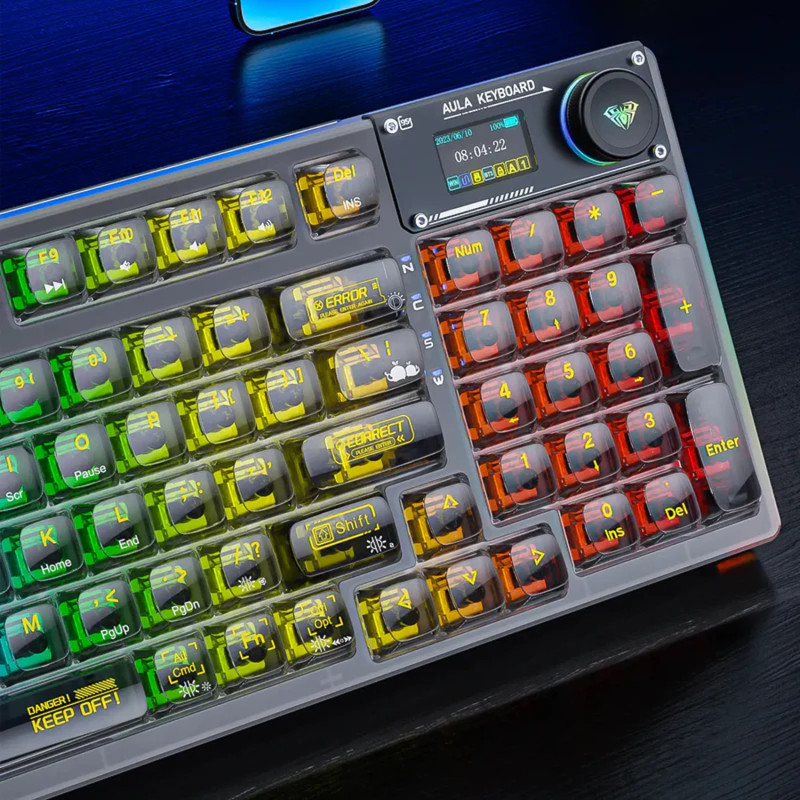

• Keyboard LCD screen with time and calendar display. If the bottom power switch is turned off during Ex-factory or normal use, it is necessary to turn on the power switch and use the driver to calibrate the time and calendar.
• The LCD screen on the keyboard displays the amount of electricity charged, and the charging and remaining electricity levels are clear at a glance.

Wired connection

• The knob on the LCD screen menu 'Connection Method' to wired mode. The screen displays 'USB mode, please connected USB cable'. If the USB is inserted within 5s, it displays 'USB connection successful', and if it is not inserted, it displays 'USB connection failed'. After successful connection, the corresponding icon on the main menu of the LCD screen will also be highlighted.

2.4G connection

• Scroll the LCD screen menu with the knob 'Connection Method' to 2.4G mode. Short press the knob to select the screen display '2.4G reconnection', long press the knob 5S to display '2.4G pairing' on the screen, and insert the receiver screen to display '2.4G pairing successful'. The device is successfully matched. Note that when connecting to 2.4G, search first and then plug in the receiver. The factory default code has been checked, and the corresponding icon on the main menu will also be highlighted.

BT mode connection

BT mode BLE5.1, can connect 3 devices:

• Scroll to the LCD screen menu 'Connection Method' to BT 1 (device name "AULA-F98Pro-1") with the knob, press and hold the knob to select the screen display 'BT1 Returning', long press and hold the knob 5S to display 'BT1 Pairing', the successful connection screen display 'BT1 Pairing Successful', and the corresponding icon on the main menu of the LCD screen will also be highlighted.

• Scroll to the LCD screen menu 'Connection Method' to BT 2 (device name "AULA-F98Pro-2") with the knob, press the knob to select the screen display 'BT2 Returning', long press and hold the knob 5S to display 'BT2 Pairing', the successful connection screen display 'BT2 Pairing Successful', and the corresponding icon on the LCD screen main menu will also be highlighted.

• The knob scrolls LCD screen menu 'Connection Method' to Bluetooth 3 (device name "AULA-F98Pro-3") with the knob to select the screen and it will display 'BT3 reconnection in progress'. Long press the knob for 5S the screen will display 'BT3 pairing in progress'. If the connection is successful, the screen will display 'BT3 pairing successful'. The corresponding icon on the main menu of the LCD screen will also be highlighted.

System switching

On the LCD screen, enter "System Switching". There are four systems to choose from: "WIN", "MAC", "IOS", and "Android". After switching to the Mac/IOS system, the left WIN/left ALT positions are swapped, and the Mac/IOS/Android does not lock WIN.

Light mode

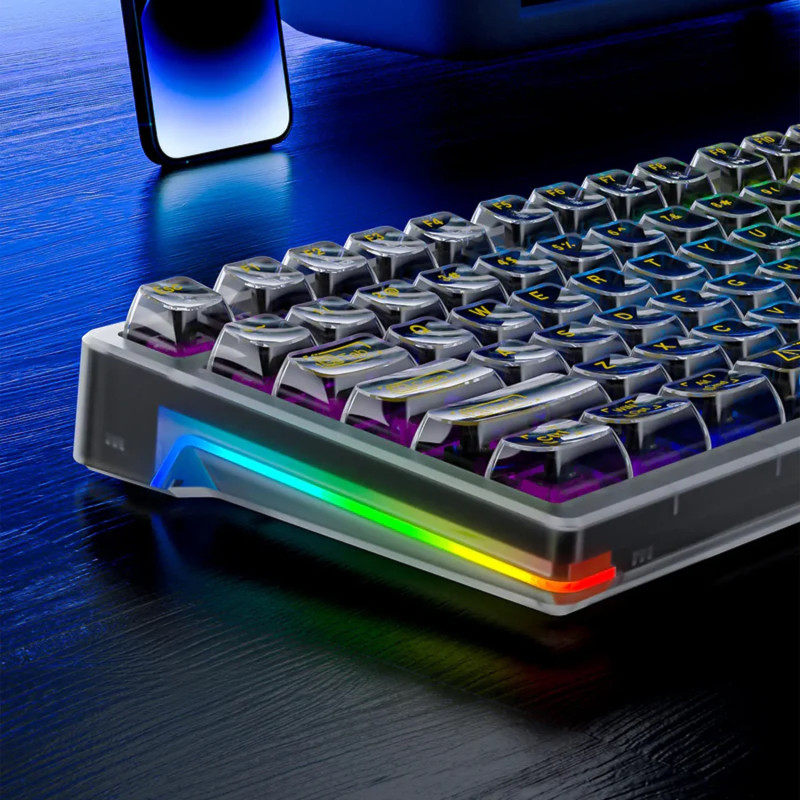

• Scroll to the 'Light Color' mode on the LCD screen to switch between RGB, red, green, yellow, green, blue, purple, and white.
• Scroll to the 'Light Brightness' mode on the LCD screen and switch to 5 levels of brightness, each level being 20%. Rotate the knob clockwise to adjust the brightness to each, and counterclockwise to adjust the brightness lower.
• Scroll to the 'Light Rate' mode on the LCD screen and switch to 5 speeds, with each speed being 20%. Rotate the knob clockwise to rotate the light speed+ and counterclockwise to rotate the light speed-.

Modulation

• Scroll to the 'Volume Adjustment' mode on the LCD screen to increase the volume clockwise and decrease it counterclockwise, and the corresponding volume icon will flash.

Custom Picture

• Scroll to a custom image on the LCD and use the driver to customize the image.
