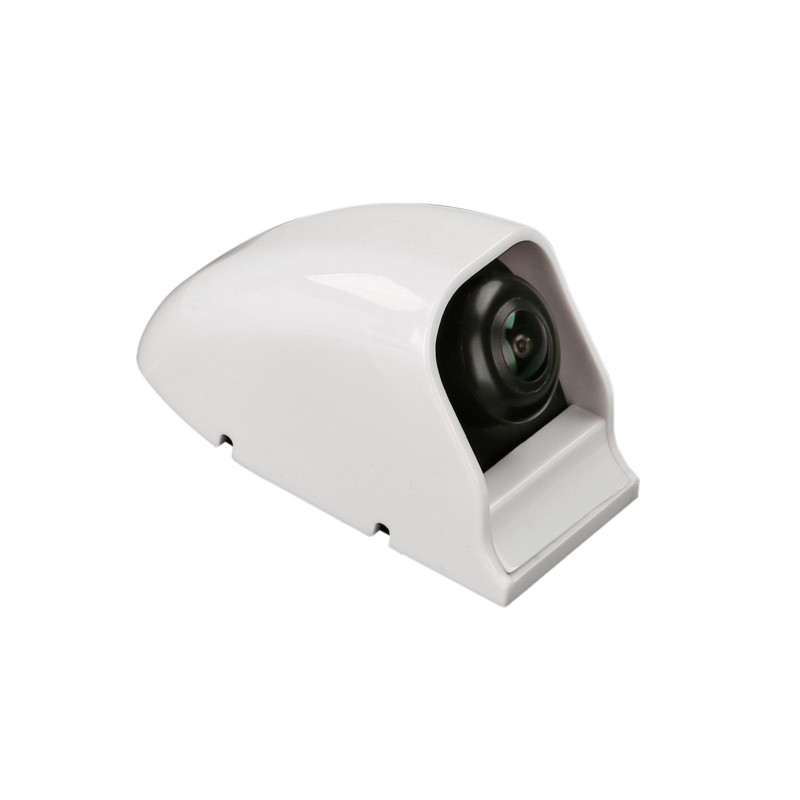

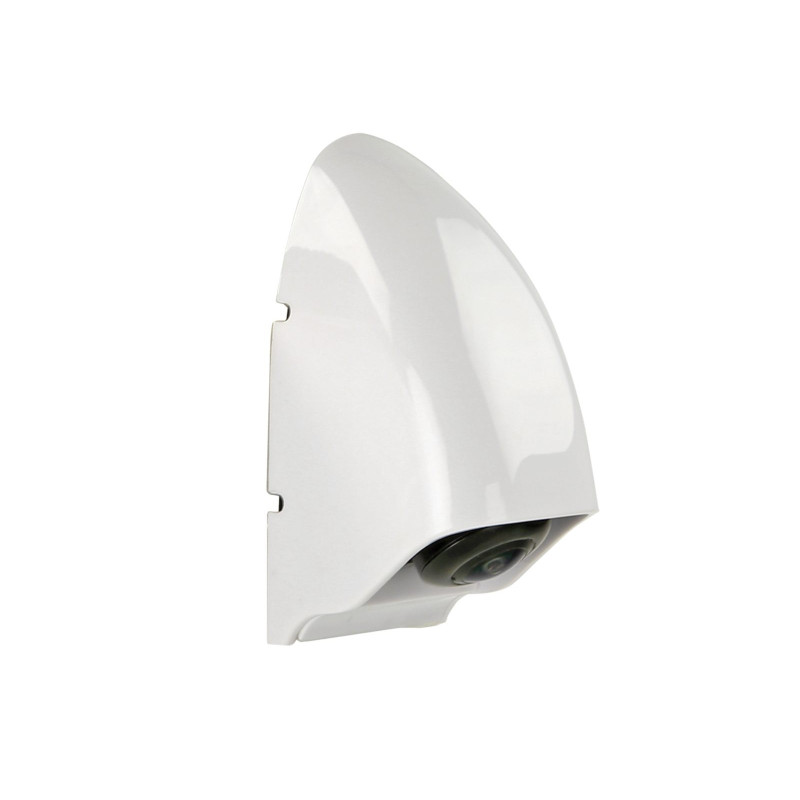

Kamera cofania do furgonetki / samochodu kempingowego w kształcie łezki, biała.

Universal reversing camera

• Project: Transporter / Camper
• Installation: teardrop shape for built-in installation
• Glass lens

Attention:

• All ACV cameras are designed for continuous +12V operation
• Before installation > check the viewing angle and installation of the cameras at the mounting location using a test monitor
• Camera operating voltage: + 3V
• Camera power supply voltage: +12V / +24V
• Connection without a +3V base converter in the supply range will damage the cameras
• Connection:
• fuses: +12V / +24V
• black: ground directly/GND
• Cinch (m) yellow: video

Product characteristics:

• Material: plastic / metal
• Color white
• Accessories: teardrop shape
• Image sensor: 1/3" CMOS
• Television system: NTSC color
• Effective pixels: 960 x 480
• Lens: F 2.8
• Lux: 0.3 lux
• Resolution: 600 TV lines CVBS D1
• Lens angle: 120° (diagonal)
• Viewing angle: horizontal 150° vertical 110° + 5°
• IP protection class: IP 68
• Terminal: 4-pin mini plug (male) 5.2mm
• Power supply: +12DC + 10%
• Power consumption: 60 max.
• Operating temperature: -20°C - 70°C

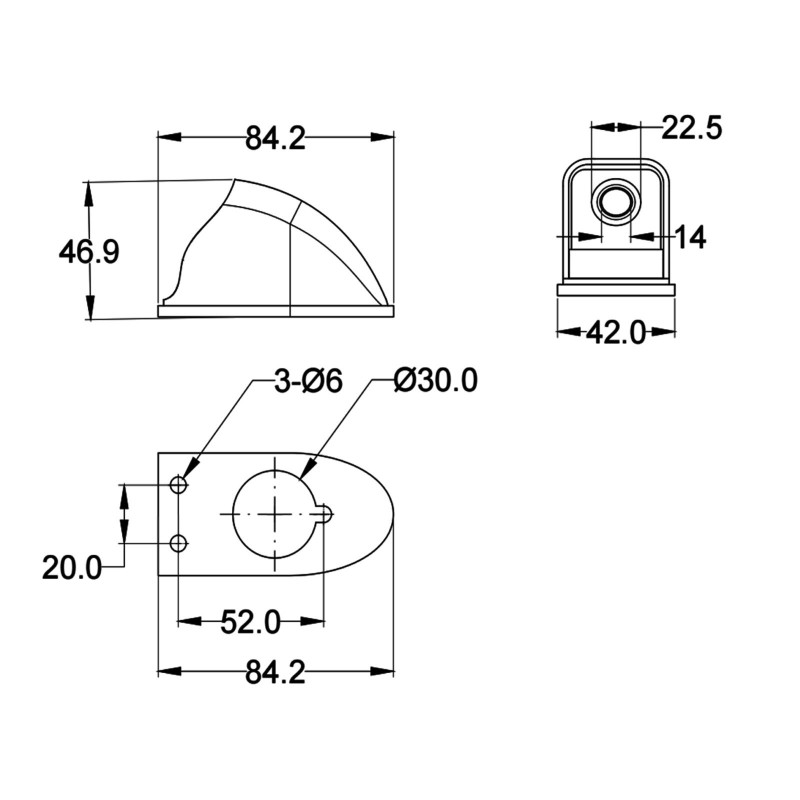

• Dimensions: (with handles) L / W / H / 84.2mm / 42mm / 46.9mm

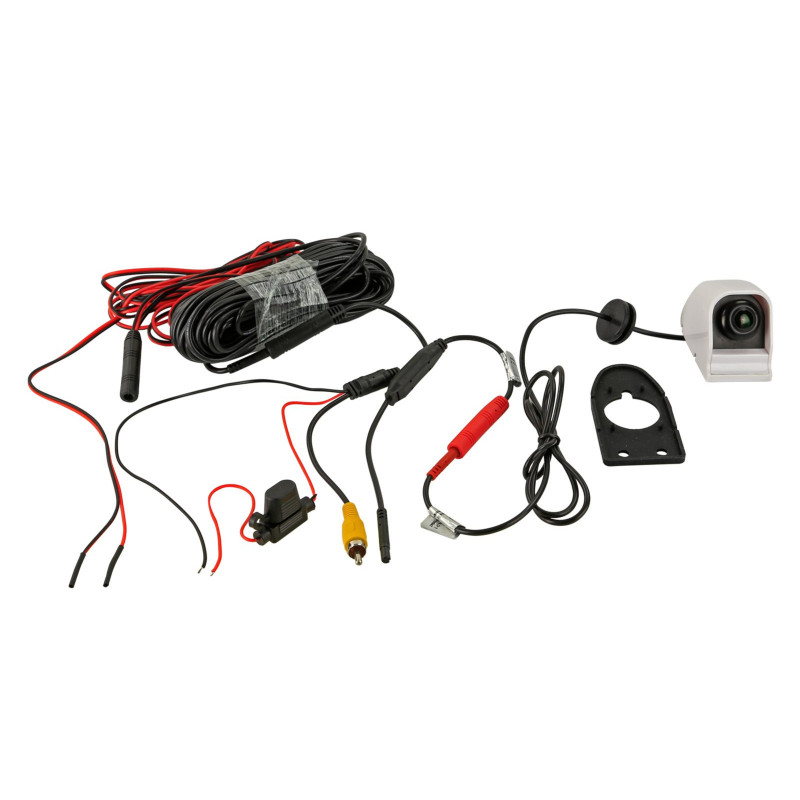

Cables in the camera:

• 3 meter cable with 8-pin mini (male) 7 mm plug with 1 jumper
• 15-meter extension cable with a 3-meter power cable for connection to the reversing lights and an insert cable for connection when powered from the device;
• 4-pin mini plug (female) 10 mm and plug (male) 5.2 mm
• 0.2 meter power cable harness with fuse and video connector (RCA)

Installation accessories:

• Connecting the camera to the interfaces Solid state relay closed 2V-12V/1.5A max: 40-AD-REMOTE
• Camera connection to the reversing light Reversing camera voltage regulator, reverse gear switch signal: 771000-6100

Optional accessories:

• 771000-63055 m extension cord
• 771000-631010 m extension cord
• 771000-631515 m extension cord

Universal Transporter, Camper Van reversing camera with guide lines and night vision function - comfort while driving is essential!

Every driver knows that even the simplest maneuvers can cause a lot of problems. Although reversing doesn't seem particularly difficult, sudden collisions with curbs can be a real challenge! How can we deal with this problem? Contrary to popular belief, the answer is incredibly simple. All you need to do is decide to purchase what we've prepared for you. The universal Transporter, Camper Van reversing camera with guide lines and night vision is the perfect product for every driver!
