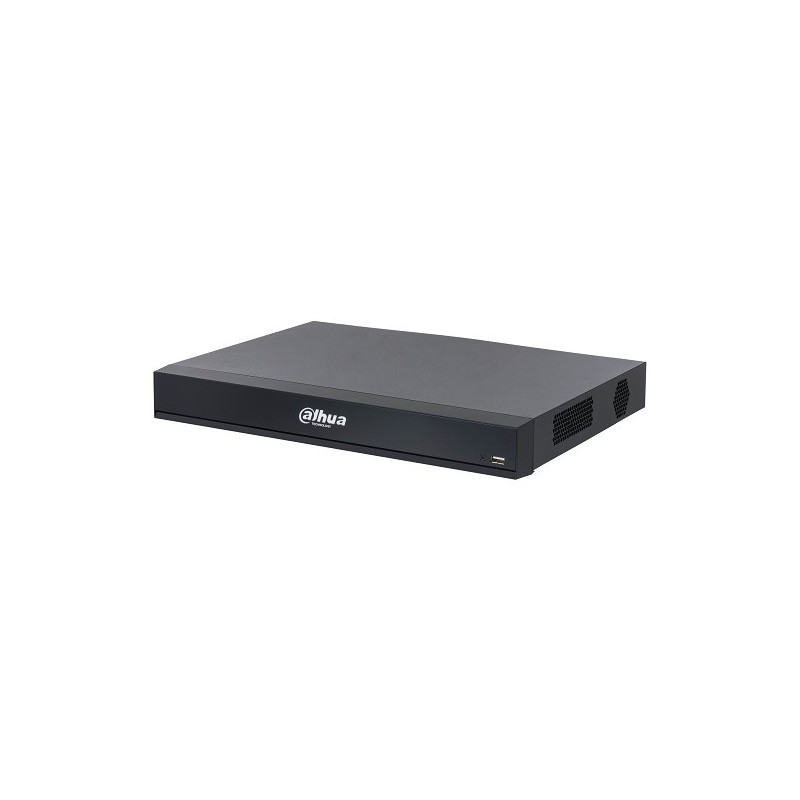

IP recorder NVR5208-EI, 8 cameras, 32MP, 2HDD, 512Mbps, IVS

IP recorder NVR5208-EI, 8 cameras, 32MP, 2HDD, 512Mbps, IVS8-channel video recorder, recording resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, unlimited number of frames, maximum data rate up to 512Mbps, Smart H.265+/H.265/Smart H.264+/H.264/MJPEG, 2HDD x20TB, 1-ch. VGA, 1-ch. HDMI (up to 3840×2160), RS-485 connector (for connecting managed cameras), IVS functions, SMD Plus, POS systems; face capture function, face recognition function, AI (Artificial Intelligence). Supports ONVIF23.06 (Profile T/S/G); CGI; SDK standard. Model: DH-NVR5208-XI.Brief technical characteristics:

• Digital 8-channel IP recorder 32Mp 512Mbps.


• The NVR5000-EI series devices feature exceptional performance and high-quality recording technology, making them ideal for IP video surveillance applications. The AI ​​chip and Dahua (Deep Learning) algorithms support high-precision face recognition and perimeter protection. Shortened event response times make images interactive. Wide compatibility with third-party devices is suitable for surveillance systems working with video management software (VMS).


• AcuPick - Uses deep learning algorithms to perform accurate searches in live and recorded videos.


• The industrial-grade processor provides transfer bandwidth and strong decoding capabilities for uninterrupted streaming.


• AI features through the recorder: face detection; face recognition; perimeter protection; SMD.


• AI features via camera: face detection; facial recognition; video metadata; perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; vehicle density; heat map.


• Number of AI channels: 8-channel face detection and recognition (8 channels per camera); 8-channel perimeter protection with 10 IVS per channel (8 channels per camera); 8-channel SMD Plus (8 channels per camera); AI Video Metadata (8 channels per camera).


• ANPR number plate capture function (8 channels per camera; 20,000 license plate database; block/allow lists).


• IVS functions: line crossing, perimeter intrusion, image change, missing object detection, appearing object detection (works with cameras that have the IVS function).


• Image metadata: people, motor vehicles, and non-motor vehicles.


• Convenient graphical user interface. Linux software, GUI system.


• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG Video Compression Technology.


• Audio compression: PCM; G.711A; G.711U; G.726.


• The following operations are performed simultaneously: recording, live video display, recording playback, recording copying, device control, and remote access via the network.


• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.


• Free software for device control, video viewing and archiving using a computer network or the Internet.


• Free program for monitoring via mobile phone or handheld computer, tablet (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, KINDLE FIRE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc.


• Resolution: 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3MP; 1080p; 720p; D1; CIF; QCIF.


• Network bandwidth without AI: 512 Mbps for access, 512 Mbps for storage, and 512 Mbps for upload.


• Network bandwidth with AI: 200 Mbps for access, 200 Mbps for storage, and 200 Mbps for forwarding.


• Decoding without AI: 2 chan. x32MP@25fps; 2 can. x24MP@25fps; 4 can. x16MP@25fps; 5 can. x12MP@25fps; 8 Kan. x8MP@25fps.


• Decoding with AI: 1 channel x32MP@25fps; 1 can. x24MP@25fps; 2 can. x16MP@25fps; 4 can. x12MP@25fps; 6 Kan. x8MP@25fps; 8 Kan. x6MP@25fps.


• Max IP camera inputs 8.


• Automatic search for IP cameras.


• Supported IP cameras: Dahua, Arecont Vision, AXIS, CANON, Dynacolor, Panasonic, Brickom, Vivotek, Honeywell, Sunell, CP Plus, CNB, Tyco, Surveon, Shany, PELCO, Bosh, SAMSUNG, Sanyo, Sony, ONVIF23.06.


• HDMI connector: 1pc. 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720.


• VGA connector: 1pc 1920 × 1080, 1280 × 1024, 1280 × 720.


• Screen division: main screen 1/4/8/9, second screen 1/4/8/9.


• Recording playback channels: 1/4/9 synchronous playback.


• Hard drive: Max. 2 pcs. SATA drives.


• Maximum capacity of one HDD: 20TB.


• HDD management: HDD group, HDD hibernation technology.


• USB port: 2 pcs. (1x USB2.0, 1x USB3.0).


• Recording copying: USB/network.


• RS-485 connector 1 pc. (for connecting controlled cameras).


• RS-232 connector 1 pc. (for connecting a keyboard or a computer).


• 10/100/1000 Mb/s network socket 1 pc. (Ethernet RJ-45) for connecting to the Internet.


• Network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, CIS, etc.); ISCSI; ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK (supports Dahua IP cameras, DVR, CIS and more).


• P2P iCloud technology (IE): Does not require a static IP address, no need to open ports.


• Control options: LAN, remote control, front control panel, computer mouse.


• Programmable recording schedule (time/date, motion detection, continuous, schedule).


• Recording modes: Manual, MD (motion detection, privacy masking), Anomaly alarm (camera not connected; storage error; disk full; IP conflict; MAC conflict; login blocking; abnormal fan behavior; cybersecurity exception), Alarm, Smart, POS.


• Motion detection: with programmable areas and sensitivity for each channel.


• Smart alarm: face detection; perimeter protection; face recognition; image metadata (people, motor vehicles and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map.


• Alarm transmission methods: recording; snapshot SNAPSHOT (panoramic); local alarm output; IPC external alarm output; access control; sound; BUZZER; log, according to preset; e-mail (sends photo).


• Record search: by date/time or events (e.g. motion detection, alarm).


• Smart preview search function.


• Playback functions: instant playback, general playback, event playback, tag playback, smart playback (face and motion detection).


• OSD: Camera name, time, video loss, motion detection, recording.


• Hidden camera option, camera lock option.


• Setting color, brightness and contrast for each IP camera.


• Other functions: Pre- and post-alarm recording, camera name setting.


• Unlimited number of users (possibility to grant different rights to each user).


• Time synchronization: automatic.


• Automatic summer/winter time adjustment.


• System recovery after power failure.


• Ability to update IP camera firmware via NVR.


• Alarm inputs: 4.


• Alarm outputs: 2.


• Two-way conversation.


• Audio input: 1 channel RCA.


• Audio output: 1 channel RCA.


• Power supply: 12V DC, 4A.


• Power consumption: 10W (without HDD).


• Humidity 10~93%RH (non-condensing).


• Operating temperature: -10°C ~ +55°C.


• Weight: 1.56kg without hard drive.


• Dimensions: 1U, 375.0 mm × 282.9 mm × 56.0 mm.
