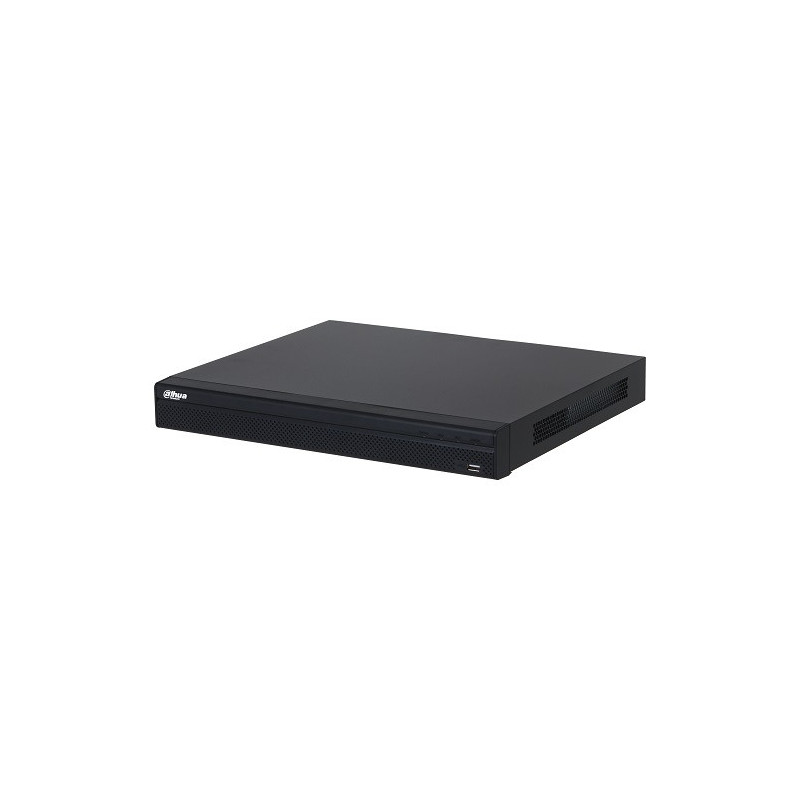

IP recorder 8 cameras 4K 12MP, 2HDD, H.265, 8 PoE interfaces, 160Mbps

Short description:

• 8-channel IP camera 4K video recorder.


• Integrated PoE hub - 8 PoE interfaces.


• Available recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF, QCIF.


• Maximum data rate up to 160Mbps.


• Compression H.265+/H.265/Smart H.264+/H.264/MJPEG.


• 2HDD up to 20TB available. 1-Can. VGA, 1-channel HDMI (up to 3840×2160). SMD Plus.


• Supports ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK standard.


• Model: NVR4208-8P-4KS3.

Brief technical characteristics:• Digital 8-channel IP recorder 12Mp 160Mbps. • Integrated PoE hub - 8 PoE interfaces, 10/100Mbps, IEEE802.3 af/at standard (25.5W for each camera), the ability to connect power to 8 cameras. • High-quality industrial-class processor. • AI functions via recorder: SMD Plus. • AI functions via camera: face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; heat map. • Number of AI channels: face detection and recognition - 6 channels only via camera; perimeter protection - 6 channels only via camera; 4 channels SMD Plus via recorder (6 channels per camera). • IVS functions: line crossing, perimeter intrusion, image change, missing object capture, appearing object capture (works with cameras that have the IVS function). • User-friendly graphical user interface. Linux software, GUI system. • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG Video Compression Technology. • Audio Compression: PCM; G.711A; G.711U; G.726. • Simultaneously perform the following operations: recording, live video display, recording playback, recording copy, device management, remote access via network. • Remote management and live monitoring via Ethernet (WEB): IE9 or later version, Chrome, Firefox, Safari, Edge. • Free software for device management, video playback and archiving using a computer network or the Internet. • Free program for monitoring via mobile phone or handheld computer, tablet (DMSS mobile phone surveillance software) suitable for phones: Sybian, iPhone, Windows Mobile, Windows Phone 8, Kindle Fire, Blackberry, Android, iPad, Galaxy TAB, etc. • Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF, QCIF. • Network bandwidth: 160 Mbps for access, 160 Mbps for storage and 80 Mbps for transmission. • Decoded camera resolution without AI: 1 ch. x12MP@25 fps; 2 ch. x8MP@25 fps; 3 ch. x5MP@25 fps; 4 ch. x4MP@25 fps; 8 ch. x1080p@25 fps. • Decoded camera resolution with AI: 1 ch. x12MP@25 fps; 1 ch. x8MP@25 fps; 2 ch. x5MP@25 fps; 3 ch. x4MP@25 fps; 7 ch. x1080p@25 fps. • Max IP camera inputs 8. • Automatic IP camera search. • Supported IP cameras: Dahua, Arecont Vision, AXIS, CANON, Panasonic, PELCO, Bosh, SAMSUNG, Sanyo, Hanwha, Sony, ONVIF22.12. • HDMI connector: 1pc. Resolution: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720. • VGA connector: 1pc. Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720. • Screen division: main screen 1/4/8/9, second screen 1/4/8/9. • Recording playback channels: 1/4/8. • Audio input: 1 channel RCA. • Audio output: 1 channel RCA. • Alarm inputs: 4. • Alarm outputs: 2 (12V, 1A). • Hard disk: max. 2 pcs. SATA disks. • Maximum capacity of one HDD: 20TB. • USB port: 2 pcs. (1+1 xUSB2.0). • Recording copying: USB 2.0 / network. • 10/100/1000 Mb/s network socket 1 pc. (Ethernet RJ-45) for connecting to the Internet. • Network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (supports Dahua IP cameras, DVR, NVS and others); ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK. • P2P iCloud technology (IE): No need for a static IP address, no need to open ports. • Control options: LAN, remote control, front panel of the device, computer mouse. • Recording modes: General, motion detection; smart; alarm. • Smart alarm: face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; heat map. • General alarm: Motion detection; privacy masking; video loss; scene change; PIR alarm; IPC external alarm. • Anomaly alarm: camera disconnection; storage error; HDD full; IP conflict; MAC conflict; login blocked; cybersecurity exception. • Alarm transmission methods: recording; snapshot SNAPSHOT (panoramic); IPC external alarm output; sound; buzzer; log, by preset; e-mail (send photo). • Record search: by date/time or events (e.g. motion detection, alarm). • Playback functions: instant playback, general playback, event playback, tag playback, smart playback. • OSD: Camera name, time, video loss, motion detection, recording. • Supports EPTZ and one-click arming and disarming the security system. • Setting the color, brightness and contrast for each IP camera. • Unlimited number of users (possibility to grant different rights to each user). • Time synchronization: automatic. Automatic summer/winter time adjustment. • System recovery after power failure. • Ability to update IP camera firmware via NVR. • Power supply: 100-240V AC, 50/60 Hz. • Power consumption: <10W (without HDD), PoE total 130W, max. per channel 25.5W. • Operating humidity 10~93%RH (non-condensing). • Operating temperature: -10°C ~ +55°C. • Weight: 2.47 kg without hard drive. • Dimensions: 1U, 375.0 mm × 327.9 mm × 53.0 mm.
