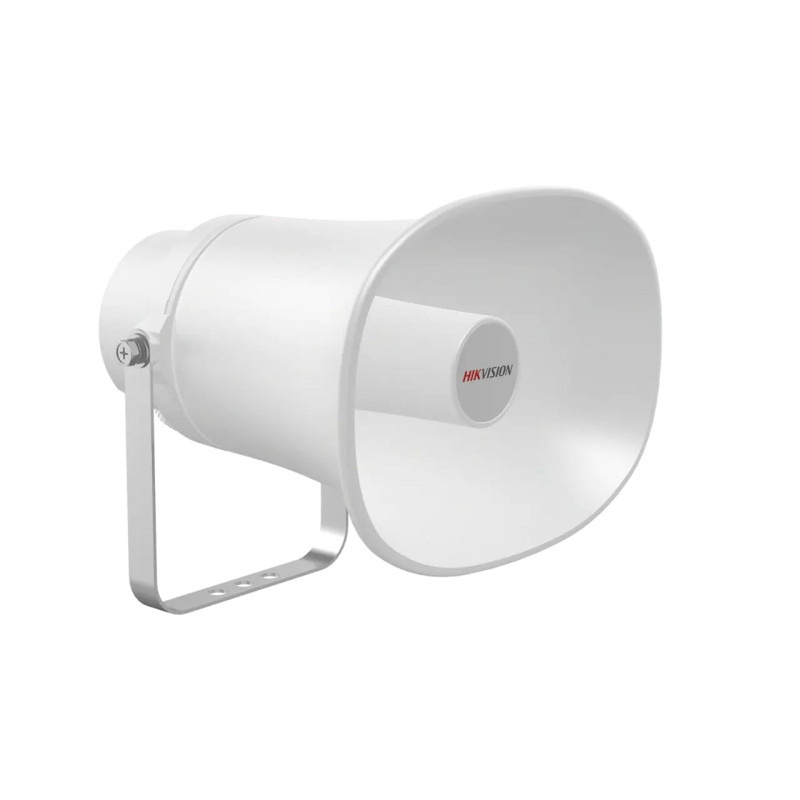

IP loudspeaker Hikvision DS-PA0103-B (15W, 120dB, IP67)
Product reference: 26-6941264032373
  • Network broadcast: Plays an audio file or audio stream in real time
  • SD card streaming: play audio files from SD card
  • Supports two-way communication between the remote computer and the speaker.
IP loudspeaker Hikvision DS-PA0103-B (15W, 120dB, IP67)

IP loudspeaker Hikvision DS-PA0103-B (15W, 120dB, IP67)

Product reference: 26-6941264032373
  • Network broadcast: Plays an audio file or audio stream in real time
  • SD card streaming: play audio files from SD card
  • Supports two-way communication between the remote computer and the speaker.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
39080 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Parameters
  • Maximum sound pressure level 120 dB
  • Network interface 10/100Base-TX self-adaptive network, RJ45 interface
  • Protocols TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
  • Audio protocol MP3, G.711a/u, G.722
  • Storage Micro SD Card, up to 32 GB
  • Microphone input 0.2 Vrms
  • Speaker output 8 Vrms
  • Electrical input PoE (IEEE 802.3af), maximum 13 W
  • Approvals

    EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,

    EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,

    ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,

    KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,

    IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,

    IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,

    IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,

    NEMA 250 Type 4X, CNS 13438
  • Color White
  • Weight Approx. 1.5 kg (3.31 lb.)
  • Material

    Casing: aluminum alloy

    Rear cover: stainless steel
  • Size

    With bracket: 242 mm × 182 mm × 338.5 mm (9.53" × 7.17" × 13.33")

    Without bracket: 242 mm × 182 mm × 250 mm (9.53 × 7.17\" × 9.84\")"
  • Energy consumption < 1 W (without sound), maximum 13 W (producing sound)
  • Protection level IP67
  • Working conditions humidity -40°C to 60°C (-40°F to 140°F)
  • Frequency response 300Hz~12.5kHz
  • Coverage model 70° horizontal by 100° vertical
  • Amplifier description Built-in 15 W Class-D amplifier

Weight1,538 kg
