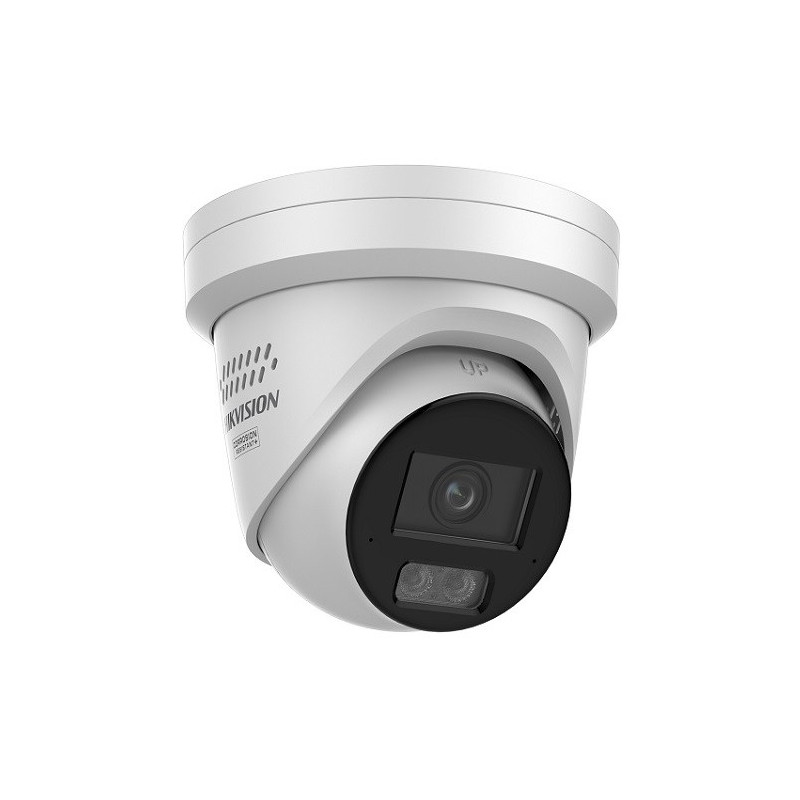

IP camera Hikvision DS-2CD2387G3-LIS2UY / SL 2.8mm, white

Hikvision Dome DS-2CD2387G3-LIS2UY/SL F2.8 (white, 8MP, Hybrid Light, ColorVu, IR + LED 30m)
HikAI-ISP, providing excellent noise reduction effect;
24/7 color image using ColorVu technology;
Scene-adaptive WDR;
Focus on classification of persons and vehicles based on deep learning;
Integrated dual-array microphone for high-quality real-time audio security;
Provides real-time security through integrated two-way audio;
Corrosion-resistant design for reliability and durability compared to standard (NEMA4X);
Smart hybrid lighting: integrates IR and white light, with 3 additional lighting modes;
Water and dust resistant (IP67);
Audio and alarm interface available;
Active flash and sound alarm to warn intruders;
Description
Camera
• Sensor: 1/1.8" Progressive Scan CMOS
• Max. resolution: 3840 × 2160
• Min. illumination: Color: 0.0005 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1s - 1/100,000s
• Day Night: IR cut filter
• Angle change: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
• Lens type: Fixed focal lens, 2.8mm
• Focal Length FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
• Lens mount: M16
• Iris type: Fixed
• Aperture: F1.0
• Depth of field: 2.8 mm: 3.3 m to infinity
DOROUS
• 2.8 mm, D: 89 m, O: 35 m, R: 17 m, I: 8 m
Lighting
• Additional illumination type: IR,White Light
• Auxiliary lighting range: Up to 30 m
• Smart additional lighting: Yes
• IR wavelength: 850 nm
• Main stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
• Secondary flow:
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
• Third stream:
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
• Video compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 *Third stream is supported under certain settings.
• Video bitrate: 32 Kbps to 16 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bit rate control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Sound
• Sound type: Mono sound
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio sampling frequency: 8 kHz/16 kHz/32 kHz/48 kHz
• Noise cancellation: Yes
Internet
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Live video viewing: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/port: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Internal storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Browser: Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
• Photo parameter converter: yes
• Photo settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night mode: Day, Night, Auto, Schedule
• Photo beautification: BLC, HLC, 3D DNA
• SNR: >/= 52 dB
• Wide Dynamic Range (WDR): 130 dB
• Privacy mask: 4 programmable polygon privacy masks
Interface
• Internet interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Internal memory: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB
• Sound: Built-in Microphone: -2U: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 Kohm, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ohm, interface type: non-equilibrium
• Signaling: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reboot button: Yes
Features
• Main functions: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart features: Scene change detection
• Interface: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light flashing
Smart features
• Face recognition: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Home
• System parameters: 12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 17 W
• Material: Cover: metal, main body: metal
• Size: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package size: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• Weight: Approx. 820 g (1.8 lb.)
• Weight with packaging: Approx. 1200 g (2.6 lb.)
• Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Operating conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Main functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Approvals
• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environmental protection: CE-RoHS (2011/65/EU)
• Protection: IP67: IEC 60529-2013
• Protection: against corrosion: NEMA 4X (NEMA 250-2018)
• Active flash: SL model: White Light
