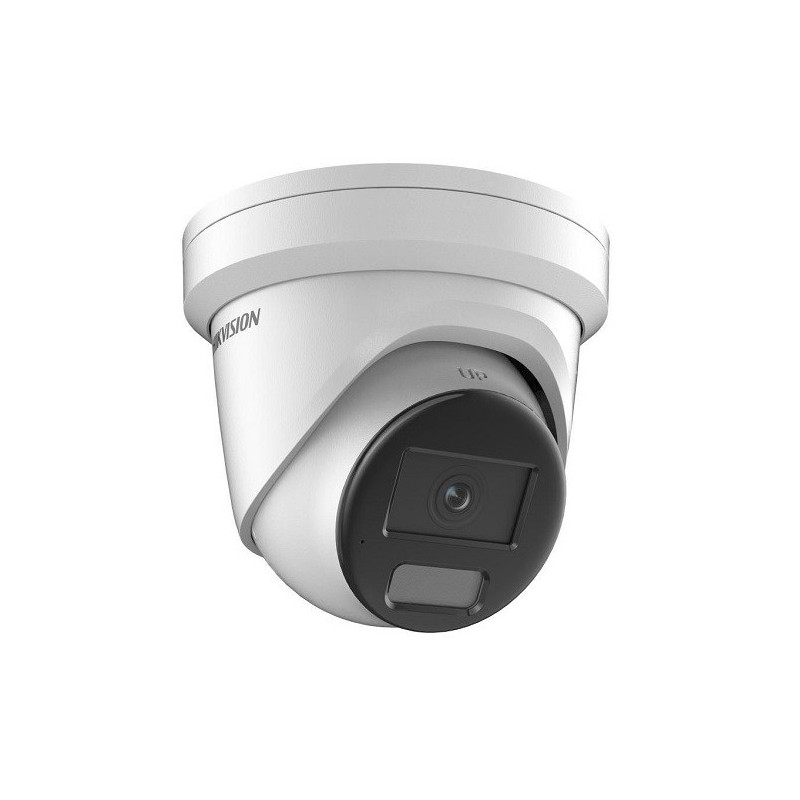

IP camera Hikvision DS-2CD2387G2H-LIU 2.8mm

Model: DS-2CD2387G2H-LIUeF 2.8mm, white color
Resolution: 8MP
Lens: 2.8 mm, horizontal FOV 112
Technology: AcuSense, hybrid Light, ColorVu
Built-in microphone: Yes
Night illumination 40 m. IR; 40 m. LED
microSD slot: Yes, 512GB
Operating conditions: -30 °C to 60 °C
Safety level: IP67
Video compression: H.265+
WiFi: No
Bracket/base (optional): DS-1280ZJ-PT6
Outdoor/Indoor: Outdoor
Description:
Camera
• Sensor: 1/1.8" Progressive Scan CMOS
• Max. resolution: 3840 × 2160
• Min. lighting: Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter speed: 1/3 s to 1/100,000 s
• Angle change: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
• Lens type: Fixed focal lens, 2.8mm
• Focal Length FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
• Lens mount: M16
• Iris type: Fixed
• Aperture: F1.0
• Depth of field: 2.8 mm, 3.3 m to infinite
DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Lighting
• Additional lighting type: White Light
• Auxiliary lighting range: Up to 40 m
• Smart additional lighting: Yes
• IR wavelength: 850 nm
• Main stream:
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160); 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
• Secondary flow:
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
• Third stream:
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
• Video compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video bitrate: 32 Kbps to 16 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bit rate control: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Scalable Video Coding (SVC) H.264 and H.265 encoding
Sound
• Noise suppression: -U: Yes
• Audio compression -U: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC
• Audio bit rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64; Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio sampling frequency -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Internet
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,; WebSockets, WebSockets, SRTP, SFTP
• Live video viewing: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR): 130 dB
• SNR: >/= 52 dB
• Day/Night mode: Day, Night, Auto, Schedule
• Photo enhancement: BLC, HLC, 3D DNA
• Photo settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Photo parameter converter: yes
Interface
• Internet interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Internal memory: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB
• Built-in microphone: -U: Yes
• Reboot button: Yes
Features
• Main functions: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart functions: Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Scene change detection
• Interface: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger; capture, send to email
Smart features
• Face recognition: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Home
• System parameters: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8W
• Size: Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5")
• Package size: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• Weight: Approx. 770 g (1.7 lb.)
• Weight with packaging: Approx. 1040 g (2.3 lb.)
• Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Operating conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Main functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Approvals
• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environmental protection: CE-RoHS: 2011/65/EU
• Protection: IP67: IEC 60529-2013
