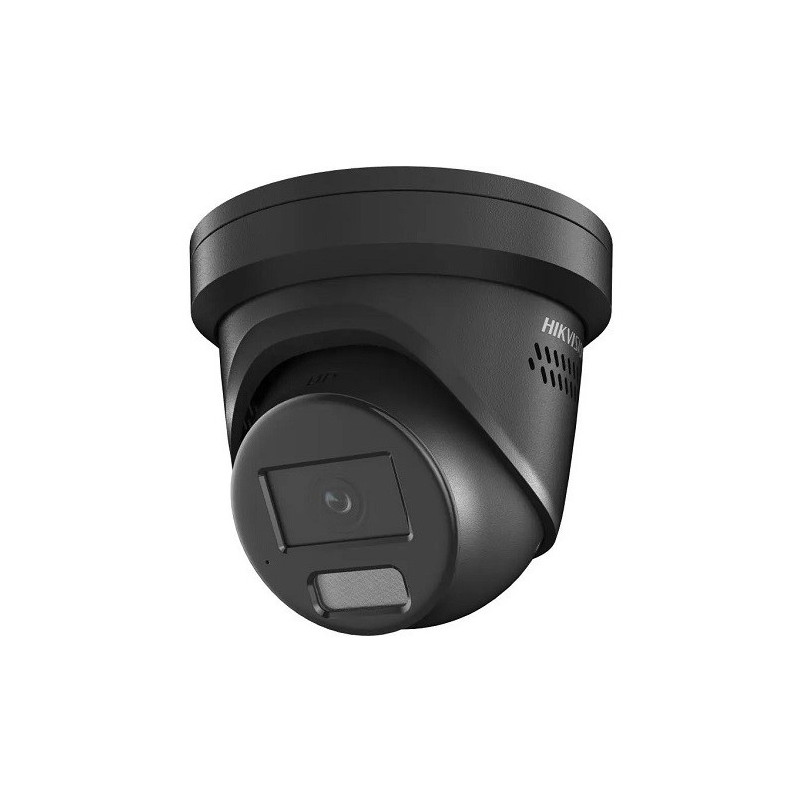

IP camera Hikvision DS-2CD2347G2H-LIU 2.8mm, black

Model: DS-2CD2347G2H-LIU eF 2.8mm, black
Resolution: 4MP
Lens: 2.8 mm, horizontal FOV 112
Technology: AcuSense, hybrid Light, ColorVu
Built-in microphone: Yes
Night illumination: 30 m. IR; 30 m. LED
microSD slot: Yes, 512GB
Operating conditions: -30 °C to 60 °C
Safety level: IP67
Video compression: H.265+
WiFi: No
Bracket/base (optional): DS-1280ZJ-DM21
Outdoor/Indoor: Outdoor
Description:
Camera
• Sensor: 1/1.8" Progressive Scan CMOS
• Max. resolution: 2688 × 1520
• Min. lighting: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter speed: 1/3 s to 1/100,000 s
• Day Night: IR cut filter
• Angle change: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
• Lens type: Fixed focal lens, 2.8mm
• Focal Length FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
• Lens mount: M16
• Iris type: Fixed
• Aperture: F1.0
DORI: 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 6 m
Lighting
• Additional lighting type: White Light
• Auxiliary lighting range: Up to 30 m
• Smart additional lighting: Yes
• IR wavelength: 850 nm
• Main stream:
50Hz: 25fps (2688×1520, 1920×1080, 1280×720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Secondary flow:
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
• Third stream:
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
• Video compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video bit rate: 32 Kbps to 8 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bit rate control: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Scalable Video Coding (SVC) H.264 and H.265 encoding
Sound
• Noise cancellation: Yes
• Audio compression -U: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC
• Audio bit rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/ 32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio sampling frequency -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Internet
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Live video viewing: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Internal memory: MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR): 130 dB
• SNR: >/= 52 dB
• Day/Night mode: Auto,Schedule
• Photo enhancement: BLC, HLC, 3D DNA
• Photo settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Photo parameter converter: yes
Interface
• Internet interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Internal memory: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB
• Built-in microphone: -U: Yes
• Reboot button: Yes
Features
• Main functions: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart functions: Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Scene change detection
• Interface: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Smart features
• Face recognition: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Home
• System parameters: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
• Size: Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9")
• Package size: 170 mm × 170 mm × 150 mm (7" × 7" × 5.9")
• Weight: Approx. 750 g (1.7 lb.)
• Weight with packaging: Approx. 1055 g (2.3 lb.)
• Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Operating conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Main functions: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approvals
• EMC: FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (CN 32: 2015, CN 35: 2015)
• Safety: UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
• Environmental protection: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67: IEC 60529-2013
