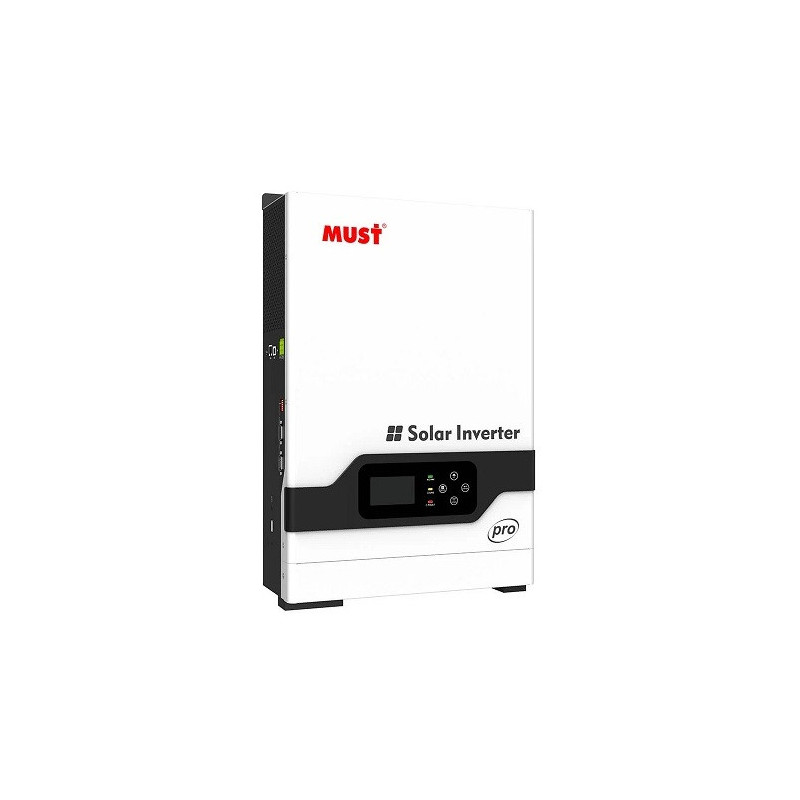

Inverter MUST PV18-3024PRO, 3kW, 1-phase, 24V, 80A MPPT, 450V
Product reference: 17-9990000820696
Inverter MUST PV18-3024PRO, 3kW, 1-phase, 24V, 80A MPPT, 450V

Inverter MUST PV18-3024PRO, 3kW, 1-phase, 24V, 80A MPPT, 450V

Product reference: 17-9990000820696
Inverter MUST PV18-3024PRO, 3kW, 1-phase, 24V, 80A MPPT, 450V
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
51247
Last product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

Solar inverter MUST PV18-3024PRO, 3kW, single-phase, 24V battery, PV max. 80A/ 450VFeatures:Combines the functions of an inverter, MPPT 80A solar charger and battery charger to ensure uninterrupted power support and is portable in size. This inverter does not require a battery to operate. The LCD screen can be used to set operating parameters and priorities according to need. Rated power 3kW. The maximum PV open circuit voltage reaches 450V DC, MPPT voltage 150~430V DC, which allows full use of solar energy. Integrated MPPT 80A PV charge controller. Matching power from solar energy, AC or battery to ensure continuous power supply. Compatible with generator. With USB and RS485 communication interfaces. Protection against overload, short circuit and deep discharge. Certified by CE, SAA, ISO9001.Technical data:Battery voltage: 24V DC. Rated power: 3000W. Fuse tripping: at 6000VA. Waveform: true sine wave. Switching time: 10ms/20ms. Frequency: 50/60Hz. PV open circuit voltage max.: 450V DC. MPPT voltage range: 150~430V DC. Max. solar charging current: 80A. Display: LCD. Operating temperature: 0°C ~ +50°C. Dimensions: 272x355x100mm. Weight: 11kg.Warranty:The voltage converter (inverter) warranty is valid from the date on which we (the seller) are provided with the inverter serial number, purchase invoice, and a certificate from a certified electrician or ESO at the time of delivery of the solar power plant about the installed: 1) Lightning arrester and surge arrester (from the input side) 2) Lightning arrester (between solar panels and inverter) 3) DC voltage disconnector between panels and inverter 4) Separate grounding of solar panels, from the general house grounding. The 2-year (24-month) manufacturer's warranty is valid from the date of purchase of the inverter upon submission of the above documents.Note:A lightning strike is an insured event, not a warranty event.Specifications

Default battery system voltage 24V DC
Inverter Output
Rated power 3000VA / 3000W
Surge power 6000W
Waveform pure sine wave
AC voltage regulation (Battery mode) 230V AC (setting)
Transfer time 10ms (UPS/VDE4105) / 20ms(APL)
Input AC
Voltage 230V AC
Selectable voltage range 170~280V AC(UPS)/ 90~280V AC(APL)/ 184~253V AC(VED4105)
Frequency range 50Hz / 60Hz (Auto sensing)
Efficiency
Inverter efficiency (peak) 93%
Battery
Normal voltage 24V DC
Floating charge voltage 27.4V DC
Overcharge protection 30V DC
Solar charger AC charger
Maximum PV array open circuit voltage 450V DC
PV array MPPT voltage range 150~430V DC
Maximum PV current 18A
Maximum solar charging current 80Amp
Maximum AC charging current 60Amp
Maximum charging current 80Amp
General specifications
Dimensions(W*H*D) 272*355*100mm
Package dimensions(W*H*D) 540*395*241mm
Net weight 11 kg
Gross weight 12 kg
Operating temperature 0°C to 50°C
Humidity range (non-condensing) 5% - 95%
Storage temperature -15°C to 60°C


Download user manual in English
