Interfejs Wideo Ford 8 cali Sony SYNC 2

This adapter adds a rearview camera to your car and displays the image on your original car radio (which must be pre-installed). Some adapters are plug-and-play solutions, while others require connecting cables or other modifications. Please read the installation instructions first or contact us with any questions. In addition to the adapter, you'll need a reversing camera. We also encourage you to check out our full range in the reversing camera section.

Modern video interface from Sony - SYNC 2 with rear view camera The Sony SYNC 2 video interface with rearview camera is an innovative device that supports two video inputs that can be used to connect to a DVD player or DVB-T tuner. If you want to enjoy a high level of comfort while driving, our offer is sure to interest you.

Reliable audio and video equipment The Car-Tronic store's product range always comes from renowned, experienced brands. The SYNC 2 video interface with a rearview camera from Sony is a phenomenal example. The device guarantees trouble-free operation, and installation is very simple. The interface kit includes the necessary wiring for proper installation.

Sony SYNC 2 Video Interface with Rear View Camera for Ford The device is compatible with Ford vehicles equipped with a factory monitor. Once the interface is installed, the car's rear camera will automatically activate when reverse gear is engaged.

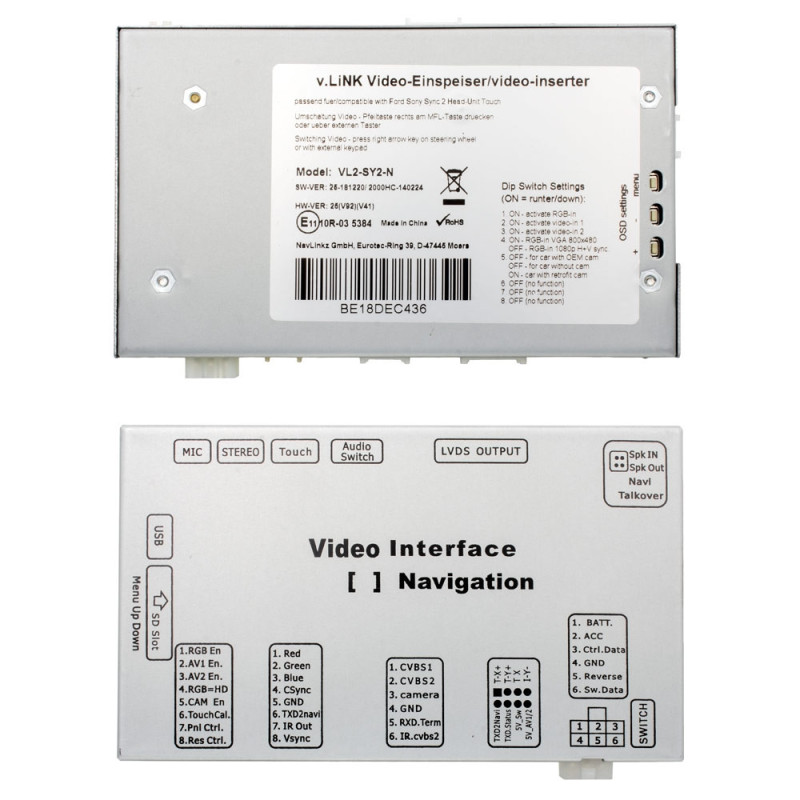

v.LiNK Video interface for Sony Sync2 head units with an 8-inch monitor, such as the Ford Edge, Explorer, Fusion. For connecting any two video sources, an RGB source, and a rearview camera.

PRODUCT FEATURES

• video input for factory audio-information monitors
• 2 video inputs (e.g. DVD player, DVB-T tuner)
• integrated audio switch (no audio channel)
• video input from the rear view camera
• automatic switching to rear camera input when engaging reverse gear
• RGB video input for navigation
• image triggering while driving (for video ONLY)
• factory rear backup camera support
• PAL / NTSC compatible AV inputs

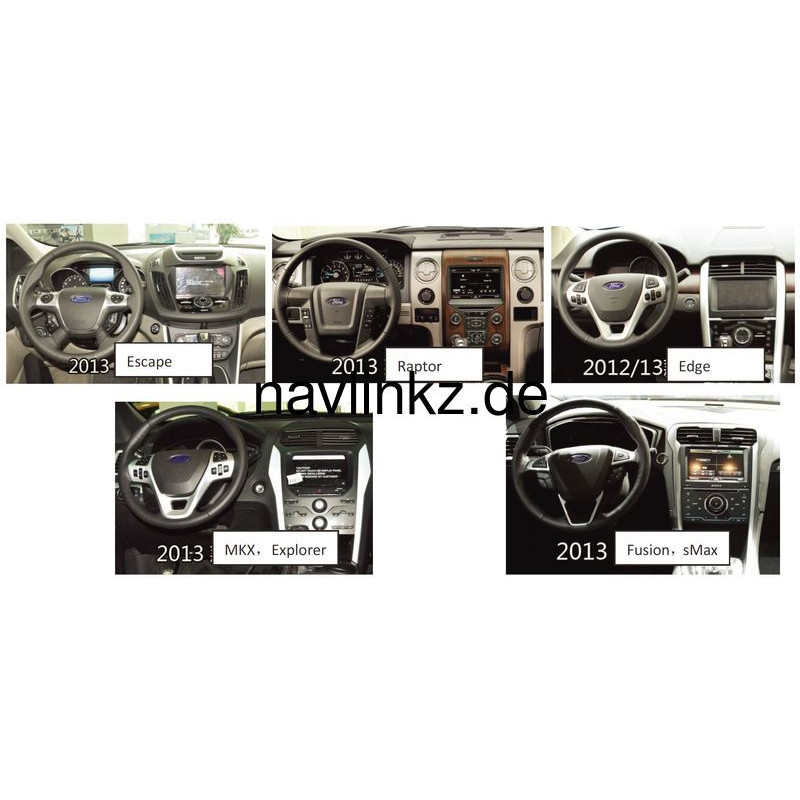

Make and model:

• Ford C-Max 2016 ->
• Ford Focus 2015 - 2016
• Ford Galaxy 2016 ->
• Ford Kuga 2016 - 2017
• Ford Mondeo 2015 - 2016/2017
• Ford Ranger 2015 - 2016
• Ford Raptor F150 2013
• Ford S-Max 2015 ->
• and other models

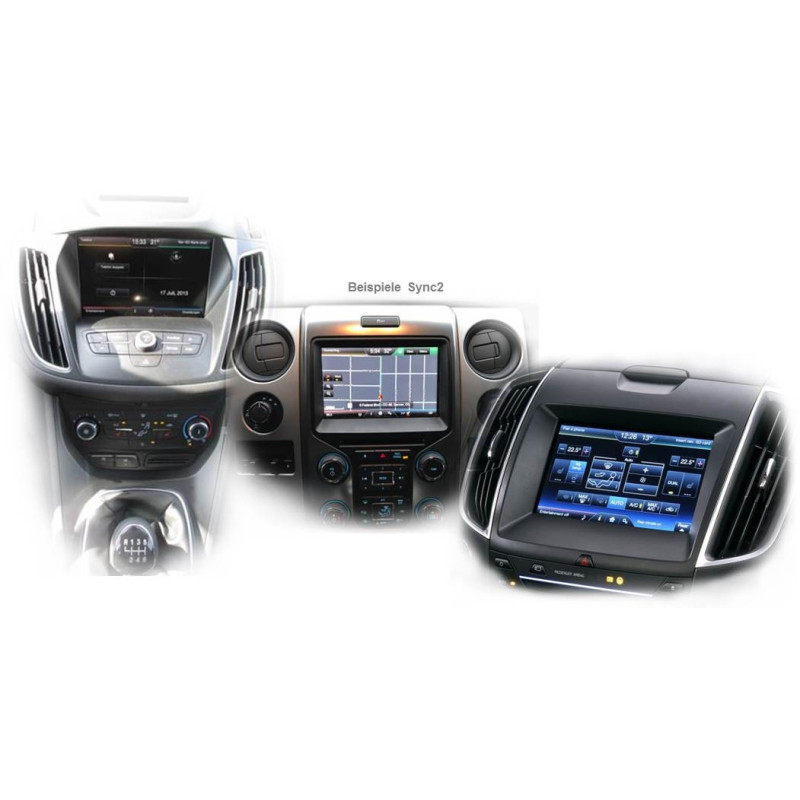

Works with navigation:Sony Sync2 Touch

Limitations: Only movies -The interface ONLY transmits video signals to the infotainment system. Audio signals can be transmitted using the factory AUX audio input or an FM modulator. Factory reversing camera -Automatic shifting to RFK only as long as reverse gear is engaged. Additional electronics are required to delay downshifts. Video Sources -Only compatible with NTSC video sources.

NOTE: The interface is built into the monitor's printed circuit board (the monitor must be opened for this purpose)!

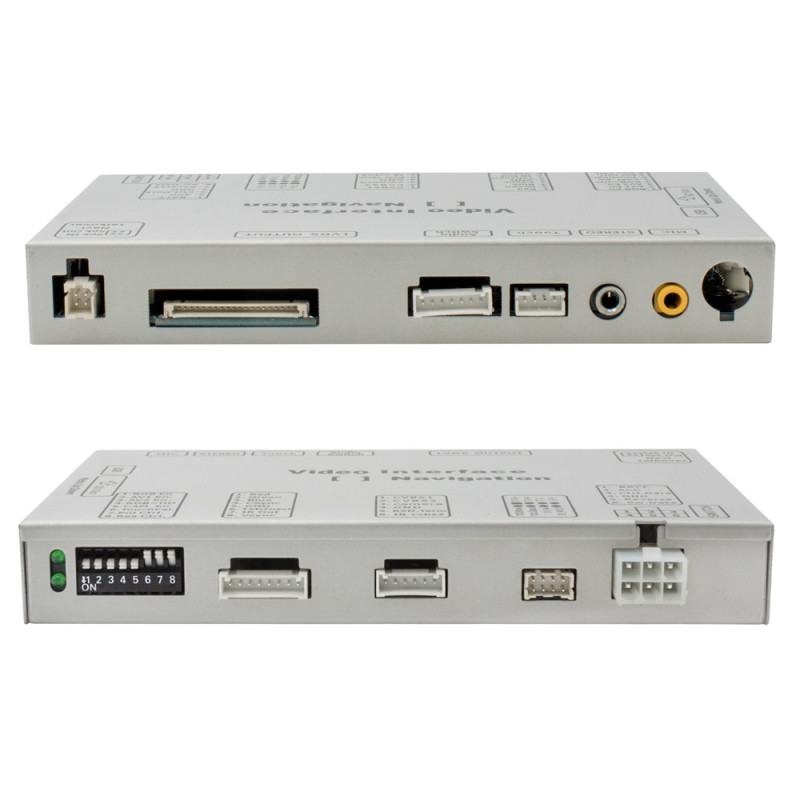

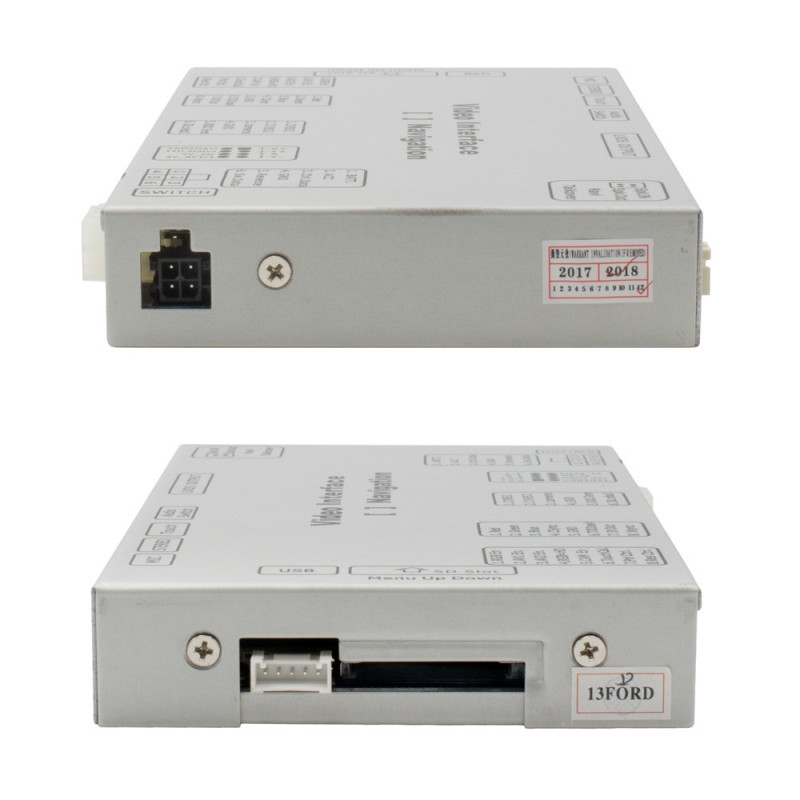

• Image Channel: Ribbon Cable

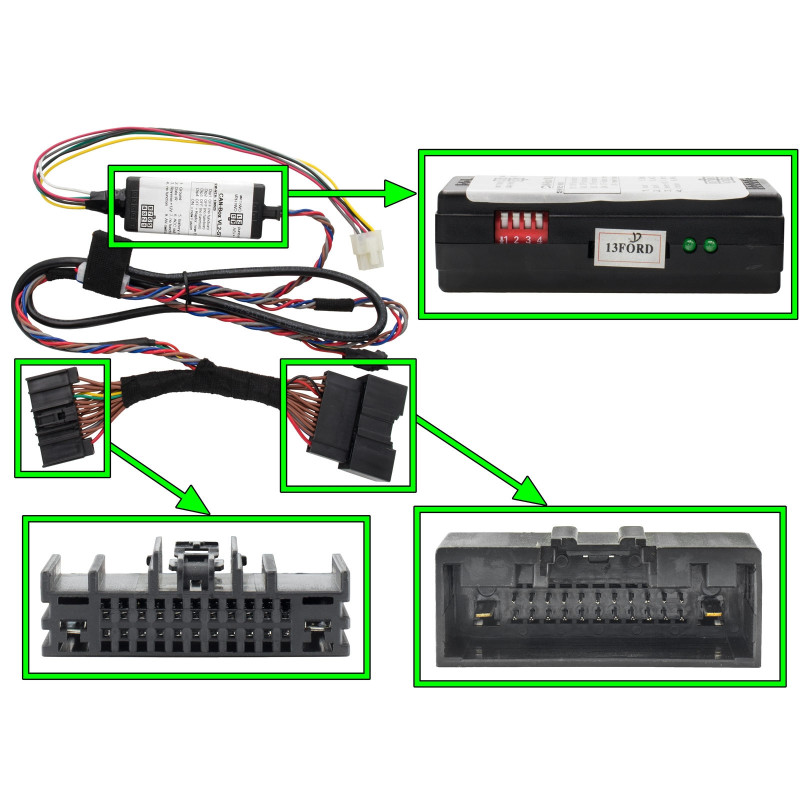

• Power and CAN bus: Plug Play (using Quadlock)
• Video inputs (2x): RCA sockets
• Rear view camera input: RCA socket
• Audio switch: 2x RCA sockets each (2 inputs to 1 output)

Technical specifications

• operating voltage 12VDC (7~25V)
• quiescent current <10mA
• power consumption 700mA
• video input 0.7~1V
• Video input formats PAL/NTSC
• operating temperature -40°C to +85°C
• Video box dimensions 155 x 22 x 90 mm (W x H x D)
• CAN box dimensions 73x22x30mm (W x H x D)

Legal notice The driver must not be distracted directly or indirectly by moving images while driving. This is prohibited by law in most countries/states. Other than operation when stationary, this product is only intended to display menus in a standing position (e.g., MP3 menus from DVD players) or rearview camera images while driving.
