Interfejs do kamery cofania MIB / MIB II Audi A3, A4, A5, A6, A7, A8, Q5, Q7, Porsche, Skoda, VW.

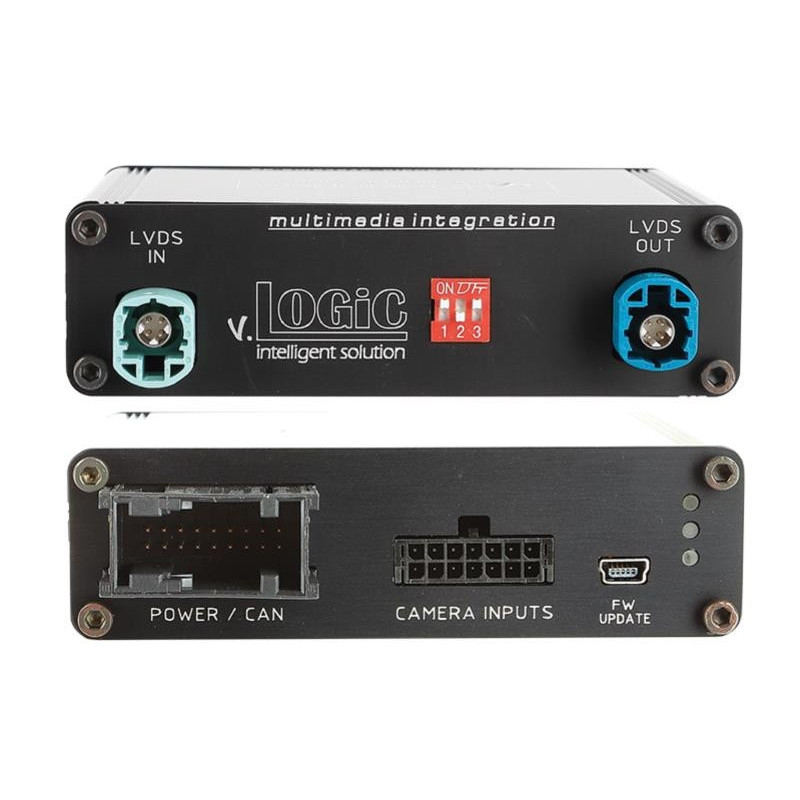

MIB/MIB II video interface Audi A3, A4, Q7 2012-> The video interface we present is designed to connect a parking camera and 3 external AV sources or up to 4 cameras (front, rear, side parking cameras) in Audi, Skoda, Porsche and VW.

Video interface for Audi and more - discover the product features • Picture-in-Picture mode combining the rear-mounted parking camera with the front camera with factory PDC graphics, dynamic lines, • Auxiliary with calibration function - simultaneous use of picture in picture factory PDC with dynamic auxiliary lines, • Own OSD menu and settings, • Control of external AV sources (e.g. DVB-T tuner...) via the MIB system, • Rear camera input, • Automatic switching to the rear parking camera after reverse gear in all modes, • Front parking camera input - side parking camera inputs - camera, • Side or front light triggered by the turn signal, • Possibility of manual camera switching, • 2 switched outputs (+ 12 V max. 1 A), separately adjustable (CAN, ACC, camera, reverse), • Compatible with any factory equipment, • USB port for easy SW updates.

Below is a list of Audi models that will be compatible with this interface:

• Audi A4 (B8) 05/2009 - 08/2015
• Audi A5 (8T)11/2008 - 06/2016
• Audi A6 (4F) 08/2008 - 03/2011
• Audi A6 (4G) 04/2011 - 09/2014
• Audi A7 (4G) 07/2010 - 05/2014
• Audi A8 (4E) 09/2008 - 03/2010
• Audi A8 (4H) 03/2010 - 09/2017
• Audi Q5 (8R) 11/2008 - 03/2017
• Audi Q7 (4L) 05/2009 - 03/2015
• Compatible system:MMI Navigation Plus with MMI touch 7" or 8.3" - MIB / MIB II.
• Porsche Cayenne
• Porsche Boxster
• Porsche 911
• Porsche Cayman
• Compatible system: PCM 4.0
• Skoda Octavia 2017 ->
• Compatible system: MIB - Amundsen 8"
• VW Golf 7 2015 ->
• VW Golf 7 Sportsvan MJ 2015 ->
• VW Passat (B8) 2015 ->
• Compatible system: MIB/MIB2 - Discover Pro 8" and Composition Media - 6.5" monitor.
