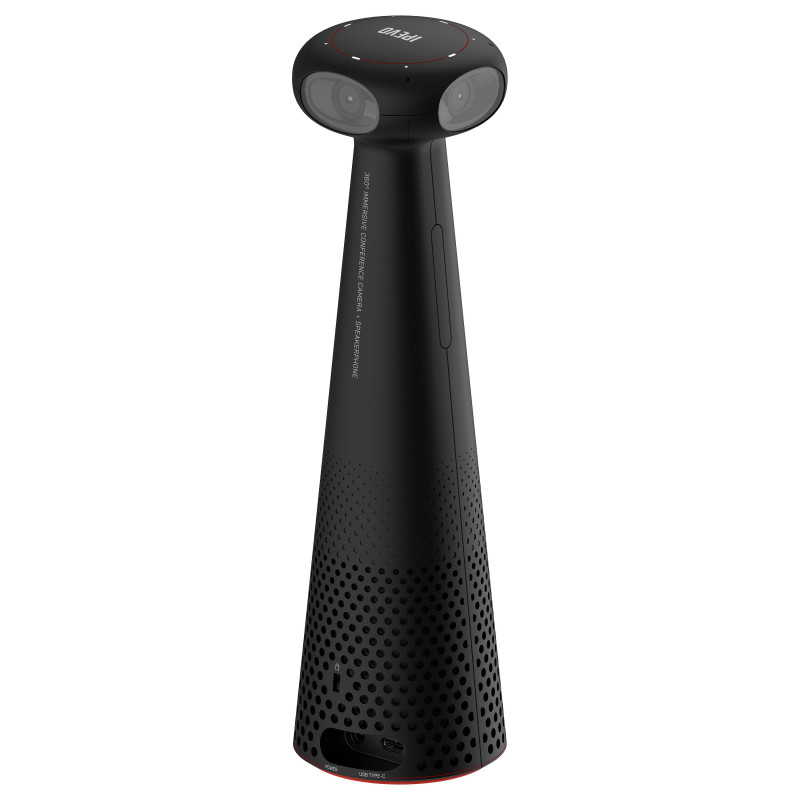

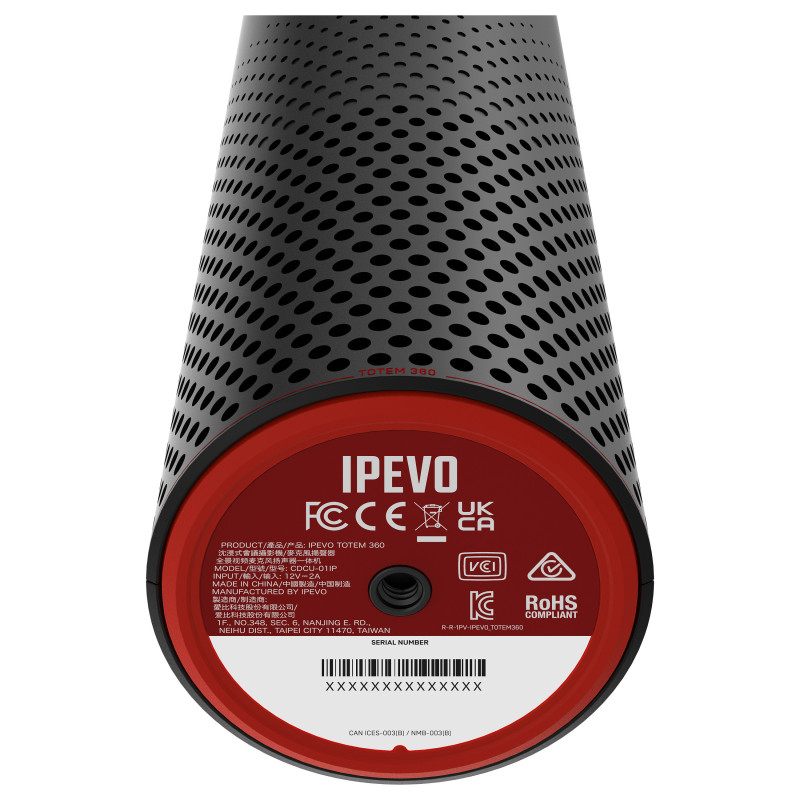

IPEVO Totem 360

IPEVO TOTEM 360 360° Immersive Conference Camera + Speakerphone. HD type: Full HD, Maximum video resolution: 4992 x 928 pixels, Maximum frame rate: 30 fps. Digital zoom: 2.5x. Mounting type: Table/Ceiling, Product colour: Black

360° Video and Sound
IPEVO TOTEM 360 is a complete audio-visual solution, providing a seamlessly stitched 360° image from four cameras, sound from an all-around speaker, and capturing voices via an array of four beamforming microphones with AI noise reduction.

Panoramic 5K with Video Stitching Technology
Capture the whole room via four cameras which provide a seamlessly stitched 360° view, free of spatial distortion.

Four Beamforming Microphones
The microphones pick up sound from all directions and thanks to the beamforming technology are capable of determining the direction of the sound. This is used to track the active speakers.

360° Sound Diffusion Speaker
TOTEM's speaker spans all around its base and delivers sound in all directions evenly.

AI Tracking and Framing
The onboard AI of TOTEM 360 tracks the presenter or meeting participants, keeping what matters the most in the focus of the shot.

AI Noise Reduction
Filters out the background noise in your conference room, allowing undisturbed communication with nobody left out.

Immersive Video Modes for Every Scenario
Hybrid Meetings

Conferencing Mode
A 360° view of the meeting room table, with up to four speakers highlighted in individual close-ups.

Surround Mode
In this mode, the 360° view is divided into two horizontal screens, providing a full view of everyone at the table.

Learning & Presentations
Hybrid Learning Mode
Displays the lecturer and the class at the same time, with the lecturer tracked by the AI.

Presentation Mode
A directional video mode for presentations, which uses AI to track up to two presenters.

Works with Everything, Instantly
Plug and play compatible with Zoom, Google Meet, Skype, Microsoft Teams, Webex, GoToMeeting, Barco ClickShare, OBS studio, and more on Windows, Mac, and Chromebooks.

Camera

Feature: Zoom capability
Digital zoom: 2.5x
Horizontal field of view: 360°
Vertical field of view: 60°

Video

HD type: Full HD
Maximum video resolution: 4992 x 928 pixels
Maximum frame rate: 30 fps

Design

Product colour: Black
Mounting type: Table/Ceiling

Power

Power source type: DC, AC
AC input voltage: 12 V
DC input voltage: 12 V
Input current: 2 A

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 95%

Packaging content

Feature: Power supply included
Cables included: USB
USB cable length: 1.8 m
Power cable length: 1.5 m
Feature: AC adapter included

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Audio

Feature: Built-in microphone
Number of microphones: 4
Microphone sensitivity: 64 dB
Feature: Built-in speaker(s)
Microphone pick-up range: 5 m

Weight & dimensions

Width: 72 mm
Depth: 72 mm
Height: 255 mm
Weight: 575 g
