Blackmagic Design UltraStudio 4K Mini video capturing device

Blackmagic Design UltraStudio 4K Mini. Product colour: Black, Host interface: Thunderbolt, Video capture resolution (max): 4096 x 2160 pixels. Analog signal format system: NTSC, PAL, Maximum frame rate: 60 fps, Video codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV,.... Sample rate: 48 kHz. Video compression formats: AVCHD, MPEG2. USB connector type: USB Type-C
UltraStudio 4K Mini is a portable Thunderbolt 3 capture and playback solution packed with the latest broadcast technology! You get broadcast quality 8 and 10-bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12-bit high dynamic range capture in all formats up to 4K DCI at 30p. Plus, the built in SD card reader lets you mount camera media directly on your computer so you can start editing immediately!

Performance

Product colour: Black
Internal: No
Host interface: Thunderbolt
Video capture resolution (max): 4096 x 2160 pixels
Memory card slot(s): Yes
Compatible memory cards: SD
Interface: SDI
LED indicators: Yes
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)

Video

Analog signal format system: NTSC, PAL
Maximum frame rate: 60 fps
Video codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Supported video modes: 720p, 1080i, 1080p, 2160p

Audio

Audio support: Yes
Sample rate: 48 kHz

File formats

Video compression formats: AVCHD, MPEG2

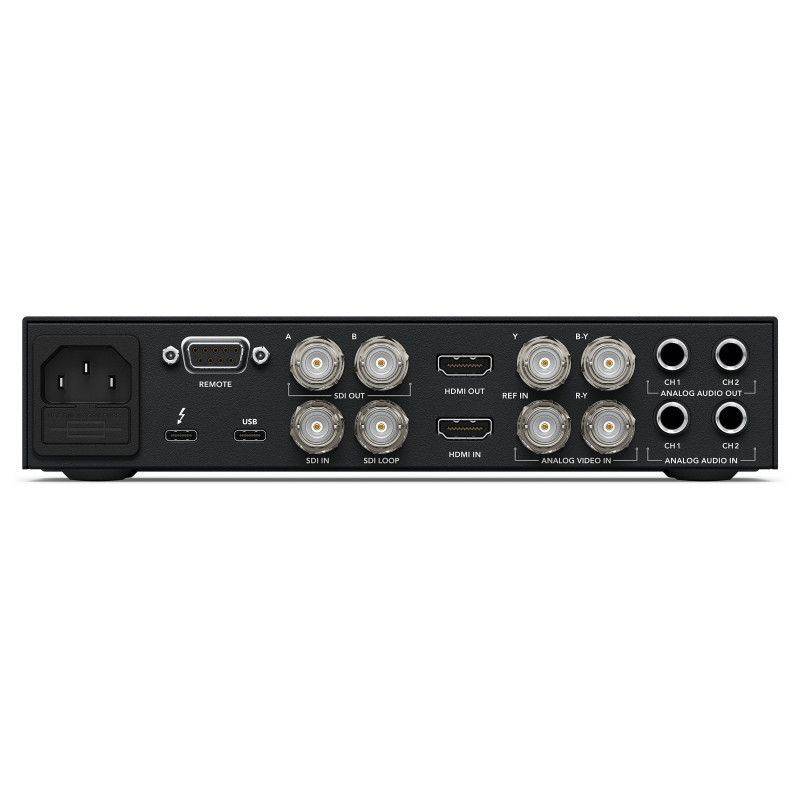

Ports interfaces

USB port: Yes
USB connector type: USB Type-C
USB ports quantity: 2
HDMI ports quantity: 2
HDMI in: 1
Number of HDMI outputs: 1
Audio (L/R) in: 2
Audio (L/R) out: 2
Headphone outputs: 1
BNC ports quantity: 8

Power

Power supply type: AC
AC input voltage: 100 - 240 V

Software

Windows operating systems supported: Windows 10 x64, Windows 11
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported: Yes
Bundled software: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 210 mm
Depth: 177 mm
Height: 46.1 mm
Weight: 1.2 kg
