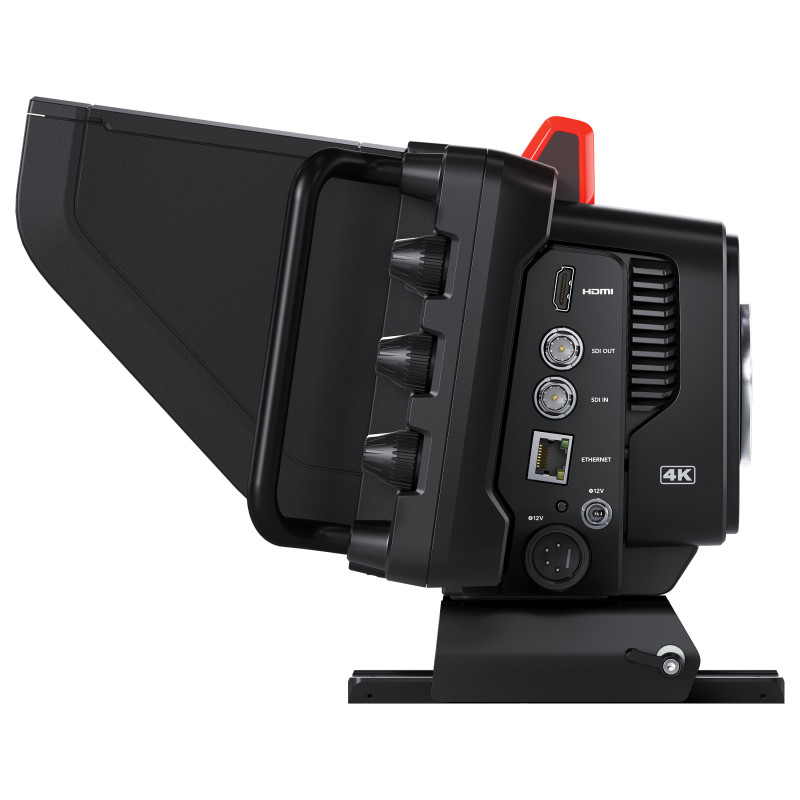

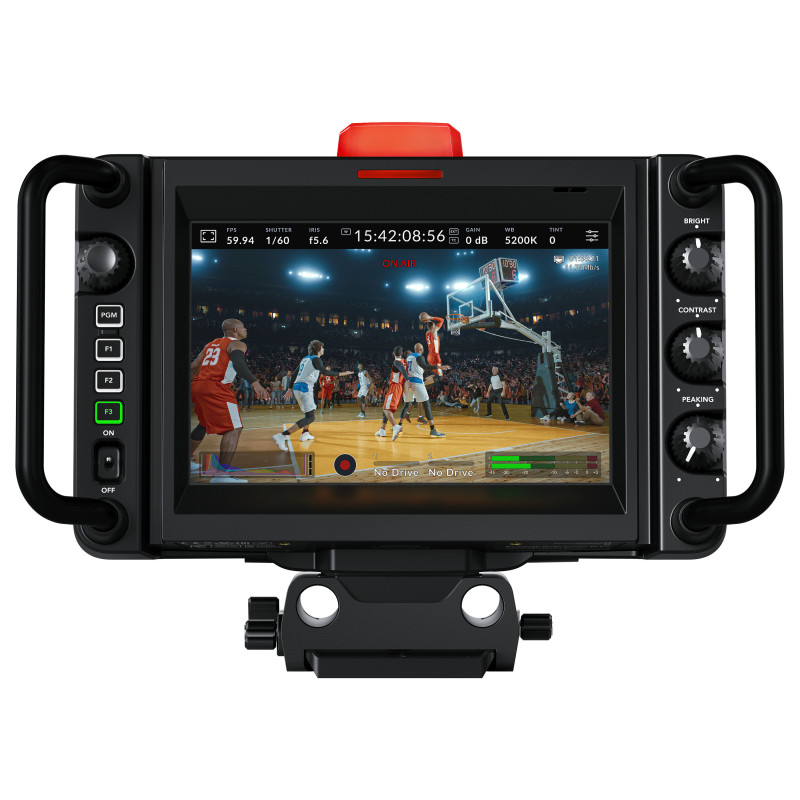

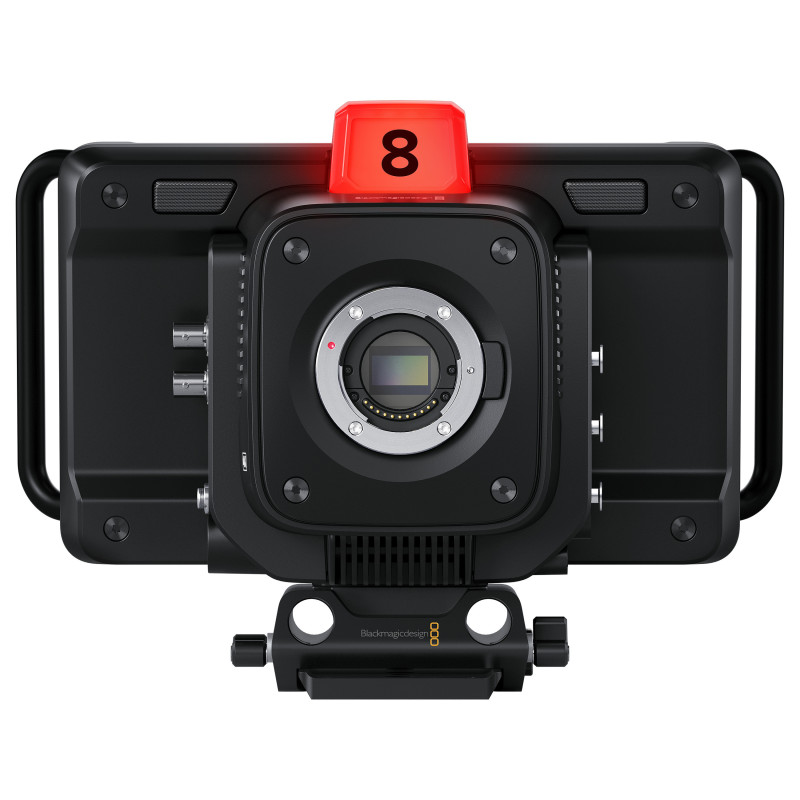

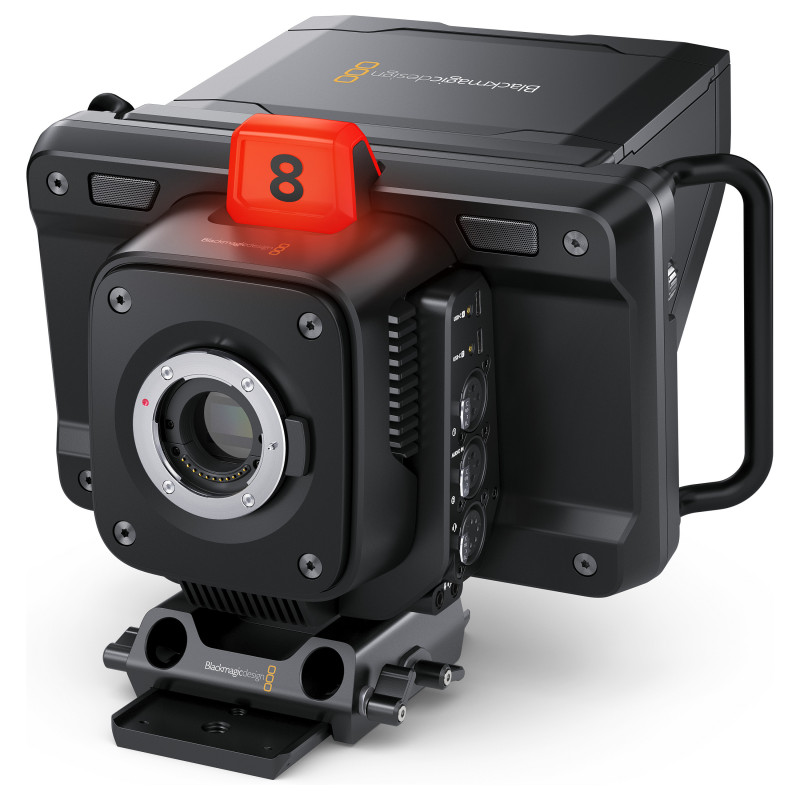

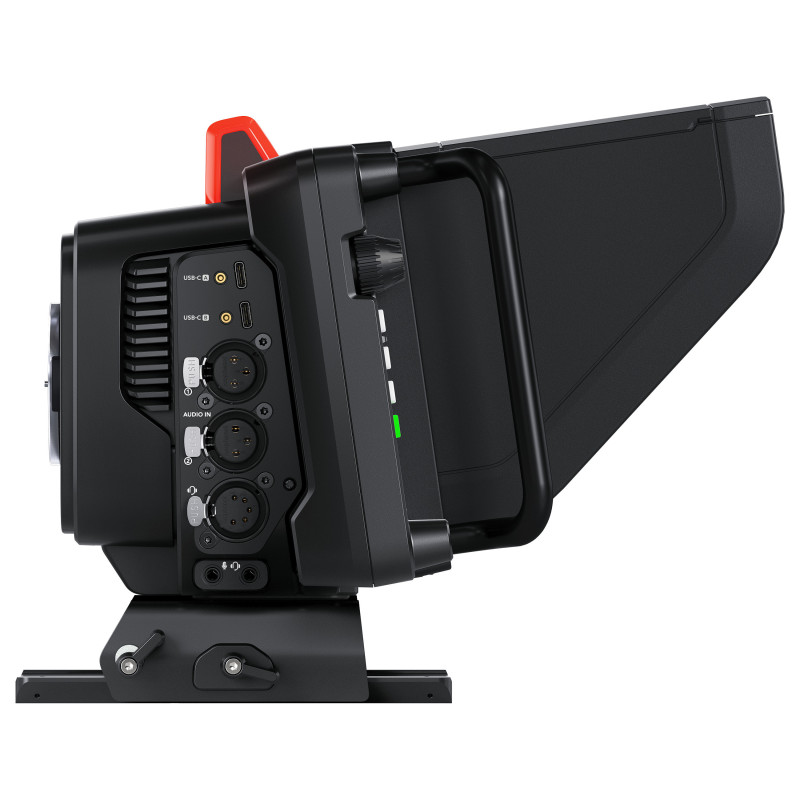

Blackmagic Design Studio Camera 4K Pro G2

Blackmagic Design Studio Camera 4K Pro G2. Lens mount interface: Micro Four Thirds (MFT) Active. Focus adjustment: Auto. Display diagonal: 17.8 cm (7"), Display: LCD, Display resolution: 1920 x 1200 pixels. Viewfinder type: Electronic. Camcorder type: Shoulder camcorder
Designed for powerful SDI switchers, Blackmagic Studio Camera 4K Pro G2 adds professional 12G-SDI and 10G Ethernet connections. That's perfect when the camera is located a long distance from a switcher. There's a 12G-SDI output and a 12G-SDI program return input that includes camera control, talkback and tally. You also get the same powerful HDMI output with control features. Plus the 10G Ethernet connection allows all connections on a single cable for a SMPTE style workflow that's much lower cost.

Lens system

Lens mount interface: Micro Four Thirds (MFT) Active

Focusing

Focus adjustment: Auto

Flash

Built-in flash: No

Display

Display diagonal: 17.8 cm (7")
Built-in display: Yes
Display: LCD
Display resolution: 1920 x 1200 pixels
Display brightness: 2000 cd/m²
Touchscreen: Yes

Viewfinder

Viewfinder type: Electronic

Camera

Camcorder type: Shoulder camcorder
3D: No
Remotely operated: Yes

Design

Product colour: Black
Tripod mounting supported: Yes

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Video resolutions: 3840 x 2160 pixels
Supported video modes: 1080i, 1080p, 2160p
Maximum frame rate: 60 fps

Still image

Maximum image resolution: 3840 x 2160 pixels

Audio

Built-in microphone: Yes
Built-in speaker(s): Yes
Microphone connectivity: 3.5 mm

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
SDI inputs: 1
SDI outputs: 1
SDI standards supported: 3G-SDI, 6G-SDI, 12G-SDI
PictBridge: No
Microphone in: Yes
XLR in: Yes
Headphone outputs: 1
HDMI: Yes
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.0
Headphone connectivity: 3.5 mm

Network

Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 273.6 mm
Depth: 169.7 mm
Height: 167.3 mm
Weight: 1.69 kg

Packaging content

Bundled software: Blackmagic Camera Setup
AC adapter included: Yes
