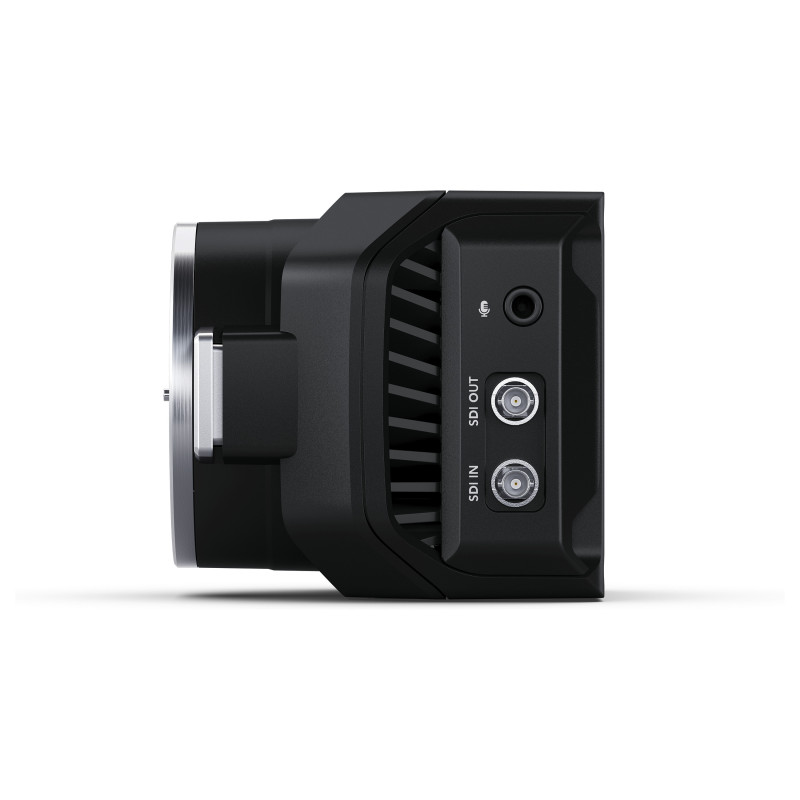

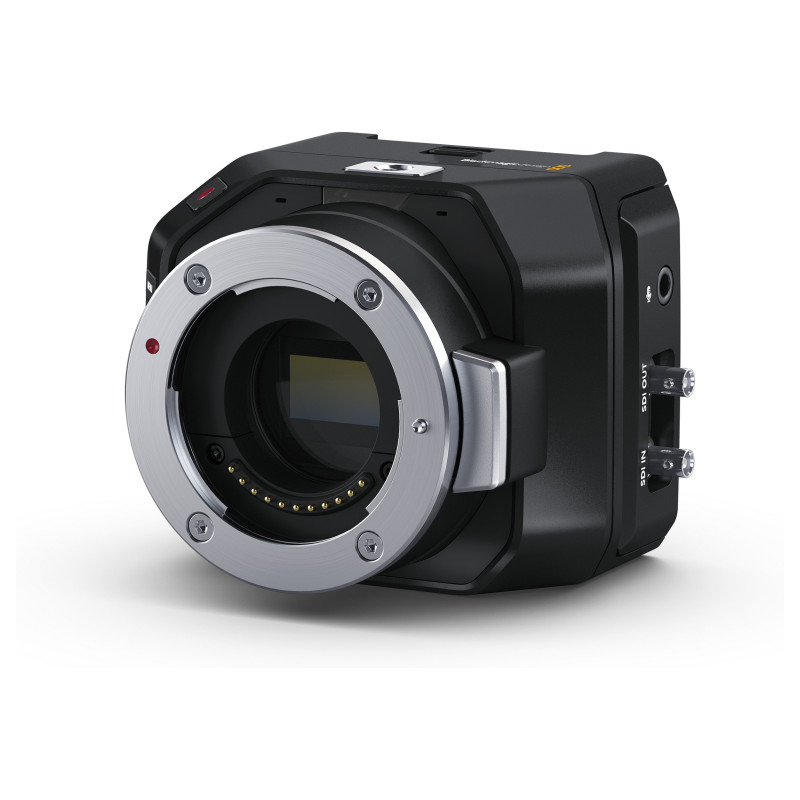

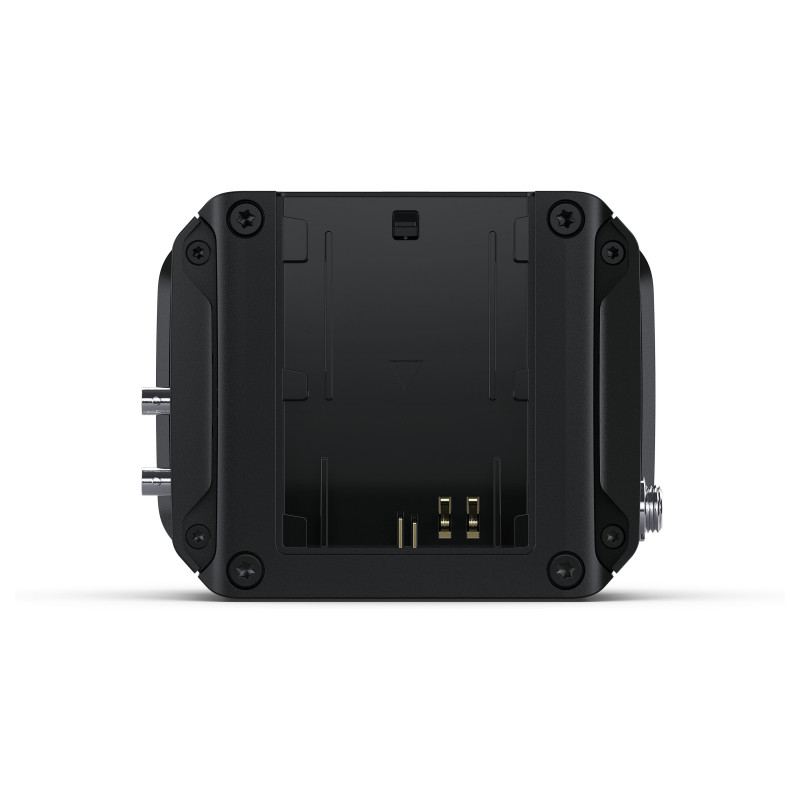

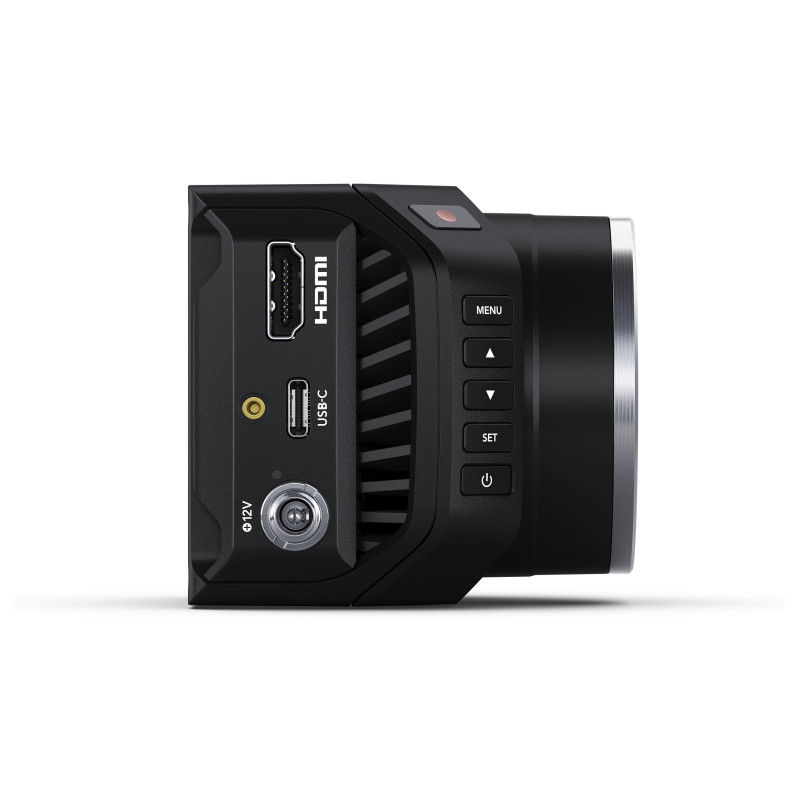

Blackmagic Design Micro Studio Camera 4K G2

Blackmagic Design Micro Studio Camera 4K G2. Lens mount interface: Micro Four Thirds (MFT) Active. Focus adjustment: Auto. Camcorder type: Handheld camcorder. Product colour: Black. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Video resolutions: 3840 x 2160 pixels
Blackmagic Micro Studio Camera 4K G2 is an amazing, broadcast quality live production camera in a tiny body. The Four Thirds sensor has 13 stops of dynamic range, incredible low light performance and produces stunning Ultra HD images in all lighting conditions. 12G-SDI Micro BNC connectors support 10-bit uncompressed video up to 2160p60 and 2 channel audio on the output. The input supports tally, camera control, control of the built-in color corrector plus lens control, from an ATEM switcher. Or when using an ATEM Mini switcher, the HDMI connector will output 1080 and support all control features. Plus it's even a Hollywood quality cinema camera because it can record Blackmagic RAW to external USB-C drives. With multiple mounting points, place Blackmagic Micro Studio Camera 4K G2 where no other camera will go!

Lens system

Lens mount interface: Micro Four Thirds (MFT) Active

Focusing

Focus adjustment: Auto

Flash

Built-in flash: No

Display

Built-in display: No

Viewfinder

Viewfinder type: Not available

Camera

Camcorder type: Handheld camcorder
3D: No
Remotely operated: Yes

Design

Product colour: Black
Tripod mounting supported: Yes

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Video resolutions: 3840 x 2160 pixels
Supported video modes: 1080i, 1080p, 2160p
Maximum frame rate: 60 fps

Still image

Maximum image resolution: 3840 x 2160 pixels

Audio

Built-in microphone: Yes
Microphone connectivity: 3.5 mm

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
SDI inputs: 1
SDI outputs: 1
SDI standards supported: 3G-SDI, 6G-SDI, 12G-SDI
PictBridge: No
Microphone in: Yes
HDMI: Yes
HDMI version: 2.0

Battery

Number of batteries supported: 1

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 84 mm
Depth: 69.5 mm
Height: 65.8 mm
Weight: 300 g

Packaging content

Bundled software: Blackmagic Camera Setup
AC adapter included: Yes

Other features

Windows operating systems supported: Windows 10 x64, Windows 11 x64
Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
