USB Switch - LINDY 4x4 USB 3.2 Gen 1 Matrix Switch, 5 Gbps, Black
Product reference:
14-4002888434065
Share 4 USB devices between 4 computers with the USB 3.2 Gen 1 Matrix Switch, supporting 5 Gbps bandwidth. The device offers switching via buttons, a web interface and RS-232 commands, as well as a variety of connection options.
USB Switch - LINDY 4x4 USB 3.2 Gen 1 Matrix Switch, 5 Gbps, Black
Product reference:
14-4002888434065
Share 4 USB devices between 4 computers with the USB 3.2 Gen 1 Matrix Switch, supporting 5 Gbps bandwidth. The device offers switching via buttons, a web interface and RS-232 commands, as well as a variety of connection options.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
LINDY 4x4 USB 3.2 Gen 1 Matrix Switch, 5 Gbps, Black
Communicate 4 USB devices between 4 computers with the USB 3.2 Gen 1 Matrix Switch, which supports 5 Gbps bandwidth. It features connection options via buttons, web GUI, and RS-232 commands, as well as a variety of connectivity options.
- Communicate 4 USB devices between 4 computers easily with USB 3.2 Gen 1 technology.
- High-speed data transfer with bandwidth up to 5 Gbps.
- Simple connection via buttons, web GUI or RS-232 commands for convenient control.
- The kit includes a multi-port power supply and 4 USB 3.2 Gen 1 Type AB cables, ready to use.
Features | |
|---|---|
| Product Type | USB Switch |
| Model | 4x4 USB 3.2 Gen 1 Matrix Switch |
Specifications | |
| USB Standard | USB 3.2 Gen 1 |
| Supported Bandwidth | 5Gbps |
| Chip | AT32F437 + VL817 |
| Power Transmission | 900mA in each USB Type A port |
Connectors | |

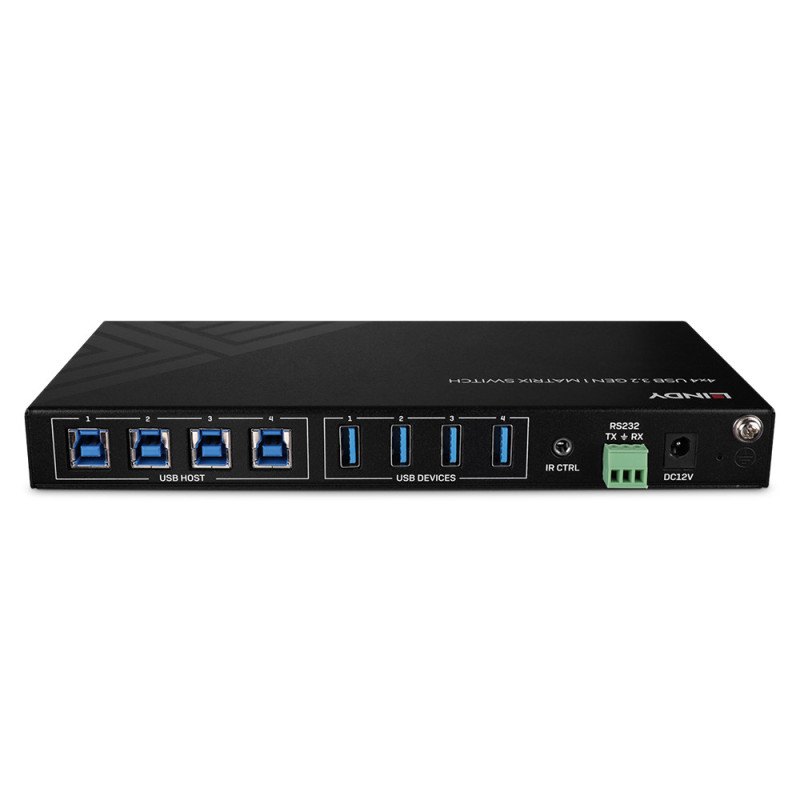

| Entrances | 4 x USB 3.0 Type B (Female) |
| Exits | 4 x USB Type A (Female) |
| Control Ports | RJ-45 (Female), RS-232 3-Pin Terminal Block |
| Power Connector | 5.5/2.5mm |
Physical Properties | |
| Dimensions (WxDxH) | 221 x 105 x 26 mm (8.7 x 4.13 x 1.02 in) |
| Housing | Metal |
| Net Weight | 1.15 kg (2.54 lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 0 - 90% RH (non-condensing) |
| Power Requirements | 12V 3A |
| Color | Black |
Miscellaneous | |
| Packaging Type | Cardboard box |
| Packaging Dimensions | 260 x 173 x 70 mm (10.24 x 6.81 x 2.76 in) |
| Gross Weight | 1.45 kg (3.2 lb) |
| Product Compliance | CE, FCC, RoHS REACH, California Proposition 65 |
www.lindy.lt
| Height | 70mm |
| Length | 260 mm |
| Weight | 1450g |
| Width | 173 mm |
