USB Hub Logitech Swytch 2x USB-C + 3.1 Gen1 (952-000010)

Connect the notebook to the AV equipment in the room and use it for any video conference or webinar. display in the room, thanks to which they will be able to easily organize conferences, present and stream through any service.

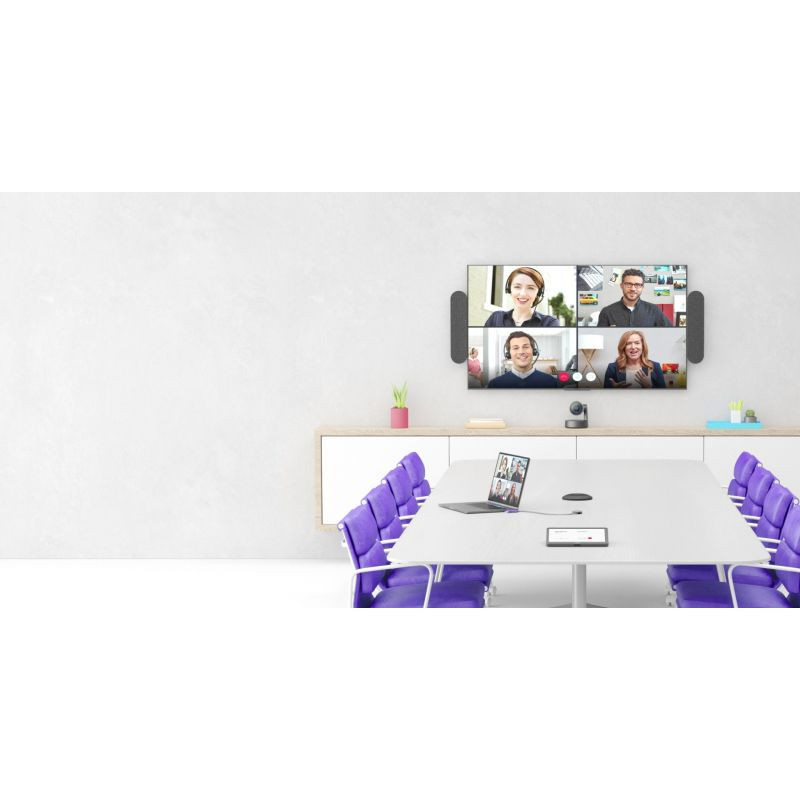

FLEXIBLE SOLUTIONS FOR CITY
Using Swytch, you will be able to implement solutions for video conferencing in rooms from providers such as Microsoft or Zoom, and at the same time allow people to use conference rooms with other images services.
SIMPLE CONNECTION

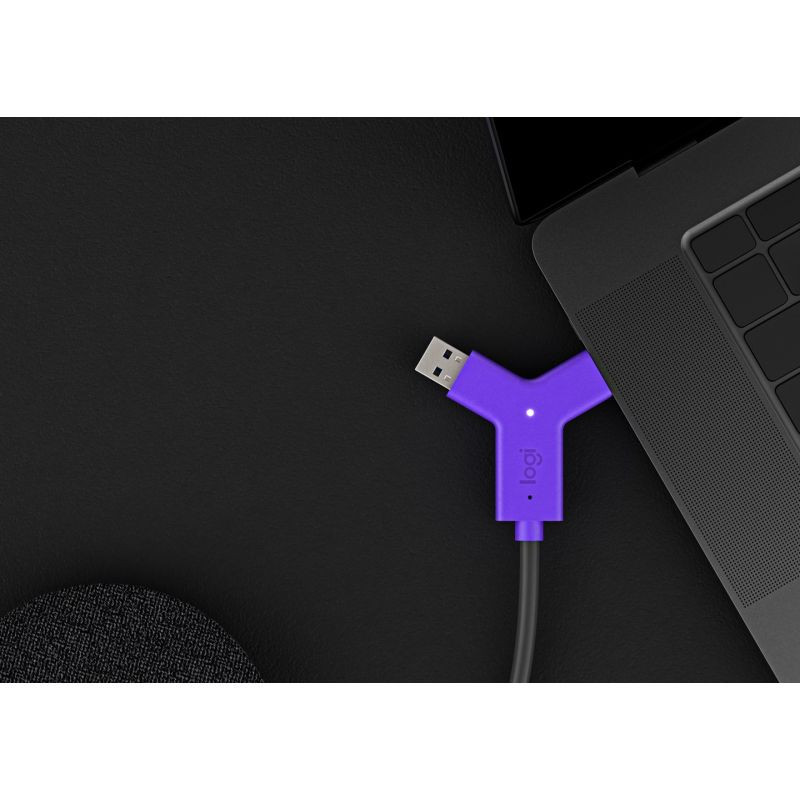

If you want to host or connect to a video conference, simply connect the iconic Swytch connector to any notebook with a USB 3.0 or higher type A or type C port. No keys, switches or HDMI ports are required.
Intelligent topology
Implementation devices Swytch do miestností s USB conference cameras is simple. Simply connect the Swytch rozbočovač to the conference room and place the Swytch connector nearby. Keep your desk clean and tidy with the included magnetic docking station or connect the Swytch connector to existing cable channels. In both cases, the robust fastening of the cables will prevent them from falling out.
PREMENITE NOTEBOOK NA RÉŠENIE PRE EESTNOSTI

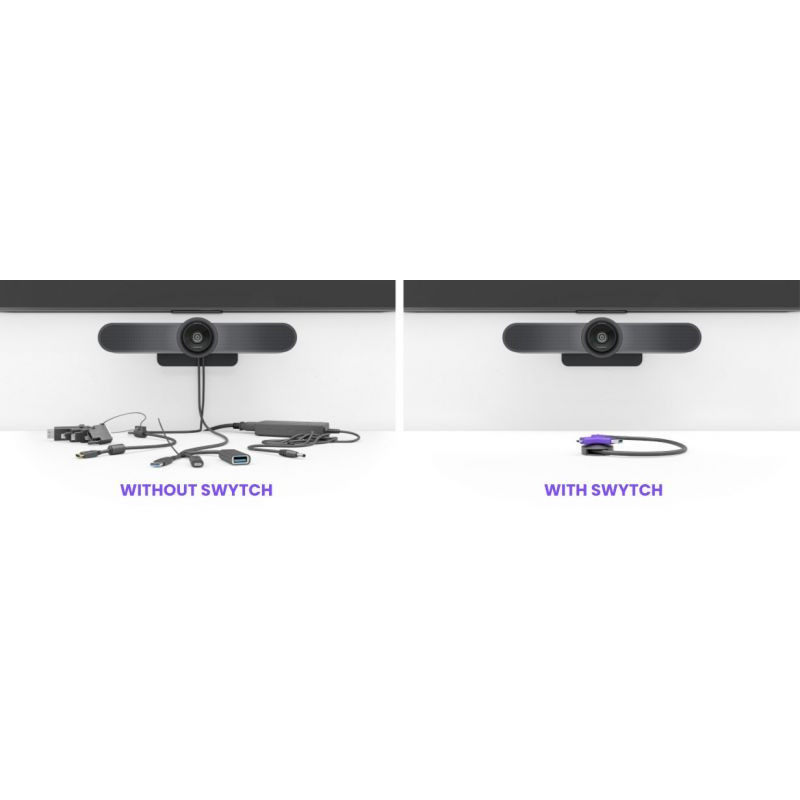

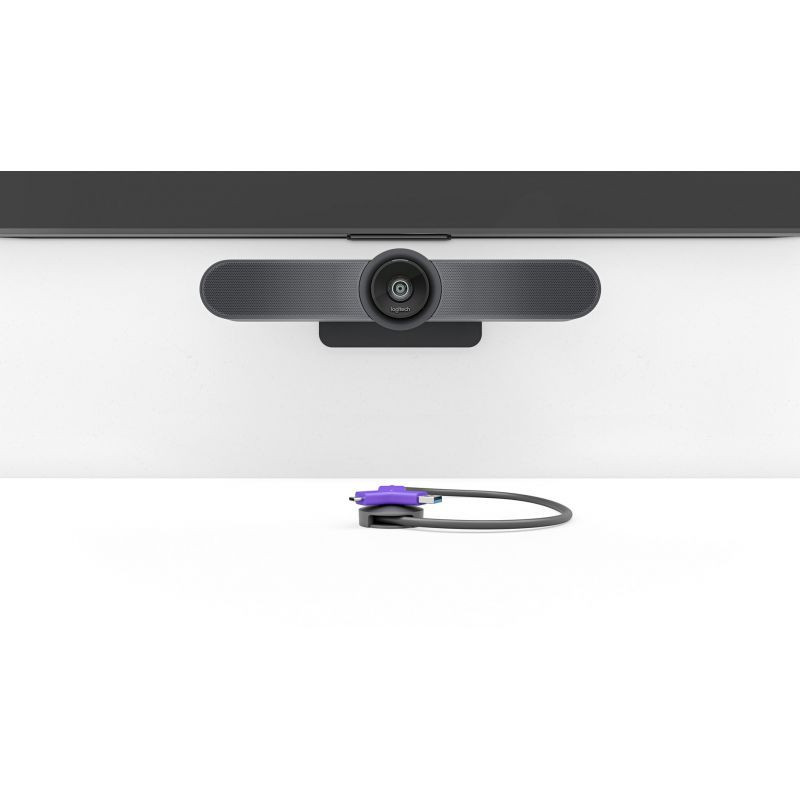

Thanks to hidden cables and a practical magnetic docking station, Swytch keeps every room in use in an overview, even if you don't have a dedicated computer. Connecting with only one cable and a simple user interface allows virtually everyone to easily use their own notebook for team work. Swytch Extender
Height: 27.4 mm
Width: 120 mm
Height: 120 mm
System requirements
Zariadenia konferenka nej ošite
Display s HDMI input
Konferenčné kamery s hlasovým odposluchom
Notebooky
Port USB 3.0 (type A or type C)
Power supply via USB (up to 60 W) for compatible notebooks with charging via USB type C
Operating systems with DisplayLink Plug and Display™ drivers, including Windows® 10, macOS 10.15 and newer and Chrome OS™ 75 and newer.
.
Technical parameters
PORTY A ROZHRANIA
Rozbočovač Swytch
Power supply
HDMI 2.0 for display
HDMI 2.0 for computer in conference room
USB 3.0 type A for conference camera
USB 3.0 typu C for computers in the conference room
USB 3.0 typu C for outlets Swytch Extender
Equipment Swytch Extender
Power supply
USB 3.0 typu A for rozbočovaču Swytch
USB 3.0 typu C for connectors Swytch
USB 3.0 micro B k connectors Swytch
Connector Swytch
USB 3.0 type A for notebooks with ports type A
USB 3.0 type C for notebooks with ports type C
DŽIAKY
Rozbočovach Swytch: Compatible holder for PC Logitech (not part of the package)
Device Swytch Extender: Fastening through a 25 mm opening in front of the entrance or to the bottom part of the table using the attached material
Connector Swytch: Magnetic dock attached
GENERAL PARAMETERS
Number of displays in the conference room: 1
Maximum resolution and refresh rate, display: 4K/60 fps
Maximum resolution a refresh rate, camera: 4K/30 fps
Audio notebook for local sharing: Yes
Sound from notebook for online conference: Yes (content sharing supported by these services, including system sound)
Device management: Remote monitoring and management through Logitech Sync
COMPATIBILITY
Conference cameras
Compatible with conference cameras connected via USB, okrem iného Logitech Rally, MeetUp a GROUP
Room solutions
Microsoft Teams Rooms
Zoom Rooms
Compatible aj s inými solutions for rooms that use conference cameras connected via USB and a display connected via HDMI.
Obsah balenia
Rozbočovač Swytch
Device Swytch Extender
Konektor Swytch s káblom USB 1,5 m
Napájací adapátěr rozbočovača Swytch 100-240 V
Napájácí adapétor zálaka Swytch Extender 100-240 V
Kábel USB 3.0 5 m
Kábel USB 3.0 2,2 m
Kábel HDMI 2.0 2 m
Príslushenstvo na upevnenie
Dokumentácia
