USB hub Club 3D Club3D USB-7-in1-HUB USB-C 2xDP / 2xUSB / 2xUSB-C / RJ45 100W retail
Product reference:
3-8719214472528
USB Hub Club 3D Club3D USB-7-in1-HUB USB-C gt; 2xDP/2xUSB/2xUSB-C/RJ45 100W retail
USB hub Club 3D Club3D USB-7-in1-HUB USB-C 2xDP / 2xUSB / 2xUSB-C / RJ45 100W retail
Product reference:
3-8719214472528
USB Hub Club 3D Club3D USB-7-in1-HUB USB-C gt; 2xDP/2xUSB/2xUSB-C/RJ45 100W retail
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days

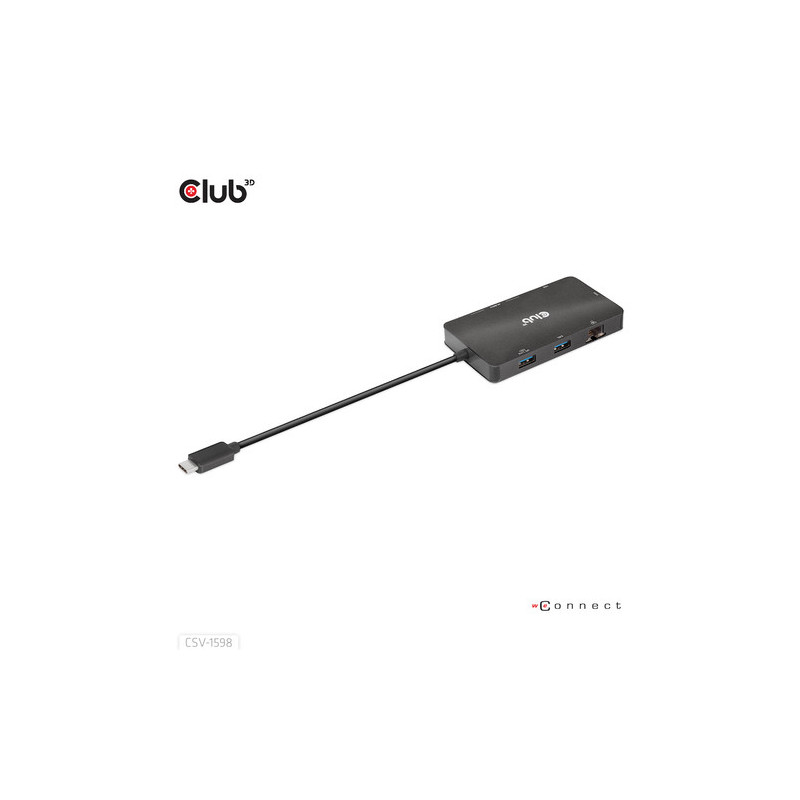

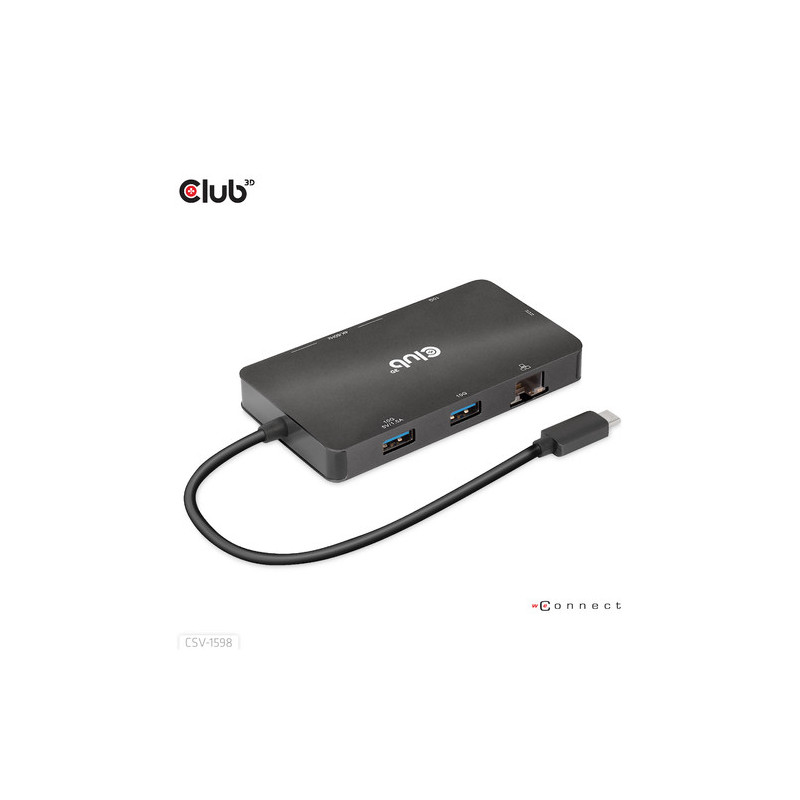

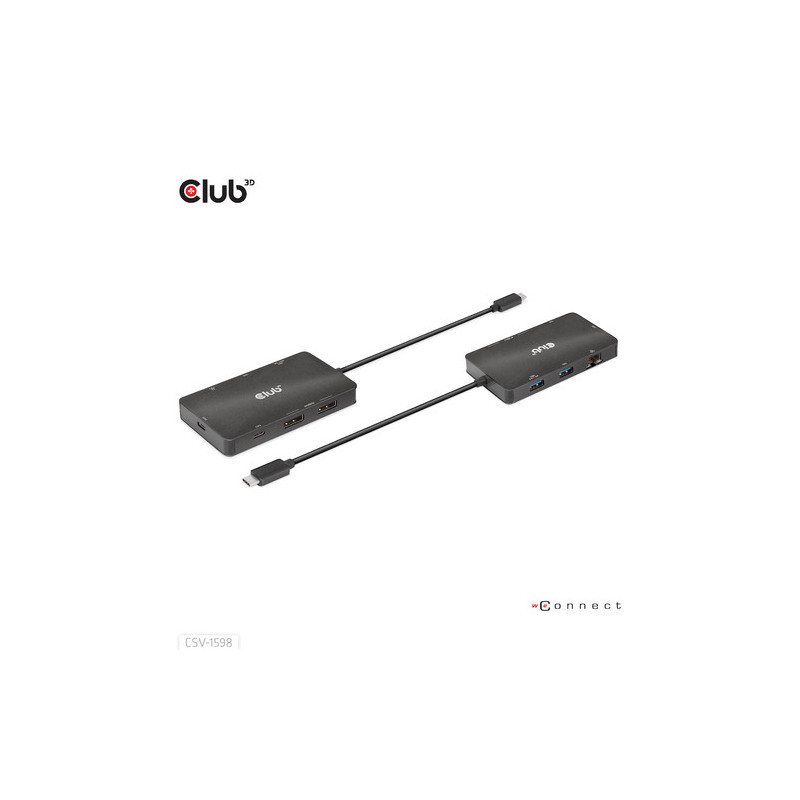

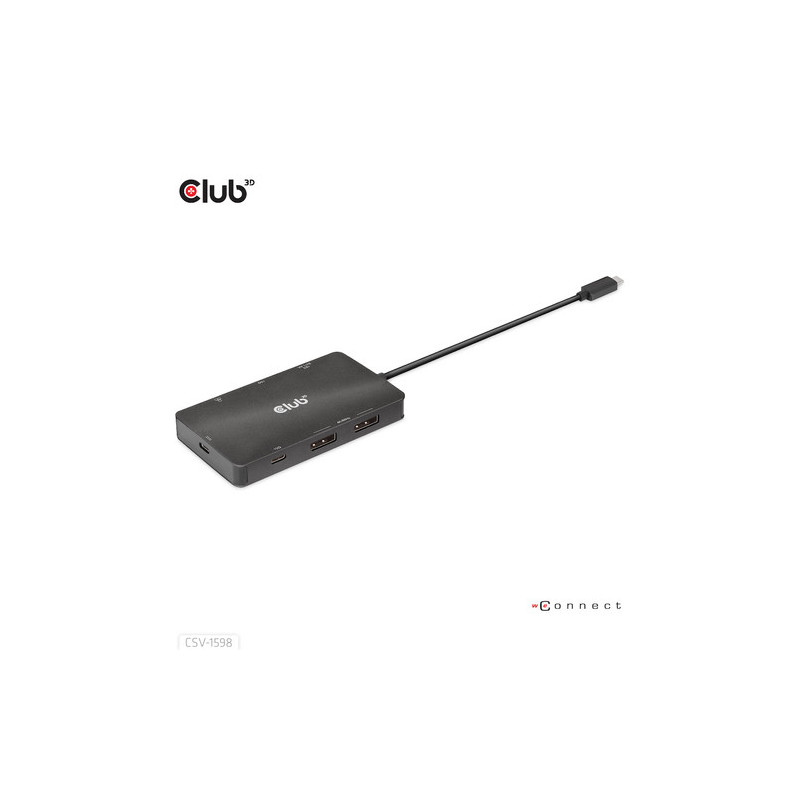

The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides the most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort™ 4k60Hz displays simultaneously for enjoying videos on big screen, connect multiple USB devices for data transmission, connect Ethernet source for getting PC to super high speed network. Besides, it has PD charging port which supports max 100W PD charging to support the function of the adapter and charge for the host simultaneously. It can work on all DP™ Alt mode supported USB Type-C host.
| Summary: | CLUB3D USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 HUB. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W, HDCP version: 1.4/2.2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, HD type: 4K Ultra HD, Maximum refresh rate: 60 Hz. Output voltage: 5 V, Output current: 1.5 A, Power consumption (max): 7.5 W. Width: 105 mm, Depth: 59 mm, Height: 14 mm |
| Vendor Homepage: | https://www.club-3d.com/en/detail/2611/usb_gen2_type_c_to_dual_displayport_4k60hz_7_in_1_portable_dock/ |
| Category Code: | NBK |
| CnCode: | 84733020 |
| Unit Box Height: | 0.275 |
| Unit Box Length: | 0.08 |
| Unit Box Width: | 0.035 |
| DisplayPort quantity: | 2 |
| HDCP: | Yes |
| HDCP version: | 1.4/2.2 |
| Host interface: | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C port quantity: | 2 |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.0 |
| USB Power Delivery up to: | 100W |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| Ethernet LAN (RJ-45) port: | 1 |
| Ethernet LAN data rates: | 10/100/1000Mbit/s |
| Certification: | ROHS, FCC, CE EMI |
| HD type: | 4K Ultra HD |
| High Dynamic Range (HDR) supported: | Yes |
| Hub interfaces: | DisplayPort/RJ-45/USB 3.2 Gen 2 (3.1 Gen 2) Type-A/USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Maximum refresh rate: | 60Hz |
| Number of displays supported: | 2 |
| Plug and Play: | Yes |
| Product colour: | Black |
| Output current: | 1.5A |
| Output voltage: | 5V |
| Power consumption (max): | 7.5W |
| Mac operating systems supported: | Yes |
| Windows operating systems supported: | Yes |
| Depth: | 59mm |
| Height: | 14mm |
| Weight: | 102g |
| Width: | 105mm |
| Package depth: | 32mm |
| Package height: | 250mm |
| Package weight: | 156g |
| Package width: | 80mm |
| Quantity per pack: | 1pc(s) |
| Paper/cardboard packaging weight: | 54g |
| Plastic packaging weight: | 0g |
| Total paper/cardboard packaging weight: | 0g |
| Total plastic packaging weight: | 0g |
| Harmonized System (HS) code: | 8473 3020 |
| Cable length: | 0.17m |
| Cable type: | Round cable |
| Model: | CSV-1598 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.00077m³ |
| Unit Calculated Weight: | 0.14kg |
