StarTech.com USBA2DPGB laptop dock / port replicator

StarTech.com USB 3.0 Mini Dock - Dual Monitor USB-A Docking Station with DisplayPort 4K 60Hz Video Gigabit Ethernet - 1ft (30cm) cable - Portable USB 3.1 Gen 1 Type-A Laptop Adapter. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Portable Docking Station | USB 3.0 | Mac Windows® | TAA Compliant
This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.

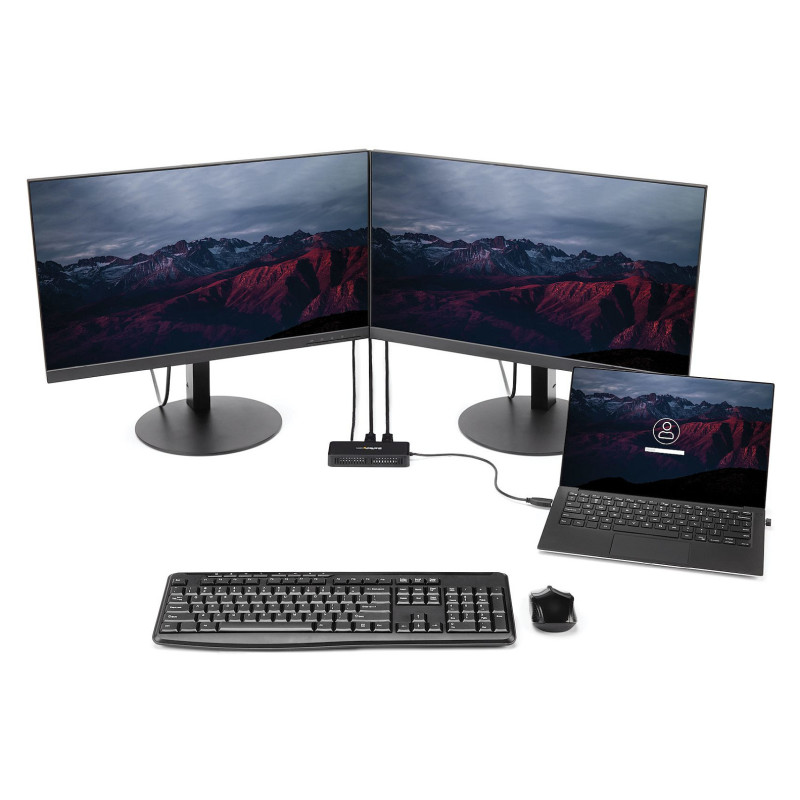

Increase Your Productivity with Two 4K Monitors
The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.
Access Hardwired Networks with a GbE Port
Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn't have an Ethernet port.

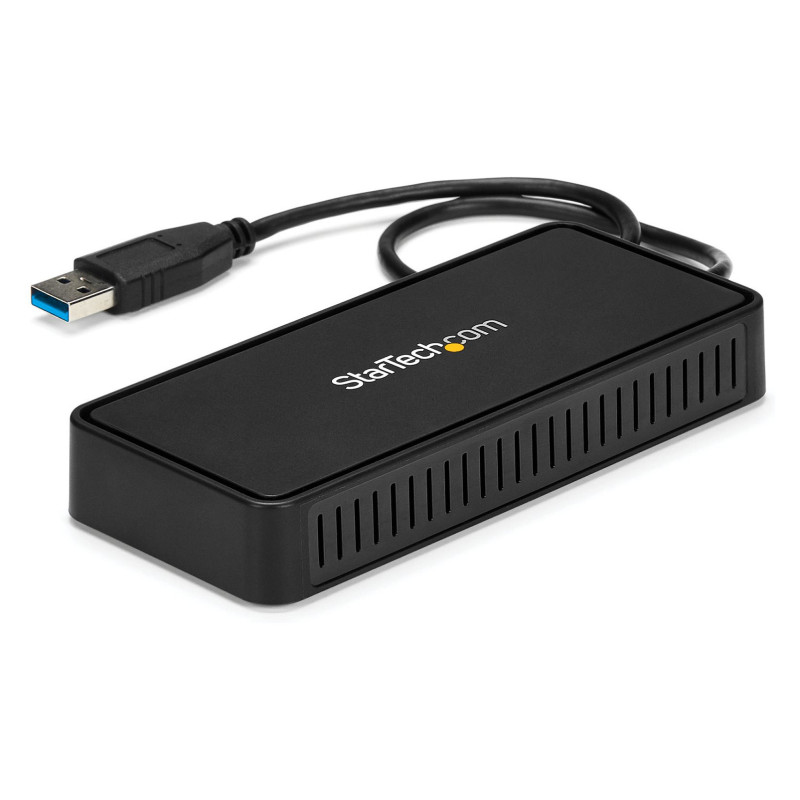

Maximize Portability with a Miniature Docking Station
The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.
The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage

Ports interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DisplayPorts quantity: 2
Microphone in: No
DC-in jack: No

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wake-on-LAN ready: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 4096 x 2160 pixels
Number of displays supported: 2
Product colour: Black
UASP support: No
Brand compatibility: Any brand
Certification: CE, FCC, TAA

Power

Power source type: USB
Wireless charging: No

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 58 mm
Depth: 130 mm
Height: 20 mm
Weight: 126 g

Packaging data

Package width: 200 mm
Package depth: 114 mm
Package height: 38 mm
Package weight: 215 g

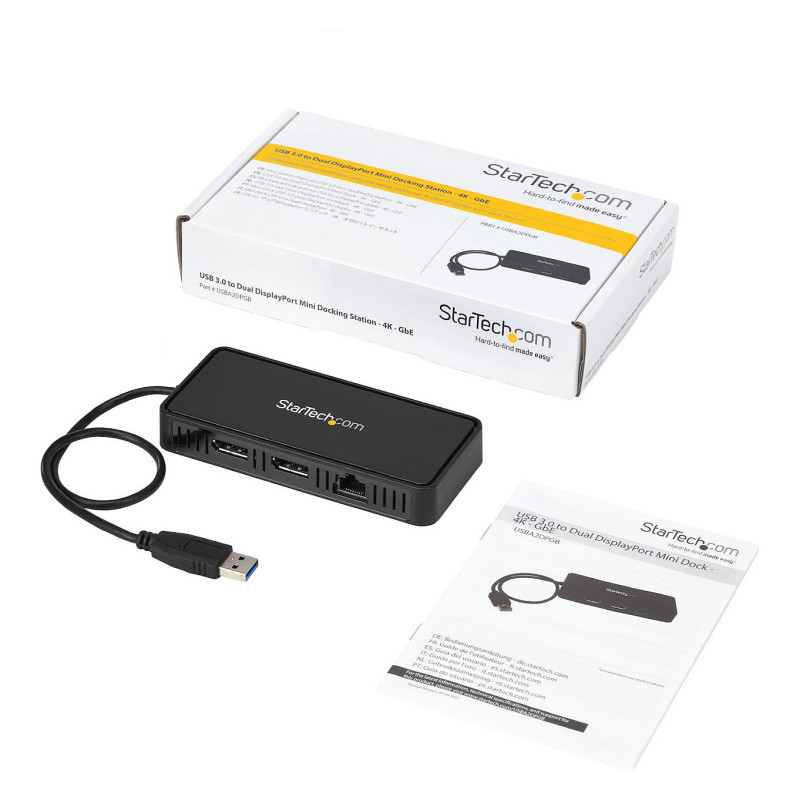

Packaging content

Quick start guide: Yes

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 20 pc(s)
Master (outer) case width: 220 mm
Master (outer) case length: 415 mm
Master (outer) case height: 255 mm
Harmonized System (HS) code: 84733020

Other features

Cable length: 0.14 m
Chipset: DisplayLink - DL-6950
