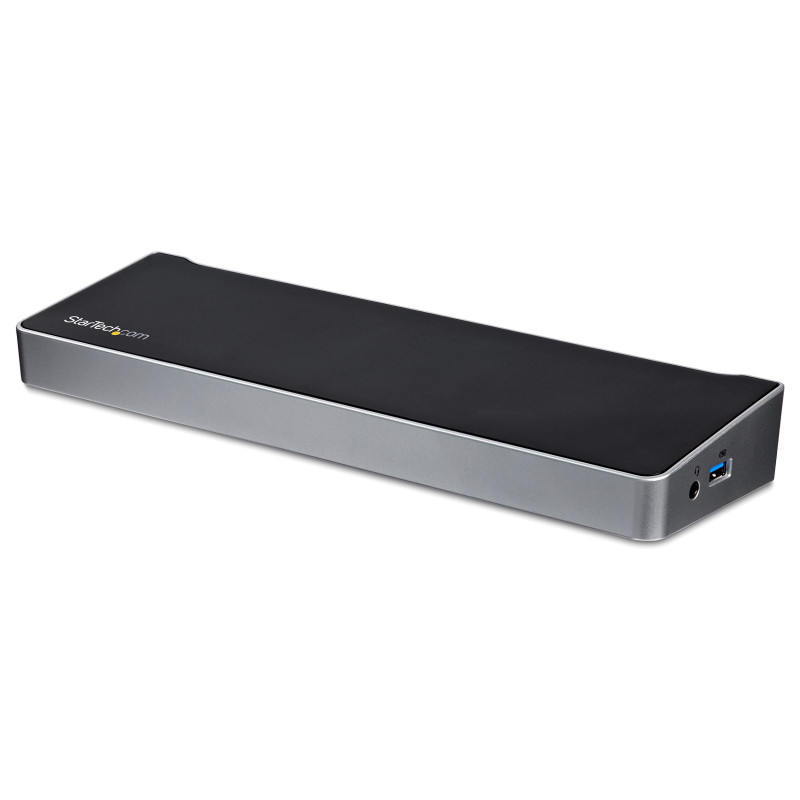

StarTech.com USB3DOCKH2DP laptop dock / port replicator

StarTech.com Triple-Monitor USB 3.0 Docking Station - 1x HDMI - 2x DisplayPort. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100-240 V, Input current: 1.5 A, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS

Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

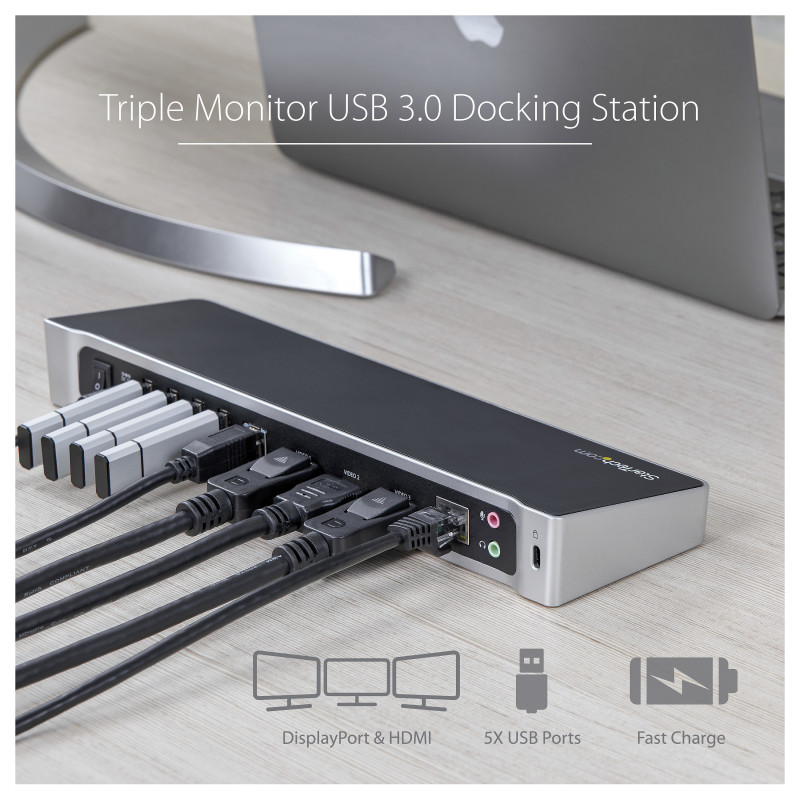

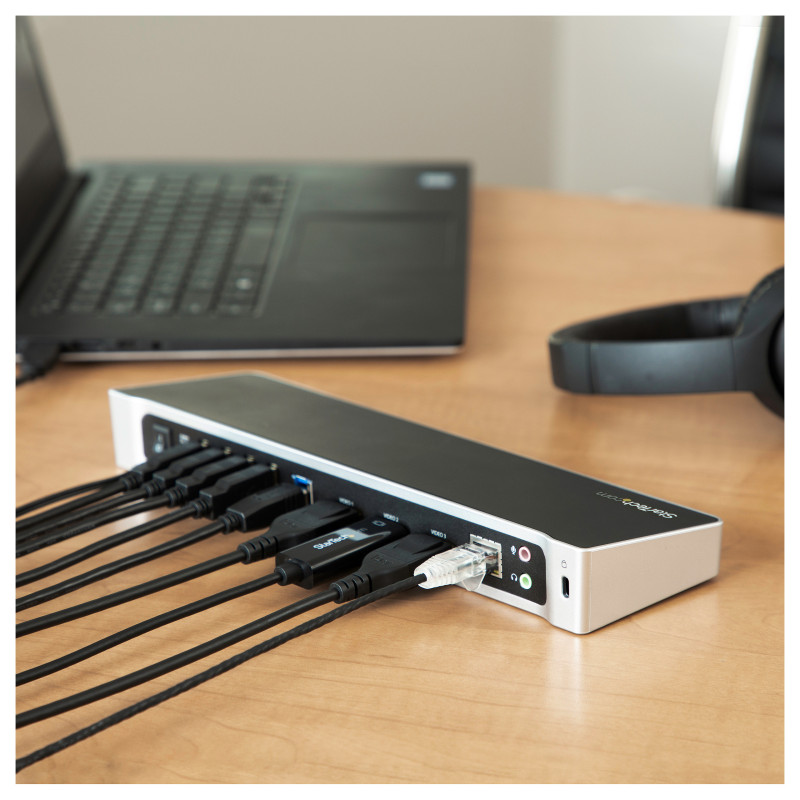

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

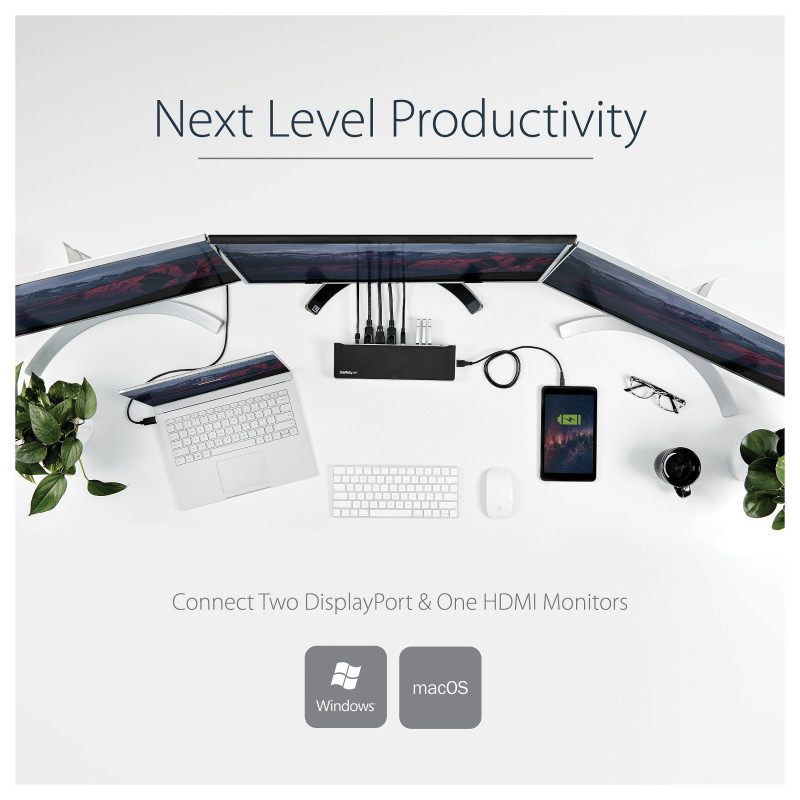

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

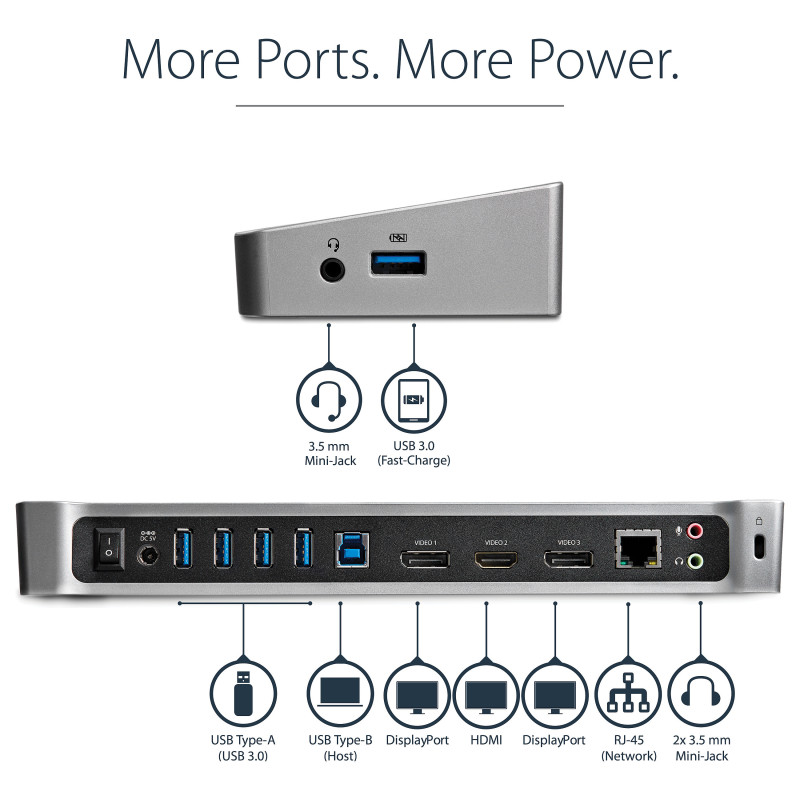

Powerful Connections and Fast Device Charging

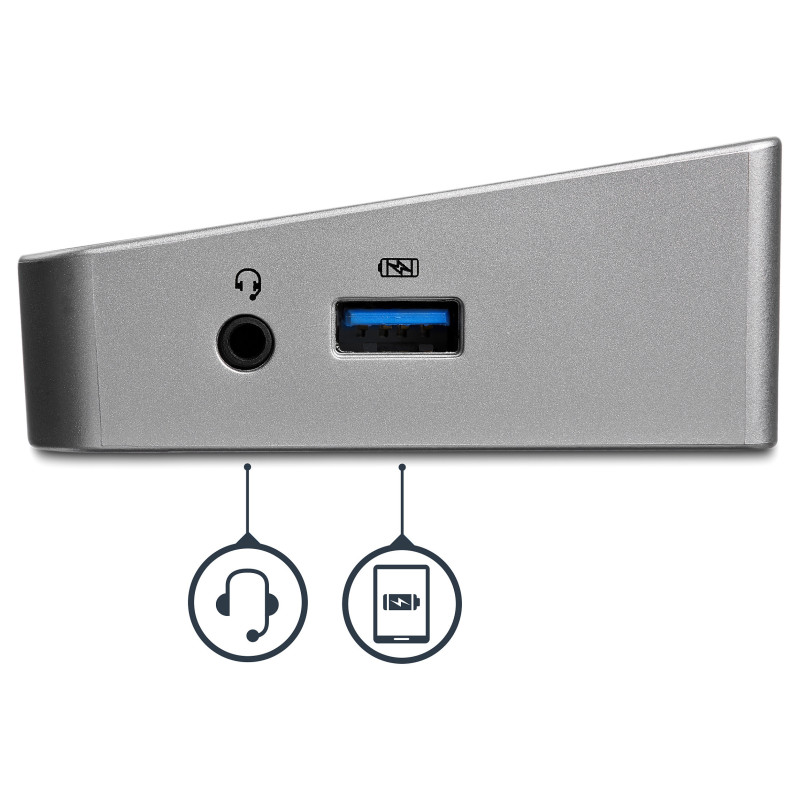

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you'll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

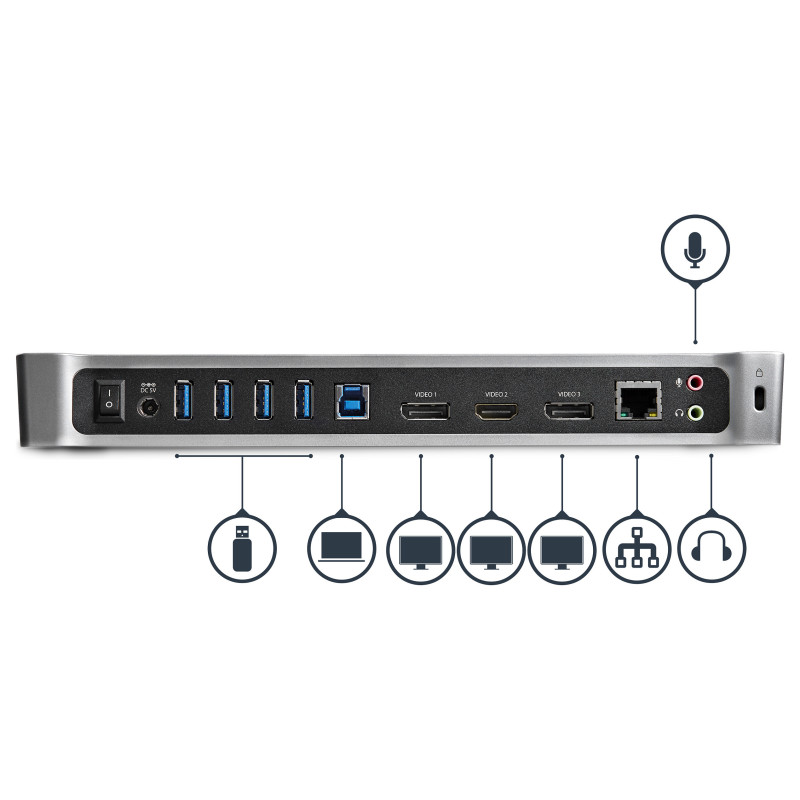

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
HDMI ports quantity: 1
DisplayPorts quantity: 2
Feature: Microphone in
Feature: Combo headphone/mic port
Headphone outputs: 2
Headphone connectivity: 3.5 mm
USB connector type: USB Type-A
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: Full duplex

Performance

Data transfer rate: 5 Gbit/s
Maximum digital resolution: 3840 x 2160 pixels
Feature: Cable lock slot
Product colour: Black, Silver
LED indicators: Activity, Link
Feature: UASP support
Housing material: Plastic
Brand compatibility: Any brand
Certification: CE, FCC, DisplayLink, TAA, REACH

Power

AC input voltage: 100-240 V
Input current: 1.5 A
Output voltage: 5 V
Output current: 6.5 A
Power consumption (typical): 32.5 W
Power plug type: Type N
Compatible power plug types: AU, EU, UK, US

Software

Feature: Mac compatibility
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

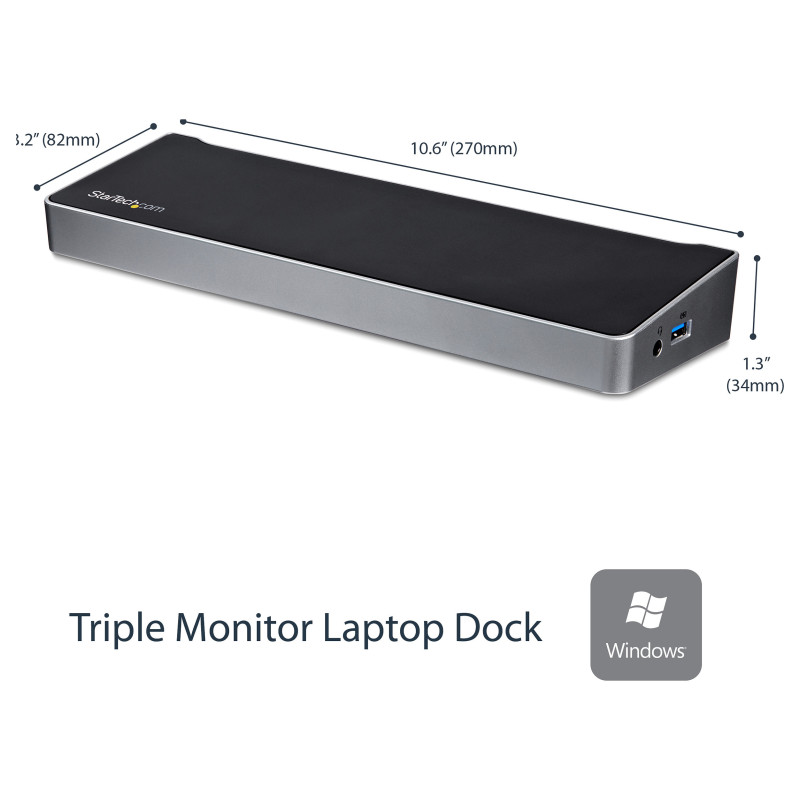

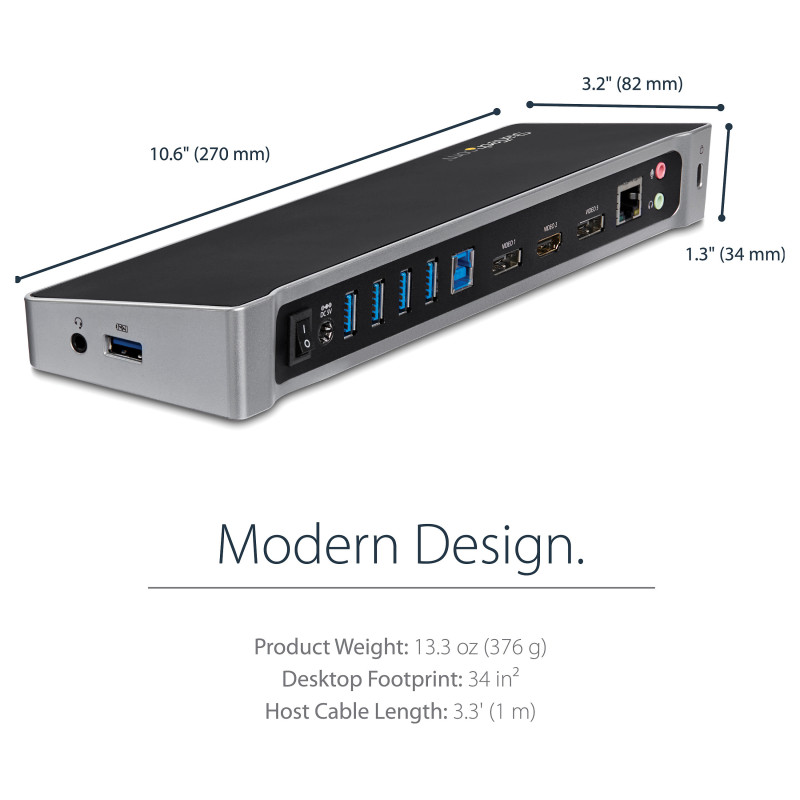

Width: 82 mm
Depth: 270 mm
Height: 34 mm
Weight: 376 g

Packaging data

Package width: 296 mm
Package depth: 164 mm
Package height: 71 mm
Package weight: 1.03 kg

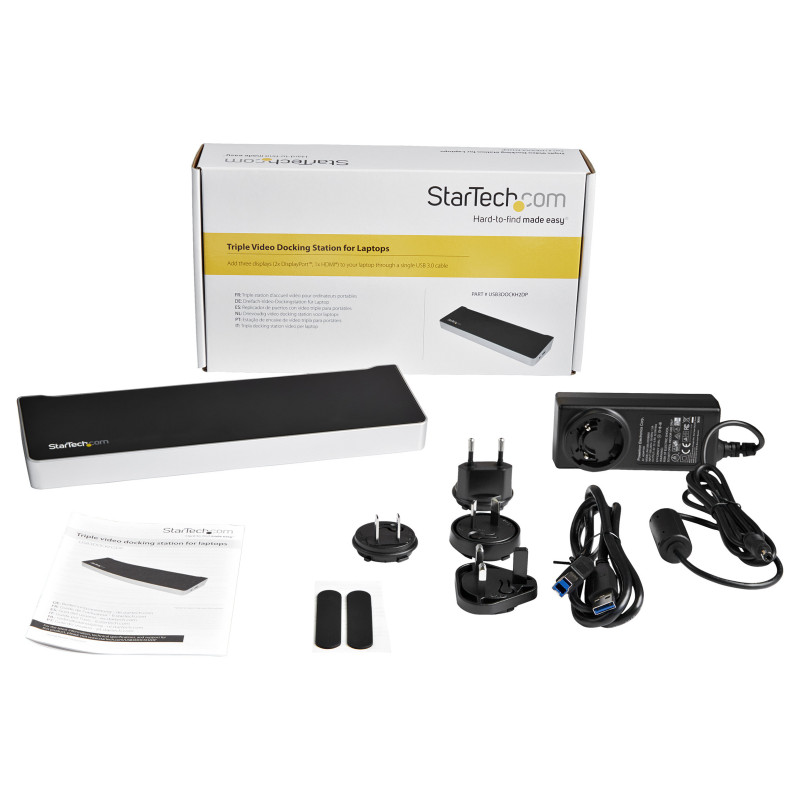

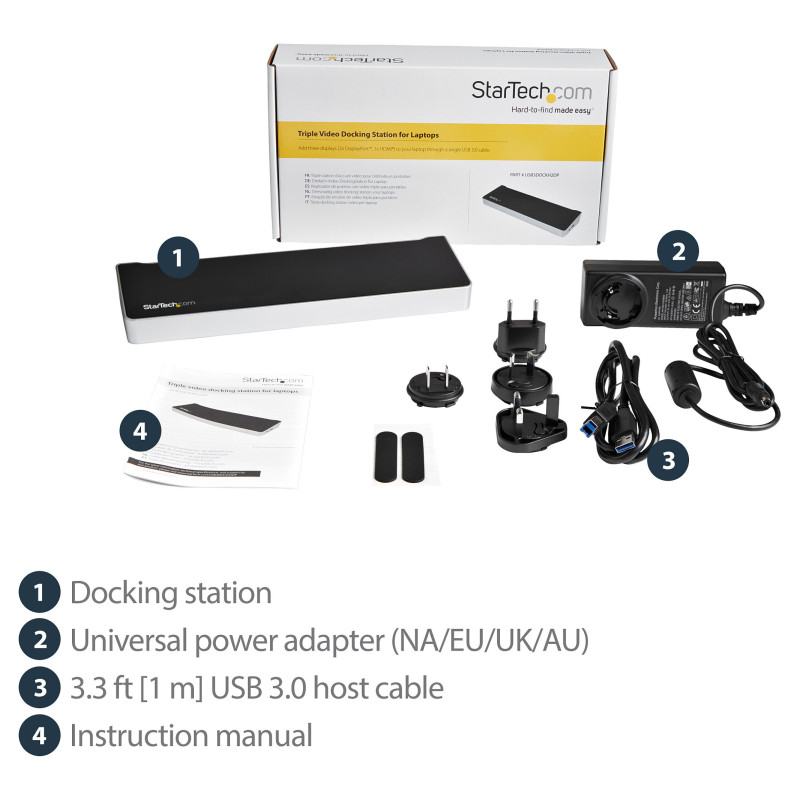

Packaging content

Cables included: USB
Feature: AC adapter included
Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 363 mm
Master (outer) case length: 373 mm
Master (outer) case height: 395 mm
Harmonized System (HS) code: 84733020

Other features

Chipset: DisplayLink - DL-5910, VLI - VL812
Number of microphone inputs: 1
USB data transfer rates: 5000 Mbit/s
