StarTech.com US1GC301AU network card

StarTech.com USB-C to Gigabit Network Adapter with Extra USB 3.0 Port - Black. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. Product colour: Black

Use the USB Type-C port on your laptop to add a Gigabit Ethernet port and a USB 3.1 Gen 1 (type-A) port

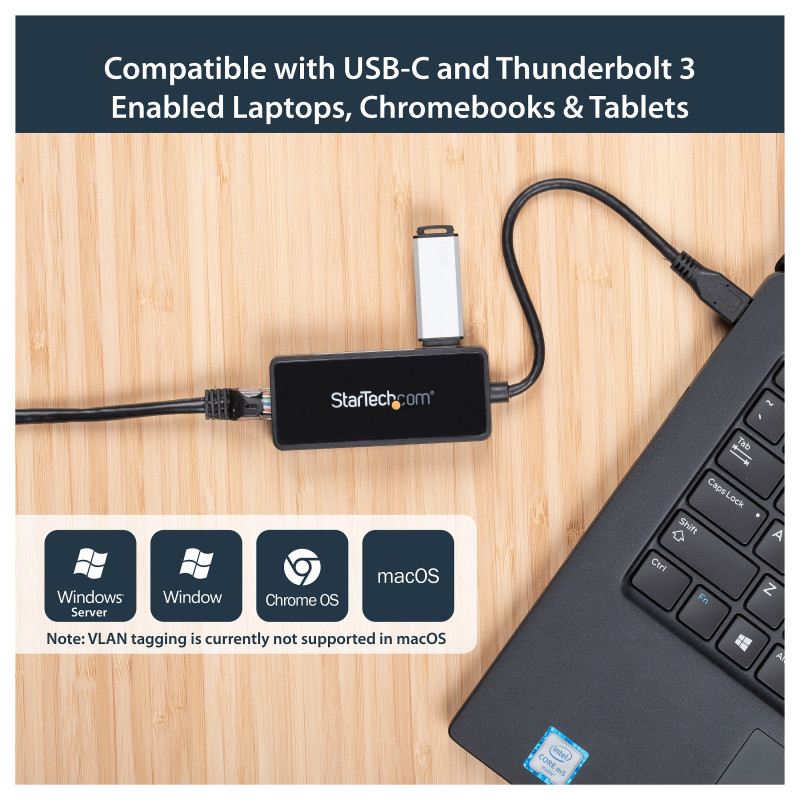

Now, you can easily connect to a Gigabit network through the USB-C™ or Thunderbolt™ 3 port on your laptop or desktop computer, and add connectivity for an additional USB (Type-A) peripheral device. It's a great companion for your MacBook, Chromebook Pixel™, Dell™ XPS 12, Dell Latitude 12 7000 Series 2-in-1 or other devices.

Powerful Gigabit Network Connections

The USB-C network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1 (5 Gbps). You can quickly access very large files over the network at Gigabit speed.

Native Driver Support Makes Installation Easy

Get up and running quickly. Simply plug the adapter into the USB Type-C™ port on your laptop and connect to your network. The network adapter chipset provides native driver support in Chrome OS™ and Windows® 8.1, and supports Mac OSX (10.10) with driver installation.

Trouble-Free Connections Through USB-Type-C

The USB-C connector is smaller and easier to use than previous USB connectors. It's a reversible plug so you can connect to your devices with either side facing up, without frustration or the risk of port damage.

With a compact design, this USB-C network adapter is as portable as your laptop, perfect for ultra-portable devices that have a USB-C port, such as the MacBook and Chromebook Pixel™. The network adapter is bus-powered which makes it easy to connect when you're on the go.

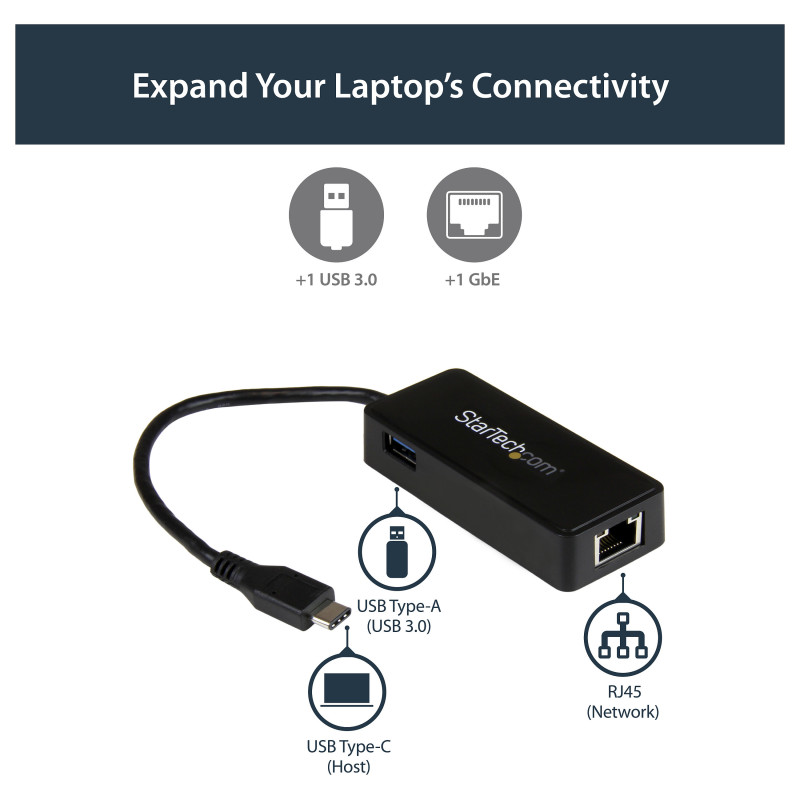

Additional Connectivity With an Extra USB 3.1 Port

Some computers with USB Type-C only offer one port for external connectivity. This Ethernet adapter features a built-in USB Type-A port, giving you the freedom to attach an additional peripheral device, such as a USB mouse.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Mac Address Pass-Through Utility : To improve network security.

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The US1GC301AU is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 1
USB version: 3.2 Gen 2 (3.1 Gen 2)
Feature: USB pass-through

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 4000
Feature: VLAN tagging

Design

Product colour: Black
Chipset: ASIX - AX88179, VIA/VLI - VL812
LED indicators: Activity, Link

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 5 - 80%

Sustainability

Feature: Sustainability compliance

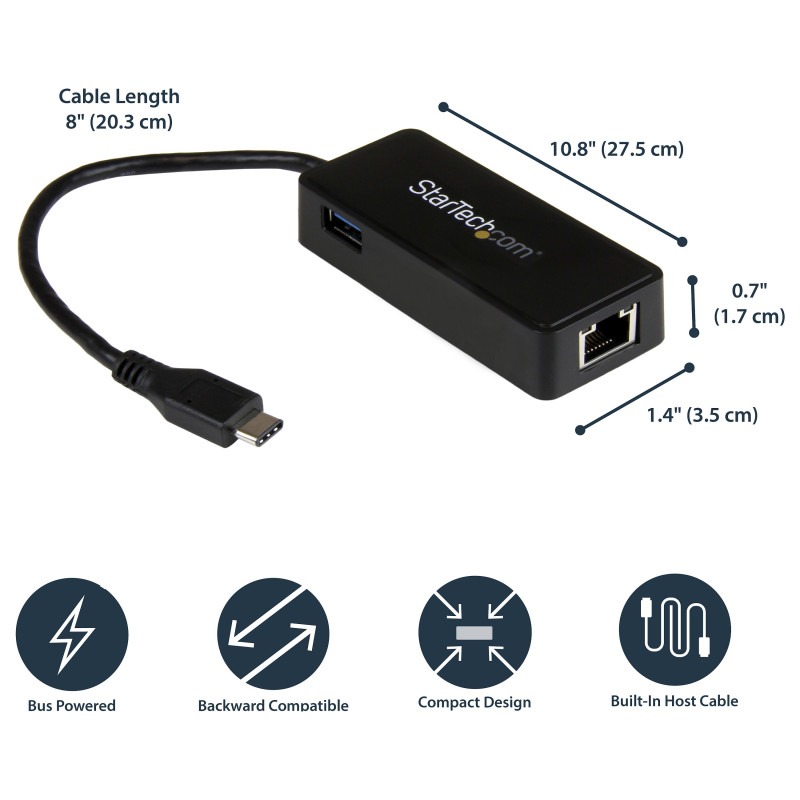

Weight & dimensions

Width: 35 mm
Depth: 275 mm
Height: 17 mm
Weight: 38 g

Packaging data

Package width: 143 mm
Package depth: 171 mm
Package height: 30 mm
Package weight: 92 g

Technical details

Compliance certificates: CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 595 mm
Master (outer) case length: 316 mm
Master (outer) case height: 373 mm
Products per master (outer) case: 80 pc(s)

Other features

Housing material: Plastic
