StarTech.com U2GA-USB-C-ETHERNET network card

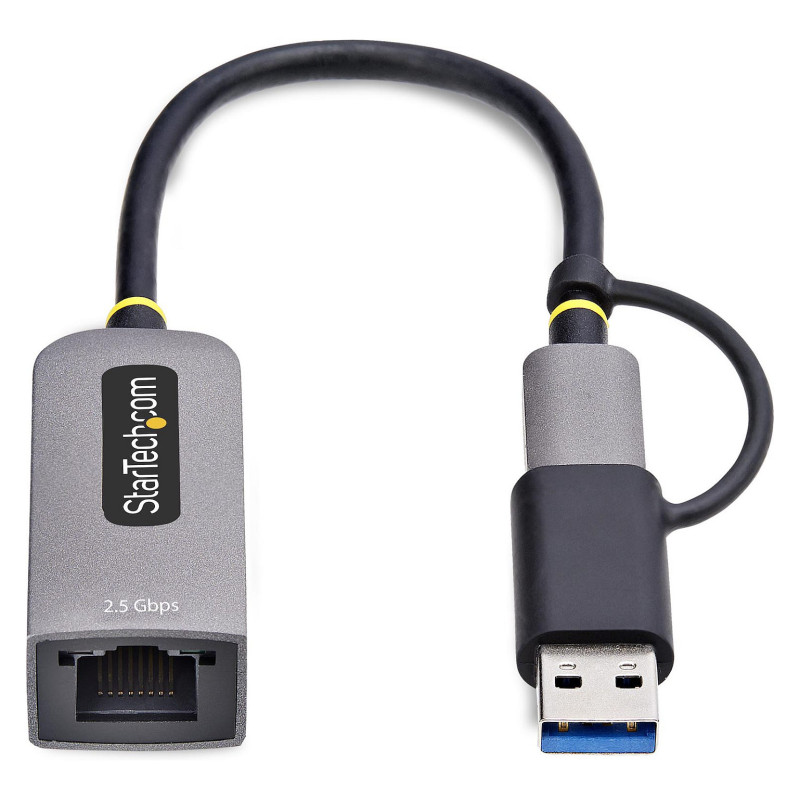

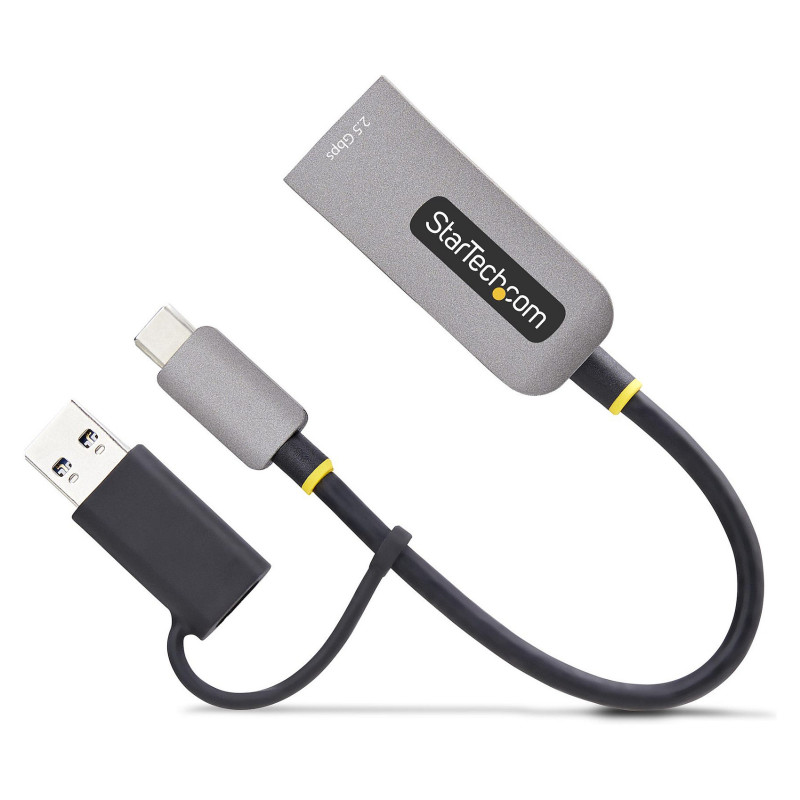

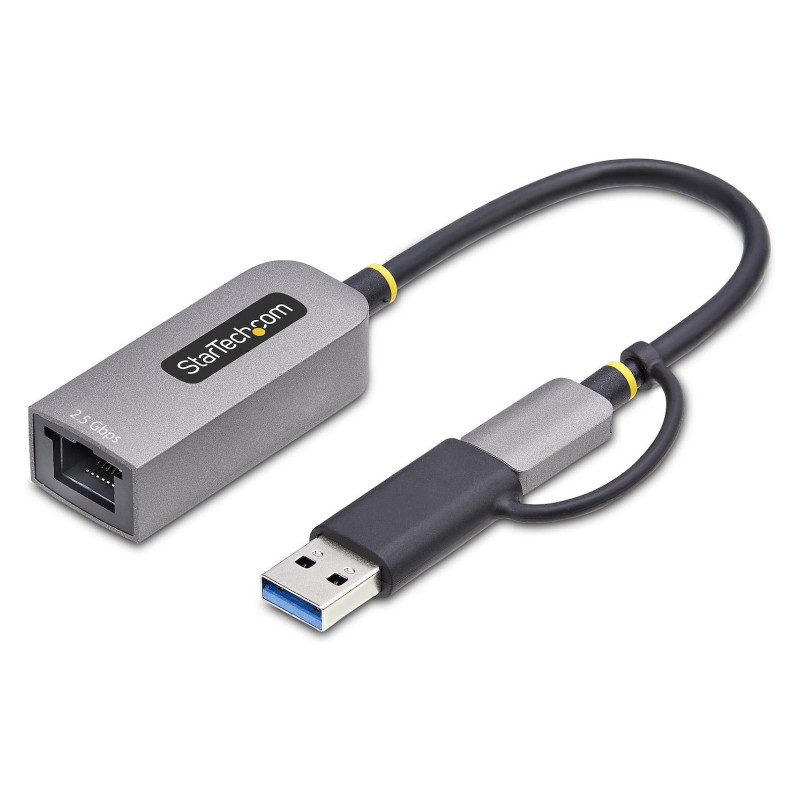

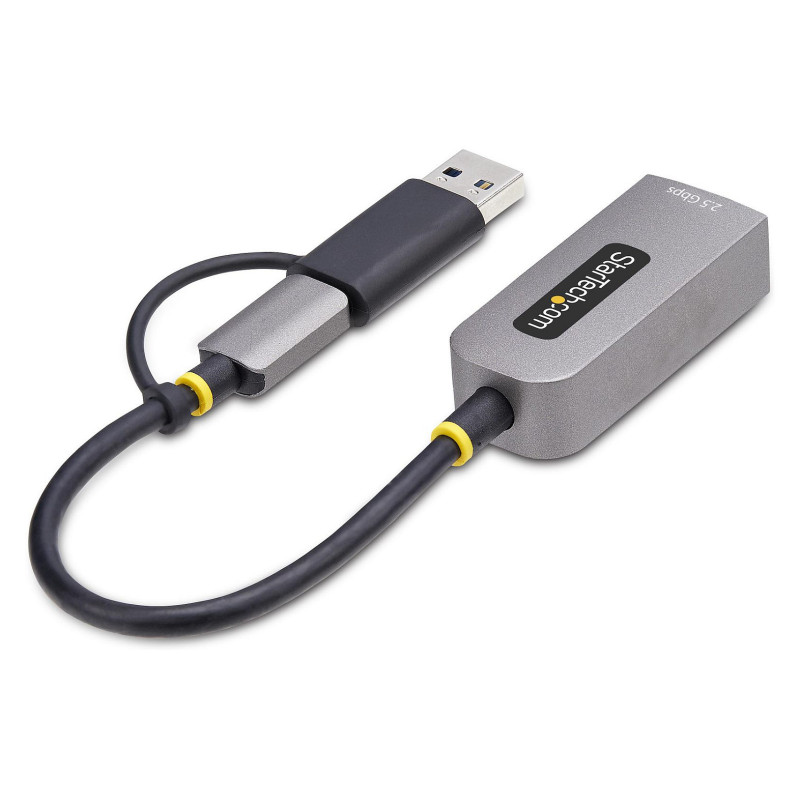

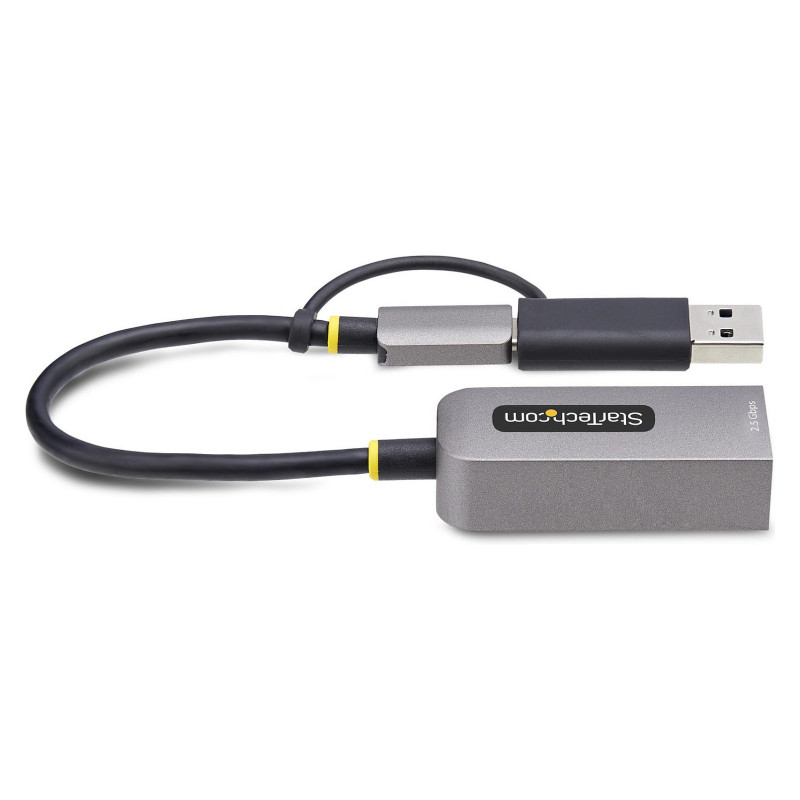

StarTech.com 2.5GbE USB-C to Ethernet Adapter with USB-A Converter, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network, Thunderbolt Compatible, Windows & Mac. Connectivity technology: Wired, Host interface: USB Type-C, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. USB powered. Product colour: Grey

Add a 2.5Gb Ethernet port to your MacBook, Chromebook™ or laptop with USB-C or Thunderbolt™ 3

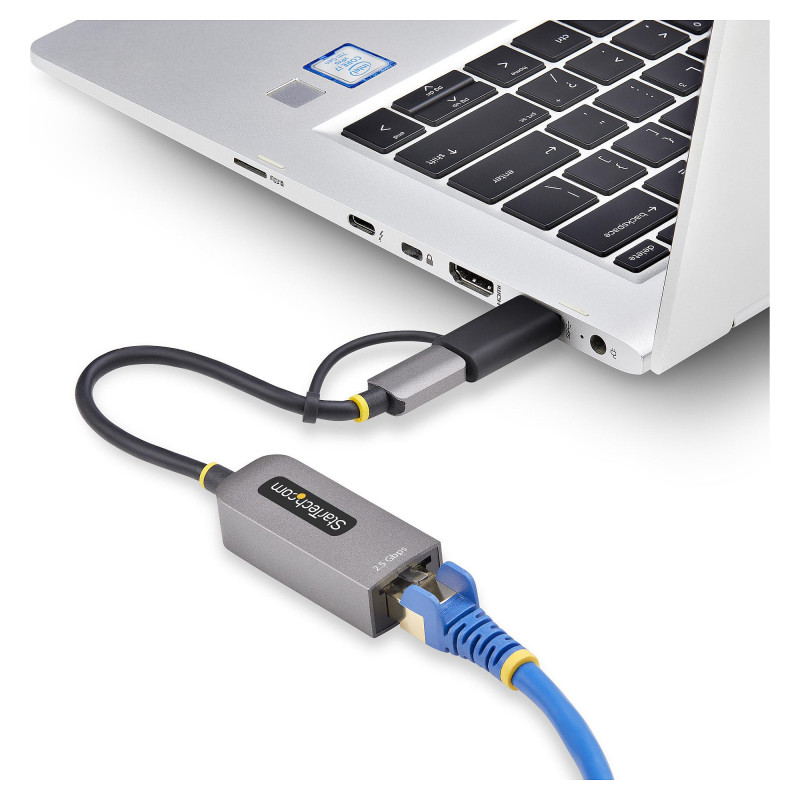

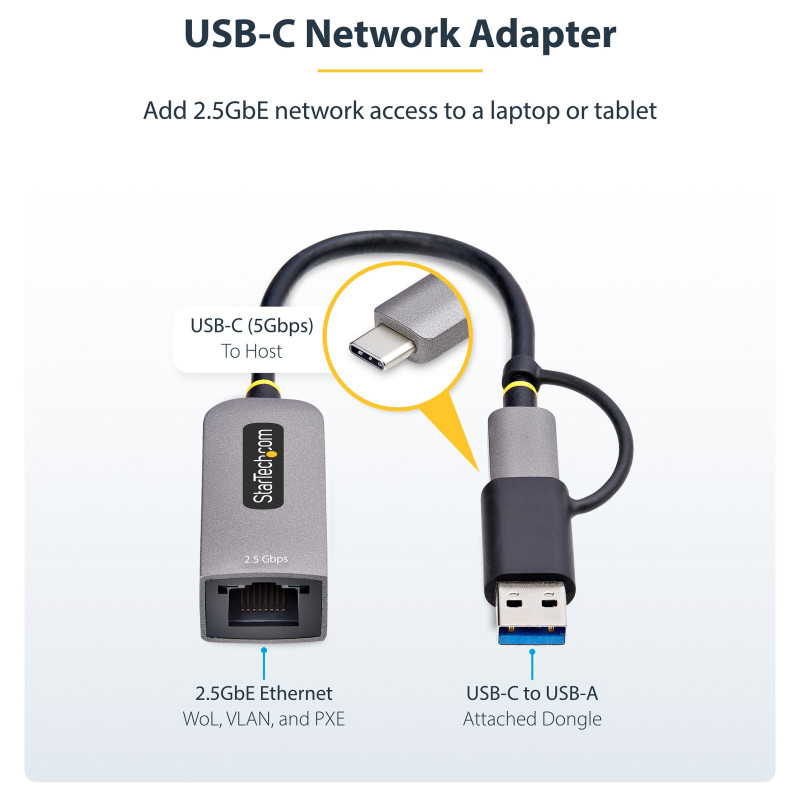

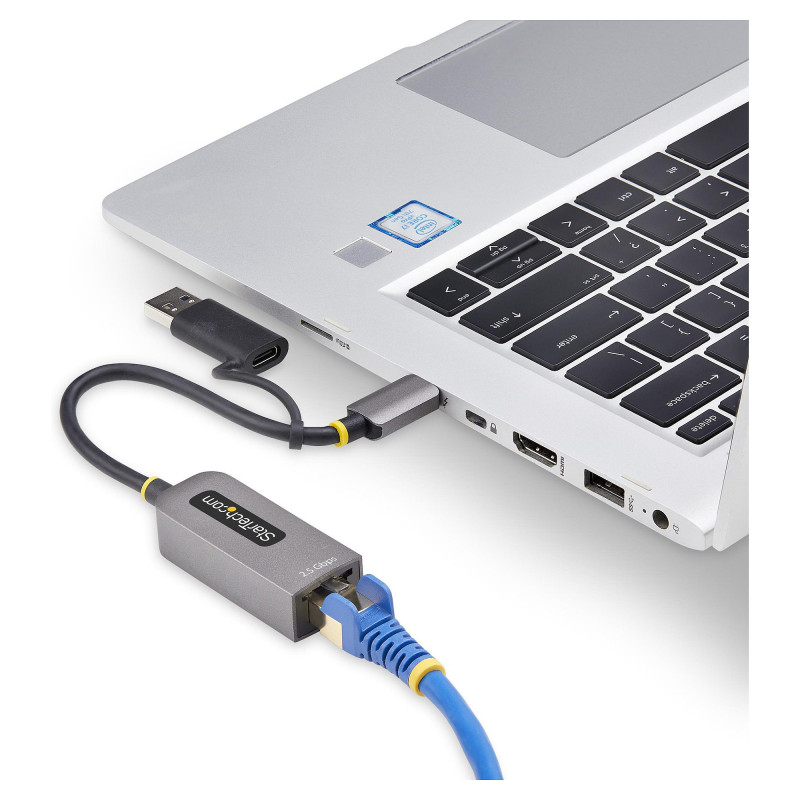

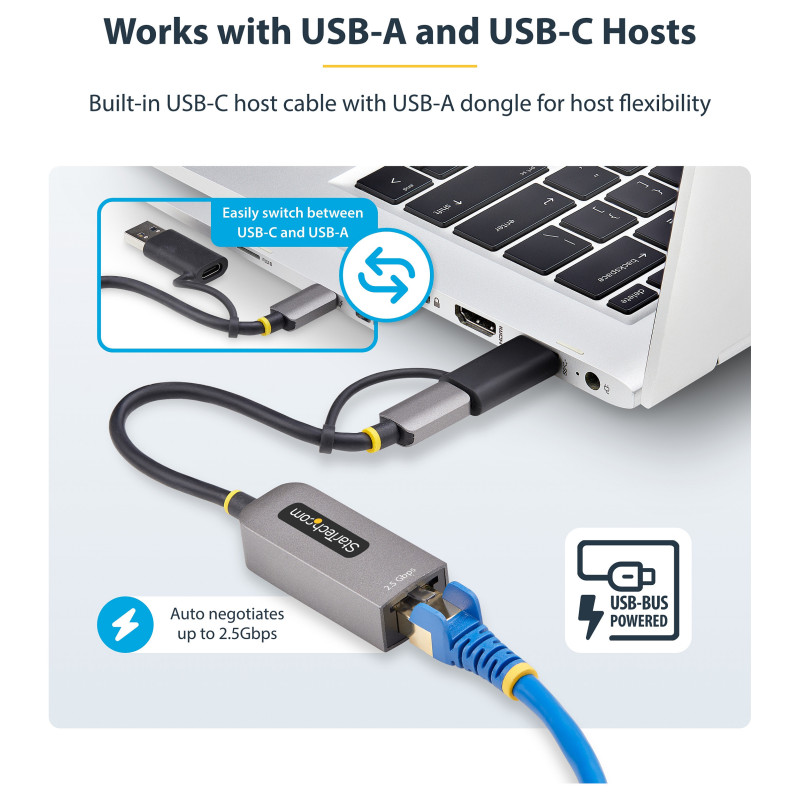

Add 2.5GbE network access to a laptop, tablet, or iPhone using an available USB Type-C or Type-A port. This USB 3.0 Type-C to Gigabit network adapter doubles your network performance on existing Cat5e cables, so there is no need to change or add to existing cabling infrastructure. This versatile adapter features a built-in 6in (15cm) USB cable and is bus-powered, drawing its power directly from the computer's USB port, reducing clutter and simplifying setup by eliminating the need for an external power adapter.

2.5 Gigabit Network Connection

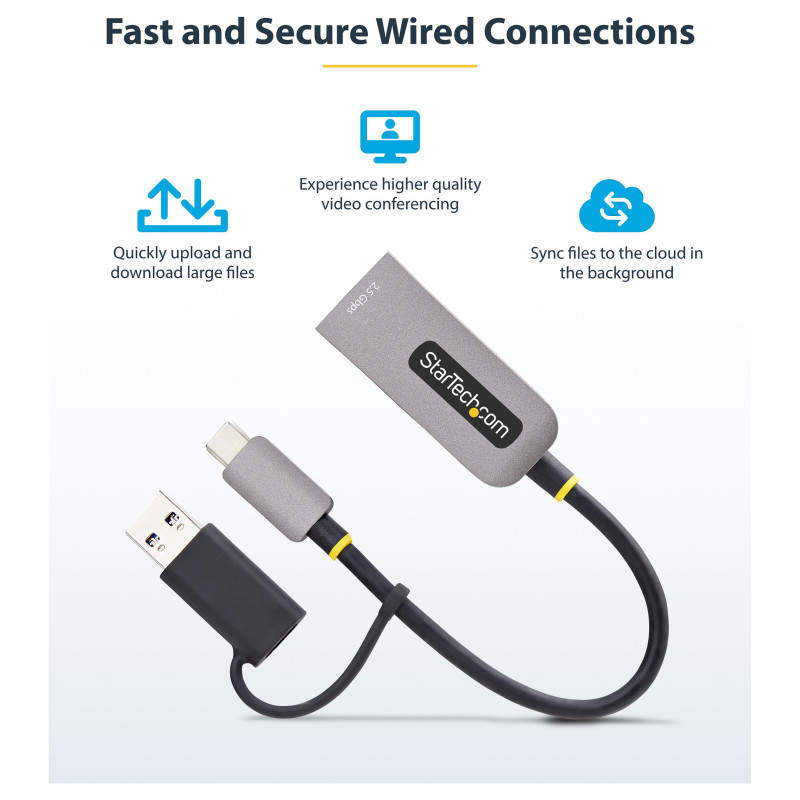

This slim form factor adapter is ideal for office use and hot desks. Download large files from a network more quickly, experience higher quality video conference streaming, and sync files to the cloud in the background, without impacting your other browsing. The adapter provides a wired connection that is faster and more secure than wireless, making it ideal for IT professionals.

Native Driver Support Makes Installation Easy

Simply plug this USB-C to Ethernet adapter into the USB port on a laptop and connect to a network. The network adapter Realtek chipset provides native driver support for Windows (10/11, ARM supported) Macbooks (MacOS), Chromebooks (ChromeOS), Snapdragon, Linux, iPhones, and tablets. Any Windows operating systems without the driver will be automatically prompted to download the software directly from the adapter, ensuring quick and effective installation with no Internet access required.

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Visit www.StarTech.com/Connectivity-Tools for more information and to download the StarTech Connectivity Tools.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB Type-C
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
USB connector form factor: Straight
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: NBase-T
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 16000
Feature: VLAN support

Design

Component for: PC/Laptop
Product colour: Grey
Chipset: Realtek RTL8156BG

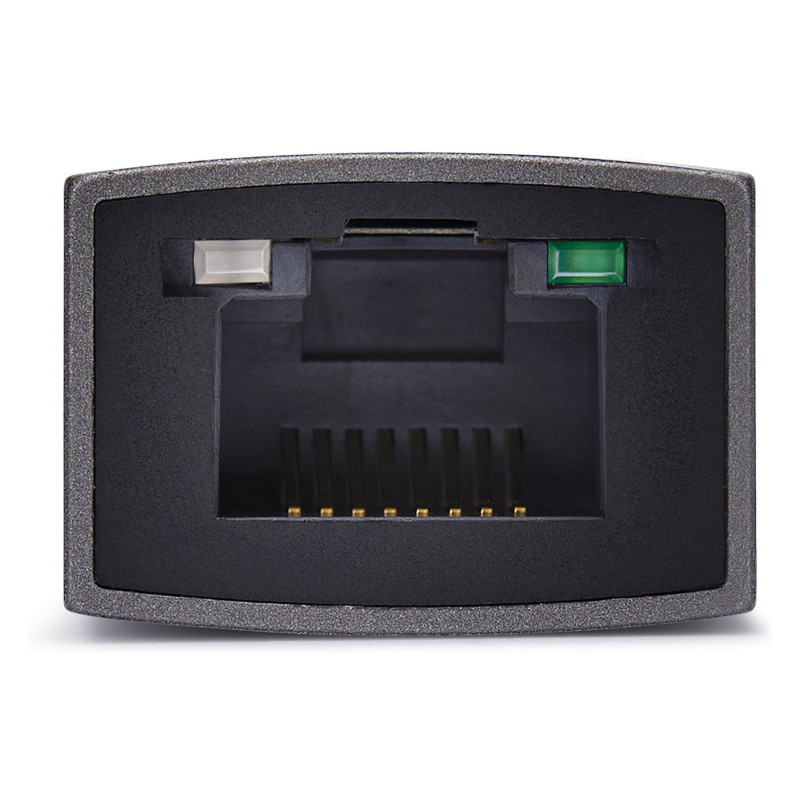

LED indicators: Yes
Mean time between failures (MTBF): 1612526 h

Power

Output voltage: 5 V
Feature: USB powered

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2022

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

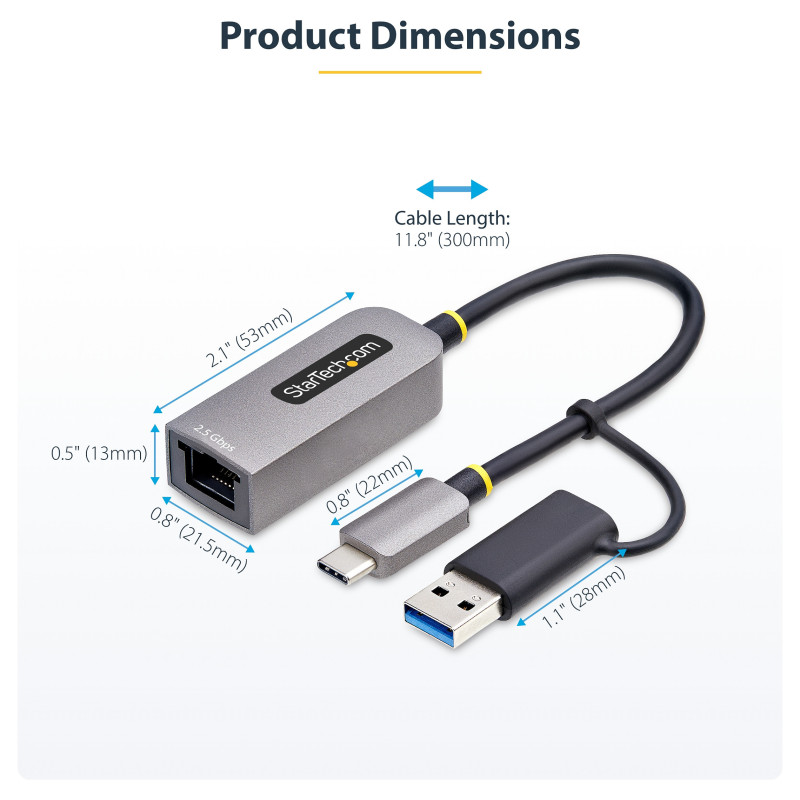

Weight & dimensions

Width: 22 mm
Depth: 353 mm
Height: 15 mm
Weight: 26 g

Packaging data

Package width: 126 mm
Package depth: 127 mm
Package height: 19 mm
Package weight: 28 g

Technical details

Compliance certificates: CE, RoHS

Logistics data

Master (outer) case width: 500 mm
Master (outer) case length: 320 mm
Master (outer) case height: 210 mm
Products per master (outer) case: 250 pc(s)

Other features

Cable length: 0.152 m
