StarTech.com TB3CDK2DHUE laptop dock / port replicator

StarTech.com USB C Docking Station for Macbook Pro/Air-M1/M2/M3/M4, Thunderbolt Compatible, HDMI/DisplayPort, Dual 4K 60Hz/Single 8K, USB Type-C Laptop Dock, 96W Power Delivery, USB 10Gbps. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 96 W. Product colour: Black, Grey, Data transfer rate: 40 Gbit/s, Maximum digital resolution: 7680 x 4320 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur,..., Linux operating systems supported: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS. Width: 220 mm, Depth: 80 mm, Height: 30 mm

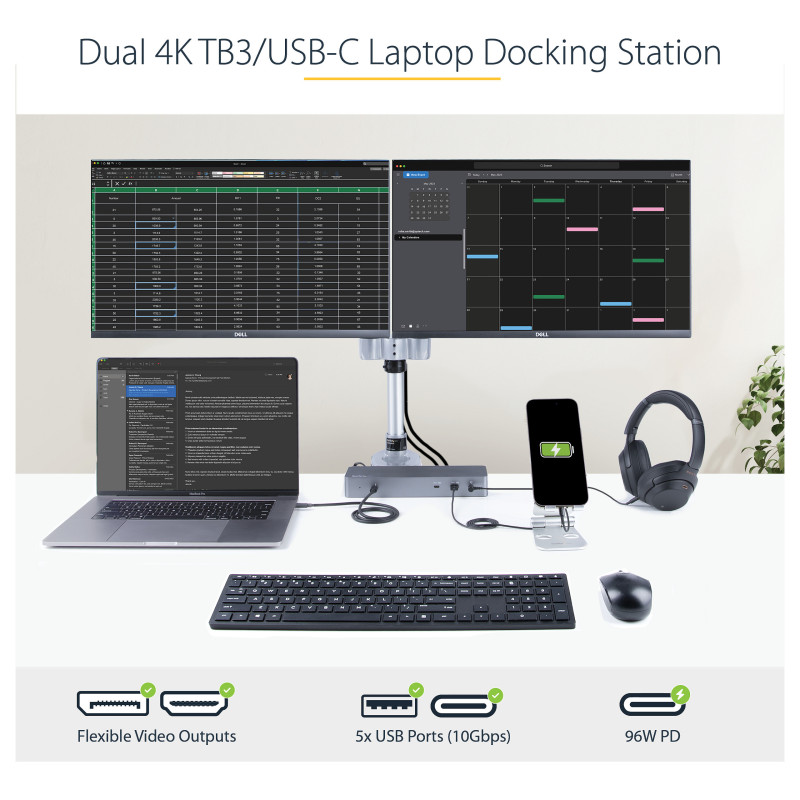

A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either Dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.

Flexible Dual Display Outputs

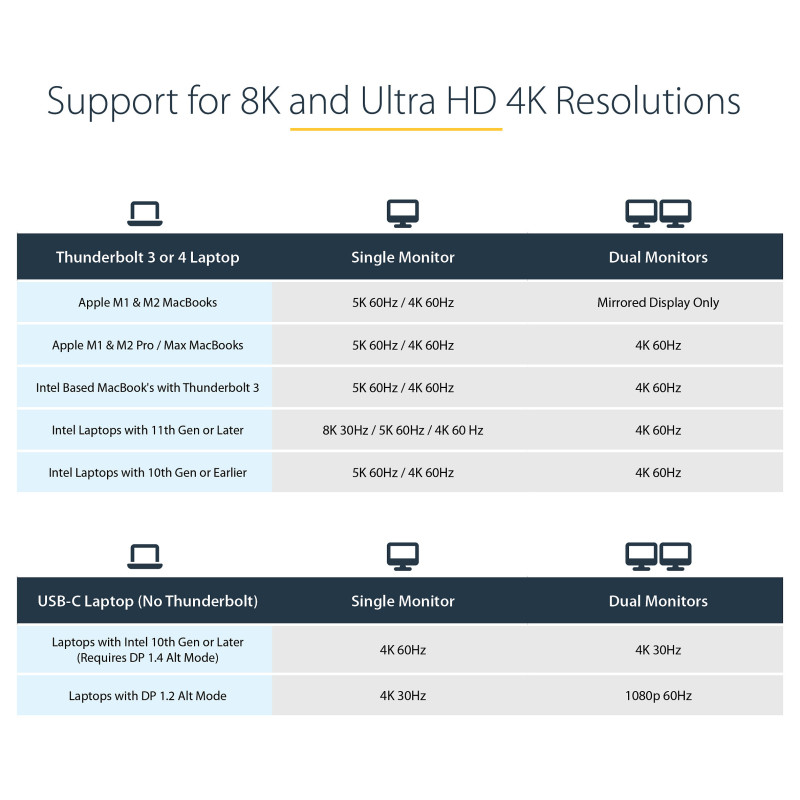

This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:

More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:

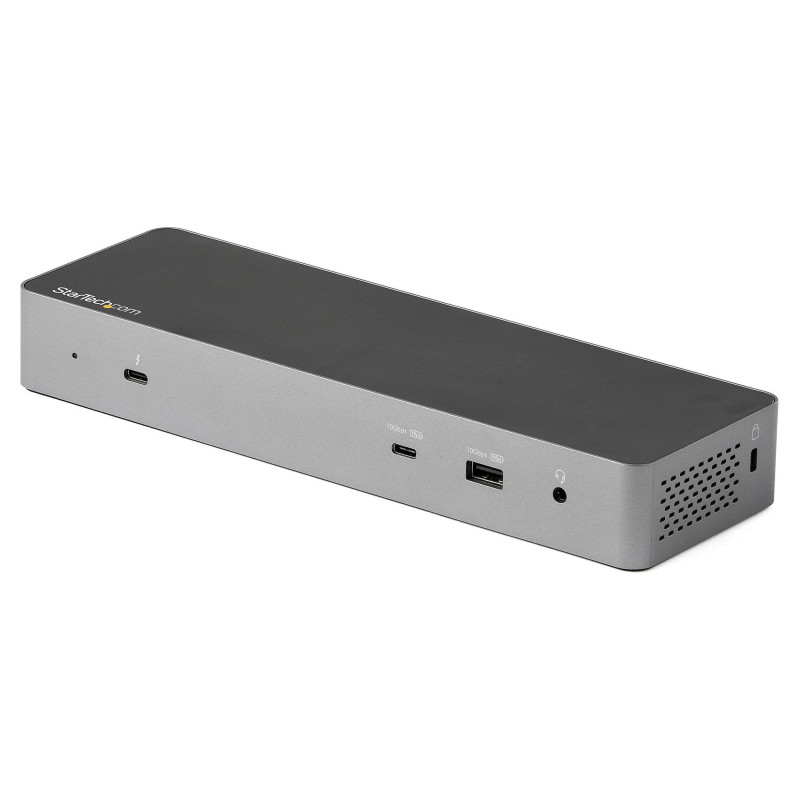

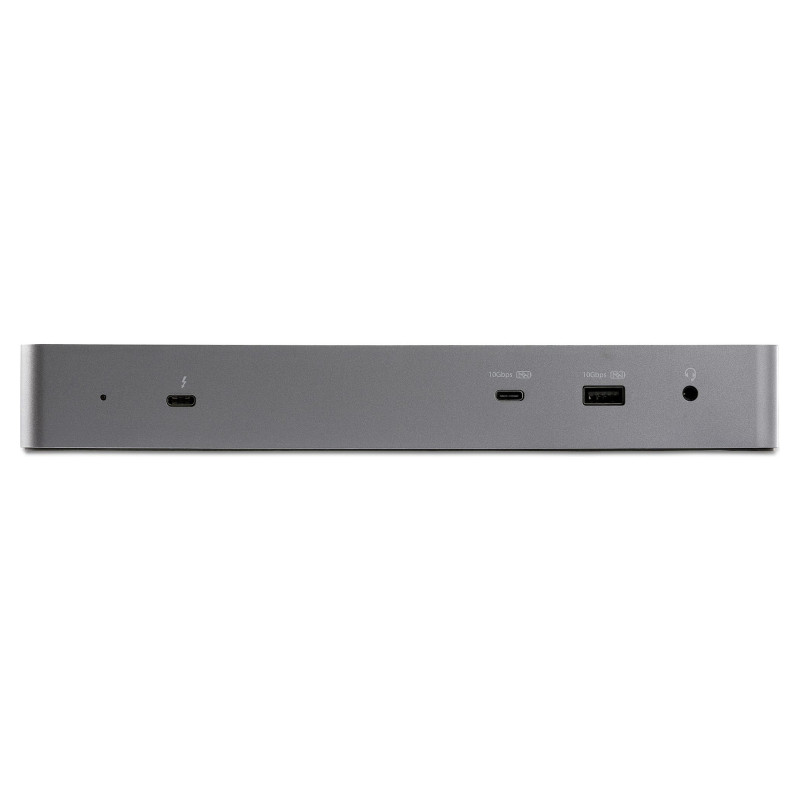

Front Facing:
1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

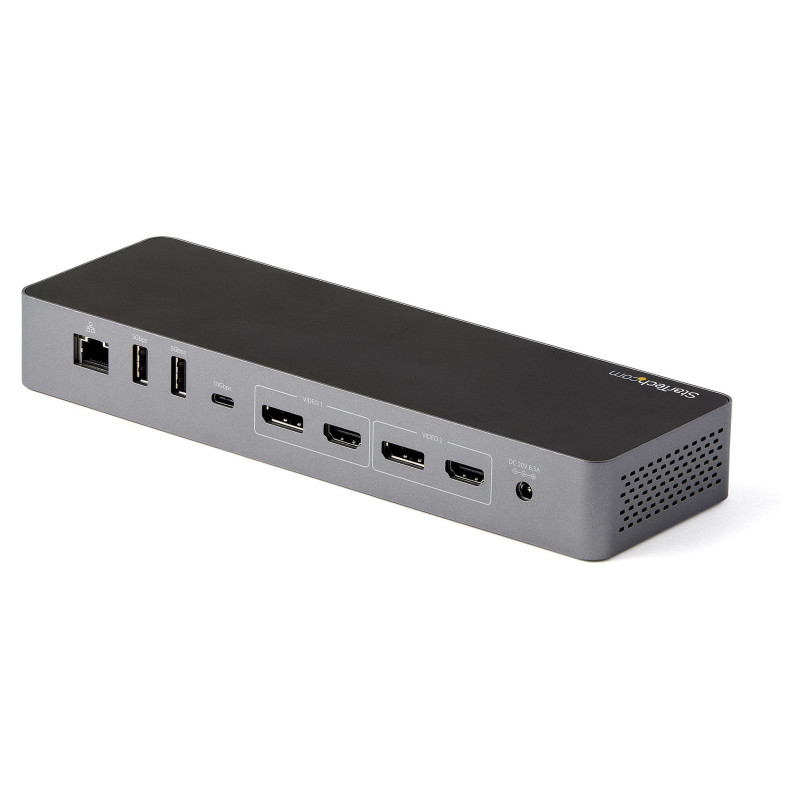

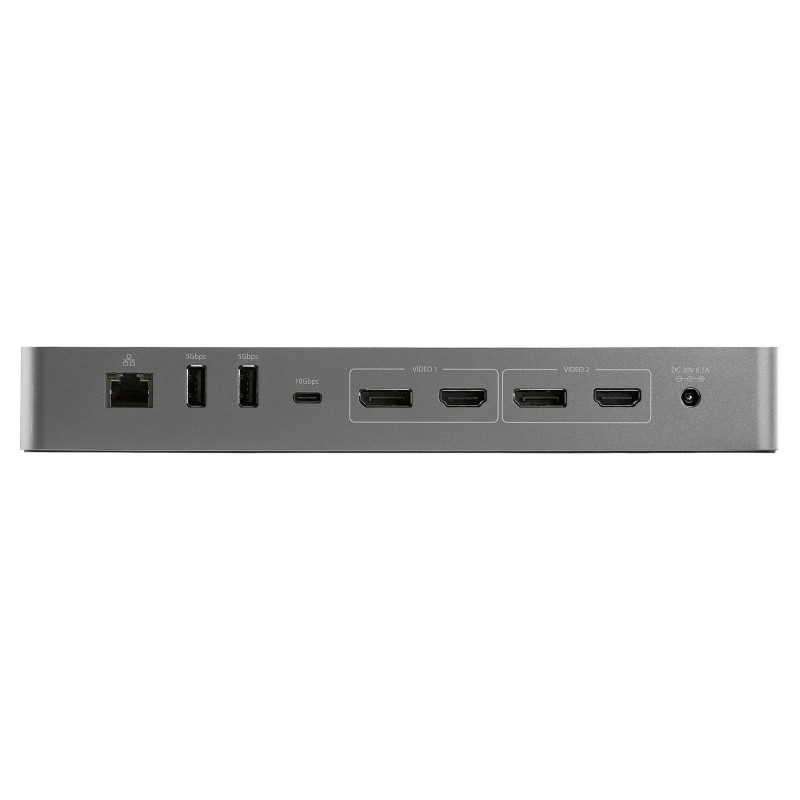

Back Facing:
2x USB 3.2 Gen 1 Type-A (5 Gbps)
1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up & Manage

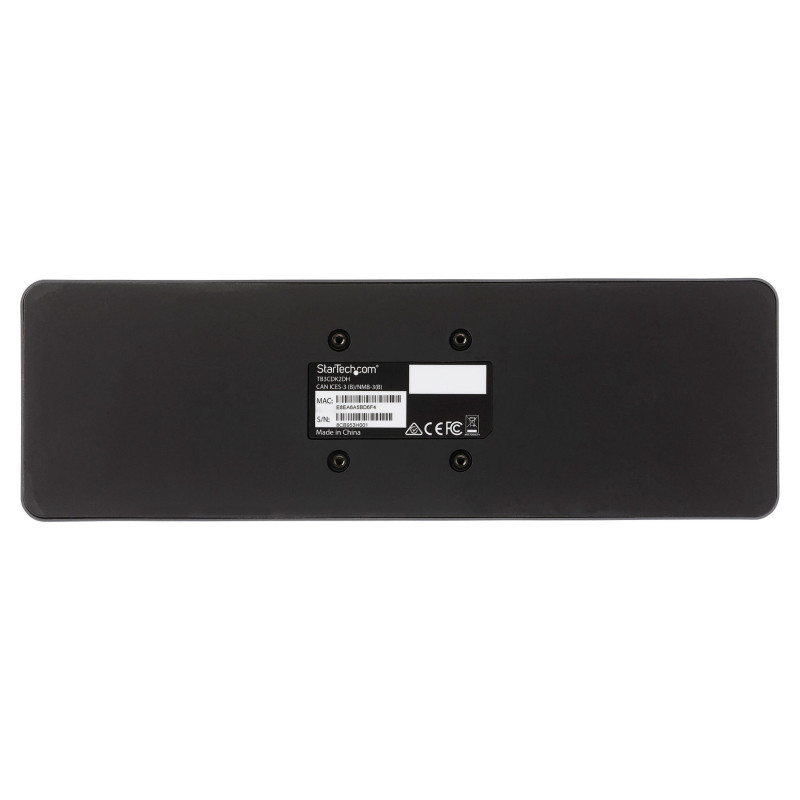

This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

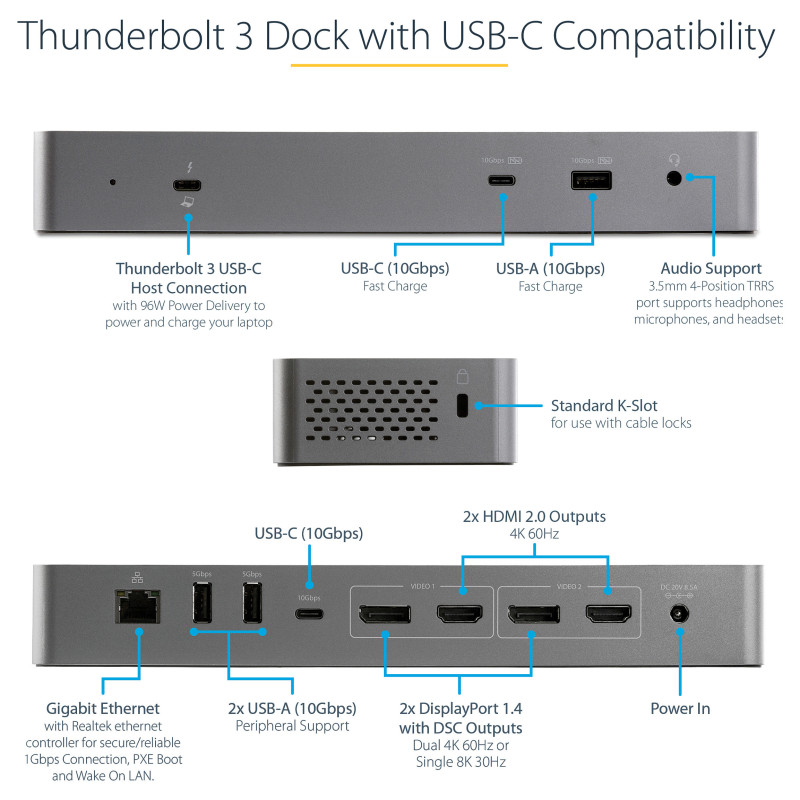

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 96 W
HDMI ports quantity: 2
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1

Performance

Data transfer rate: 40 Gbit/s
Maximum digital resolution: 7680 x 4320 pixels
Number of displays supported: 2

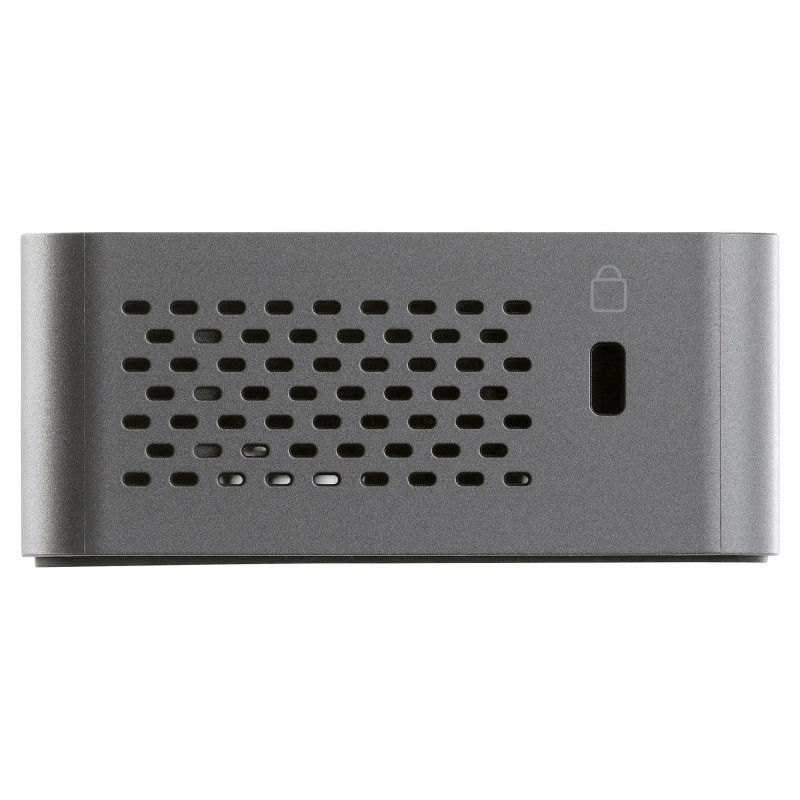

Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black, Grey

Power

AC input voltage: 100 - 240 V
Input current: 2.5 A
Output voltage: 20 V
Output current: 8.5 A
Compatible power plug types: EU, UK

Software

Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 220 mm
Depth: 80 mm
Height: 30 mm
Weight: 250 g

Packaging data

Package width: 305 mm
Package depth: 160 mm
Package height: 110 mm
Package weight: 1.1 kg

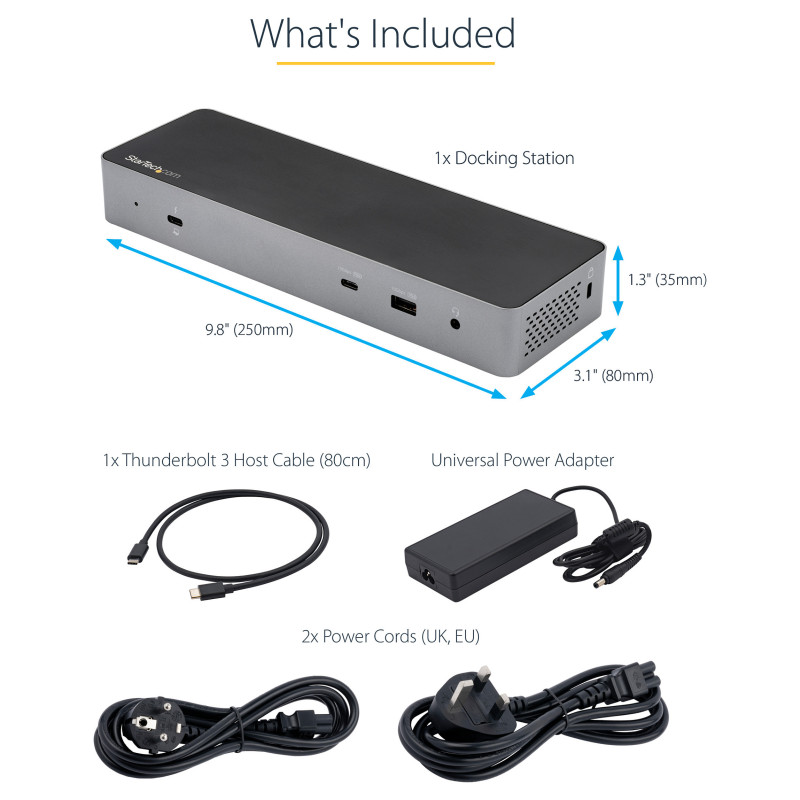

Packaging content

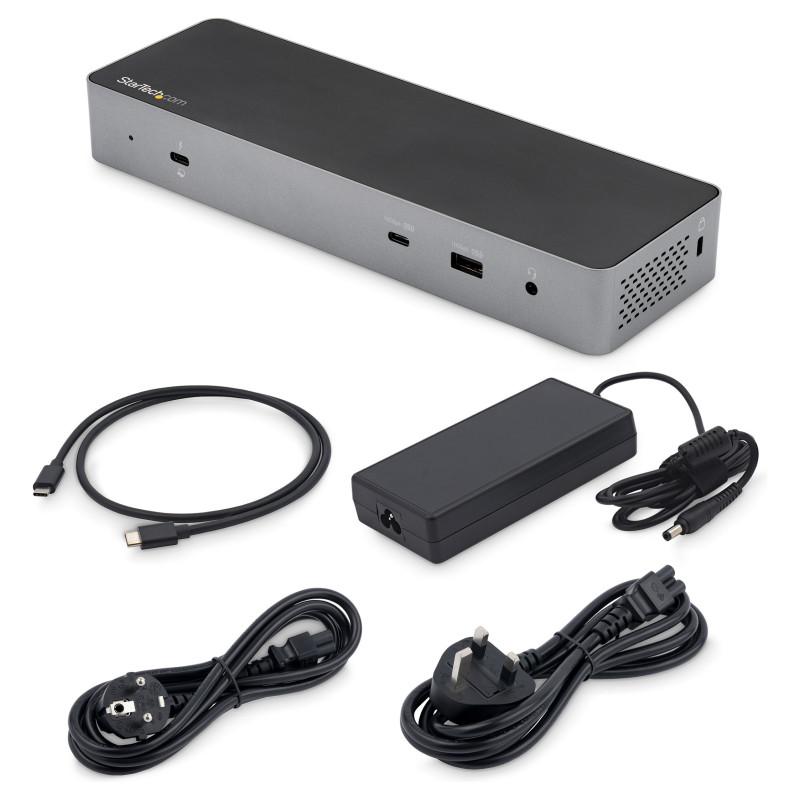

Cables included: AC, Thunderbolt
Feature: AC adapter included
Feature: Manual

Logistics data

Products per master (outer) case: 40 pc(s)
Master (outer) case width: 248 mm
Master (outer) case length: 500 mm
Master (outer) case height: 320 mm
Harmonized System (HS) code: 84733020

Other features

Chipset: C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C
