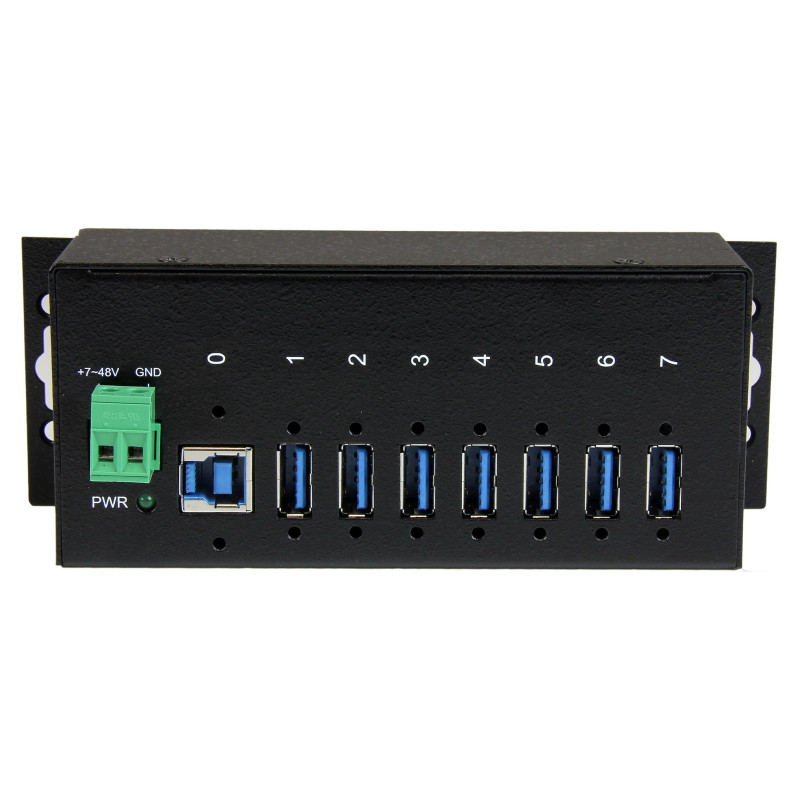

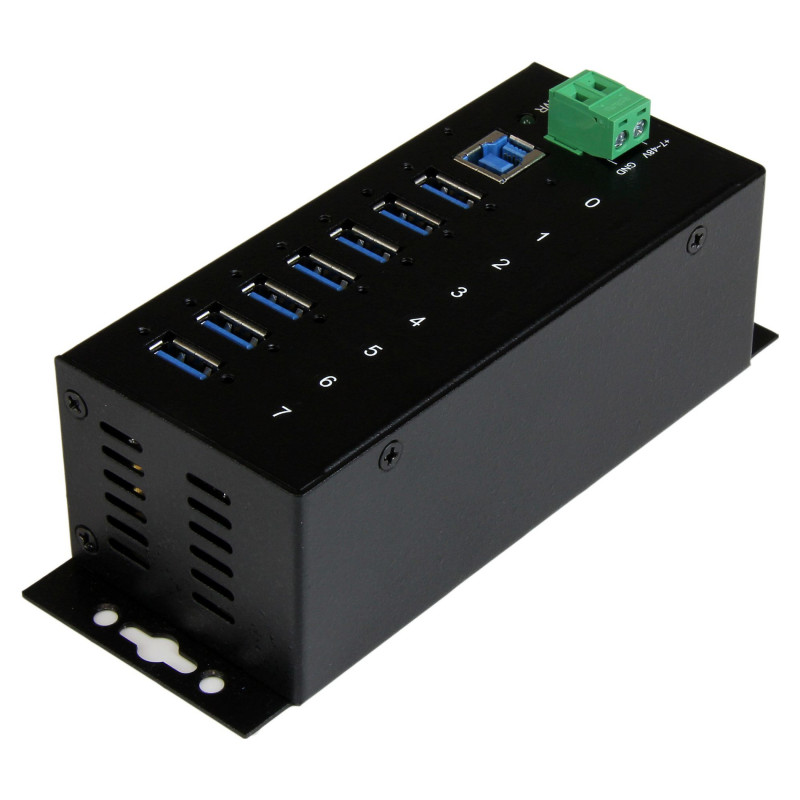

StarTech.com ST7300USBME interface hub

StarTech.com 7-Port USB 3.0 Hub (5Gbps) - Metal Industrial USB-A Hub with ESD Protection 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Steel. Power source type: DC, Input voltage: 7 - 48 V. Width: 54 mm, Depth: 145 mm, Height: 45 mm. Package width: 190 mm, Package depth: 294 mm, Package height: 71 mm
Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps
This TAA compliant 7-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 7 connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need It Most

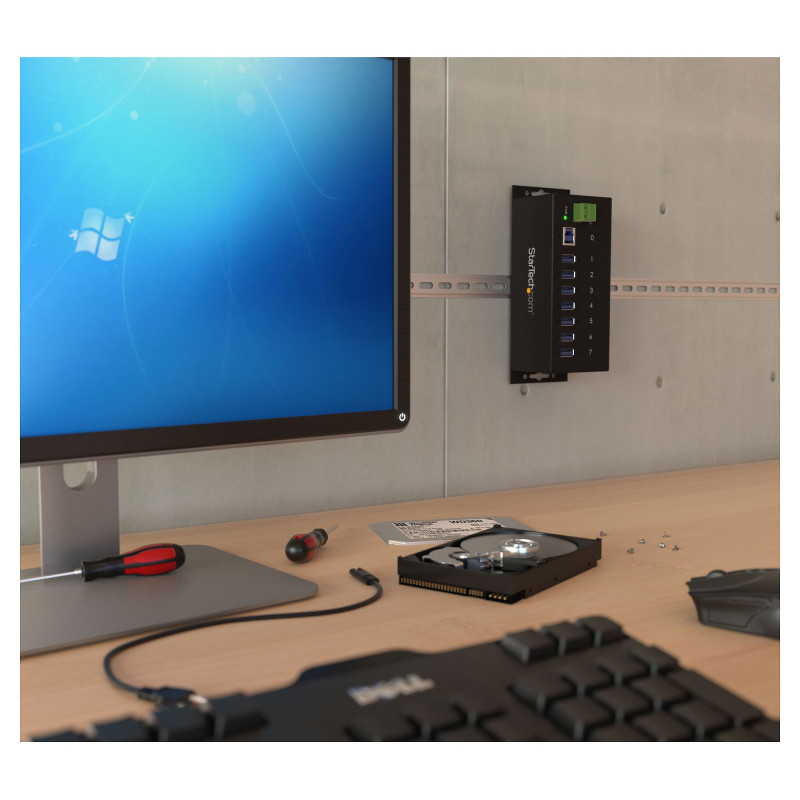

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports quantity: 7
Feature: Terminal block port

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Steel
Feature: Surge protection
LED indicators: Power
Certification: CE, FCC, RoHS, TAA, REACH

Power

Power source type: DC
Input voltage: 7 - 48 V

Weight dimensions

Width: 54 mm
Depth: 145 mm
Height: 45 mm
Weight: 325 g

Packaging data

Package width: 190 mm
Package depth: 294 mm
Package height: 71 mm
Package weight: 600 g

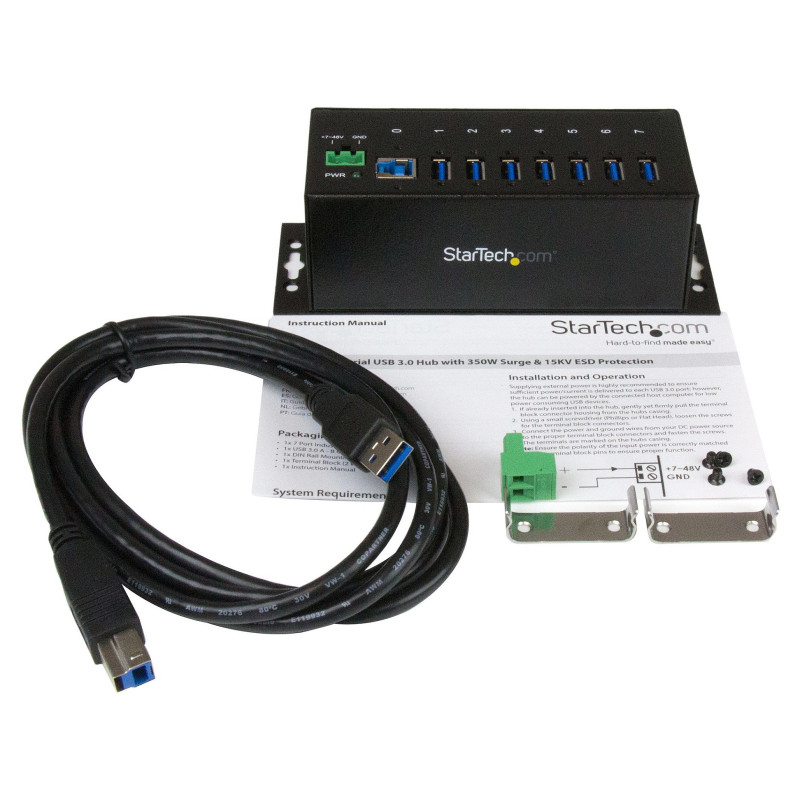

Packaging content

Cables included: USB
Feature: Manual
Feature: Terminal block included
Feature: DIN rail kit included

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Mean time between failures (MTBF): 126106 h

Logistics data

Master (outer) case width: 515 mm
Master (outer) case length: 407 mm
Master (outer) case height: 325 mm
Products per master (outer) case: 14 pc(s)
Harmonized System (HS) code: 84719000

Other features

Chipset: Genesys Logic - GL3520
