StarTech.com ST7200USBM interface hub

StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Input voltage: 7 - 24 V. Width: 61.5 mm, Depth: 133 mm, Height: 36.3 mm. Package width: 218 mm, Package depth: 151 mm, Package height: 54 mm
Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments

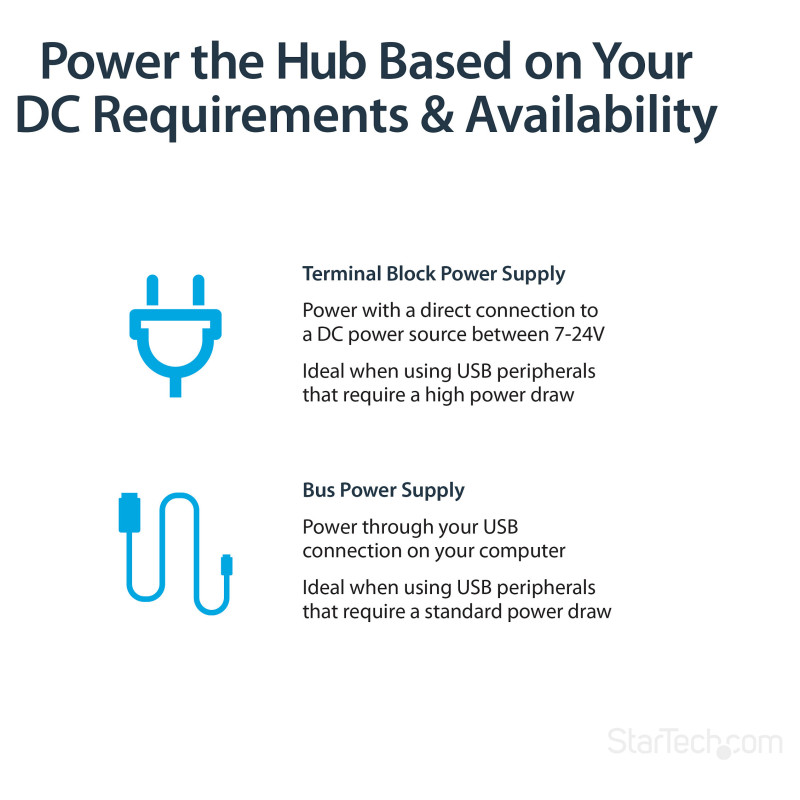

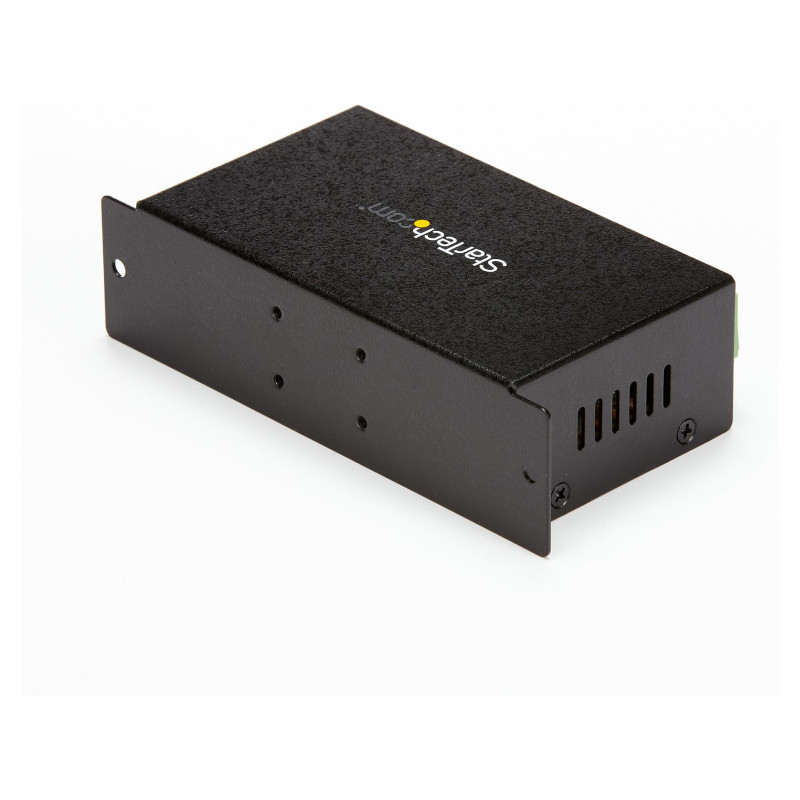

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

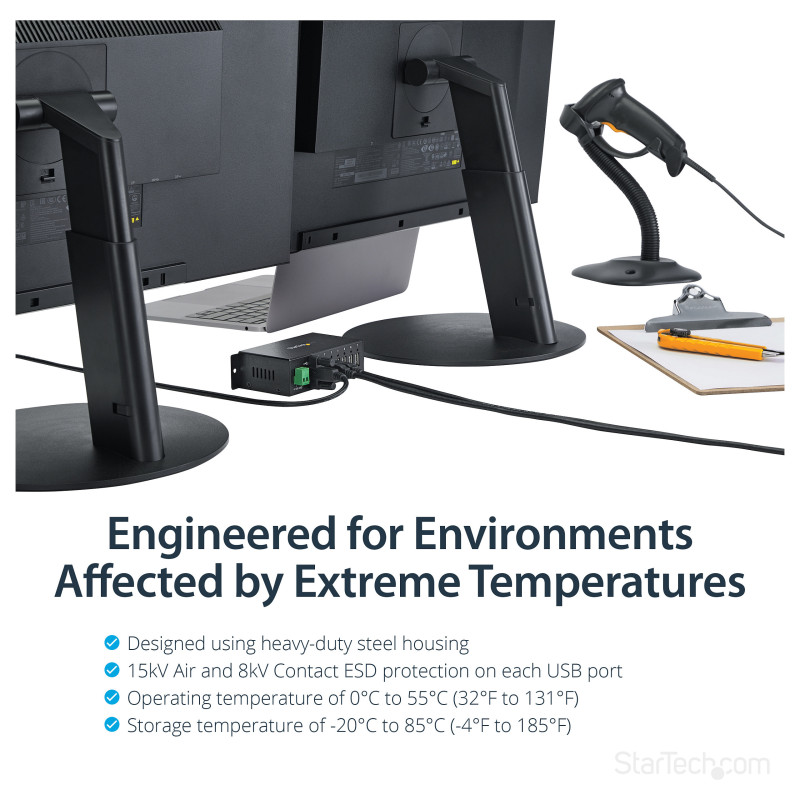

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices

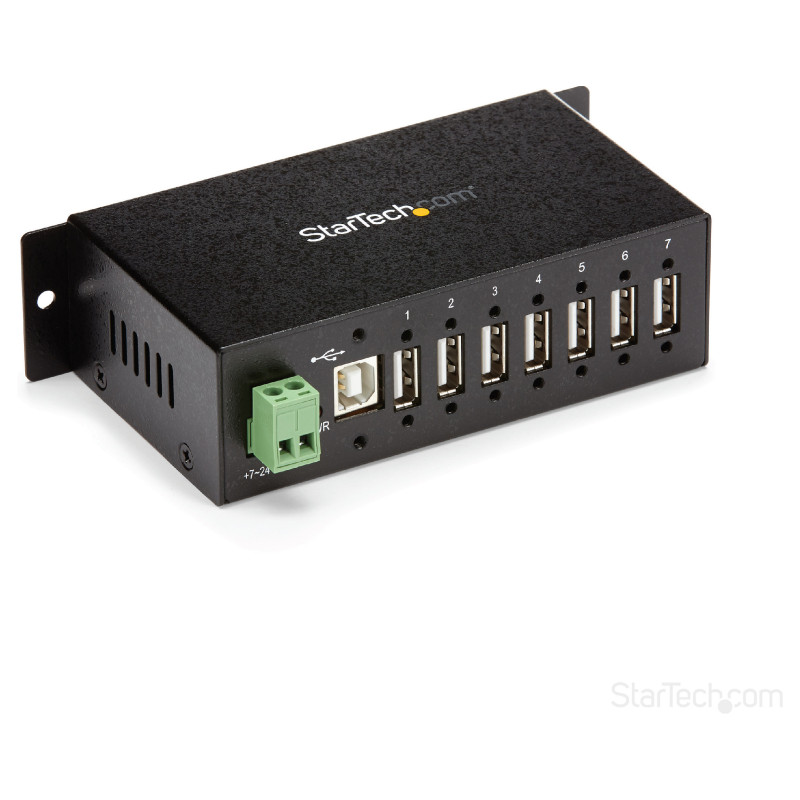

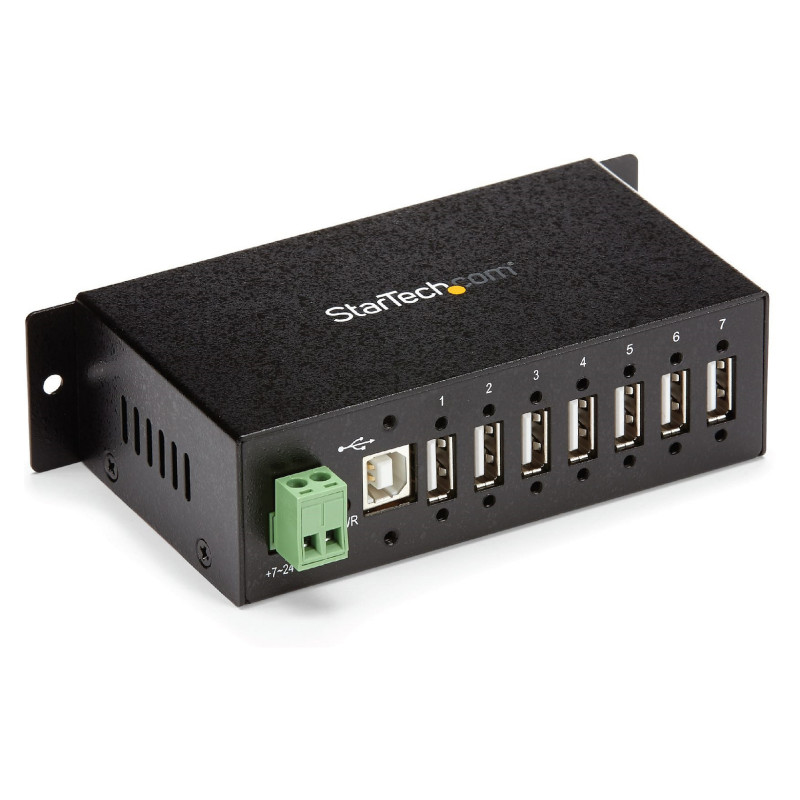

Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

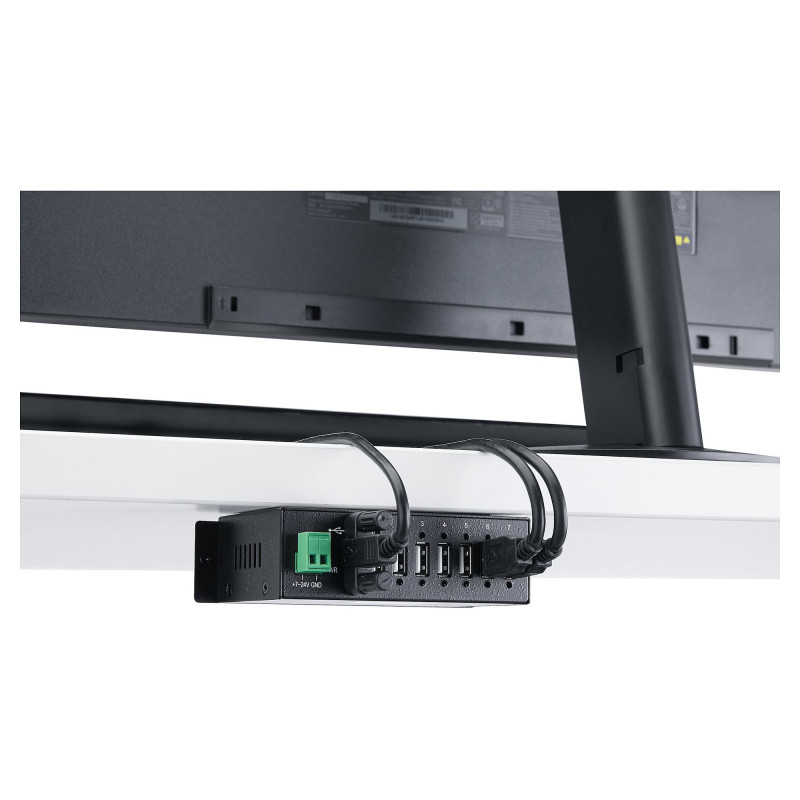

Locate the Hub Where You Need It Most

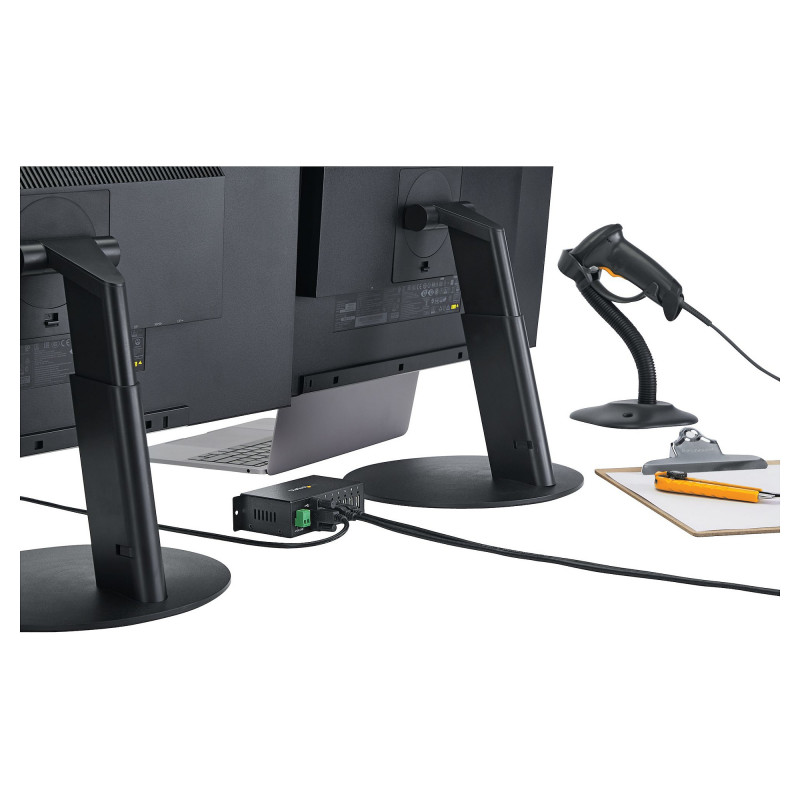

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

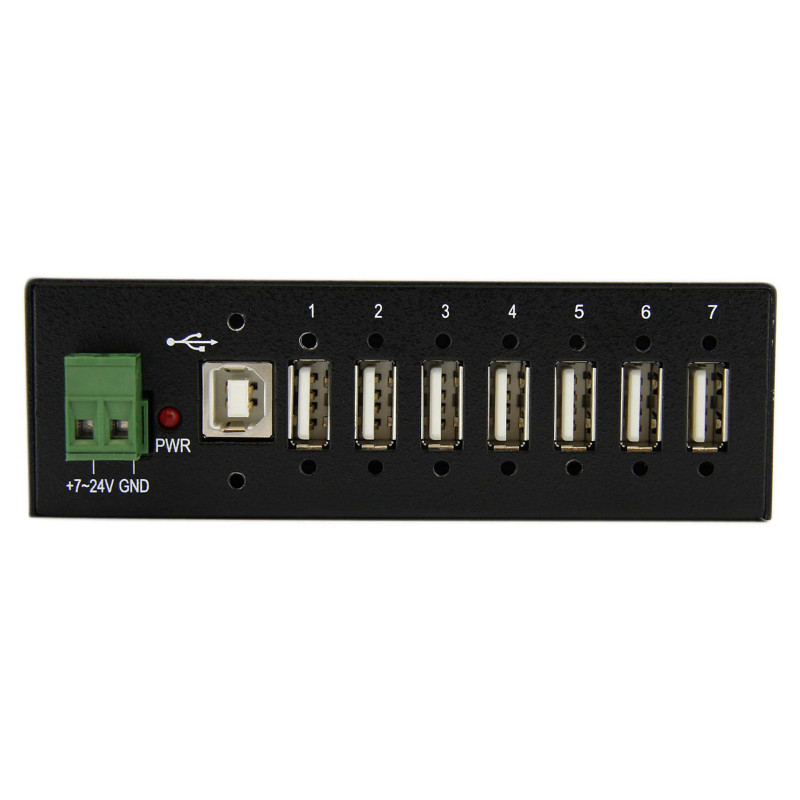

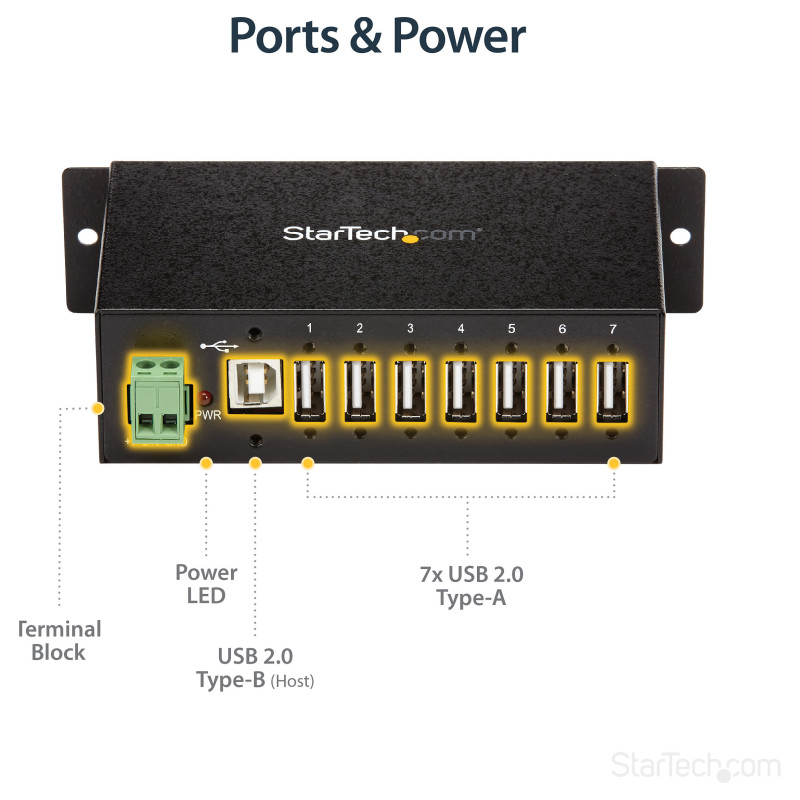

Ports interfaces

Host interface: USB 2.0 Type-B
Hub interfaces: USB 2.0
USB 2.0 ports quantity: 7
Ports quantity: 7
Card reader integrated: No
Terminal block port: Yes
DC-in jack: No

Features

Data transfer rate: 480 Mbit/s
Product colour: Black
Housing material: Steel
Surge protection: Yes
LED indicators: Yes
Hot-swap: Yes
Plug and Play: Yes
Certification: CE, FCC, RoHS, REACH, TAA

Power

Input voltage: 7 - 24 V

Weight dimensions

Width: 61.5 mm
Depth: 133 mm
Height: 36.3 mm
Weight: 283 g

Packaging data

Package width: 218 mm
Package depth: 151 mm
Package height: 54 mm
Package weight: 500 g

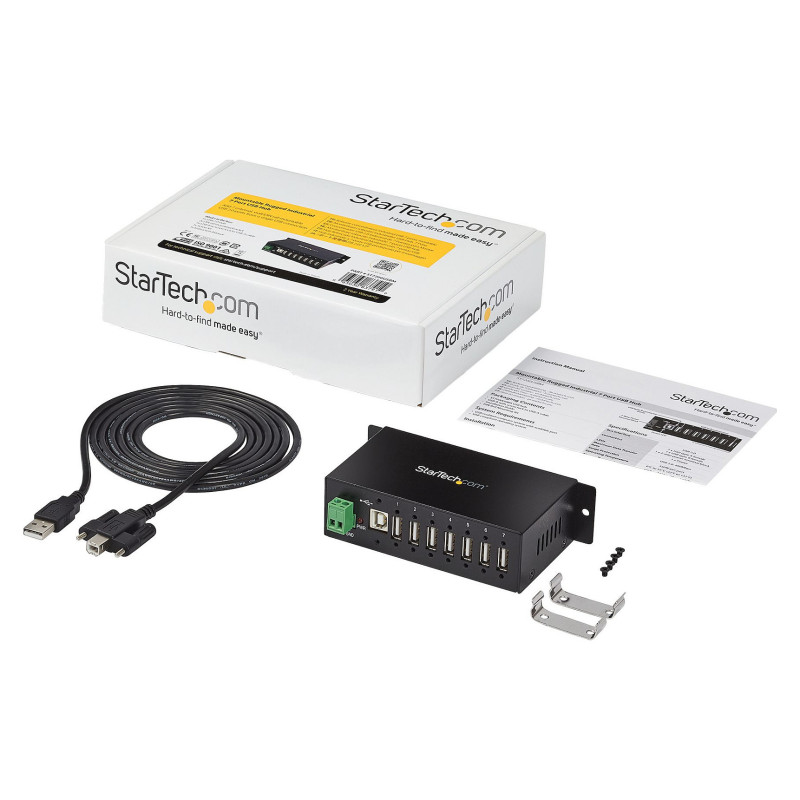

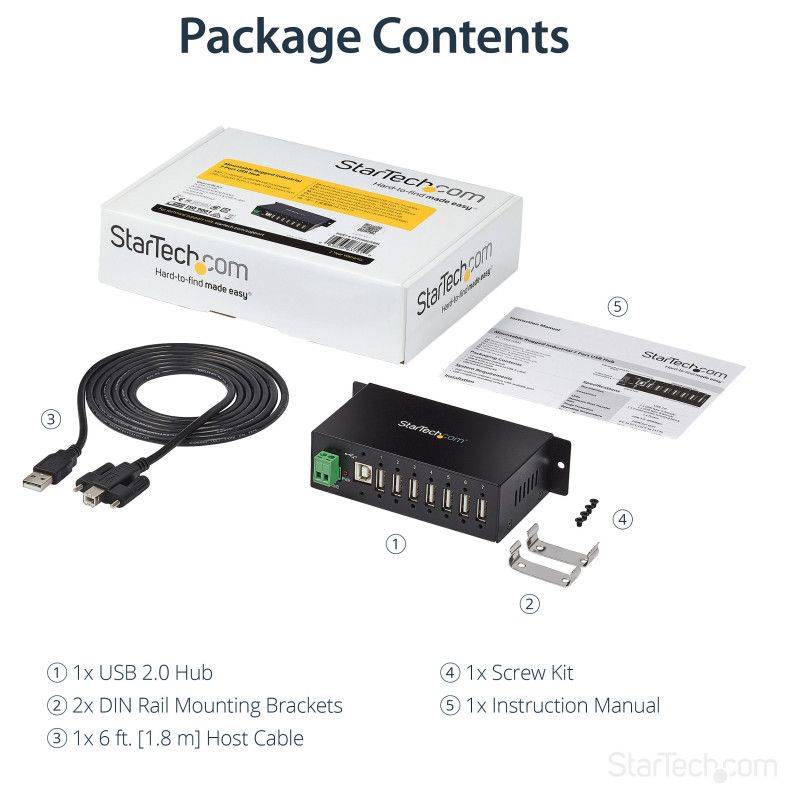

Packaging content

Cables included: USB
Manual: Yes
DIN rail kit included: Yes

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Mean time between failures (MTBF): 170227 h

Logistics data

Master (outer) case width: 524 mm
Master (outer) case length: 434 mm
Master (outer) case height: 272 mm
Products per master (outer) case: 25 pc(s)
Harmonized System (HS) code: 84719000

Other features

Chipset: Terminus - FE2.1
