StarTech.com ST4300USBM interface hub

StarTech.com 4-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub - Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Steel. Power consumption (typical): 36 W, Output voltage: 12 V, Output current: 3 A. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard. Width: 59.6 mm, Depth: 152 mm, Height: 24 mm

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | 5 Gbps

This TAA compliant 4-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

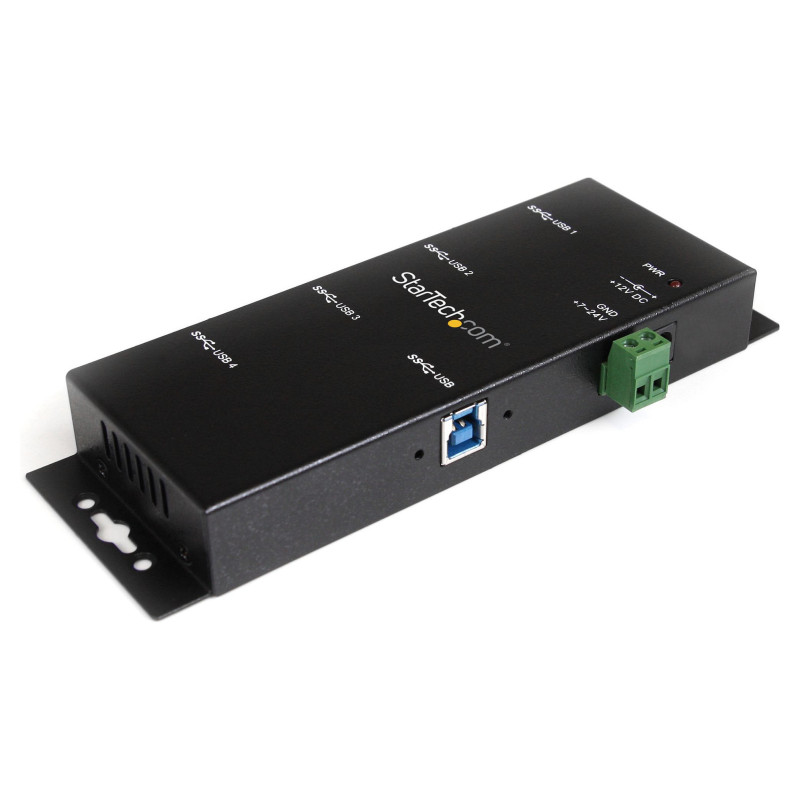

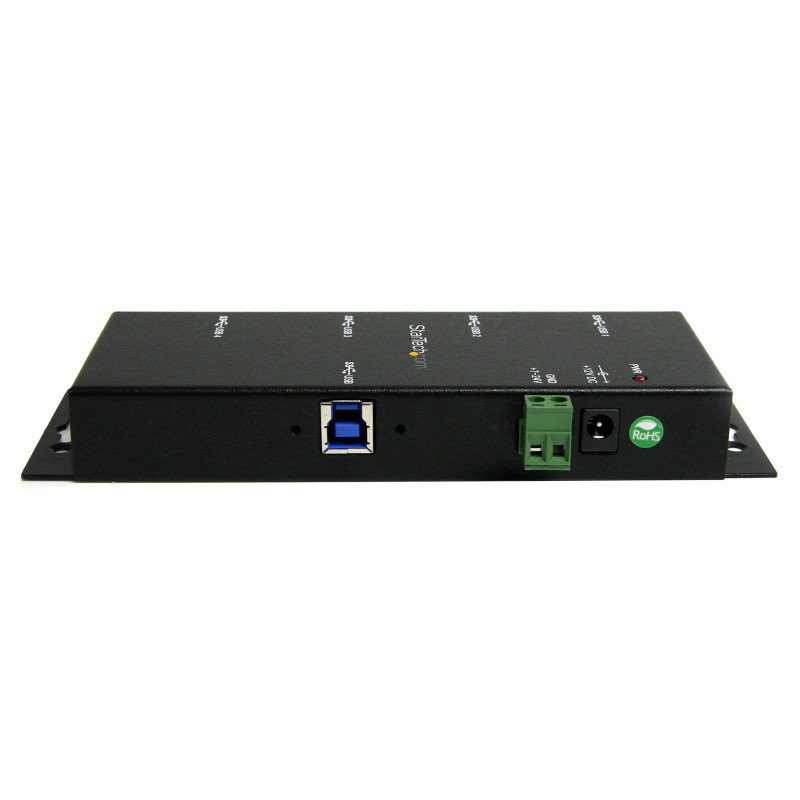

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers four connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

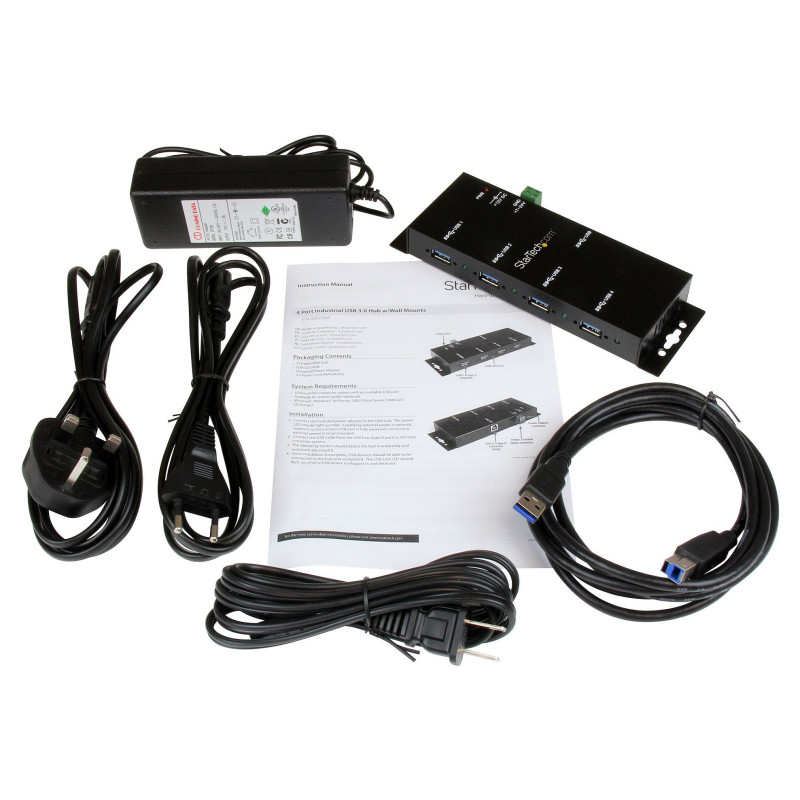

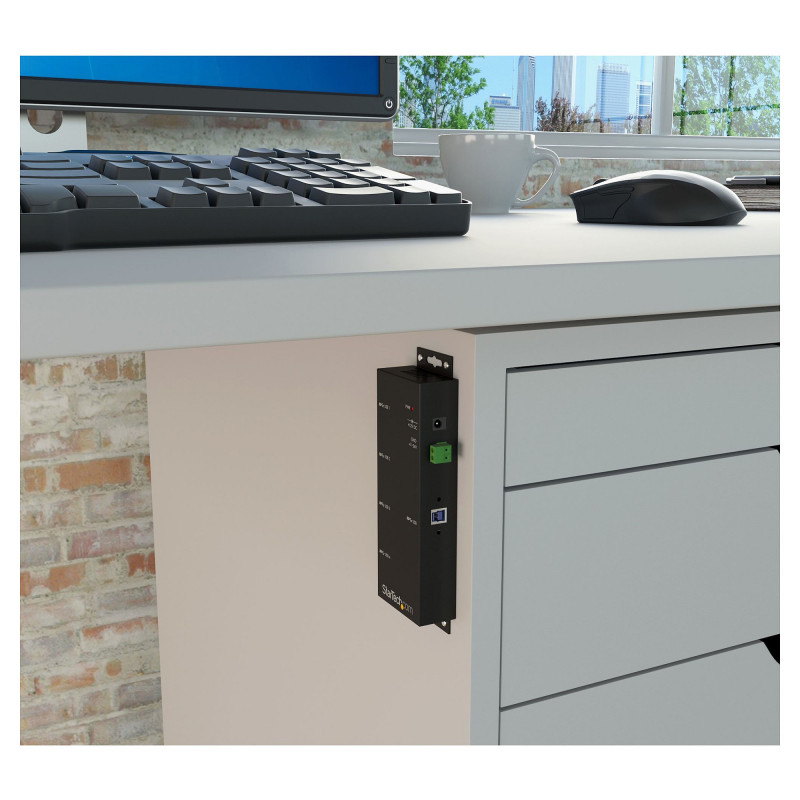

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and an included 1.8-meter USB host cable, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5 Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST4300USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ports quantity: 4
Feature: Terminal block port
Feature: DC-in jack

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Steel
LED indicators: Power, USB
Feature: Hot-swap
Feature: Plug and Play
Certification: RoHS, CE, FCC, TAA, REACH

Power

Power consumption (typical): 36 W
Output voltage: 12 V
Output current: 3 A
Power plug type: Type M

System requirements

Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard

Weight & dimensions

Width: 59.6 mm
Depth: 152 mm
Height: 24 mm
Weight: 301 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 295 mm
Package depth: 190 mm
Package height: 72 mm
Package weight: 1.2 kg

Packaging content

Feature: AC adapter included
Included power plug types: AU, EU, NA, UK
Cables included: USB
Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Mean time between failures (MTBF): 245881 h

Logistics data

Master (outer) case width: 555 mm
Master (outer) case length: 402 mm
Master (outer) case height: 343 mm
Products per master (outer) case: 14 pc(s)
Harmonized System (HS) code: 84719000

Other features

Chipset: VIA/VLI - VL811+
