StarTech.com ST4200USBM interface hub

StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Input voltage: 7 - 24 V. Width: 57.3 mm, Depth: 114 mm, Height: 26 mm. Package width: 145 mm, Package depth: 205 mm, Package height: 39 mm

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

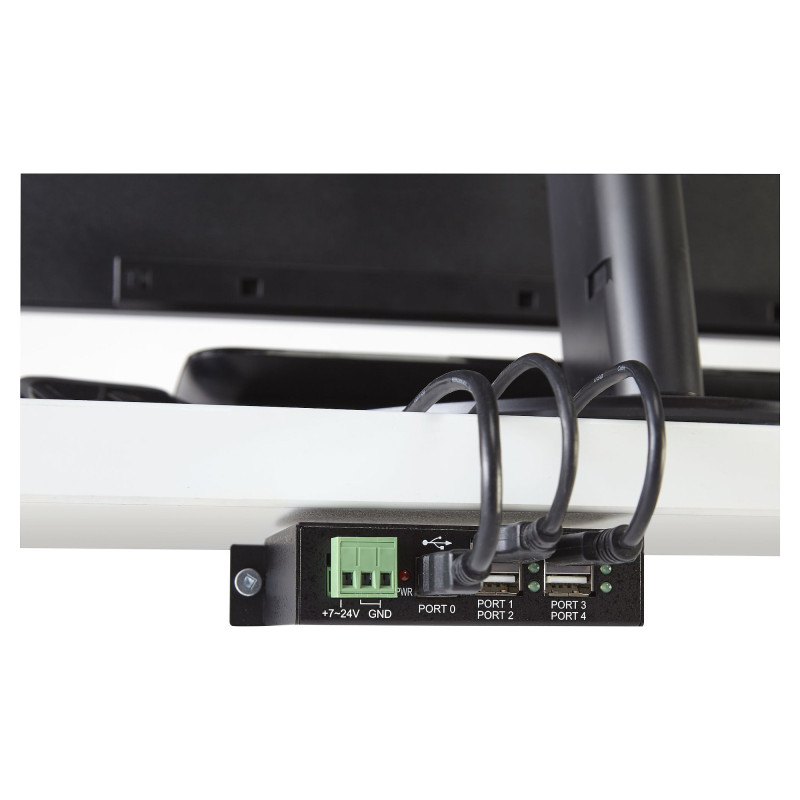

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

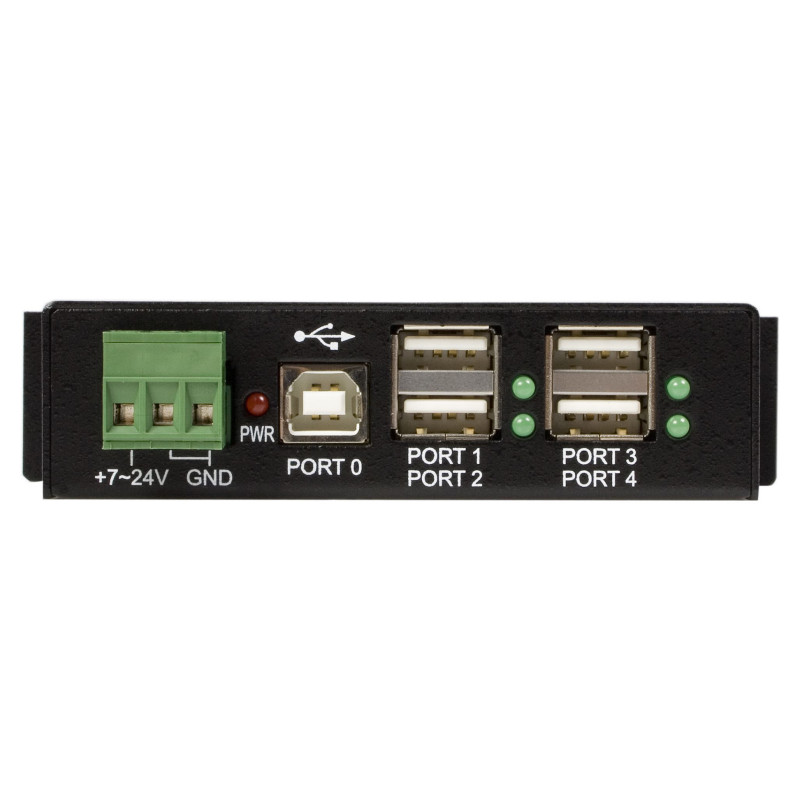

Ports & interfaces

Host interface: USB 2.0 Type-B
Hub interfaces: USB 2.0
USB 2.0 ports quantity: 4
Ports quantity: 4
Feature: Terminal block port

Features

Data transfer rate: 480 Mbit/s
Product colour: Black
Housing material: Steel
LED indicators: Power
Feature: Plug and Play
Certification: CE, FCC, TAA, RoHS

Power

Input voltage: 7 - 24 V

Weight & dimensions

Width: 57.3 mm
Depth: 114 mm
Height: 26 mm
Weight: 207 g

Packaging data

Package width: 145 mm
Package depth: 205 mm
Package height: 39 mm
Package weight: 400 g

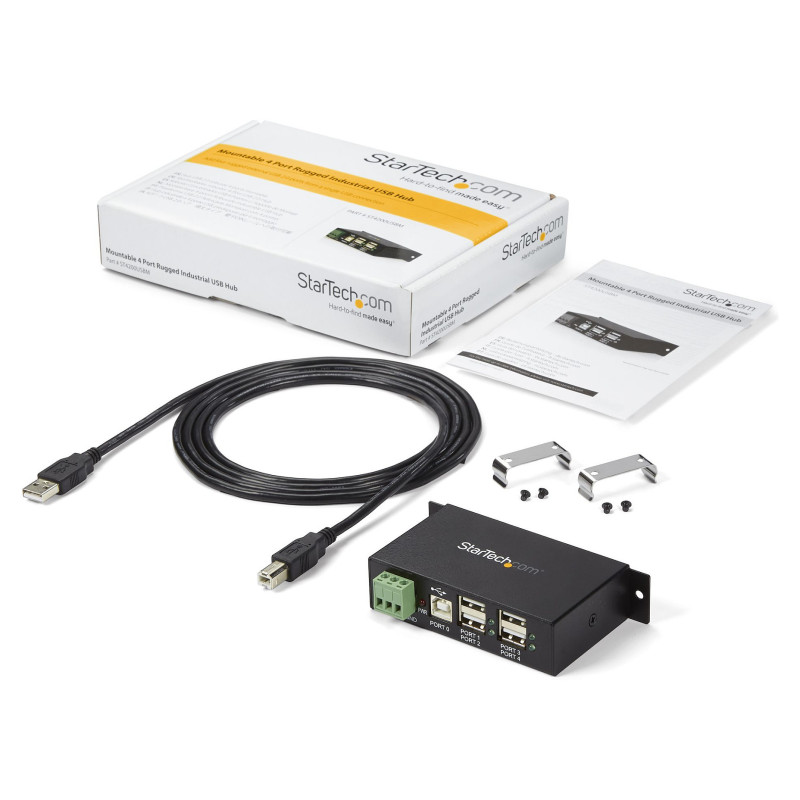

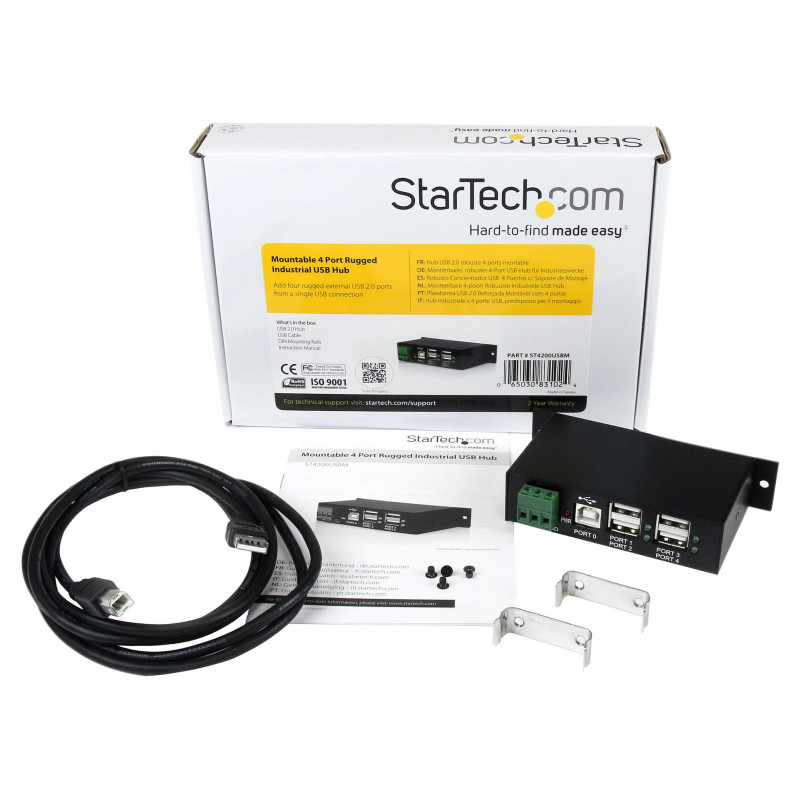

Packaging content

Cables included: USB
Feature: Manual
Feature: DIN rail kit included

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Mean time between failures (MTBF): 193317 h

Logistics data

Master (outer) case width: 445 mm
Master (outer) case length: 520 mm
Master (outer) case height: 335 mm
Products per master (outer) case: 50 pc(s)
Harmonized System (HS) code: 84719000

Other features

Chipset: Renesas/NEC - µPD720114
