StarTech.com SDOCK2U313R media duplicator

StarTech.com Standalone Hard Drive Duplicator, Dual Bay HDD/SSD Cloner/Copier, USB 3.1 (10Gbps) to SATA III HDD/SSD Docking Station, Hard Disk Duplicator Dock, Hard Drive Cloner. Product type: HDD duplicator, Number of simultaneous copies: 2 copies, Interface: USB 3.1. Supported HDD sizes: 2.5,3.5", Supported HDD interfaces: Serial ATA, Serial ATA II, Serial ATA III. Power consumption (typical): 36 W, AC input voltage: 100-240 V, Input current: 1.5 A. Dimensions (WxDxH): 132 x 142 x 70 mm, Weight: 508 g. Package width: 190 mm, Package depth: 213 mm, Package height: 124 mm

Hard Drive Cloner | 2.5"/3.5" HDD/SSD | USB 3.2 Gen 2 (10 Gbps) to SATA III

Duplicate drives quickly, at rates of up to 28GB per minute for SSDs, without having to connect to your computer. This duplicator dock offers standalone drive cloning that makes it easy to back up your data and make exact images of your drives. You can also connect the dock to your computer through USB 3.2 Gen 2 (10Gbps), to dock and swap your drives as part of a scalable storage solution.

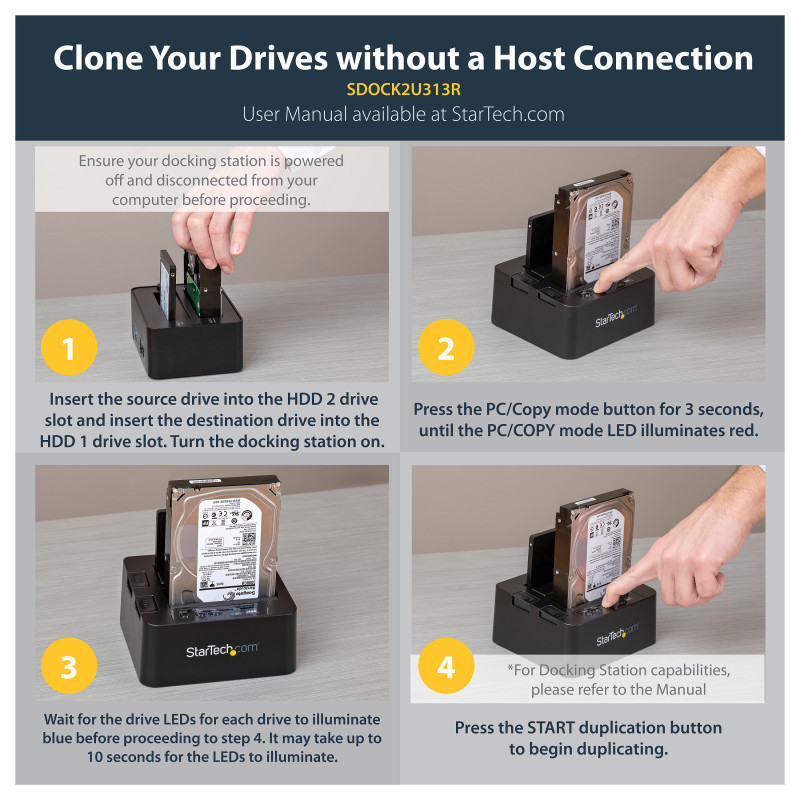

Clone your drives at high speed

Duplicating a hard drive or solid-state drive is an effective way to migrate your operating system and data from one drive to another, or create an exact copy for safeguarding your important data. This drive duplicator lets you create a sector-by-sector clone of your drive, including partitions and boot sector information, to ensure data integrity and consistency for sensitive operations such as data recovery.

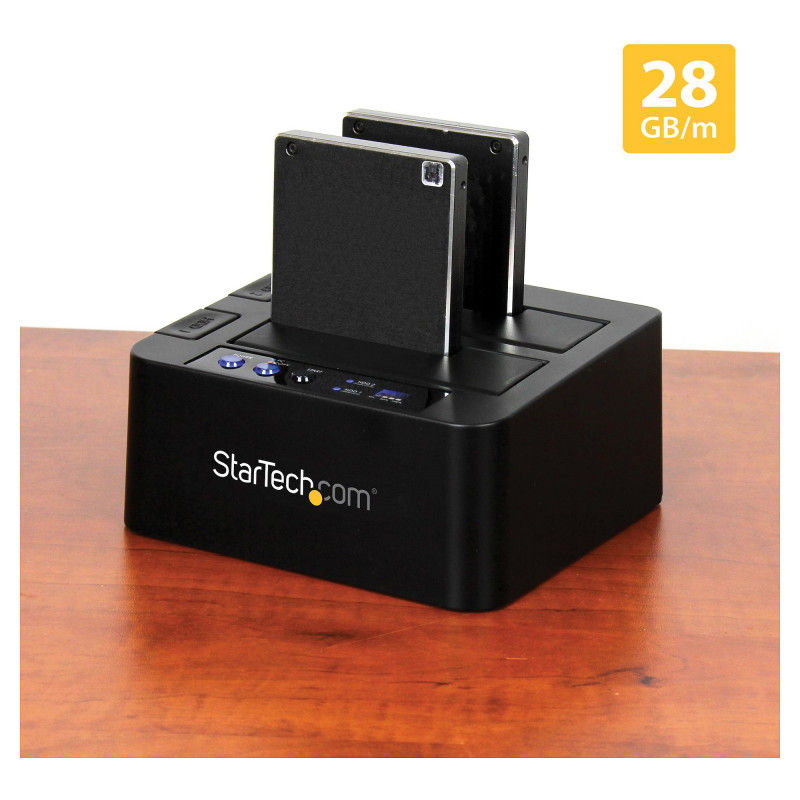

The duplicator dock saves you valuable time with SSD duplication speeds of up to 28GB per minute. You can duplicate a 2.5" or 3.5" SATA SSD or HDD easily, without having to connect the duplicator to a host computer.

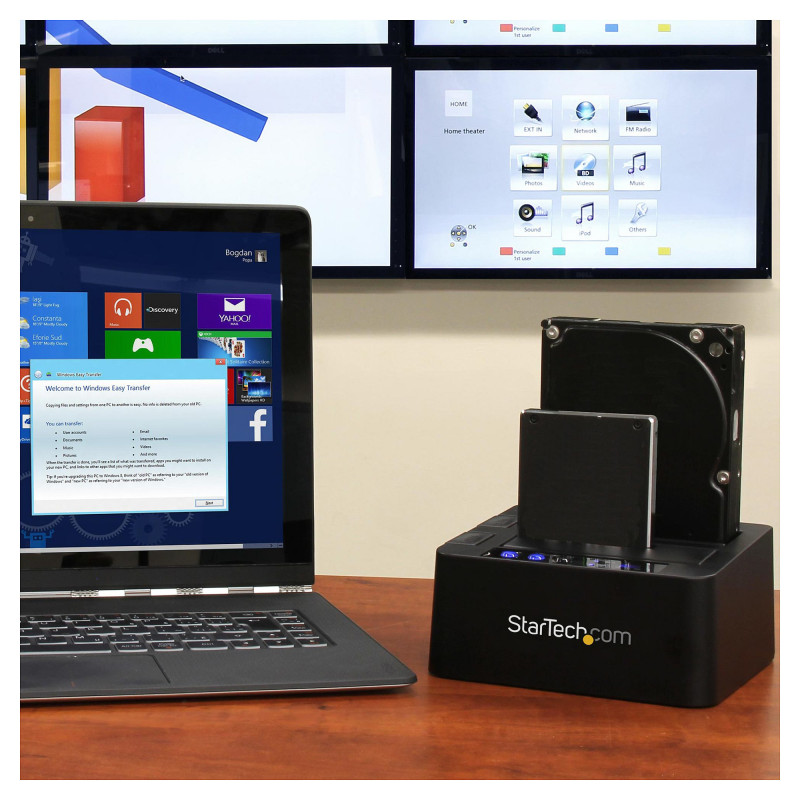

Transfer files quickly between the dock and your PC

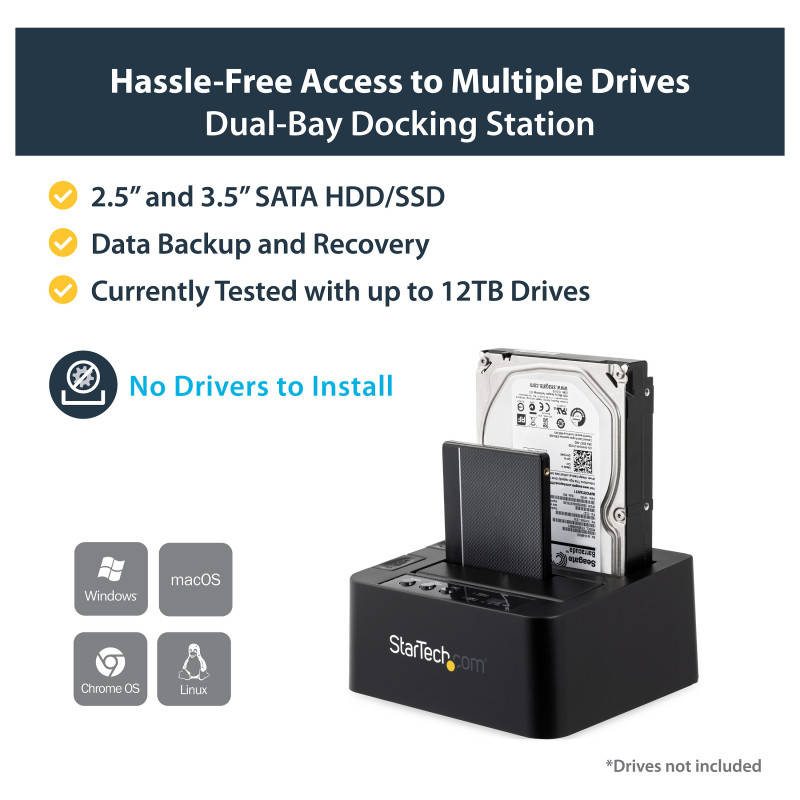

The duplicator dock also provides an external storage solution, letting you dock your drives through USB 3.2 Gen 2 with UASP support, enabling fast data transfer rates of up to 10Gbps. Each drive slot individually supports a high-capacity hard drive or solid-state drive, tested up to 6 TB.

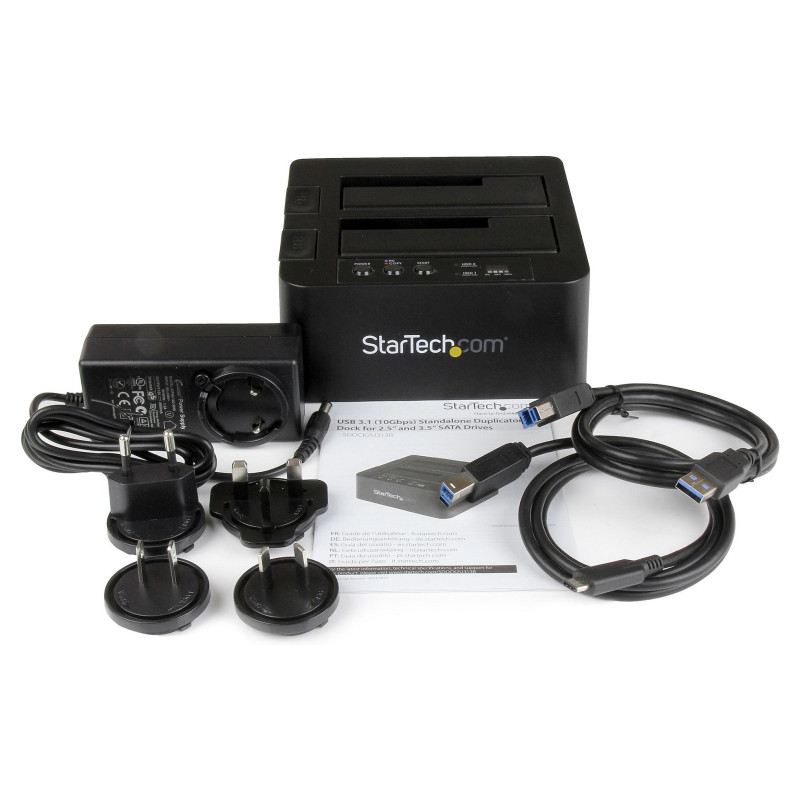

Includes two USB cables for versatility

The duplicator dock comes with two USB cables for flexible use with the latest laptops and tablets equipped with a USB-C™ port, as well as legacy devices. It includes both USB-C to B and USB-A to B cables. The duplicator dock is also compatible with a Thunderbolt™ 3 USB-C port.

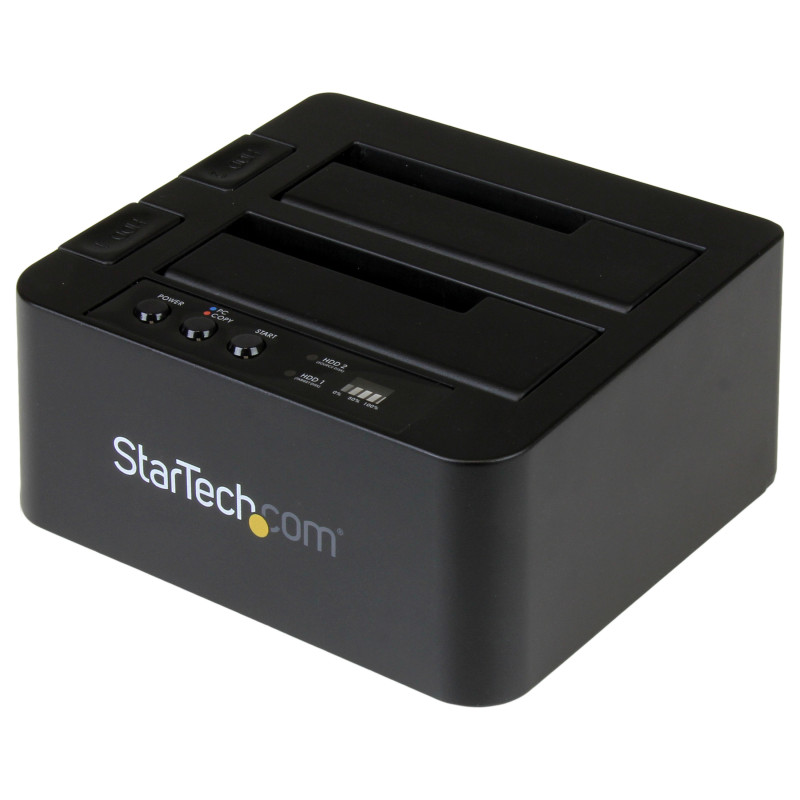

Designed for easy use

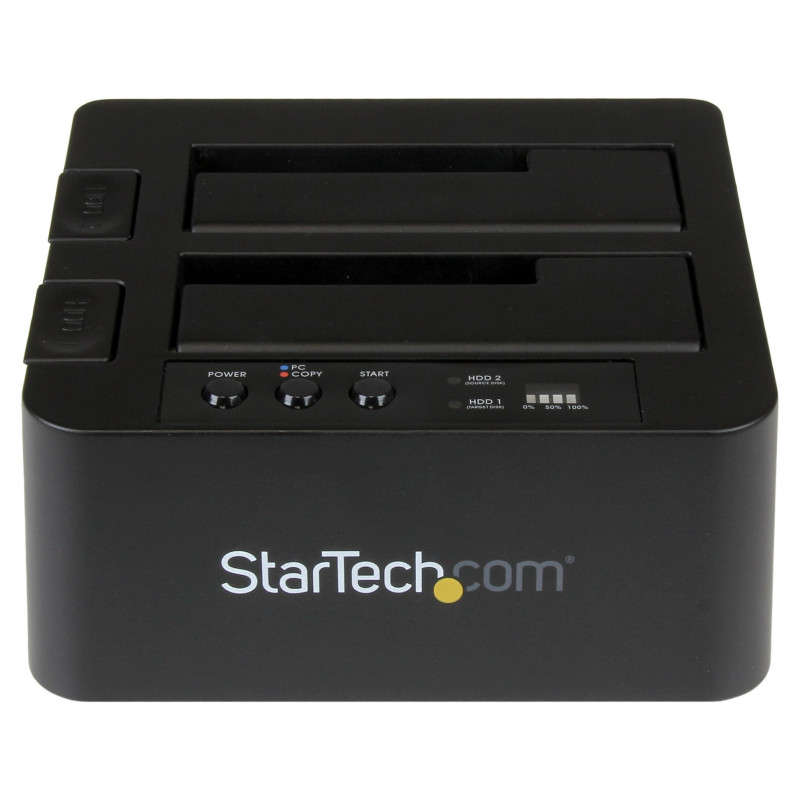

The dock features a top-loading, toaster-style design that makes it easy to insert your drives. It also features drive doors to help stabilize drives that are inserted into the slot and prevent foreign objects from getting into the drive slots.

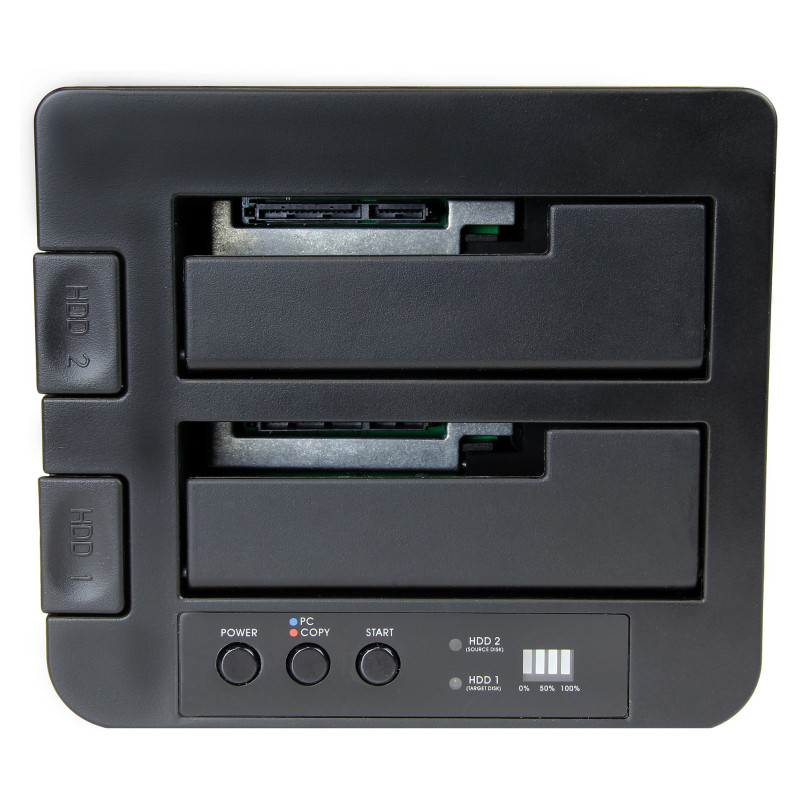

Both tool-less and tray-less, the duplicator dock helps to ensure quick and hassle-free drive insertions. LED indicators let you know, at a glance, the current state of the duplication process, including the specific duplication mode, the HDD status and clone progress. The HDD ejection button enables fast and simple drive removal.

For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

SATA to 2.5in or 3.5in IDE Drive Adapter - SAT2IDEADP

2.5in SATA to Mini SATA SSD Adapter - SAT2MSAT25

M.2 SSD to 2.5in SATA Adapter - SAT32M225

The SDOCK2U313R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features

Product type: HDD duplicator
Product colour: Black
Housing material: Plastic
Number of simultaneous copies: 2 copies
Interface: USB 3.1
USB connector type: USB Type-B
Duplicator operating modes: Copy
Transfer rate: 10000 MB/s
Transfer rate: 28 GB/min
Chipset: ASMedia - ASM1352R
Number of fans: 0 fan(s)
LED indicators: HDD, Power, Status
Certification: CE, FCC, UL, REACH

Hard drive

Supported HDD sizes: 2.5,3.5"
Supported HDD interfaces: Serial ATA, Serial ATA II, Serial ATA III

Power

Power consumption (typical): 36 W
AC input voltage: 100-240 V
Input current: 1.5 A
Output voltage: 12 V
Output current: 3 A
Power plug type: Type M
Included power plug types: AU, EU, NA, UK

Weight & dimensions

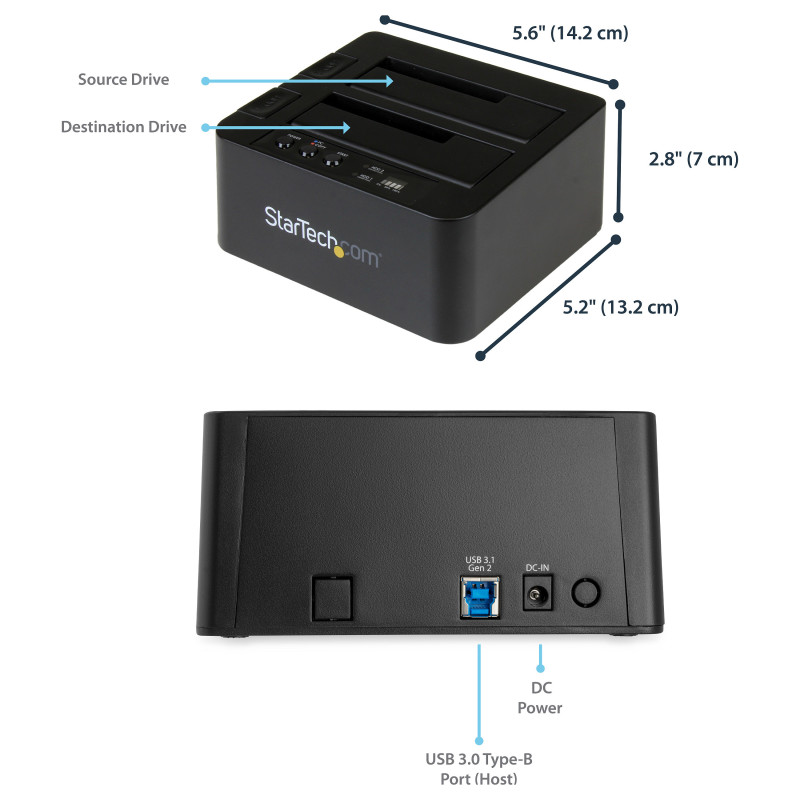

Dimensions (WxDxH): 132 x 142 x 70 mm
Weight: 508 g

Packaging data

Package width: 190 mm
Package depth: 213 mm
Package height: 124 mm
Package weight: 992 g
Package dimensions (WxDxH): 300 x 166 x 88 mm

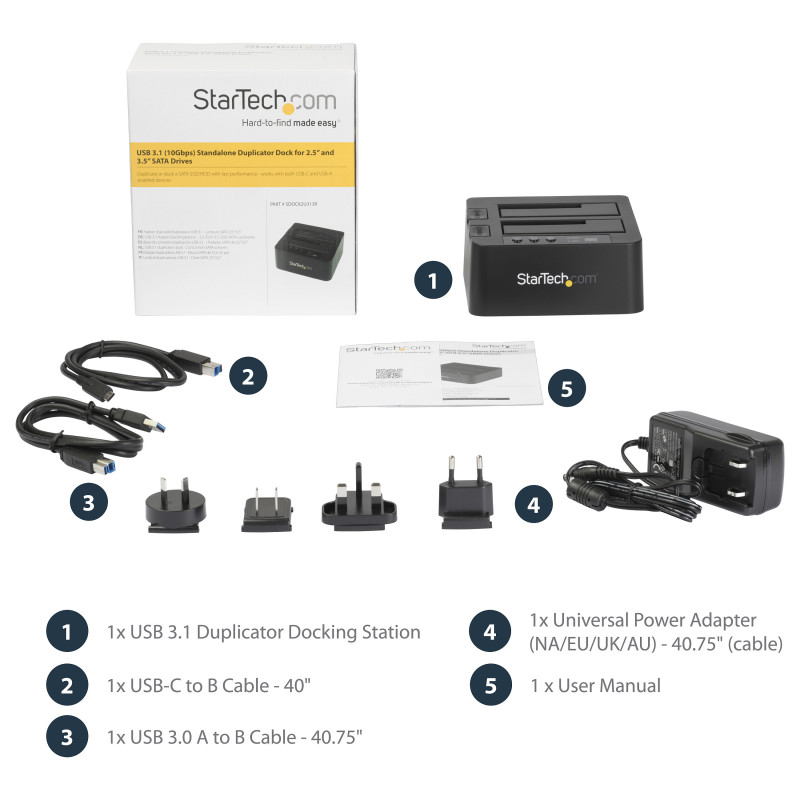

Packaging content

Cables included: USB
Feature: AC adapter included
Feature: Manual

Operational conditions

Operating relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 50 °C

Technical details

Compliance certificates: RoHS

Logistics data

Master (outer) case length: 211 mm
Master (outer) case width: 631 mm
Master (outer) case height: 470 mm
Products per master (outer) case: 10 pc(s)
