StarTech.com ICUSB232INT2 interface cards / adapter

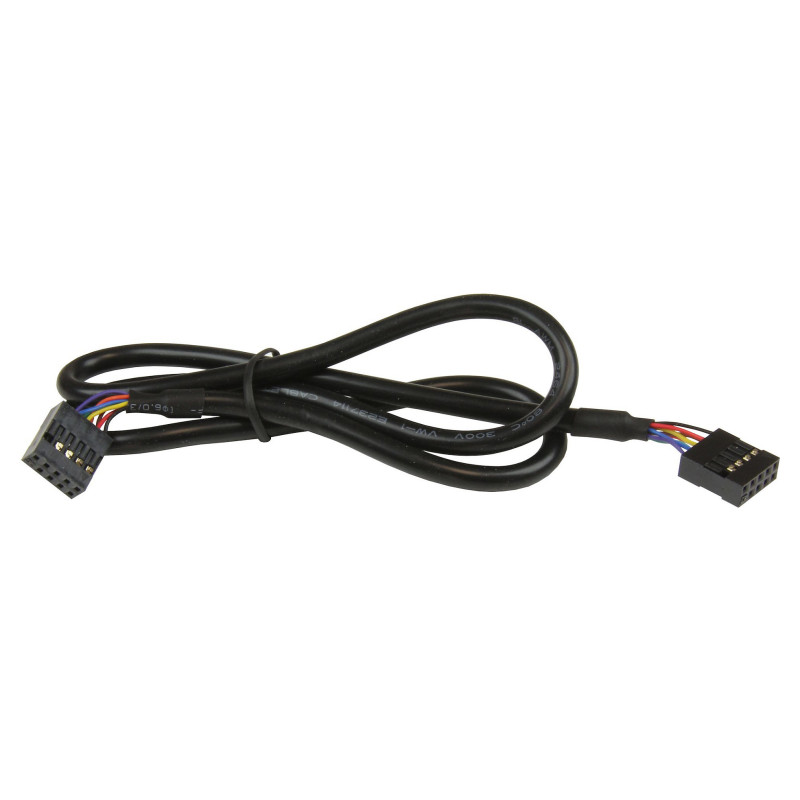

StarTech.com 24in Internal USB Motherboard Header to 2 Port Serial RS232 Adapter - TAA. Host interface: IDC, Output interface: Serial, Serial interface type: RS-232. Certification: Microsoft WHQL, CE, FCC. Baud rate: 115.2 Kbit/s, FIFO (First In, First Out): 256 B, Data bits: 7, 8. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 120 mm, Depth: 68 mm, Height: 19 mm

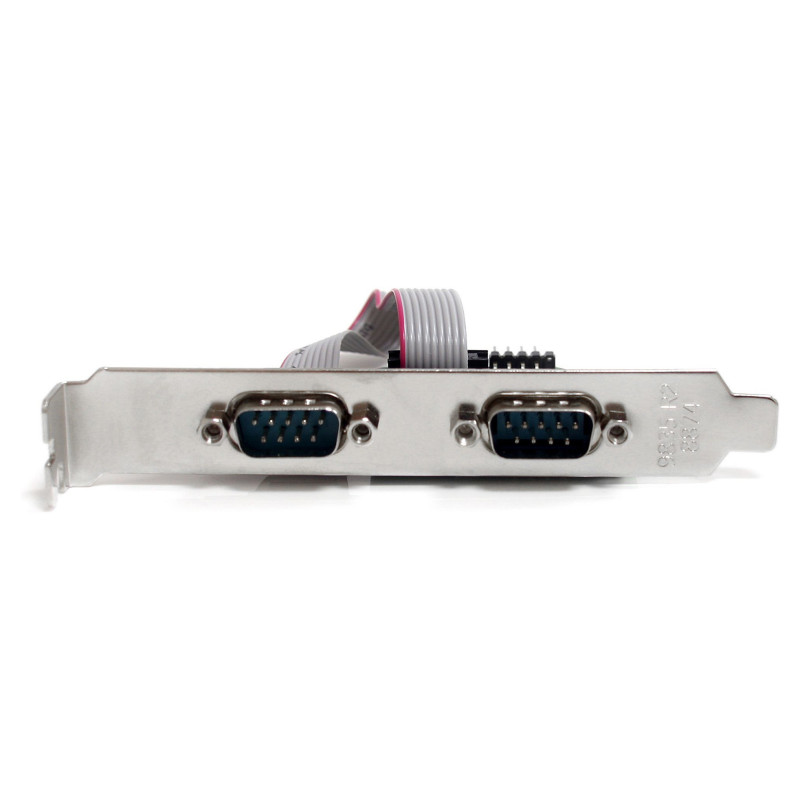

Add two RS232 serial ports to any system with an available USB motherboard header

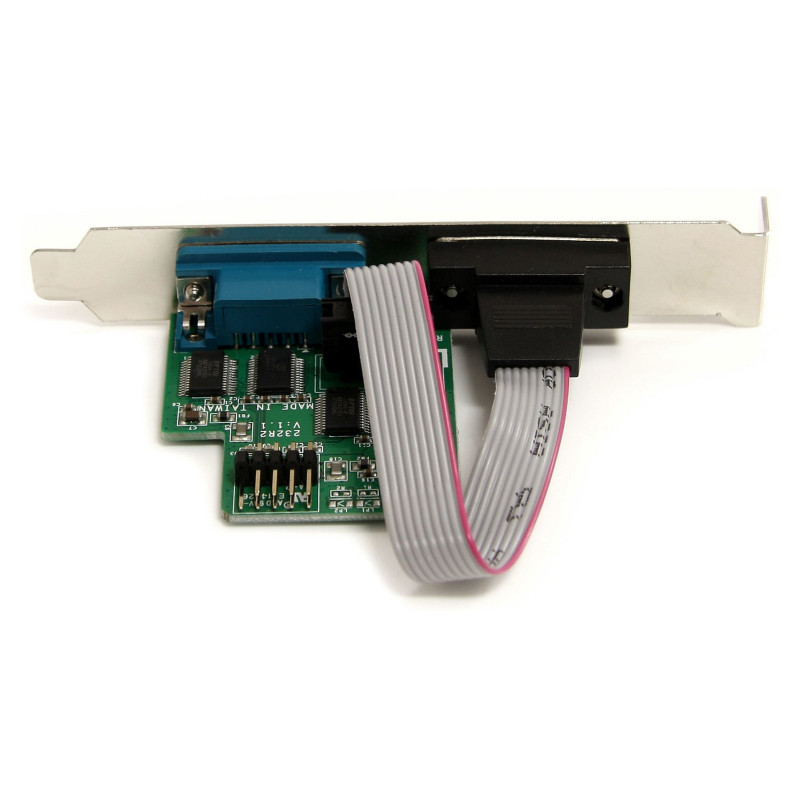

The ICUSB232INT2 USB to Serial Adapter lets you add 2 RS232 ports to any desktop system that is equipped with an available USB motherboard header. Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed. This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Host interface: IDC
Output interface: Serial
Serial ports quantity: 2
Serial interface type: RS-232

Design

Feature: Internal
Certification: Microsoft WHQL, CE, FCC

Features

Baud rate: 115.2 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 7, 8
Stop bits: 1, 2
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): -10 - 80 °C
Storage temperature (T-T): -20 - 100 °C
Operating relative humidity (H-H): 5 - 85%

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 120 mm
Depth: 68 mm
Height: 19 mm
Weight: 63 g

Packaging data

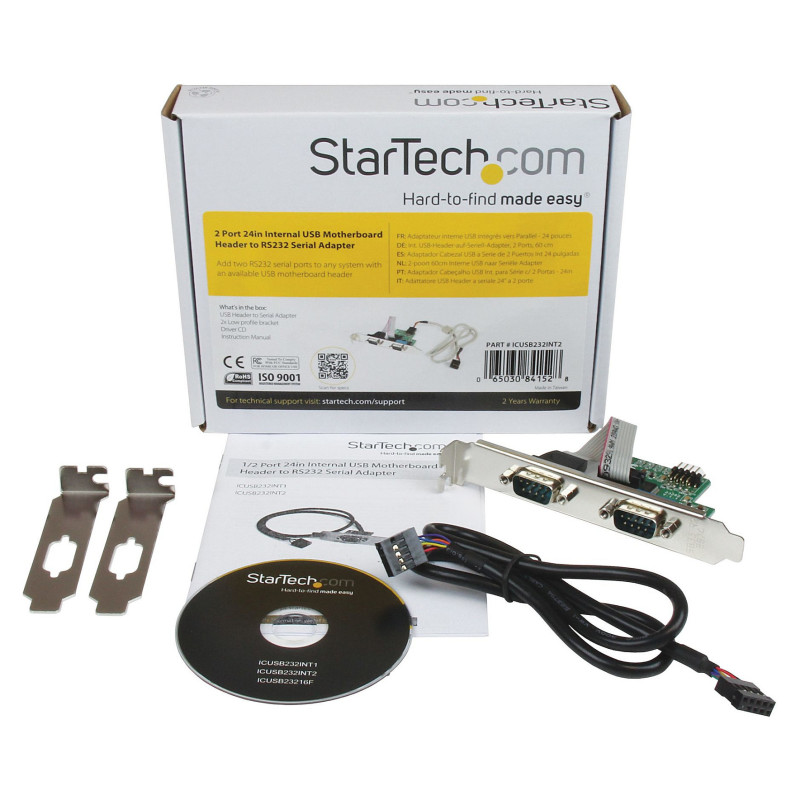

Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package width: 142 mm
Package depth: 174 mm
Package height: 33 mm
Package weight: 153 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 75 pc(s)
Master (outer) case width: 350 mm
Master (outer) case length: 693 mm
Master (outer) case height: 314 mm
