StarTech.com ICUSB2322I interface hub

StarTech.com 2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips - TAA. Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Product colour: Black, Housing material: Steel, LED indicators: Activity. Windows operating systems supported: Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Other operating systems supported: Windows XP Embedded. Width: 66 mm, Depth: 104 mm, Height: 24 mm. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 208 mm
Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB
The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports interfaces

Host interface: USB 2.0 Type-B
Hub interfaces: Serial
Ports quantity: 2
RS-232 ports: 2
Card reader integrated: No
DC-in jack: Yes

Features

Product colour: Black
Housing material: Steel
LED indicators: Activity

System requirements

Linux operating systems supported: Yes
Other operating systems supported: Windows XP Embedded
Compatible operating systems: Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x

Weight dimensions

Width: 66 mm
Depth: 104 mm
Height: 24 mm
Weight: 162 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 145 mm
Package depth: 208 mm
Package height: 43 mm
Package weight: 400 g

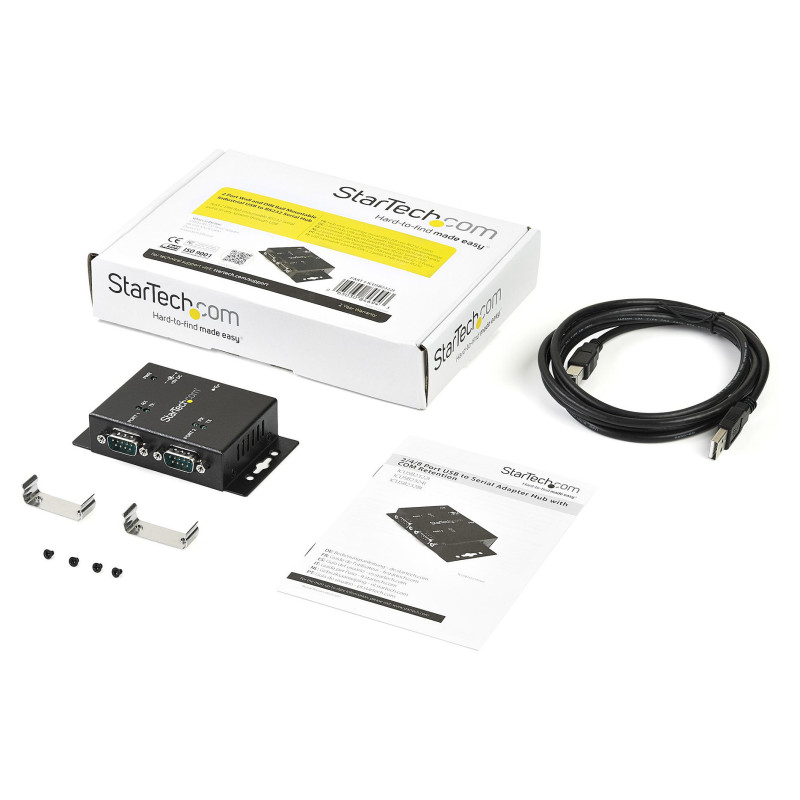

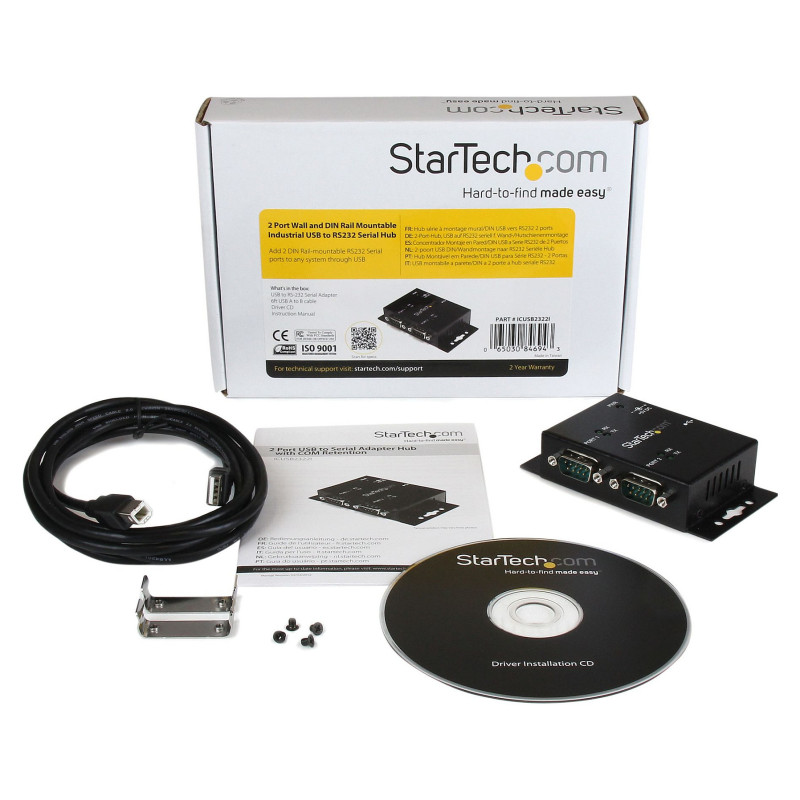

Packaging content

Cables included: USB
Manual: Yes
DIN rail kit included: Yes
Drivers included: Yes

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Data bits: 7, 8
Stop bits: 1, 2
Parity bit: Even, Mark, No, Odd, Space
FIFO (First In, First Out): 256 B
Baud rate: 921.6 Kbit/s

Sustainability

Sustainability compliance: Yes

Logistics data

Master (outer) case width: 545 mm
Master (outer) case length: 452 mm
Master (outer) case height: 336 mm
Products per master (outer) case: 50 pc(s)
Harmonized System (HS) code: 84719000

Technical details

Compliance certificates: CE, RoHS

Other features

Chipset: FTDI - FT232RL
