StarTech.com HB31C5A2CME interface hub

StarTech.com 7-Port Industrial USB 10Gbps Hub with Power Adapter, Metal, Mountable, 5x USB-A and 2x USB-C Downstream Ports, ESD Protection, Powered USB Hub, TAA. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Black, Housing material: Steel. Power supply type: DC, Input voltage: 100 - 240 V. Width: 26 mm, Depth: 60 mm, Height: 178 mm. Package width: 290 mm, Package depth: 187 mm, Package height: 70 mm

Add 7 external, wall mountable USB 3.2 (10Gbps) ports from a single USB-C connection

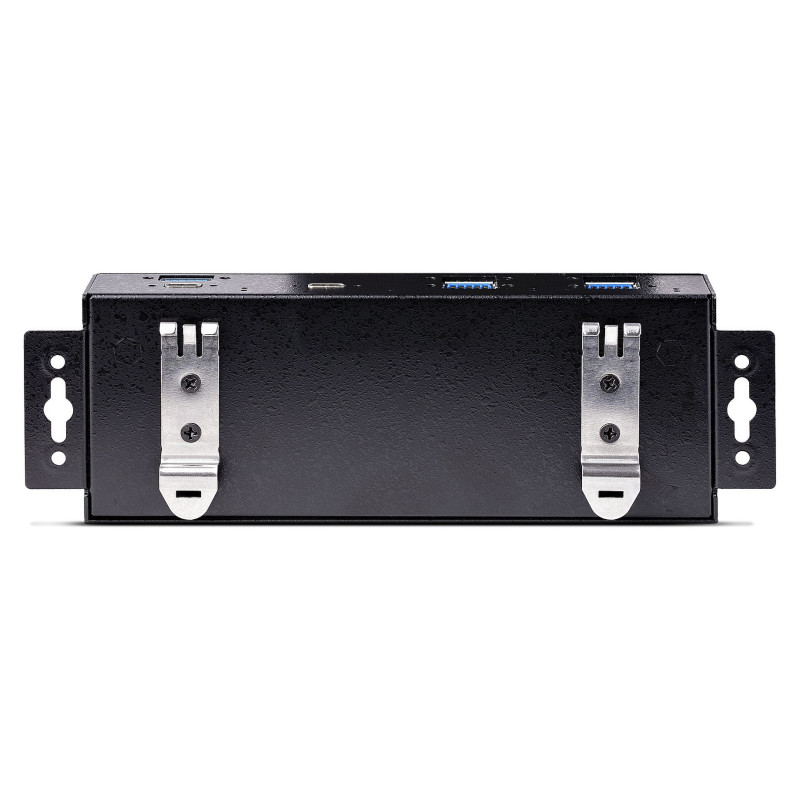

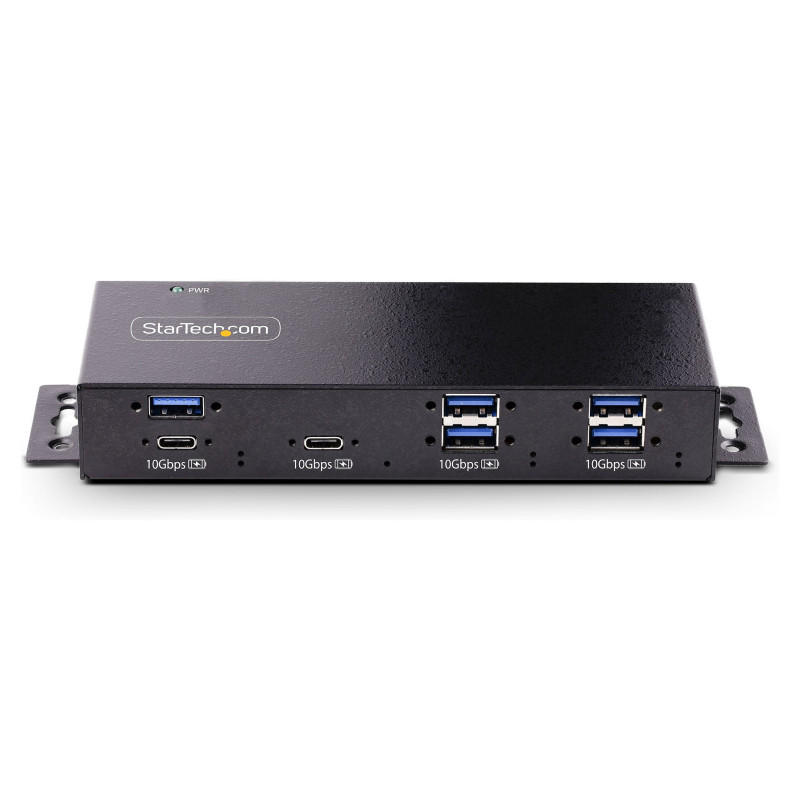

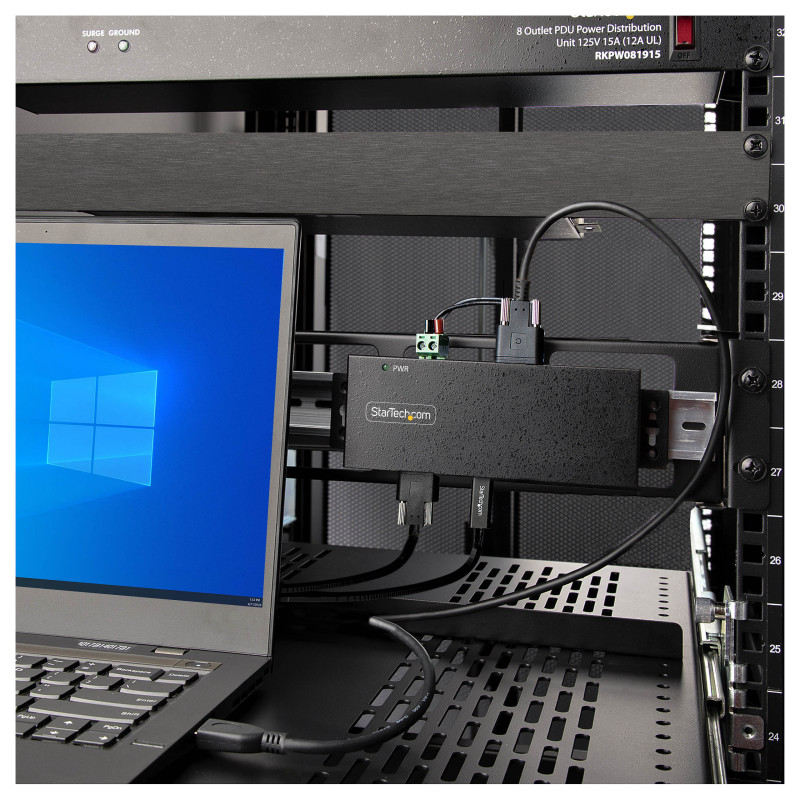

The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.

Power & Charging

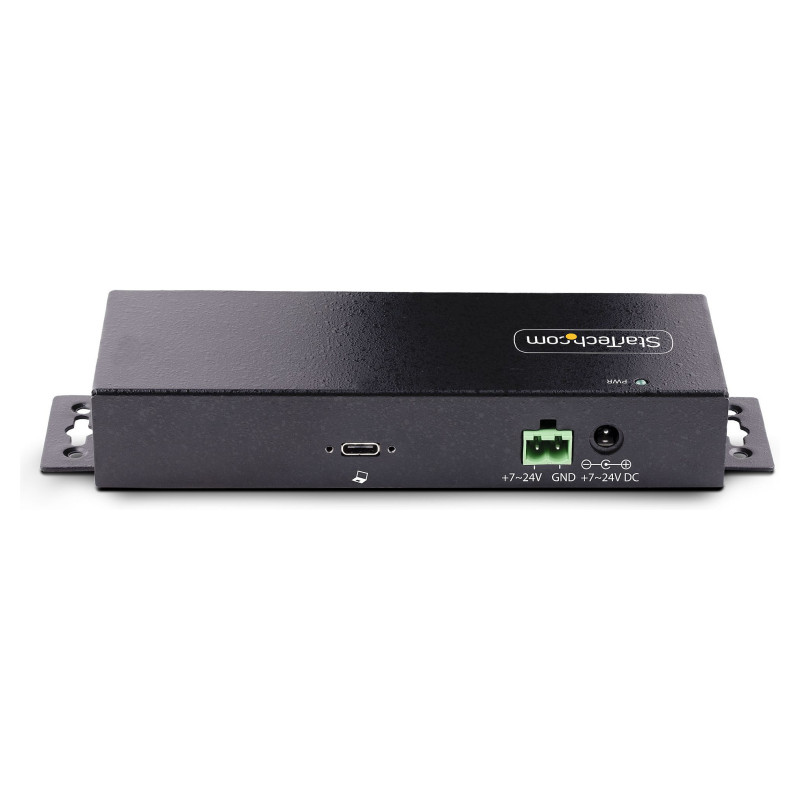

This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.

When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.

High-Speed Data Transfer

With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.x devices.

OS-Independent

This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ports quantity: 7
Feature: Terminal block port
Feature: DC-in jack

Features

Data transfer rate: 10000 Mbit/s
Product colour: Black
Housing material: Steel
Feature: Surge protection
Electrostatic Discharge (ESD) protection (air): 15 kV
Electrostatic Discharge (ESD) protection (contact): 8 kV
LED indicators: Yes

Power

Power supply type: DC
Input voltage: 100 - 240 V

Weight & dimensions

Width: 26 mm
Depth: 60 mm
Height: 178 mm
Weight: 300 g

Packaging data

Package width: 290 mm
Package depth: 187 mm
Package height: 70 mm
Package weight: 1.4 kg

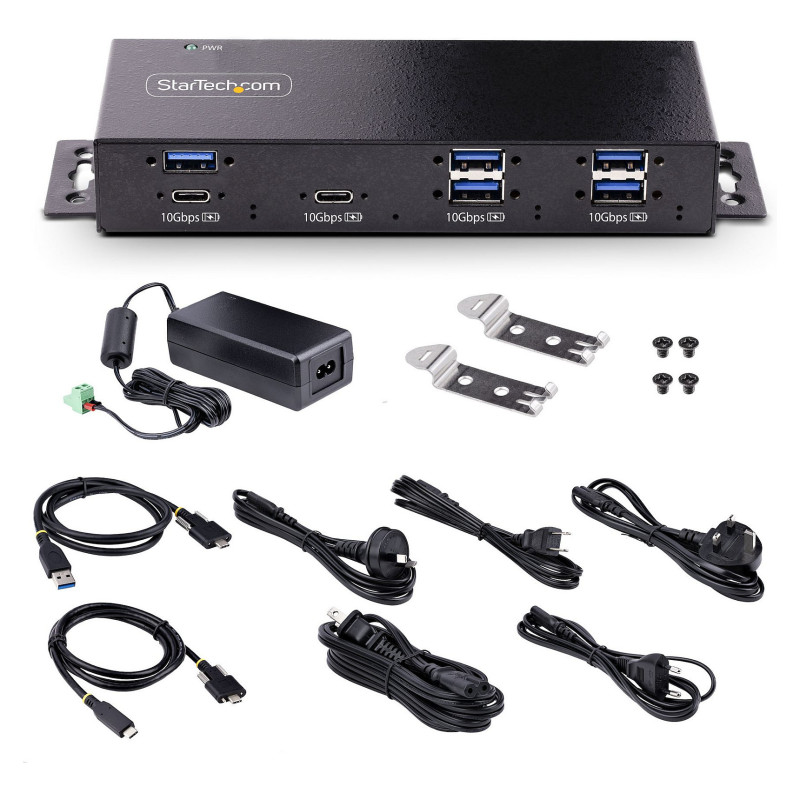

Packaging content

Feature: AC adapter included
Included power plug types: ANZ, EU, JP, NA, UK
Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
Feature: DIN rail kit included
Feature: Quick start guide

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Mean time between failures (MTBF): 163021.7 h

Logistics data

Master (outer) case width: 515 mm
Master (outer) case length: 390 mm
Master (outer) case height: 313 mm
Products per master (outer) case: 14 pc(s)

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Other features

Chipset: VIA/VLI VL822
