StarTech.com HB31C2A2CME interface hub

StarTech.com 4 Port USB C Hub 10Gbps - Metal Industrial USB-C Hub - 2x USB-C & 2x USB-A - ESD Surge Protection - USB-C or USB-A Host - Self-Powered Mountable USB 3.2 Gen 2 Type-C Hub - TAA. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Black, Housing material: Metal. Power consumption (typical): 36 W, Input voltage: 100 - 240 V, Input current: 1 A. Width: 59.6 mm, Depth: 152 mm, Height: 23.5 mm. Package width: 190 mm, Package depth: 295 mm, Package height: 70 mm

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features two USB-A and two USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for harsh, industrial environments.

Expands the Connectivity of Your Computer for Industrial Applications

With this USB-C hub you can connect two USB-A devices, and two USB-C devices, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).

Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).

Powers and Charges Your Connected Devices

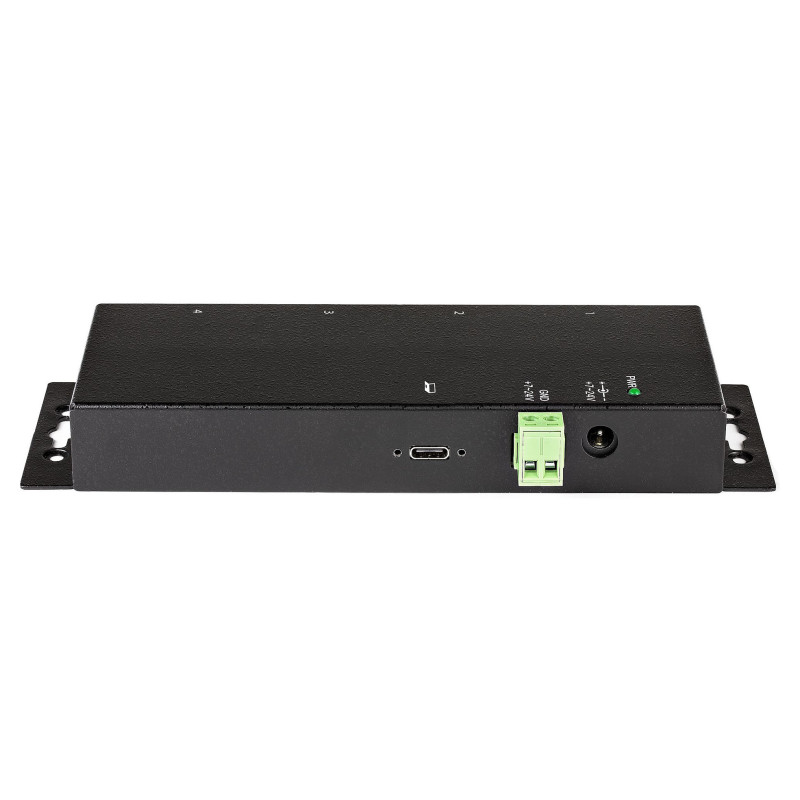

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.

Ideal for Use in Industrial Environments

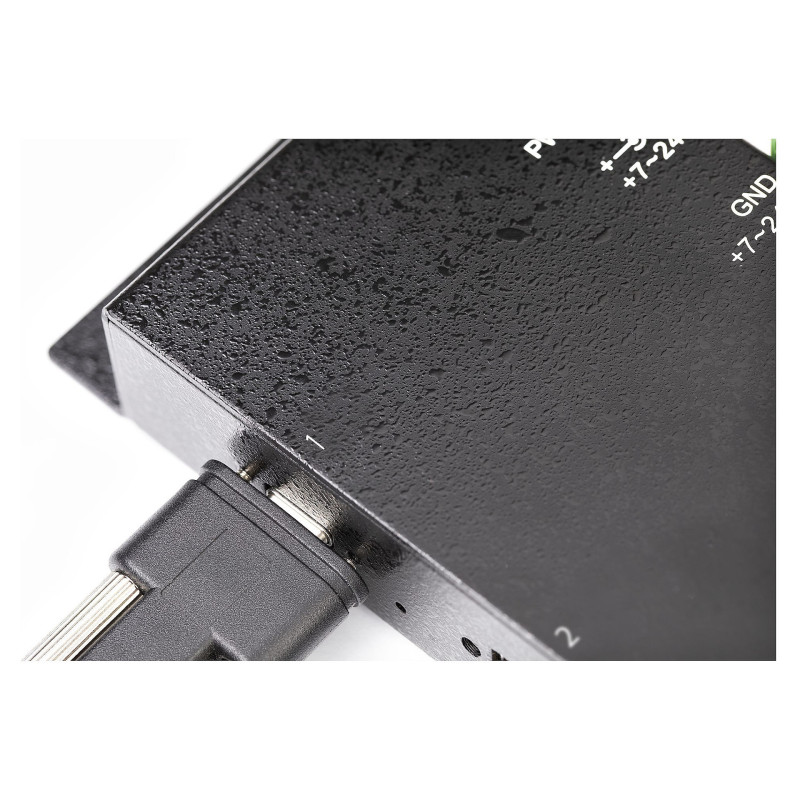

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge (ESD) protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection, and a 3.3 ft. (1m) USB-C host cable, and a 3.3 ft. (1 m) USB-A host cable is included that features a locking screw.

Wide Device Compatibility

The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.

HB31C2A2CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ports quantity: 4
Feature: Terminal block port
Feature: DC-in jack

Features

Data transfer rate: 10000 Mbit/s
Product colour: Black
Housing material: Metal
LED indicators: Power, USB

Network

Feature: UASP support

Power

Power consumption (typical): 36 W
Input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 12 V
Output current: 3 A
Power plug type: Type M

Weight & dimensions

Width: 59.6 mm
Depth: 152 mm
Height: 23.5 mm
Weight: 280 g

Packaging data

Package width: 190 mm
Package depth: 295 mm
Package height: 70 mm
Package weight: 1.3 kg

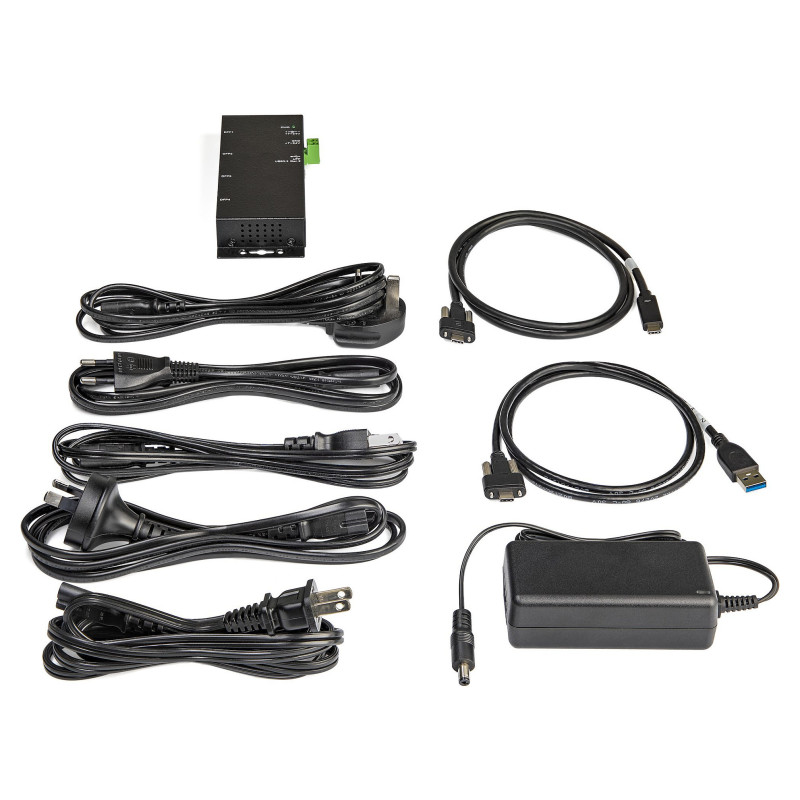

Packaging content

Feature: AC adapter included
Included power plug types: ANZ, EU, JP, NA, UK
Cables included: USB Type-A to USB Type-C
Feature: Manual
Feature: Terminal block included

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Logistics data

Master (outer) case width: 518 mm
Master (outer) case length: 409 mm
Master (outer) case height: 331 mm
Products per master (outer) case: 14 pc(s)
Harmonized System (HS) code: 84719000

Technical details

Compliance certificates: CE, RoHS

Other features

Chipset: VIA/VLI - VL822
