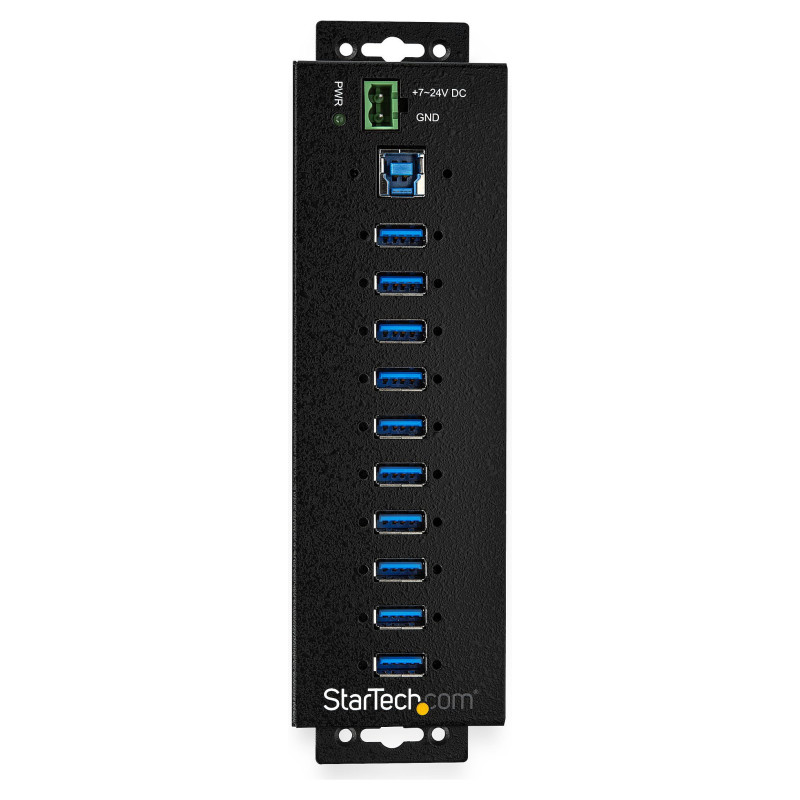

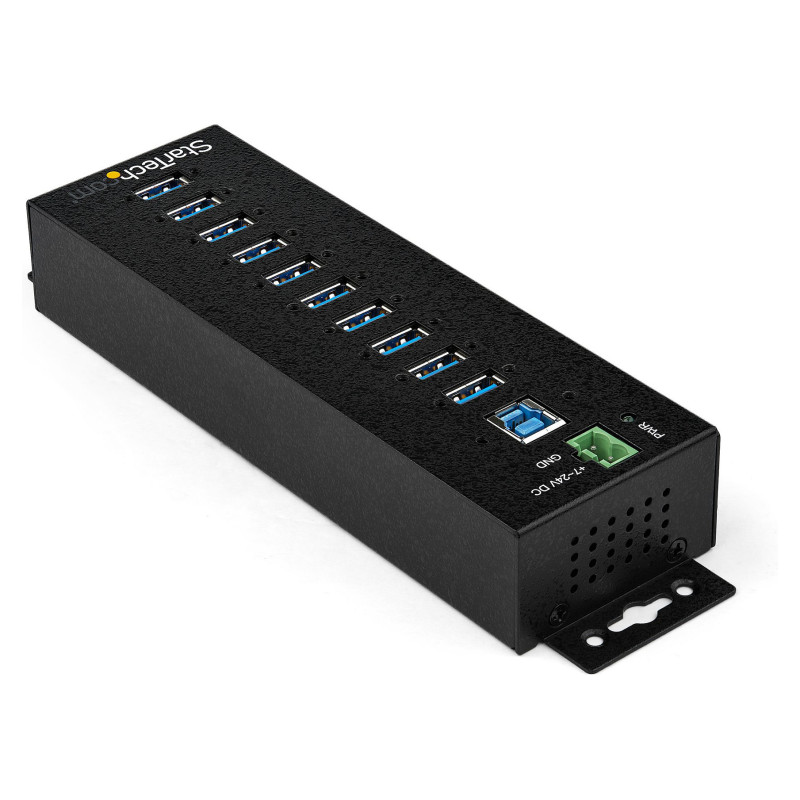

StarTech.com HB30A10AME interface hub

StarTech.com 10-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Din/Wall/Desk Mountable - High Speed USB 3.2 Gen 1 (5Gbps) Hub - TAA. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, LED indicators: Power. Power supply type: AC, Power consumption (typical): 65 W, Input voltage: 100 - 240 V. Width: 55 mm, Depth: 198 mm, Height: 30 mm. Quantity per pack: 1 pc(s), Package width: 190 mm, Package depth: 292 mm

Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 10 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The HB30A10AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 10
Ports quantity: 10
Feature: Terminal block port
Feature: DC-in jack

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Feature: Surge protection
LED indicators: Power
Feature: Plug and Play
Certification: RoHS, REACH, CE, FCC, TAA

Network

Feature: UASP support

Power

Power supply type: AC
Power consumption (typical): 65 W
Input voltage: 100 - 240 V
Input current: 1.4 A
Output voltage: 20 V
Output current: 3.25 A

Weight & dimensions

Width: 55 mm
Depth: 198 mm
Height: 30 mm
Weight: 352 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 190 mm
Package depth: 292 mm
Package height: 71 mm
Package weight: 1.4 kg

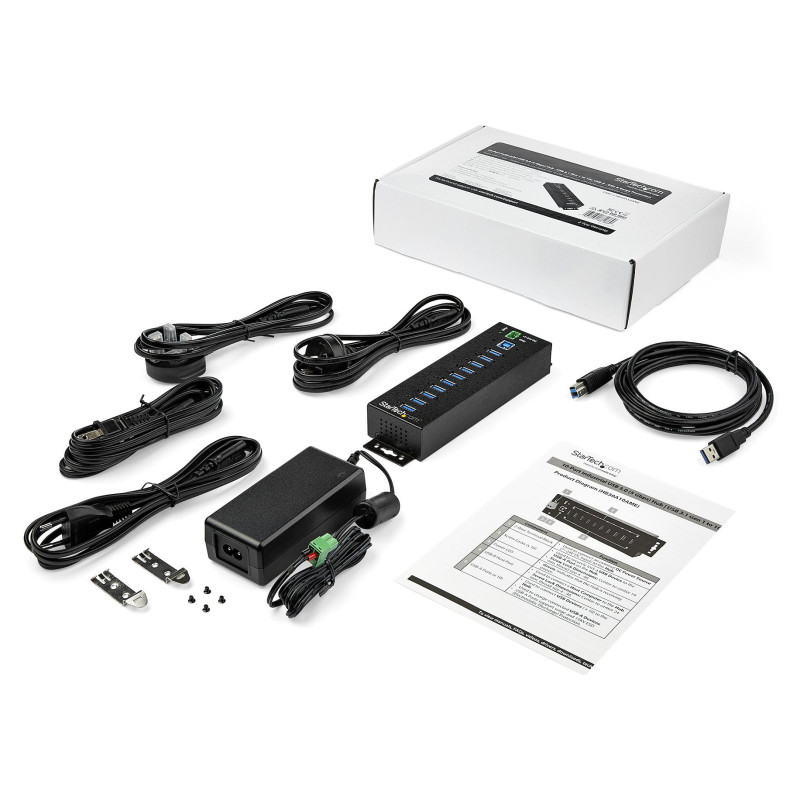

Packaging content

Feature: AC adapter included
Included power plug types: ANZ, EU, JP, NA, UK
Cables included: USB
Feature: Quick installation guide
Feature: DIN rail kit included

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Mean time between failures (MTBF): 126106 h

Logistics data

Master (outer) case width: 526 mm
Master (outer) case length: 403 mm
Master (outer) case height: 329 mm
Products per master (outer) case: 14 pc(s)
Harmonized System (HS) code: 84719000

Other features

Chipset: Genesys Logic - GL3523
