StarTech.com DKT30CSDHPD3 laptop dock / port replicator

StarTech.com USB C Multiport Adapter - USB-C Travel Dock to 4K HDMI, 3x USB 3.0 Hub, SD/SDHC, GbE, 100W PD 3.0 Pass-Through - Portable USB-C Mini Docking Station USB Type-C/Thunderbolt 3. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC, Data transfer rate: 5 Gbit/s. Power source type: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Other operating systems supported: ChromeOS

Portable Docking Station | Mac & Windows® | 4K | GbE | Thunderbolt™ 3 Compatible

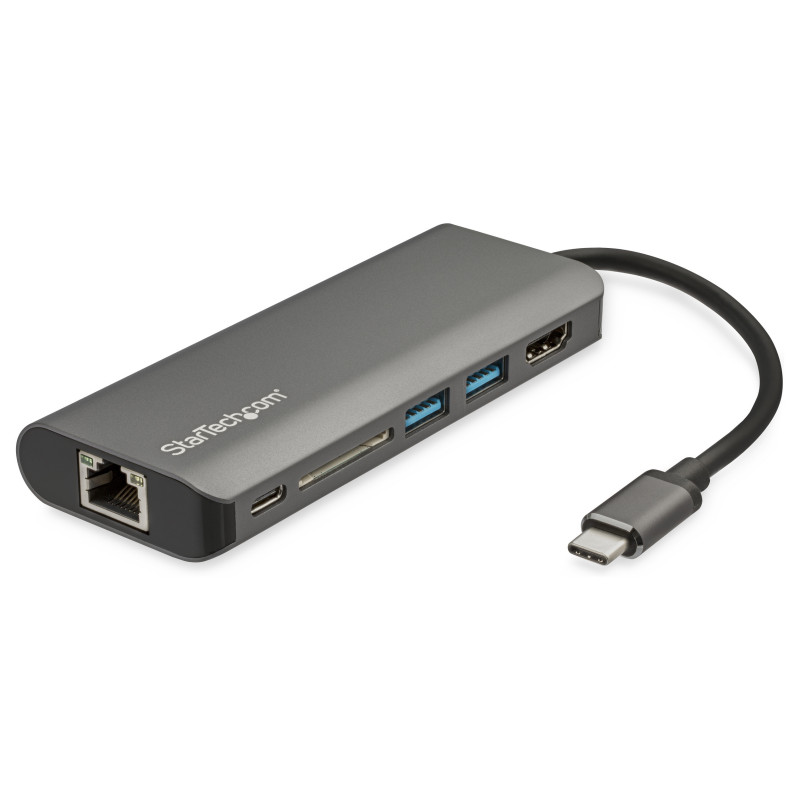

This USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptop into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB Type-C™ port (data/power), two USB 3.0 Type-A ports, a Gigabit Ethernet port and an SD card reader slot, all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0.

Enhance Productivity

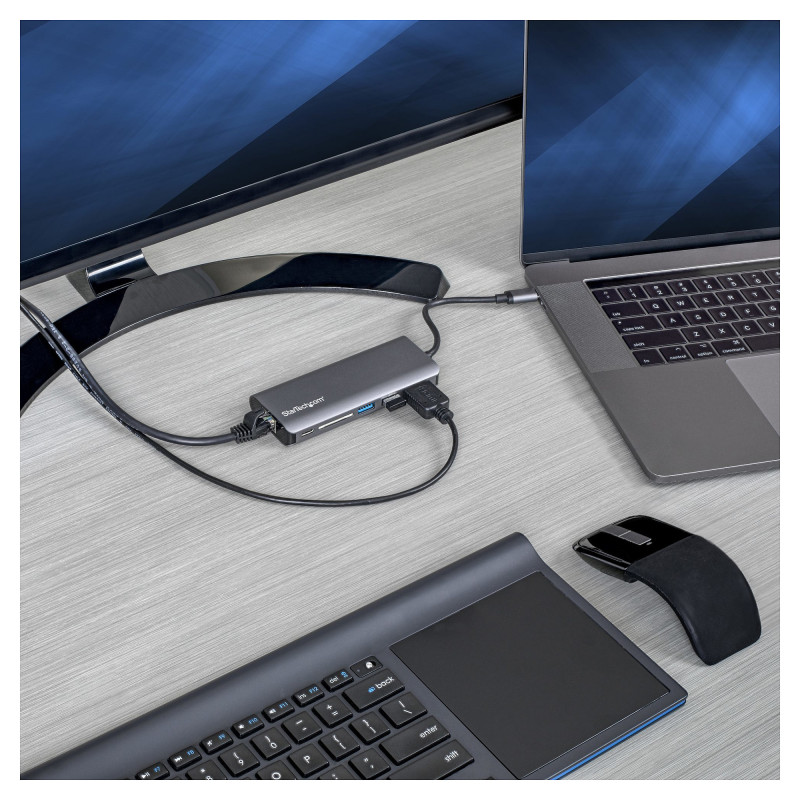

The portable docking station connects your laptop to a 4K HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.

Connect Your Devices

The USB-C to USB 3.0 hub gives you one USB-C port and two USB-A ports to connect your latest and legacy USB devices.

Built-In SD Card Reader

Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD cards (with adapter, sold separately).

Charge Your Laptop and Peripherals

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Reliable Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.

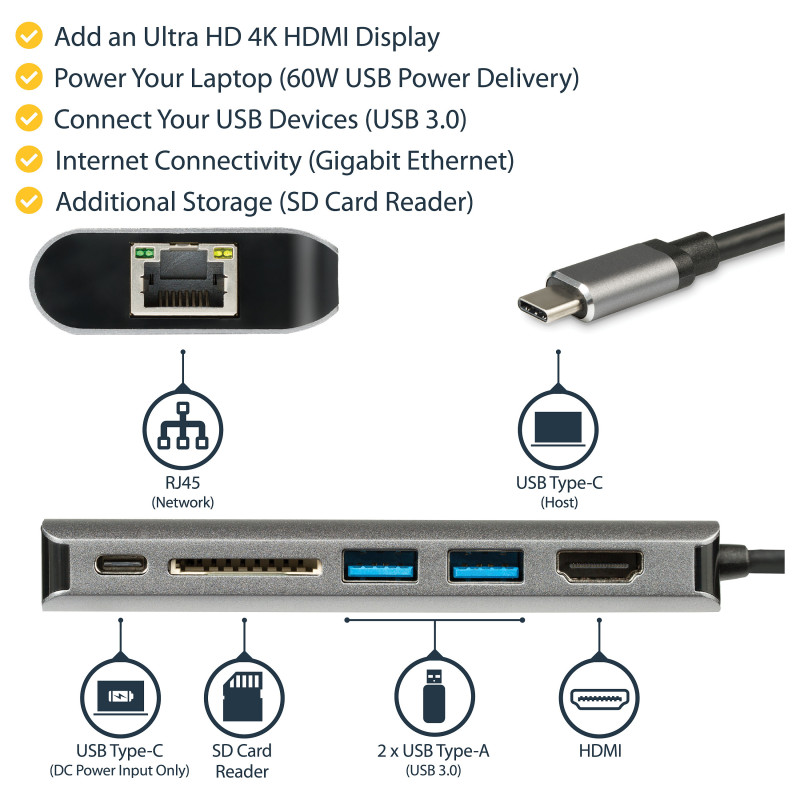

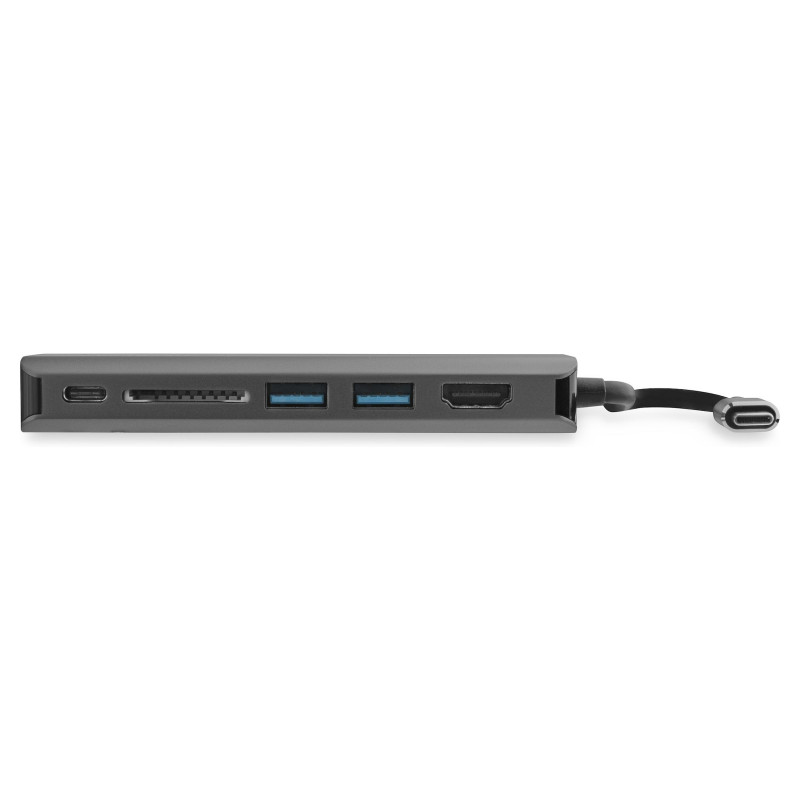

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1

Network

Feature: Ethernet LAN

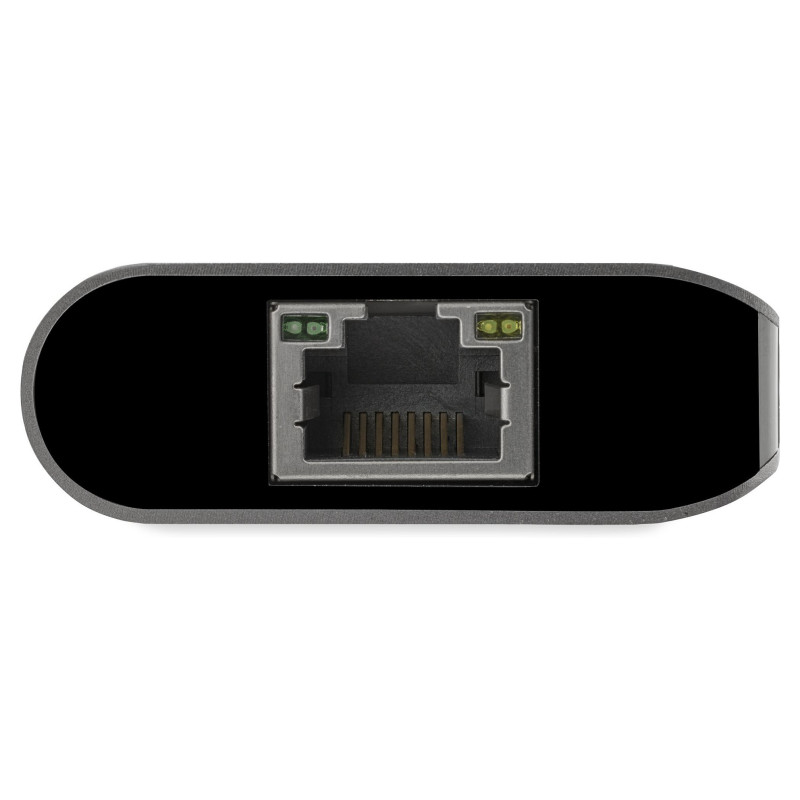

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: Full duplex

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 4096 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black, Grey
Feature: UASP support
Certification: CE, FCC

Power

Power source type: USB

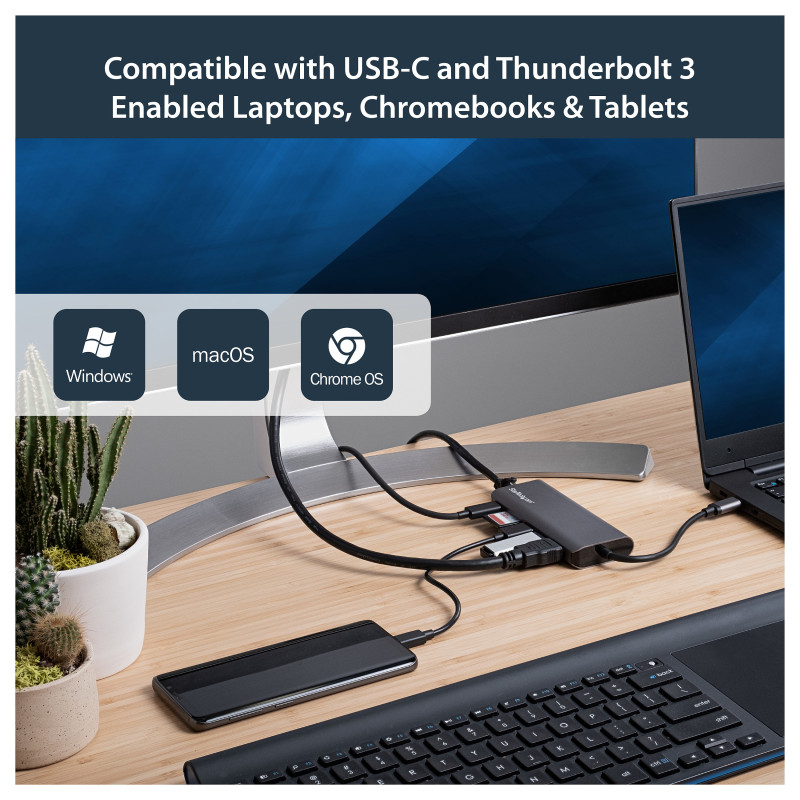

Software

Feature: Mac compatibility
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 85 °C
Operating relative humidity (H-H): 5 - 90%

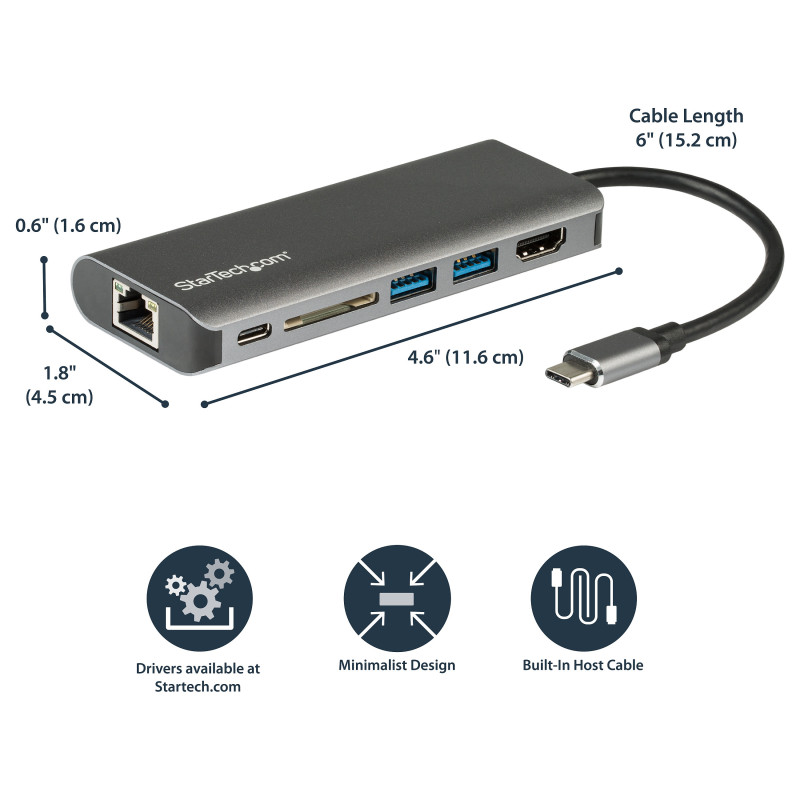

Weight & dimensions

Width: 45 mm
Depth: 270 mm
Height: 15 mm
Weight: 85 g

Packaging data

Package width: 163 mm
Package depth: 122 mm
Package height: 35 mm
Package weight: 157 g

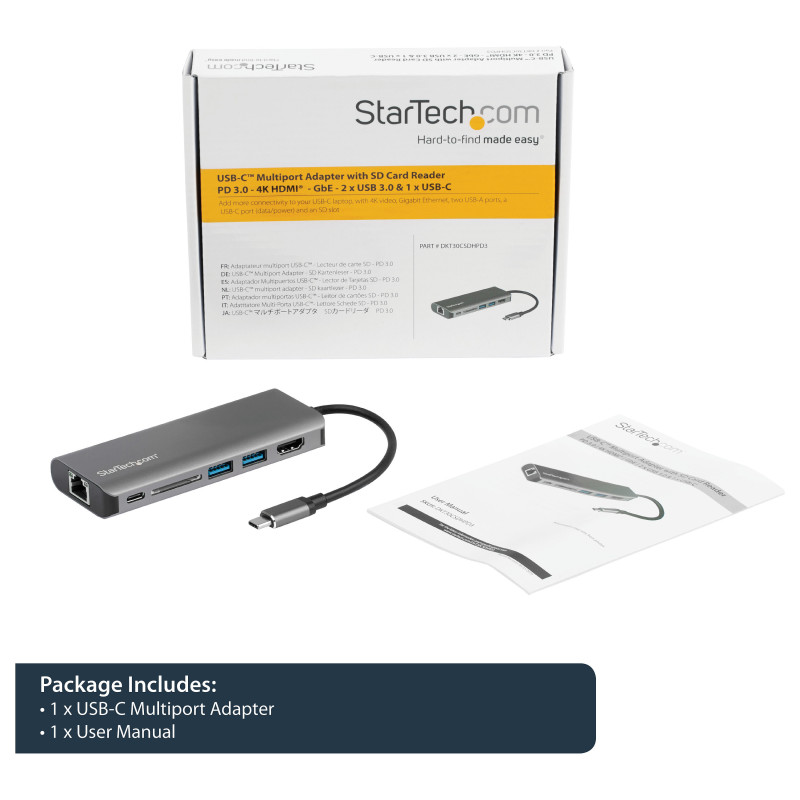

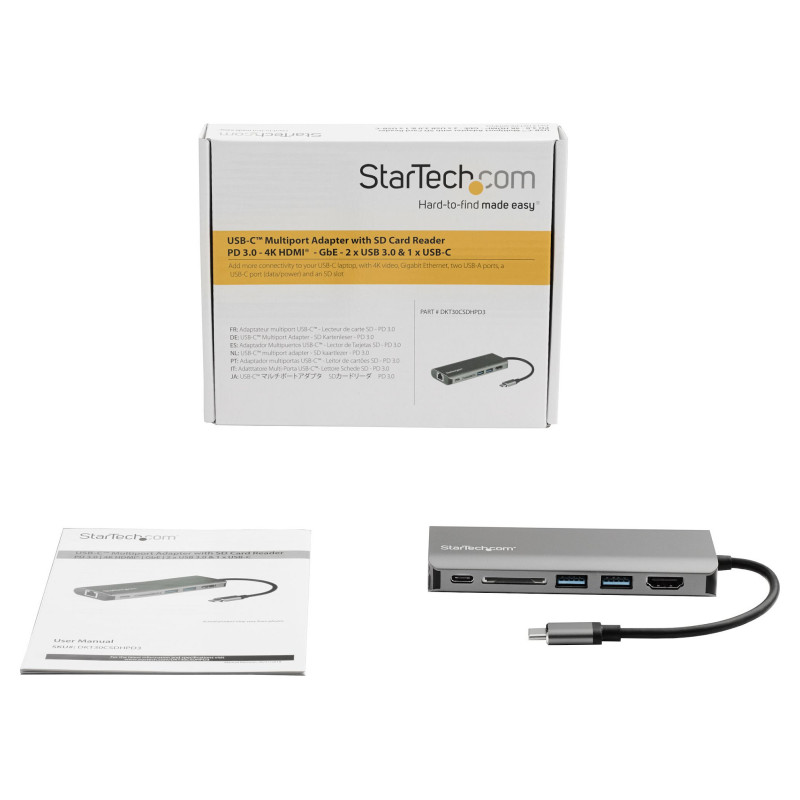

Packaging content

Feature: Quick start guide

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 80 pc(s)
Master (outer) case width: 484 mm
Master (outer) case length: 343 mm
Master (outer) case height: 447 mm
Harmonized System (HS) code: 84733020

Other features

Cable length: 0.27 m
Chipset: VIA/VLI - VL102, VIA/VLI - VL817, Genesys Logic - GL823K, Parade - PS176, Realtek - RTL8153
