StarTech.com DKT30CHVSCPD laptop dock / port replicator

StarTech.com USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA 1080p Video - 100W Power Delivery Passthrough, 3-port USB 3.0 Hub, GbE, SD & MicroSD - Laptop Travel Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Compatible memory cards: MMC, MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Other operating systems supported: ChromeOS

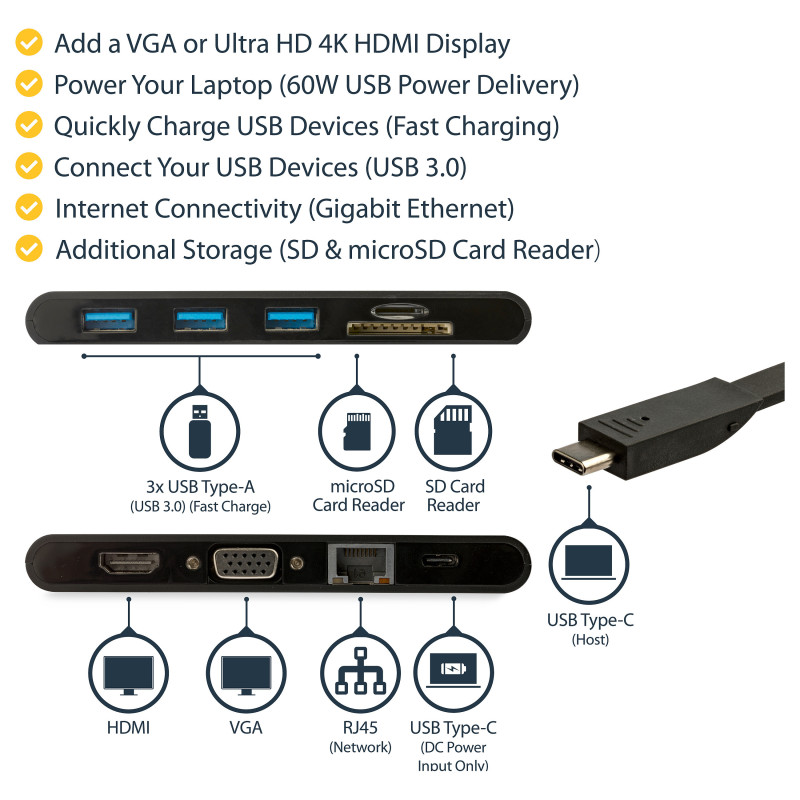

Add video output, three USB 3.0 ports, SD/micro SD card readers, and GbE port to your laptop through a single USB-C port

Turn your USB-C™ equipped laptop into a mobile workstation. This sleek, compact USB-C multiport adapter makes it easy to connect your MacBook Pro or Windows laptop to an HDMI or VGA monitor. Power through your workday, with three USB 3.0 (Type-A) ports with Fast-Charge support, SD™ and microSD™ card slots, and a Gigabit Ethernet port.

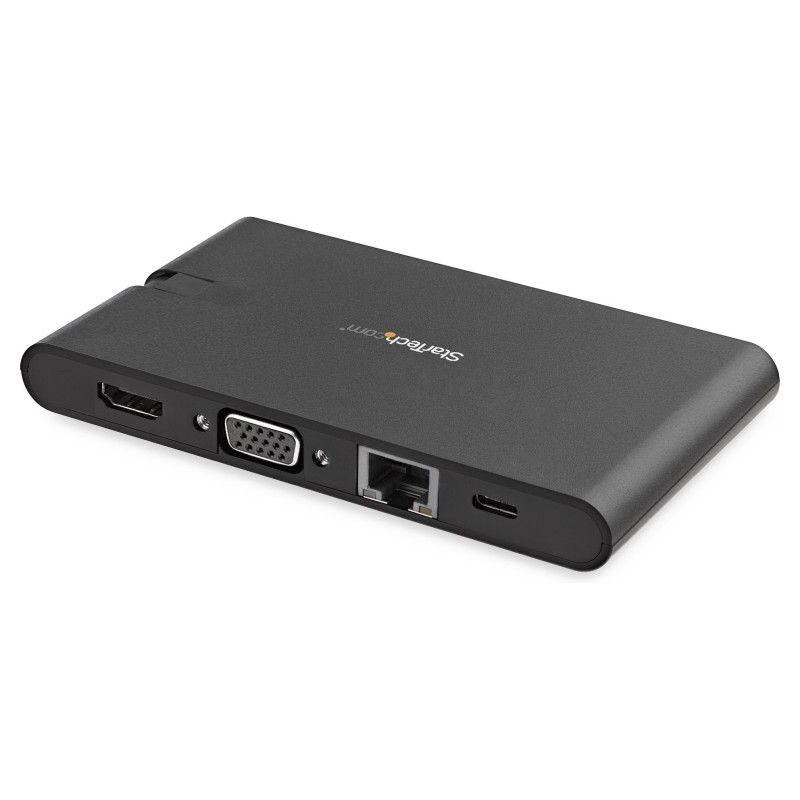

Connect to an external monitor

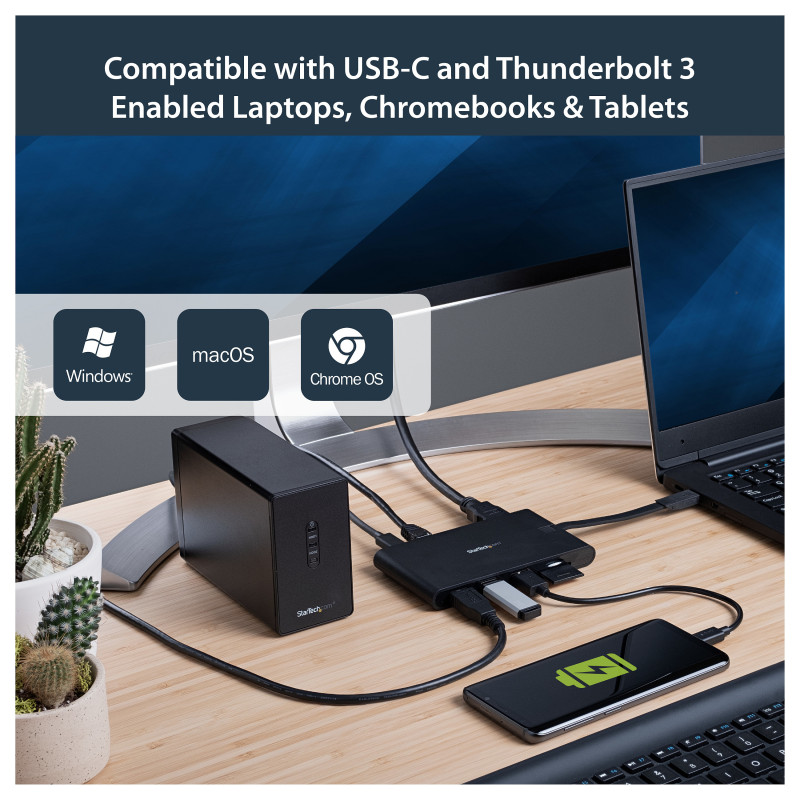

The universal USB Type-C™ multiport adapter (Thunderbolt 3 port compatible) offers enhanced productivity in the boardroom or classroom. Connect your laptop to one external monitor:

• 4K HDMI (3840 x 2160p @ 30Hz) or VGA (1920 x 1200 @ 60Hz)

Charge your laptop and peripherals

With support for USB Power Delivery 3.0 (up to 85W), the USB-C multiport adapter lets you power and charge your laptop, and power your peripherals at the same time. PD 3.0 features Fast Role Swap to prevent USB data disruption when switching power sources (bus power and USB-C power adapter).

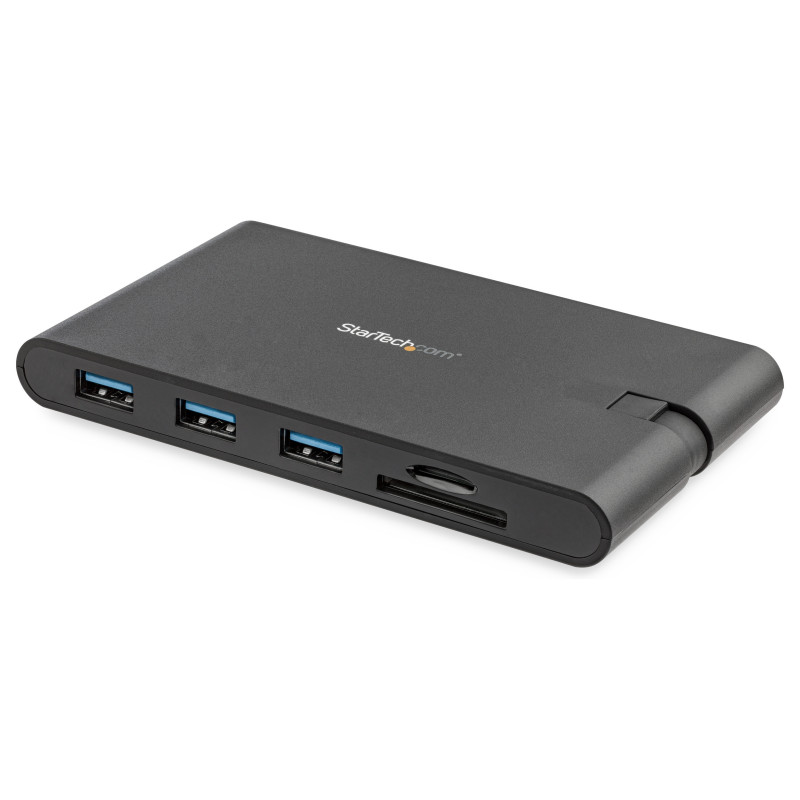

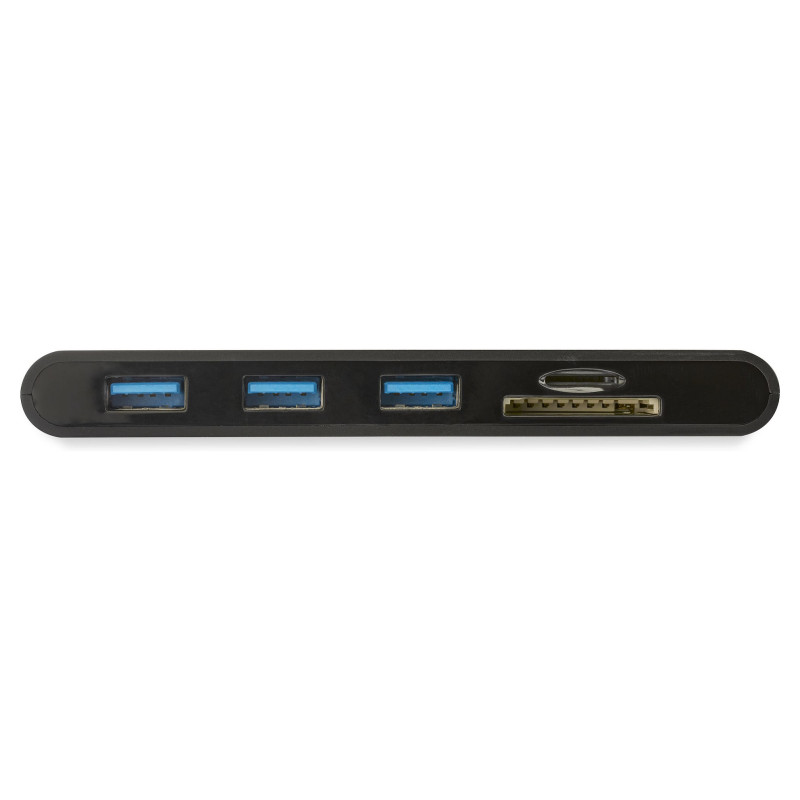

Connect USB devices

Connect your USB devices using the three USB 3.0 (Type-A) ports. Each USB port is a fast-charge and sync port, to ensure your tablet and smartphone are charged and ready. Each port offers 7.5W of charging power, with a combined total of 10W with all three ports in use.

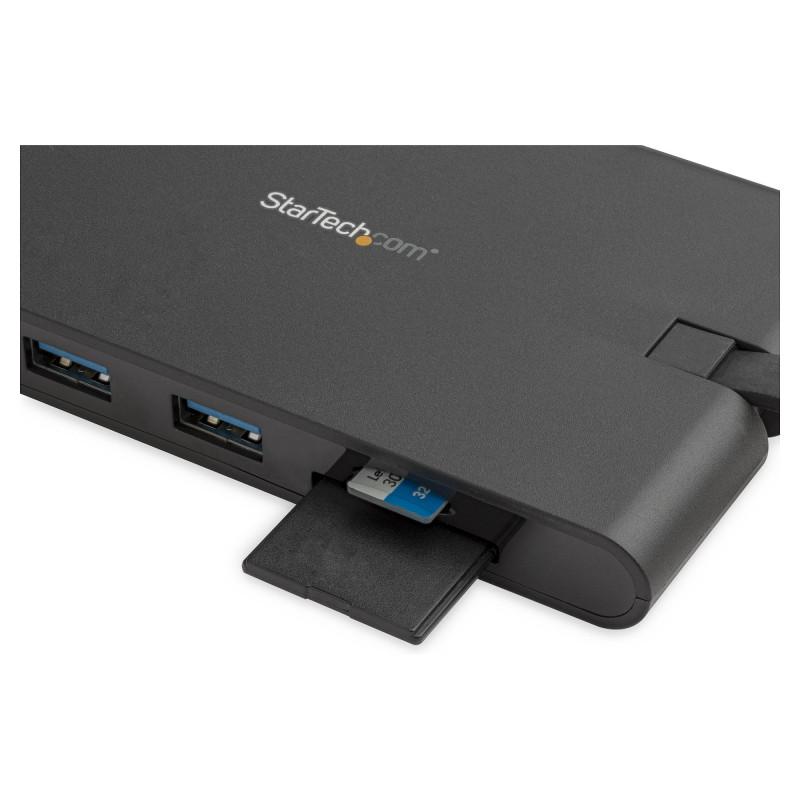

SD/microSD card access

Access the SD and microSD slots at the same time, and easily move data from one card to the other.

Easy portability

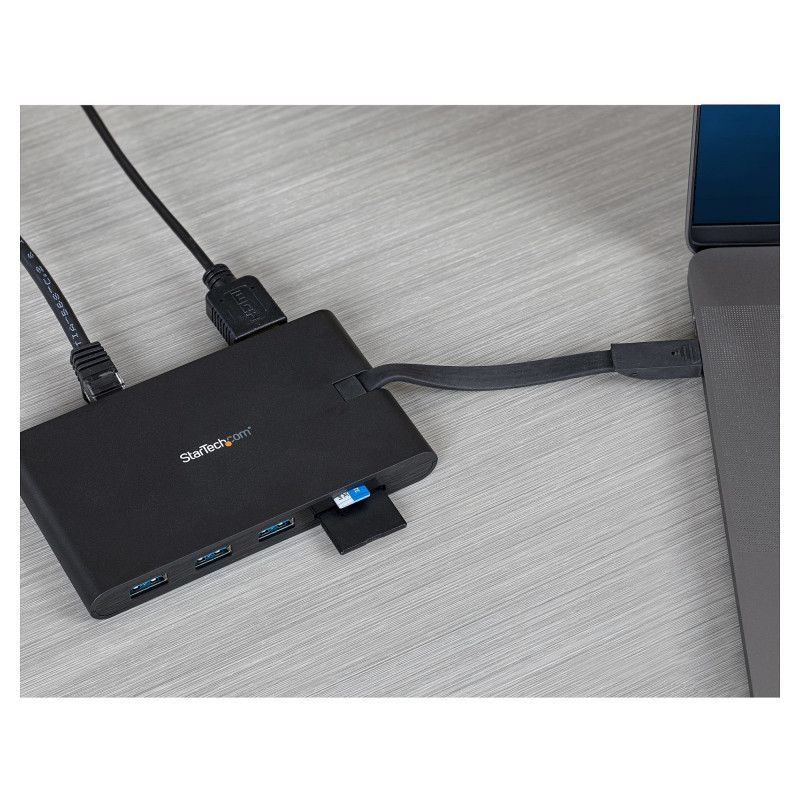

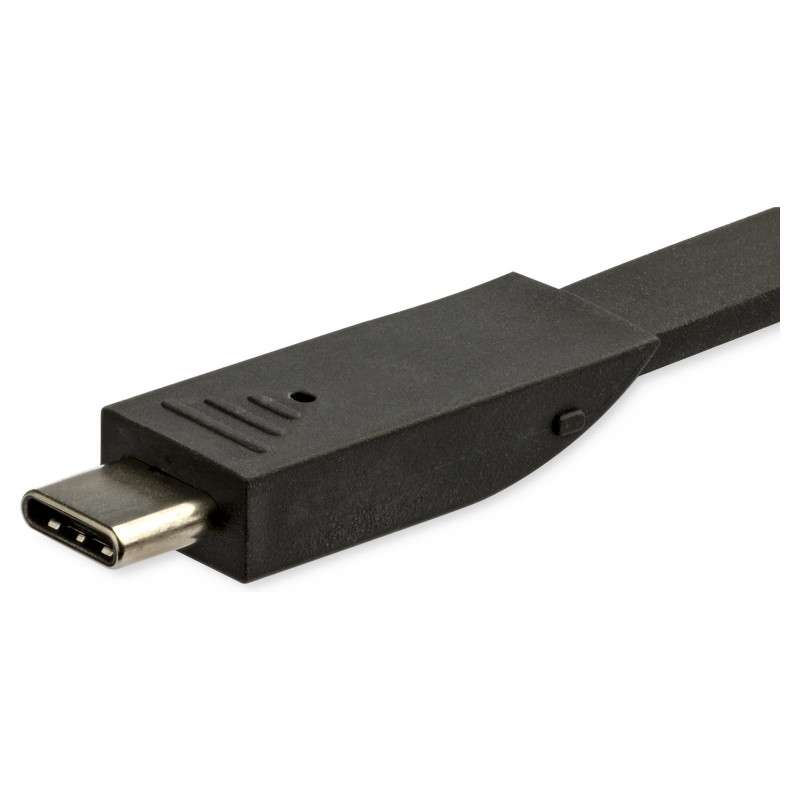

For mobile use, the USB-C adapter is bus-powered and lightweight, with a wraparound USB-C cable.

DKT30CHVSCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

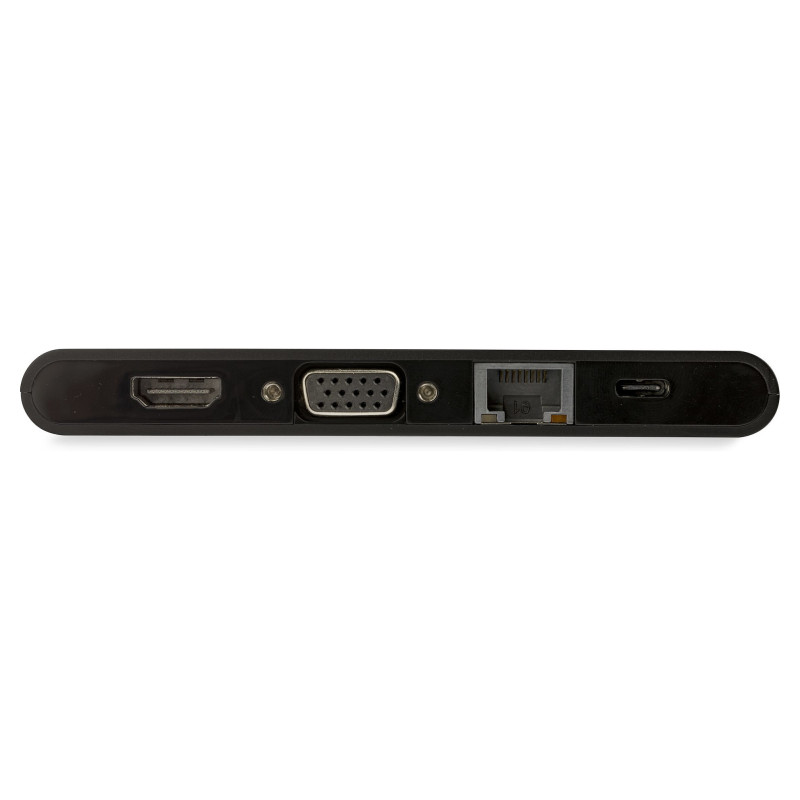

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: Full duplex

Performance

Feature: Card reader integrated
Compatible memory cards: MMC, MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Black
Feature: UASP support
Housing material: Plastic
Certification: CE, FCC, REACH

Power

Power source type: USB

Software

Feature: Mac compatibility
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

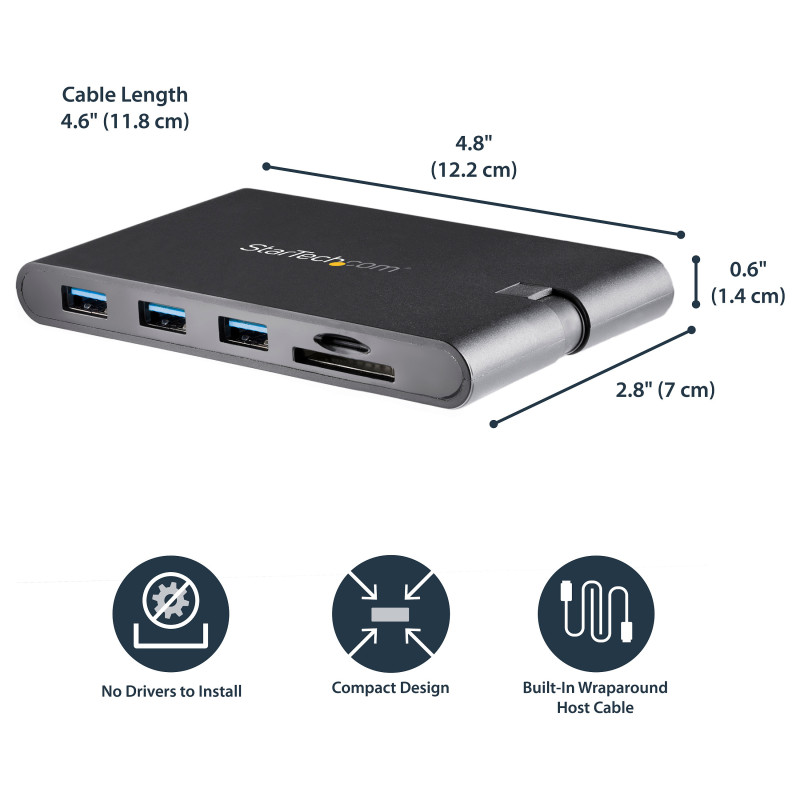

Weight & dimensions

Width: 70 mm
Depth: 122 mm
Height: 14 mm
Weight: 129 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 170 mm
Package depth: 142 mm
Package height: 30 mm
Package weight: 137 g

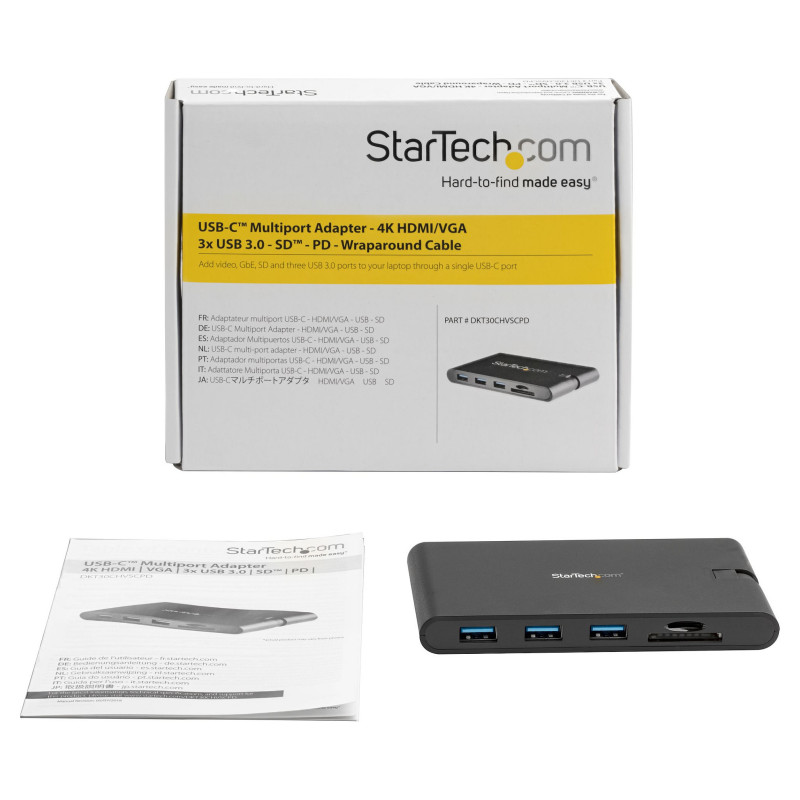

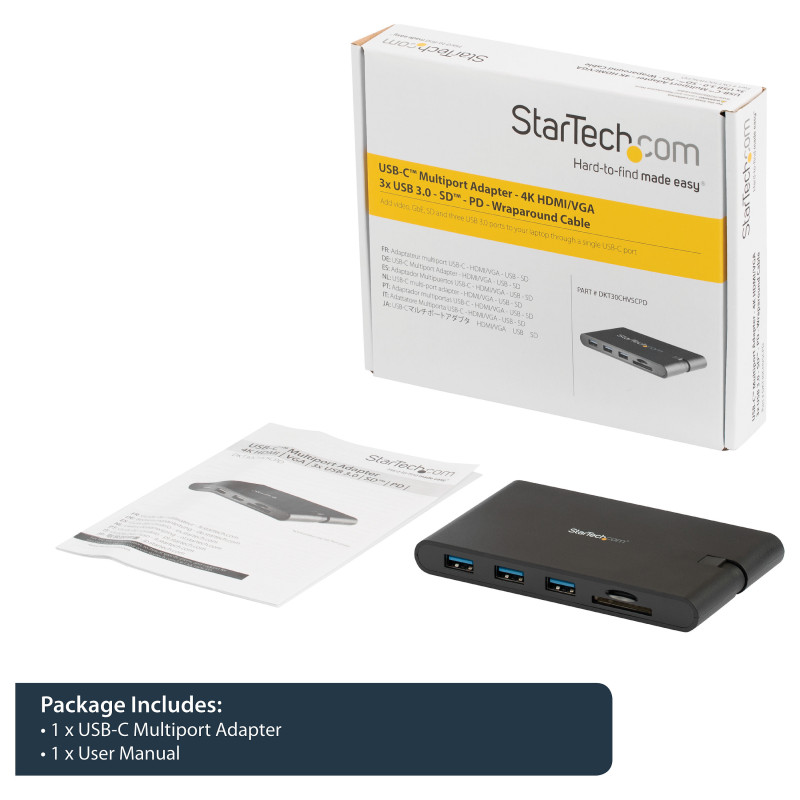

Packaging content

Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 60 pc(s)
Master (outer) case width: 330 mm
Master (outer) case length: 530 mm
Master (outer) case height: 310 mm
Harmonized System (HS) code: 84733020

Other features

Cable length: 0.118 m
Chipset: VIA/VLI - VL102, VIA/VLI - VL817, Parade - PS8338B, Parade - PS176, Analogix - ANX9833, ALCOR MICRO - AU84612, Realtek - RTL8153
