StarTech.com DKT30CHPDW laptop dock / port replicator

StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station w/ 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop - White. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Silver, White, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB, Power supply: 60 W. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Other operating systems supported: ChromeOS
Portable Docking Station | Mac Windows® | GbE | Thunderbolt™ 3 Compatible | TAA

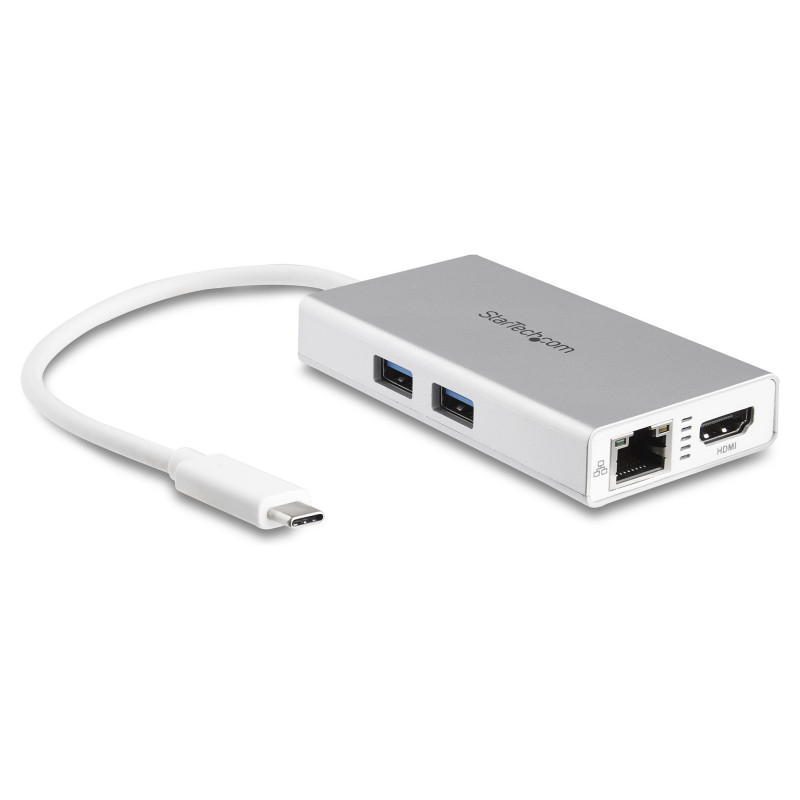

This sleek USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters into a portable docking station for your laptop. You get the convenience of a USB-C to USB adapter, USB-C to Ethernet adapter, and USB-C 4K HDMI adapter all in one portable solution.
And, with support for 60W USB Power Delivery 2.0, you can power both the adapter and charge your laptop at the same time.

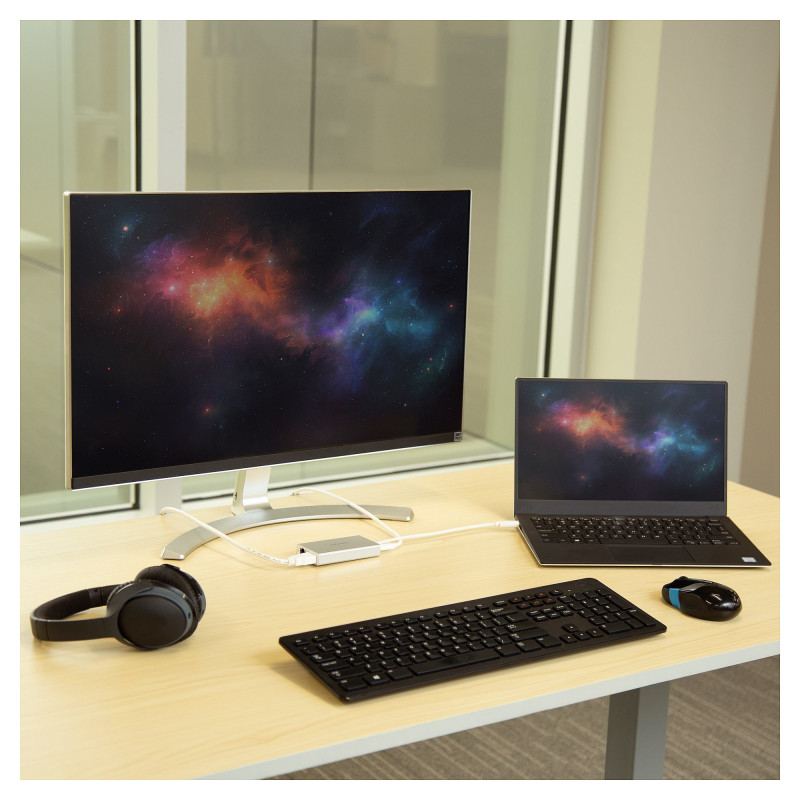

Create a Powerful Workstation

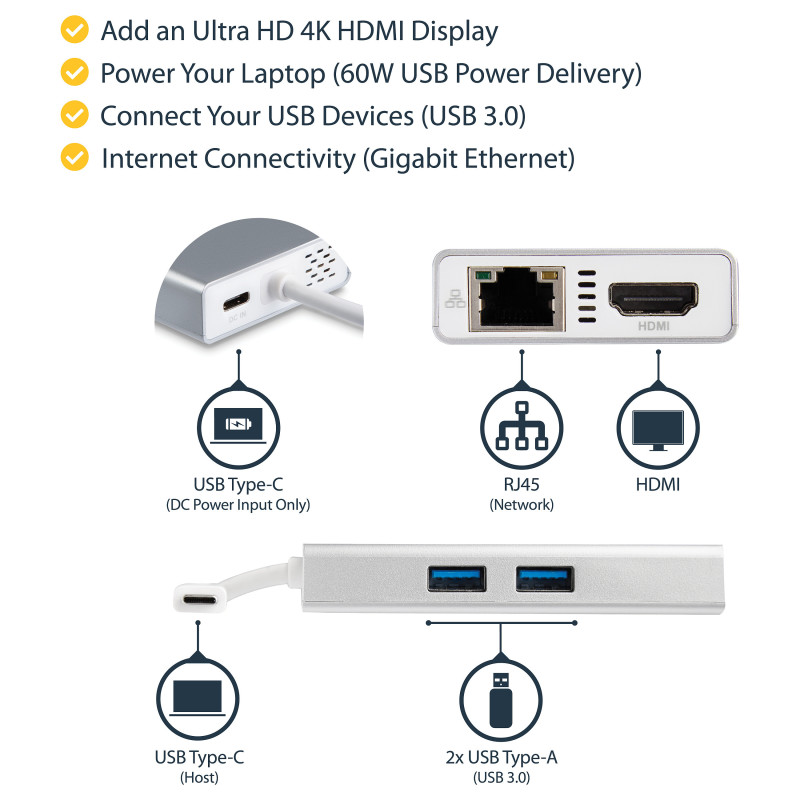

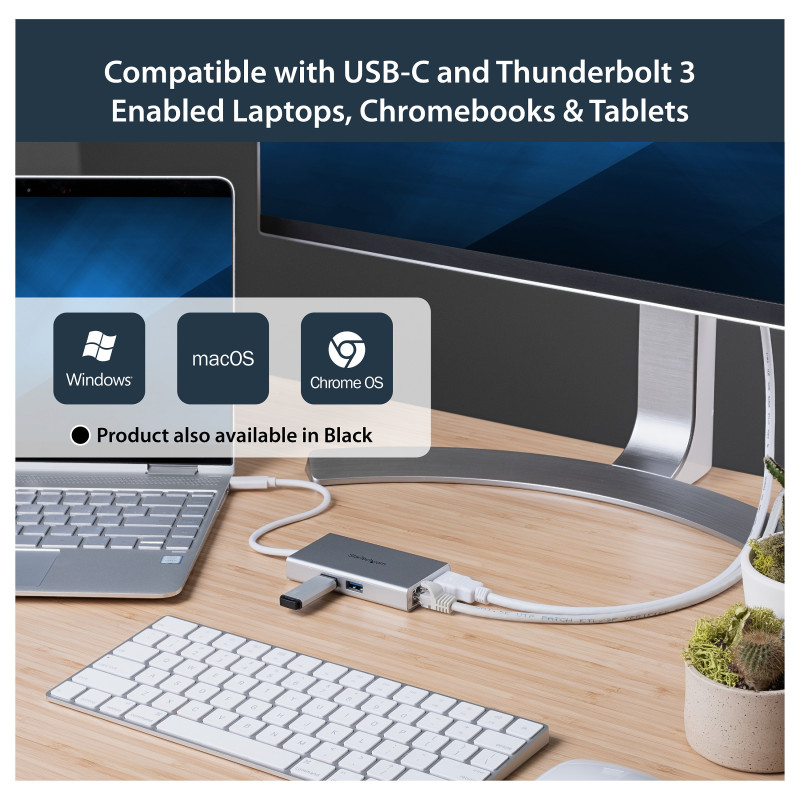

The versatile USB-C adapter lets you create a dual-monitor workstation virtually anywhere, providing 4K Ultra HD (3840 x 2160p) HDMI output with 30 Hz refresh rate and audio, two USB 3.0 ports, and a Gigabit Ethernet port, with support for USB Power Delivery 2.0.

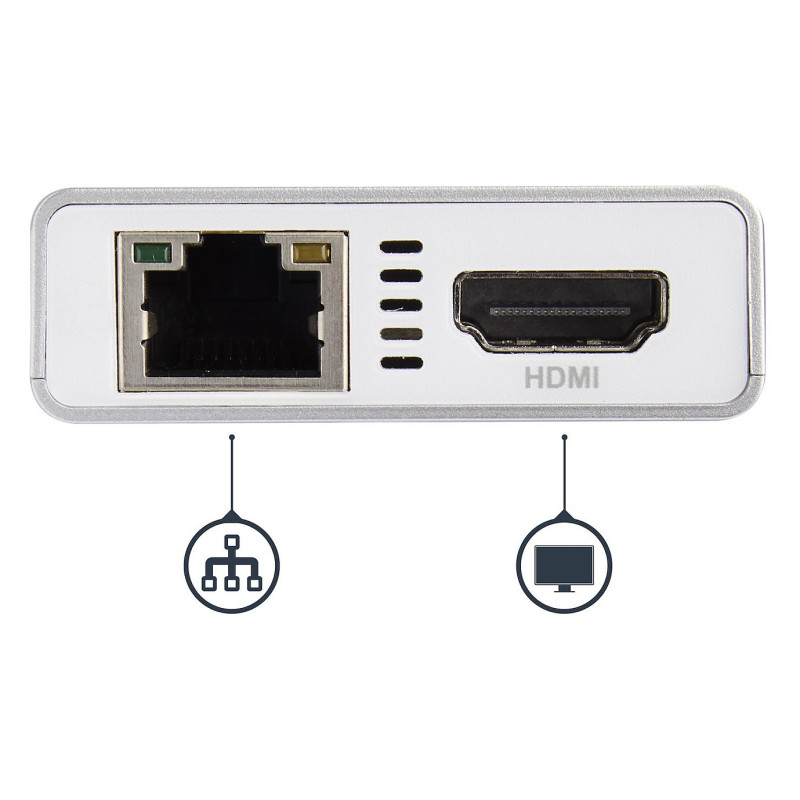

The Gigabit Ethernet port with support for Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet, delivers a reliable wired network connection, ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect productivity devices like your mouse and/or flash drive.
Designed for Easy Portability

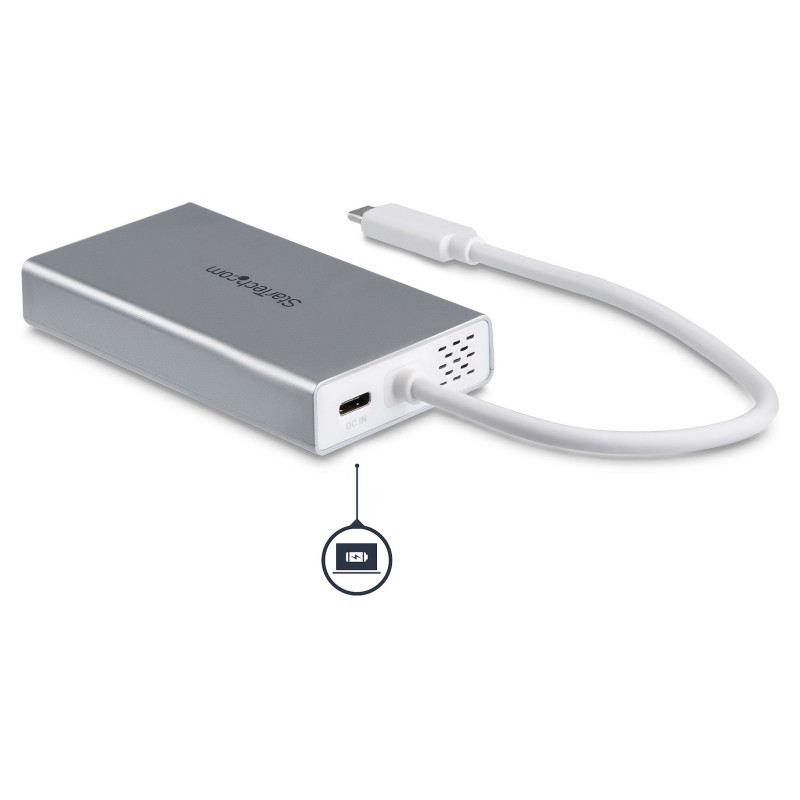

Ideal for mobile use, the compact multiport adapter supports USB Power Delivery 2.0 (PD 2.0), so you can use your laptop's USB-C power adapter to power both your laptop and the adapter. The adapter also features an integrated extended-length USB-C cable, for added flexibility in connecting to your laptop, which means one less cable to carry with you.
The StarTech.com Advantage for Docking Stations
• Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
•
Get more done faster - More ports and more displays maximize end user connectivity and productivity
•
Quick installation - eliminate deployment headaches that waste time and frustrate end users
•
IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support
The DKT30CHPDW is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP alt mode.
The StarTech.com Advantage

Ports interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C

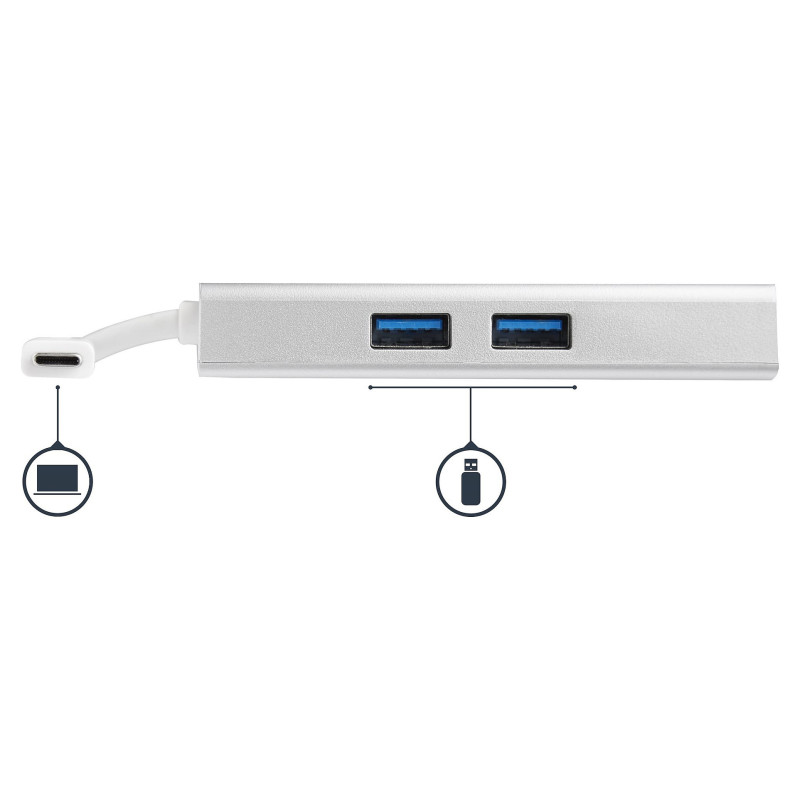

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 60 W
HDMI ports quantity: 1
Microphone in: No
USB connector type: USB Type-A, USB Type-C
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wake-on-LAN ready: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 4096 x 2160 pixels
Product colour: Silver, White
UASP support: Yes
Housing material: Plastic
Certification: CE, FCC, TAA, REACH

Power

Power source type: USB
Power supply: 60 W

Software

Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 65 °C
Operating relative humidity (H-H): 0 - 85%

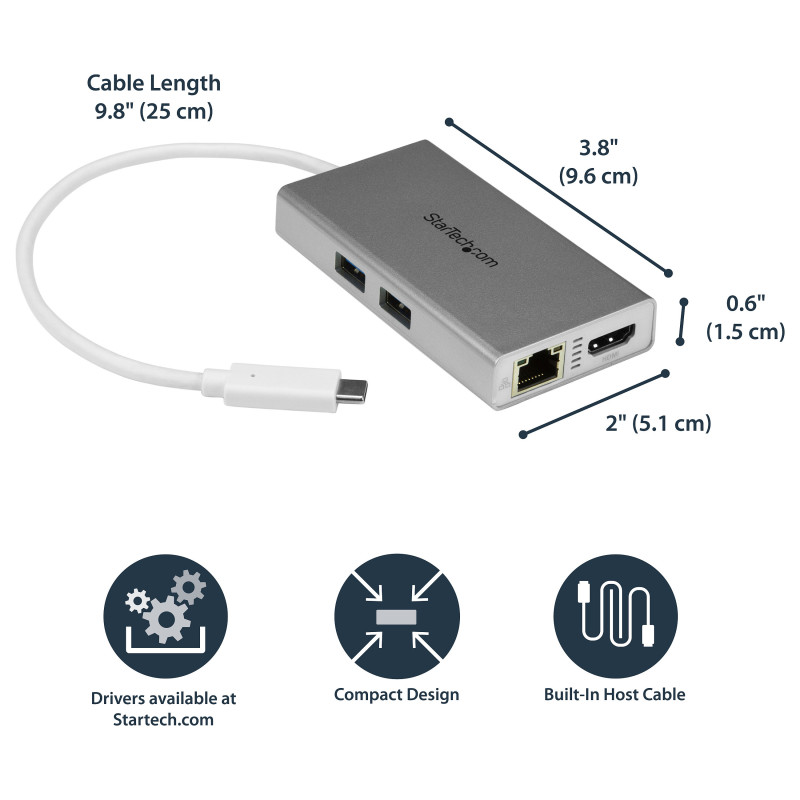

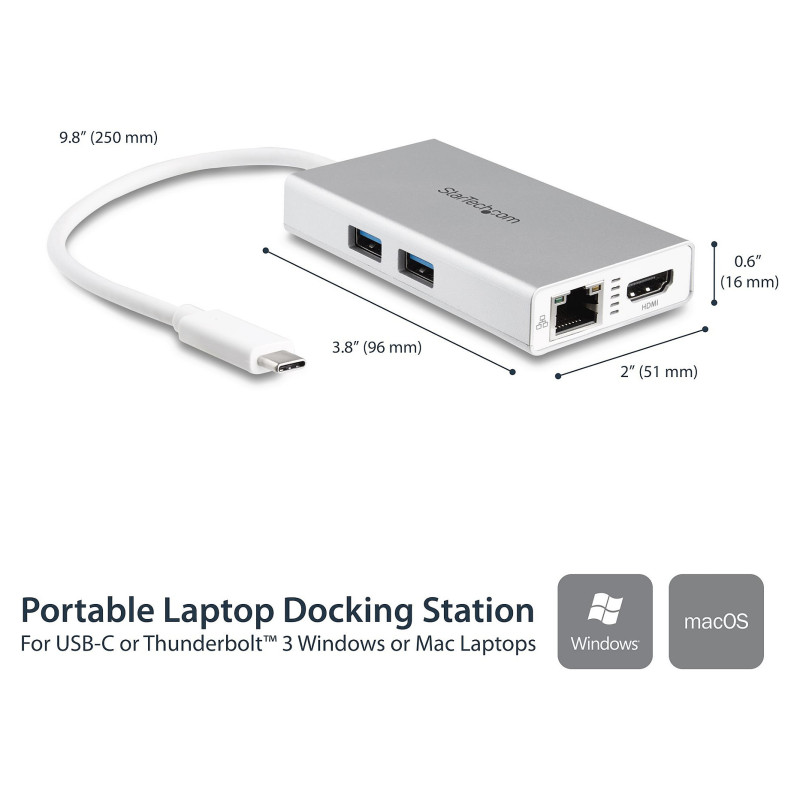

Weight dimensions

Width: 51 mm
Depth: 96 mm
Height: 16 mm
Weight: 64 g

Packaging data

Package width: 147 mm
Package depth: 213 mm
Package height: 42 mm
Package weight: 193 g

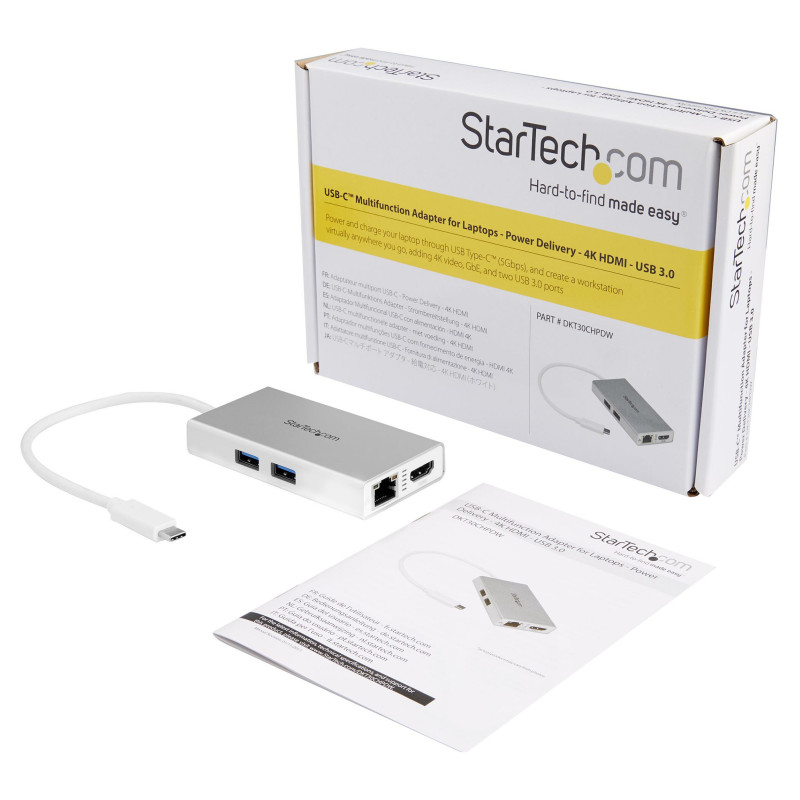

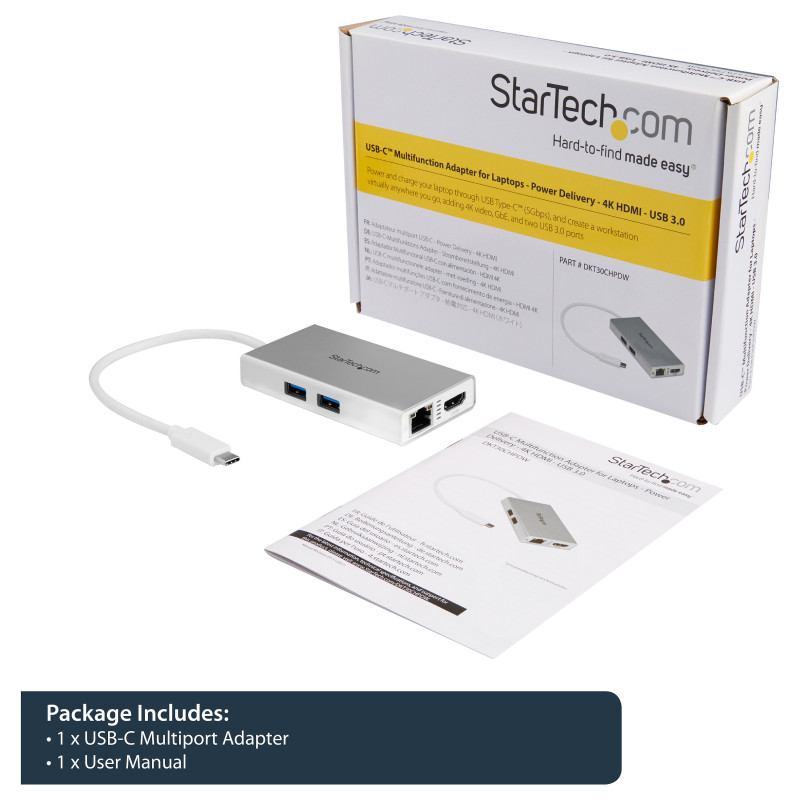

Packaging content

Quick start guide: Yes

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 40 pc(s)
Master (outer) case width: 440 mm
Master (outer) case length: 445 mm
Master (outer) case height: 316 mm
Harmonized System (HS) code: 84733020

Other features

Cable length: 0.25 m
Chipset: VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179
