StarTech.com DK31C4DPPDUE laptop dock / port replicator

StarTech.com USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Output voltage: 20 V, Output current: 8.5 A. Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64,..., Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur,..., Other operating systems supported: ChromeOS. Width: 90 mm, Depth: 215 mm, Height: 46 mm

USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | 4K 60Hz DisplayPort | 100W Power Delivery

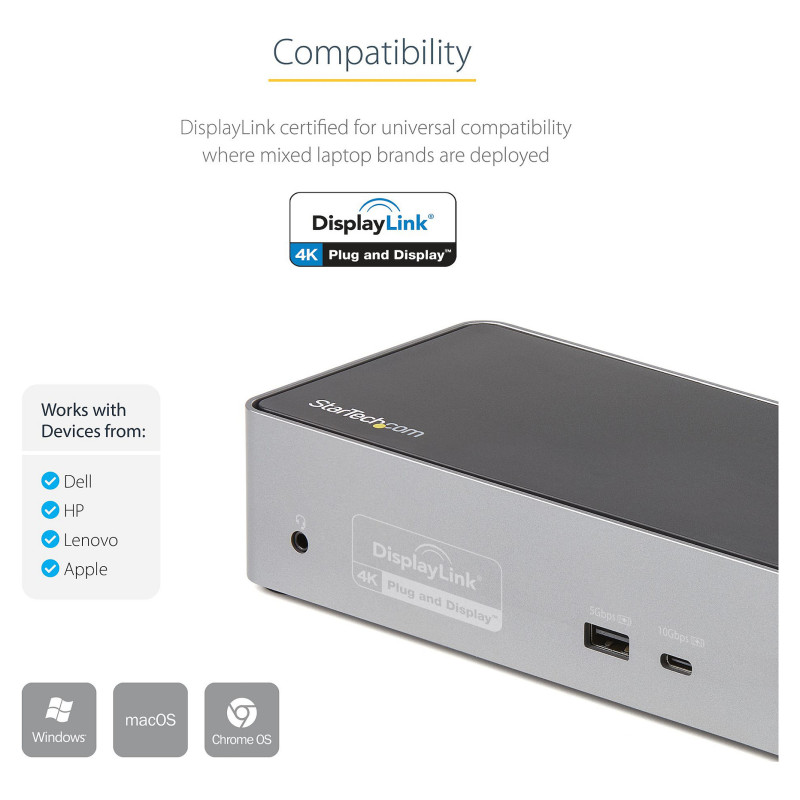

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

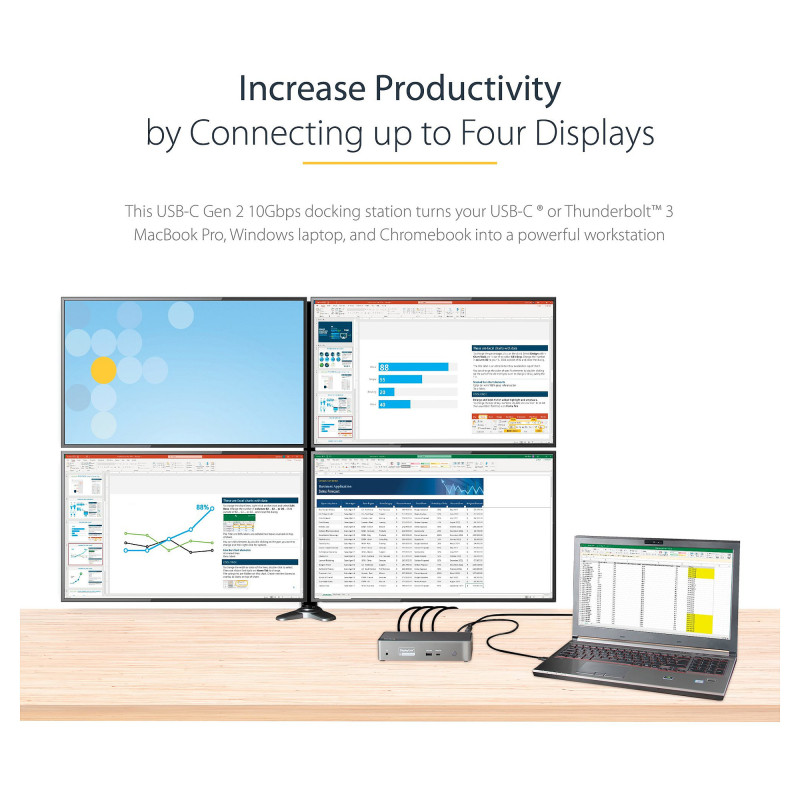

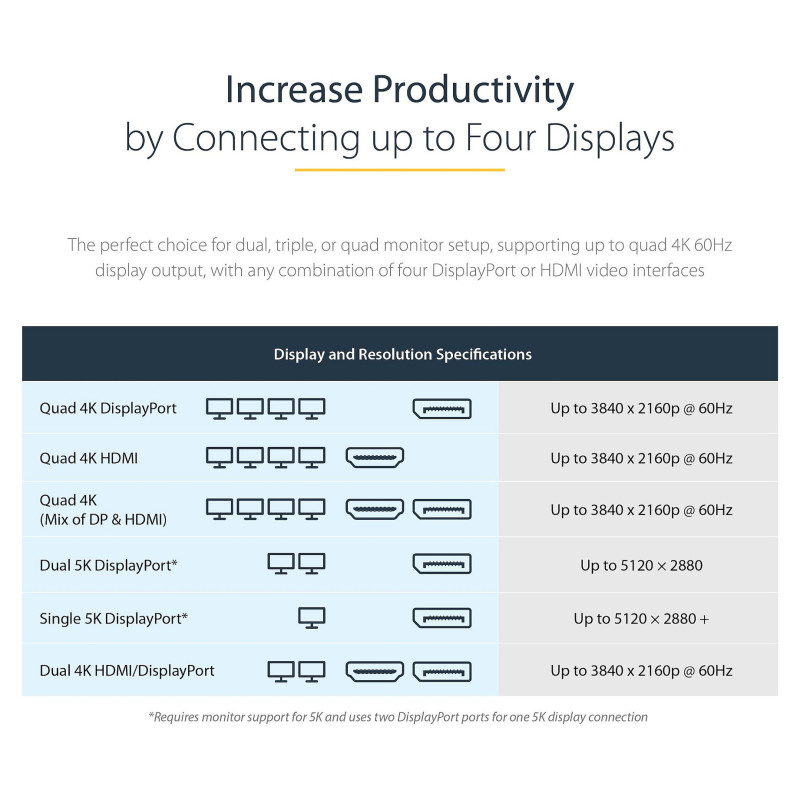

HDMI & DisplayPort for Four Monitor Outputs

This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.

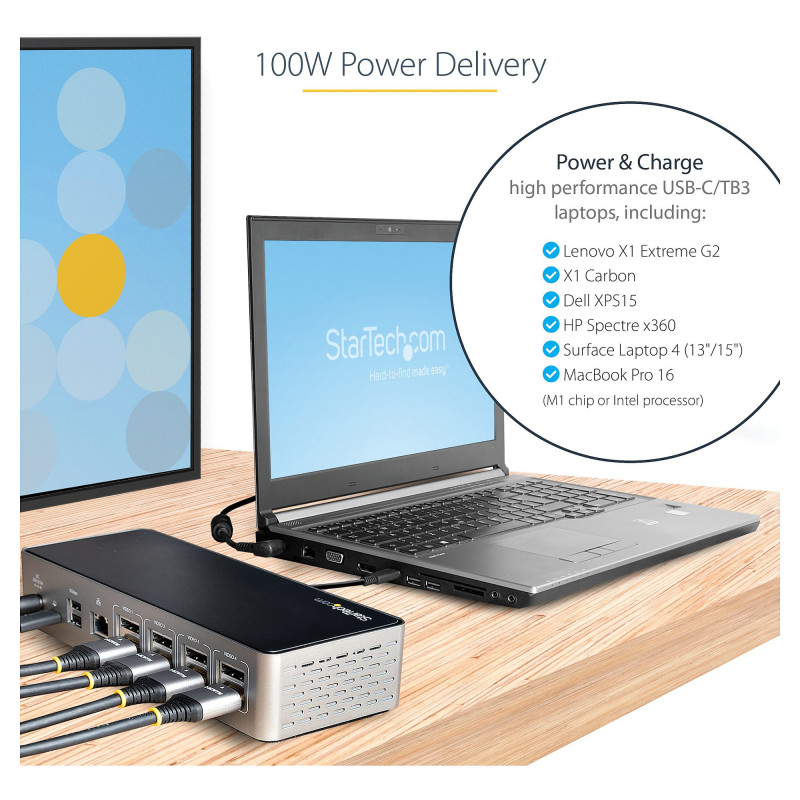

Power & Charge with 100W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.

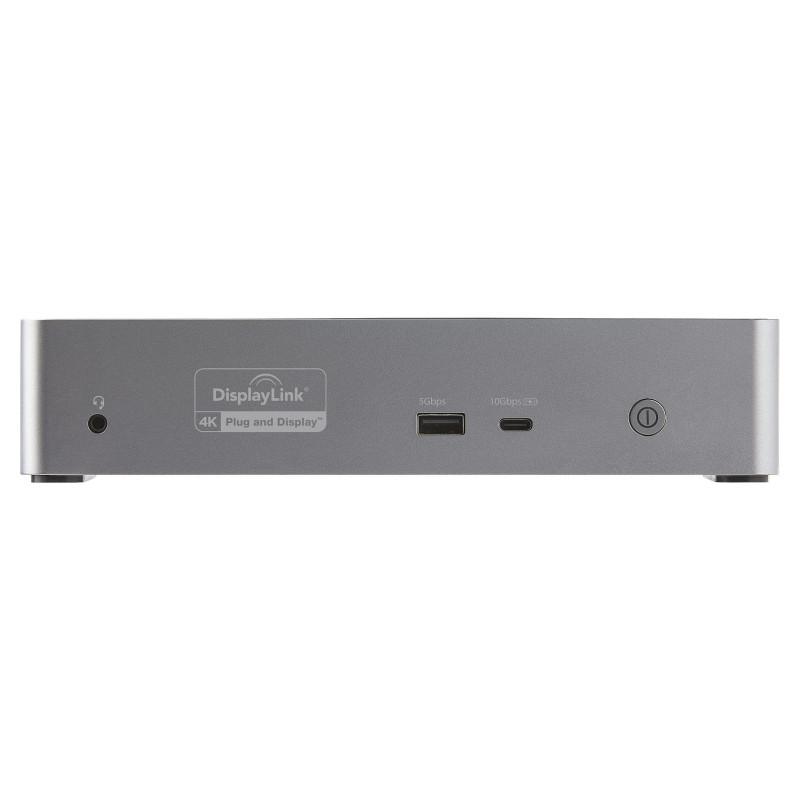

Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

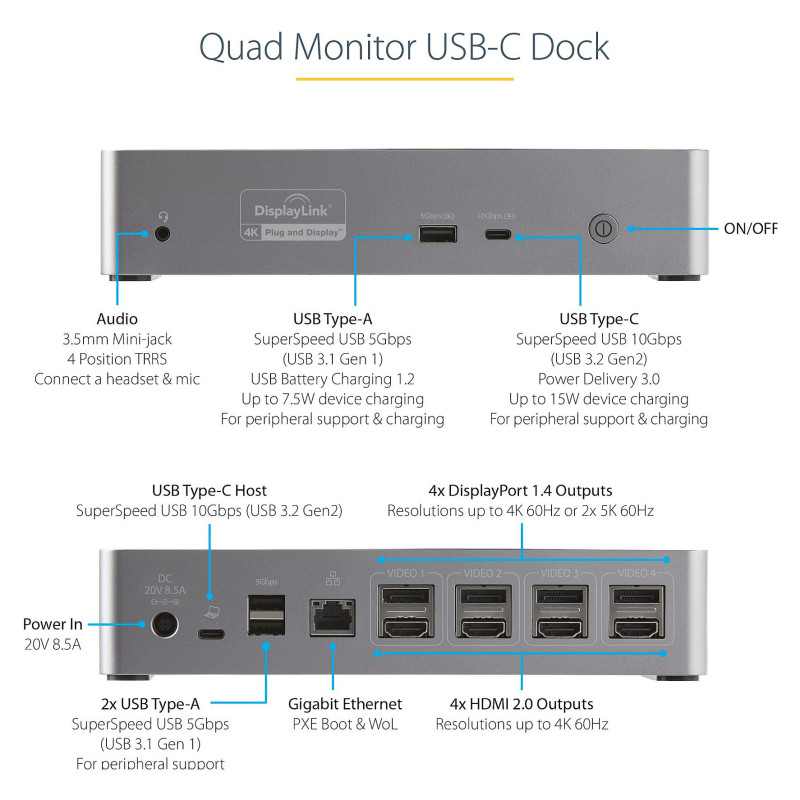

Plenty of Downstream USB Ports

This USB-C Gen 2 docking station features 4 downstream USB ports in total to connect USB peripherals.

• 1x USB-C 3.2 Gen 2 (10 Gbps | 15W/3A)
• 1x USB-A 3.2 Gen 1 (5 Gbps | 7.5W/1.5A)
• 2x USB-A 3.2 Gen 1 (5 Gbps | 4.5W/0.9A)

Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.

Additional Security Features

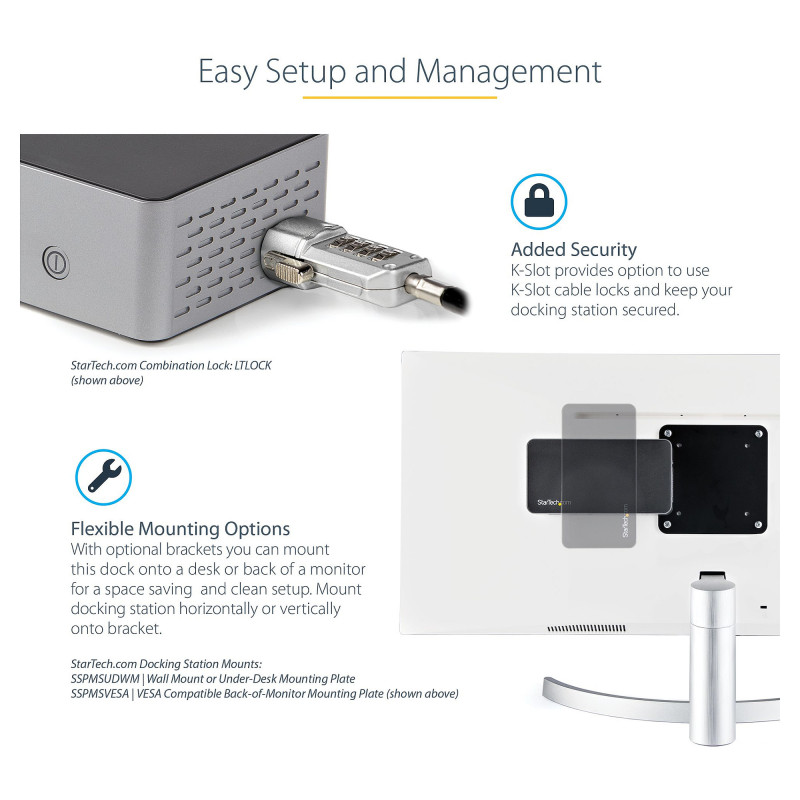

This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.

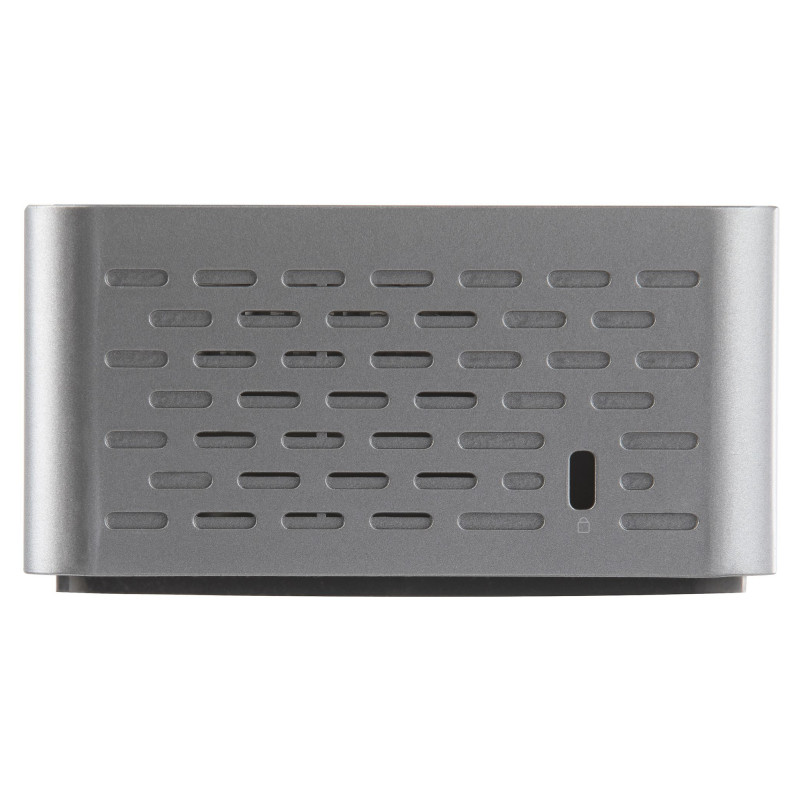

Extra Ventilation

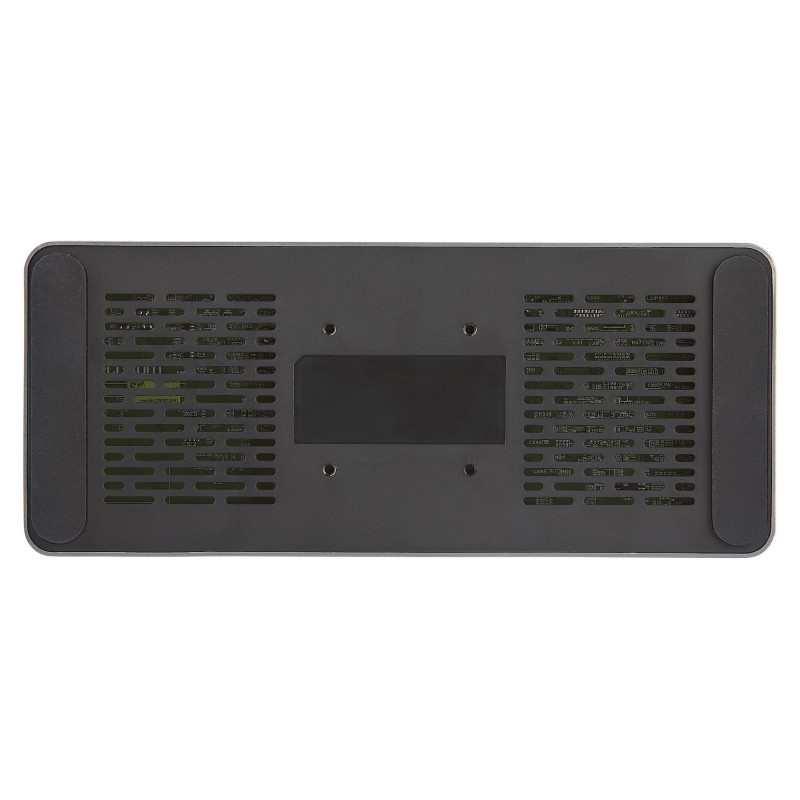

USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• Mac Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

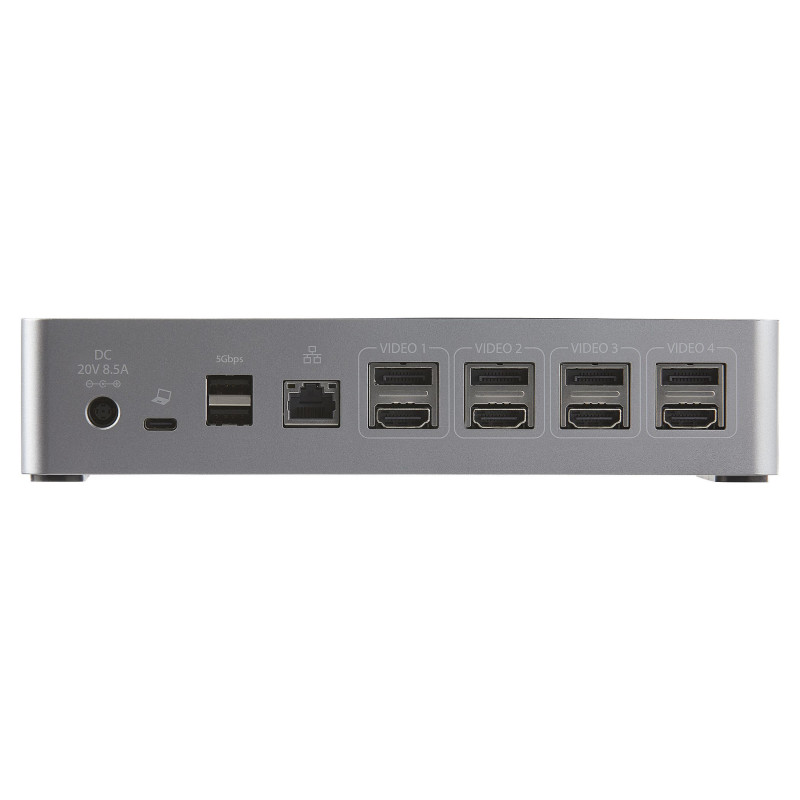

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 4
HDMI version: 2.0
DisplayPorts quantity: 4
DisplayPort version: 1.2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wake-on-LAN ready

Performance

Data transfer rate: 10 Gbit/s
Maximum digital resolution: 5120 x 2880 pixels
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black, Grey
LED indicators: Yes

Power

AC input voltage: 100 - 240 V
Output voltage: 20 V
Output current: 8.5 A
Compatible power plug types: EU, UK

Software

Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 x64
Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

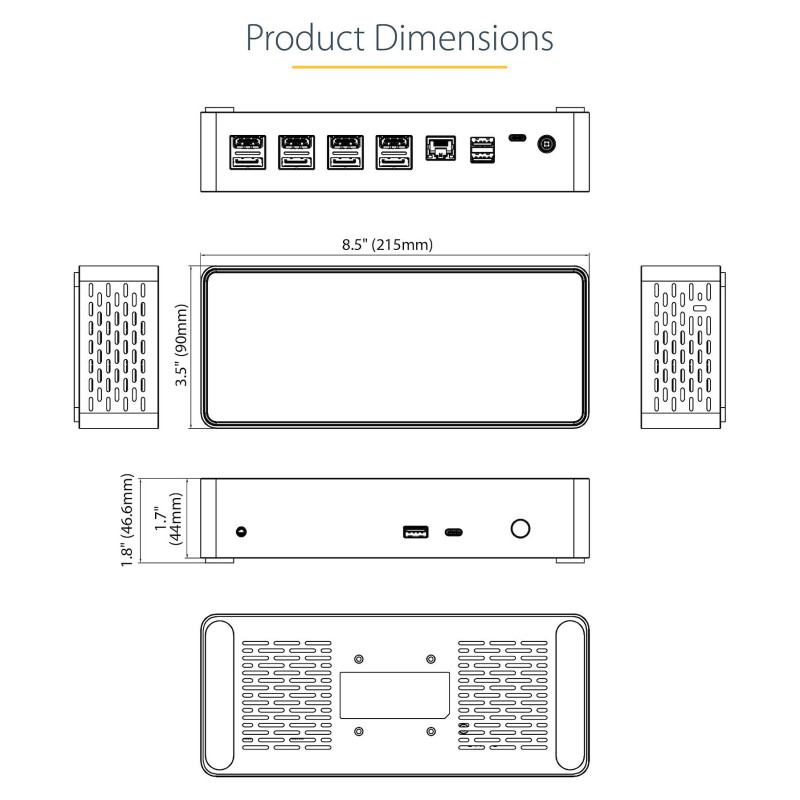

Weight & dimensions

Width: 90 mm
Depth: 215 mm
Height: 46 mm
Weight: 330 g

Packaging data

Package width: 145 mm
Package depth: 233 mm
Package height: 100 mm
Package weight: 360 g

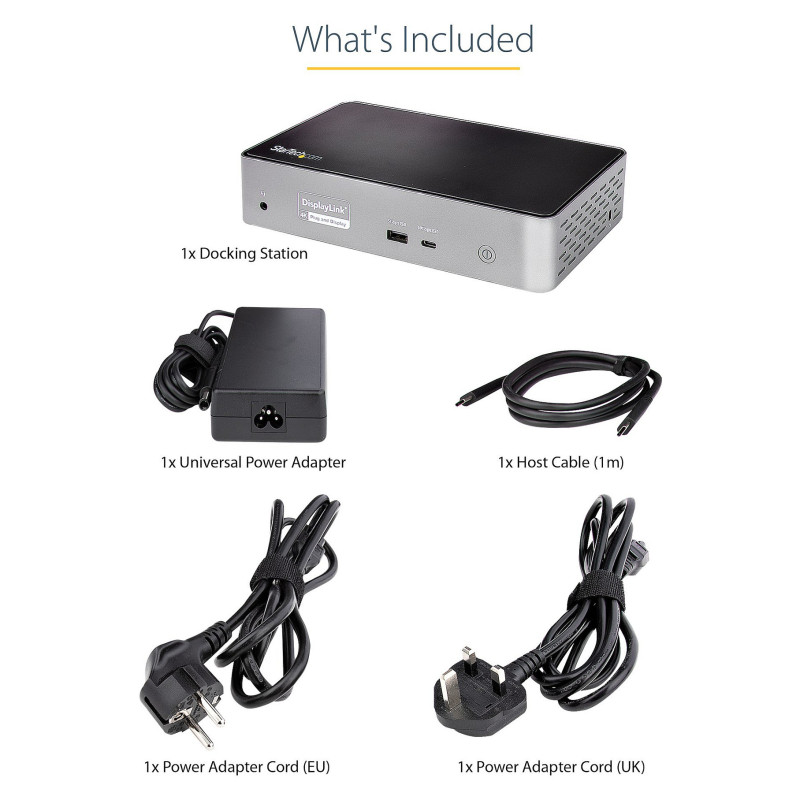

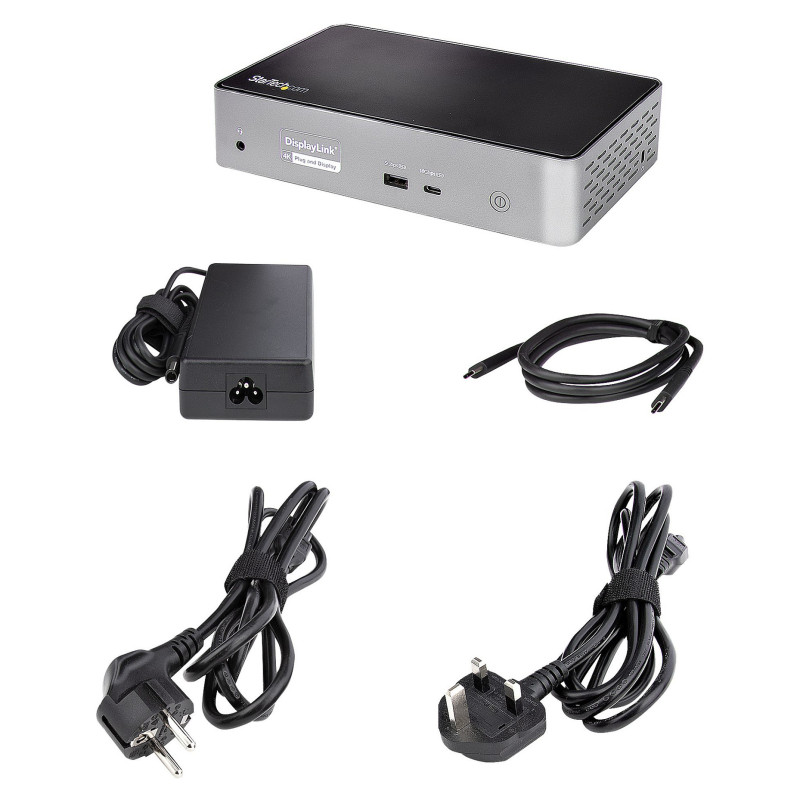

Packaging content

Cables included: USB
Feature: AC adapter included
Feature: Manual

Technical details

Compliance certificates: CE

Logistics data

Products per master (outer) case: 4 pc(s)
Master (outer) case width: 240 mm
Master (outer) case length: 410 mm
Master (outer) case height: 160 mm
Harmonized System (HS) code: 84733020

Other features

Chipset: DisplayLink - DL6910, Realtek - RTS5423, Realtek - RTS5411/RTS5411E, Realtek - RTL8153
