StarTech.com DK31C2DHSPDUE laptop dock / port replicator

StarTech.com USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps), SD - Windows/Chrome. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u. Product colour: Black, Grey, Compatible memory cards: MMC, SD, Data transfer rate: 10 Gbit/s. AC input voltage: 100 - 240 V, Power plug type: Type M, Compatible power plug types: EU, UK. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mobile operating systems supported: Android 10, Android 9.0, iPadOS, Other operating systems supported: ChromeOS

USB Type-C Docking Station| Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports

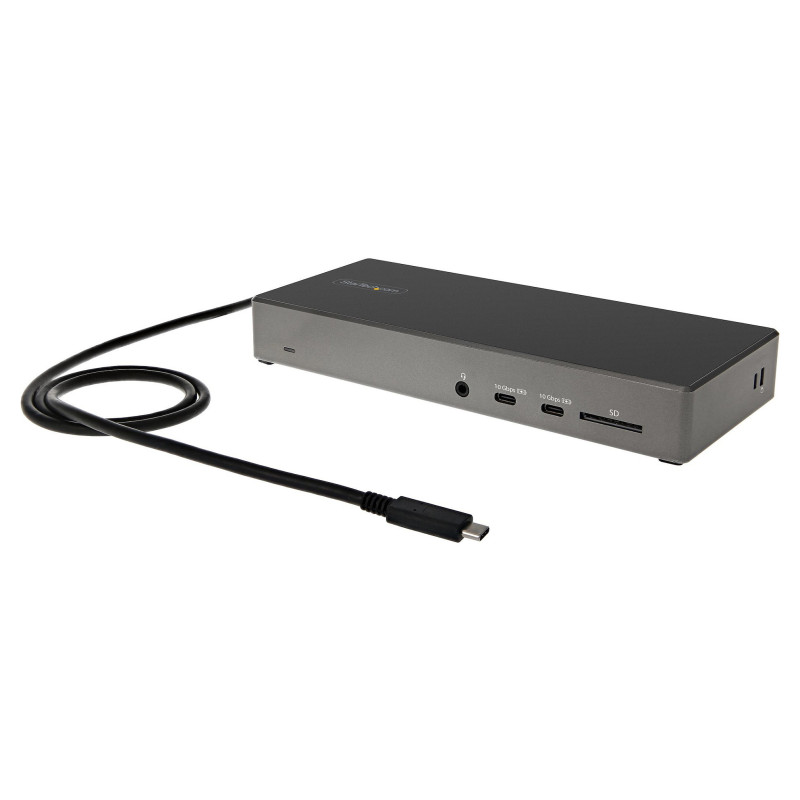

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

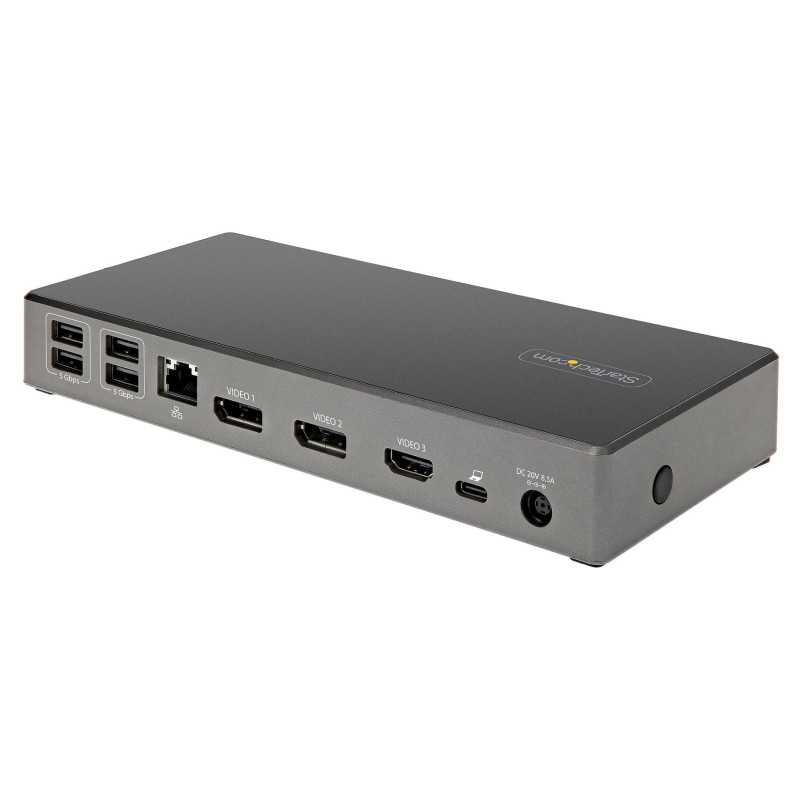

HDMI & DisplayPort for Multiple Monitor Outputs

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.Power & Charge with 100W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.

Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

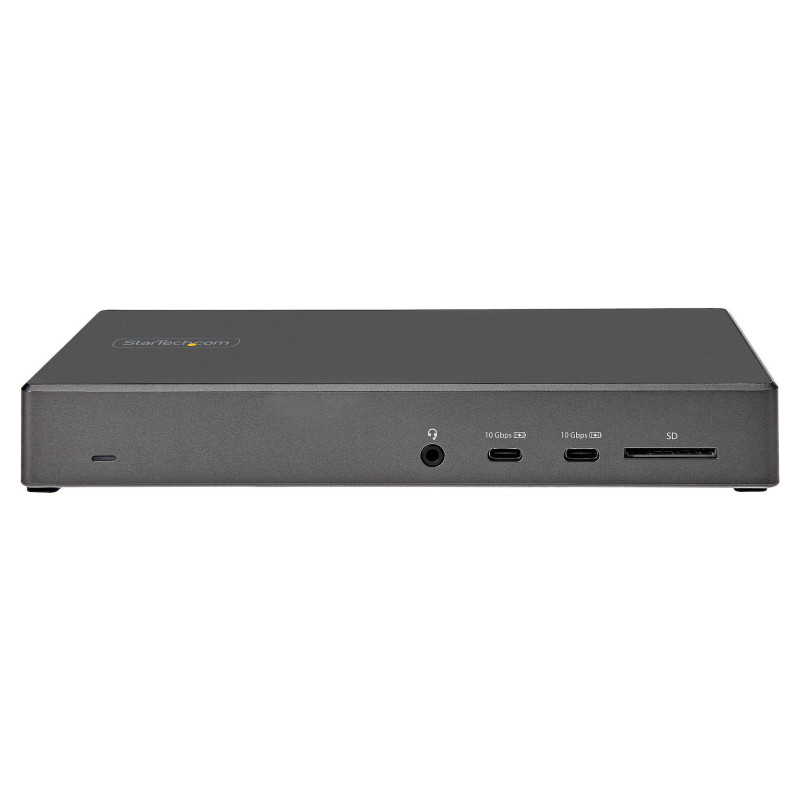

Integrated 6-Port USB Hub & SD Card Reader

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD 3.0 UHS-I card reader for media storage.

• 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Always-On)
• 2x USB-A 3.2 Gen 1 - 5 Gbps
• 2x USB-A 2.0 - 480 Mbps
• SD 3.0 UHS-I Card Reader

Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

Additional Security Features

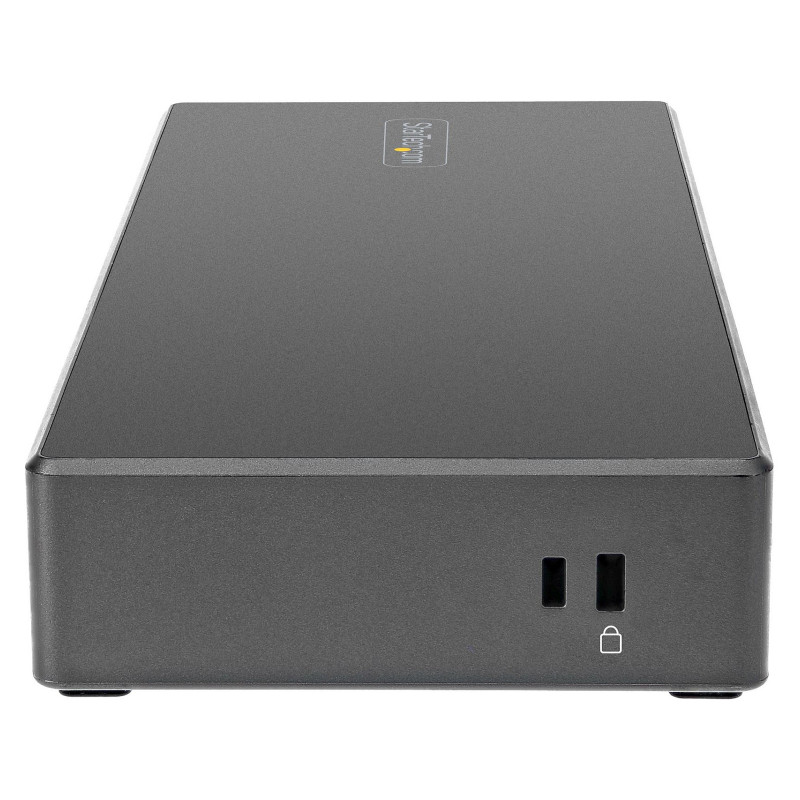

This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.

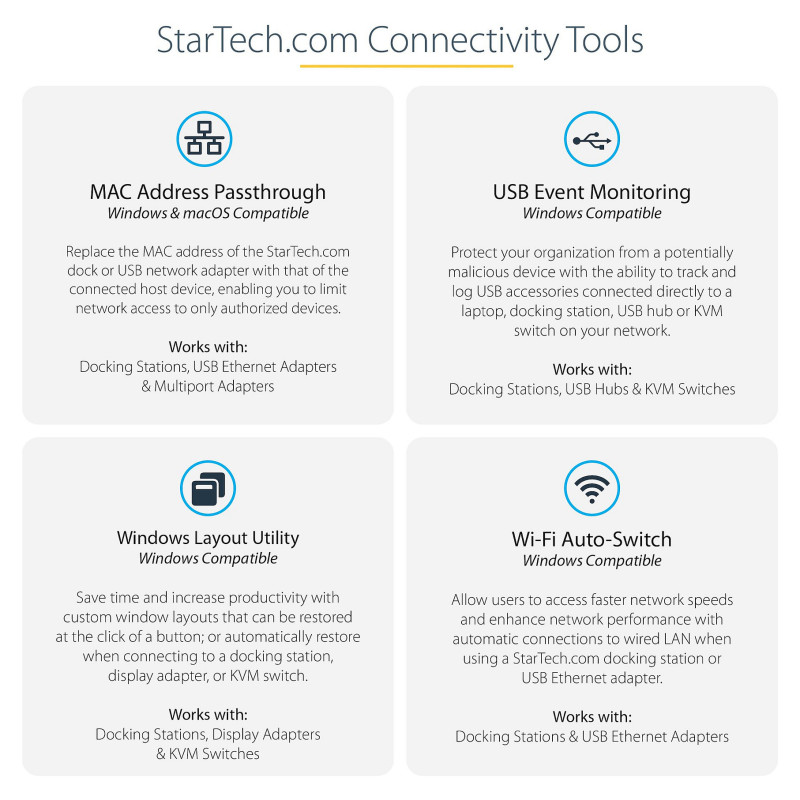

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• Mac Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

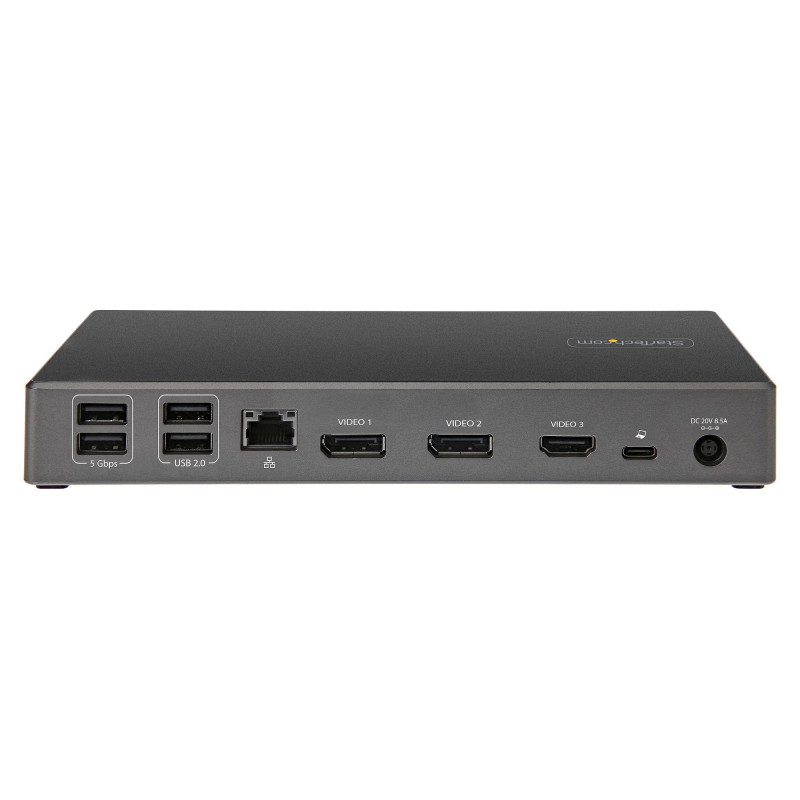

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u

Performance

Feature: Card reader integrated
Compatible memory cards: MMC, SD
Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Product colour: Black, Grey
LED indicators: Yes
Certification: CE, FCC, RoHS

Power

AC input voltage: 100 - 240 V
Power plug type: Type M
Compatible power plug types: EU, UK

Software

Mobile operating systems supported: Android 10, Android 9.0, iPadOS
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 210 mm
Depth: 90 mm
Height: 30 mm
Weight: 300 g

Packaging data

Package width: 146 mm
Package depth: 232 mm
Package height: 90 mm
Package weight: 1.4 kg

Packaging content

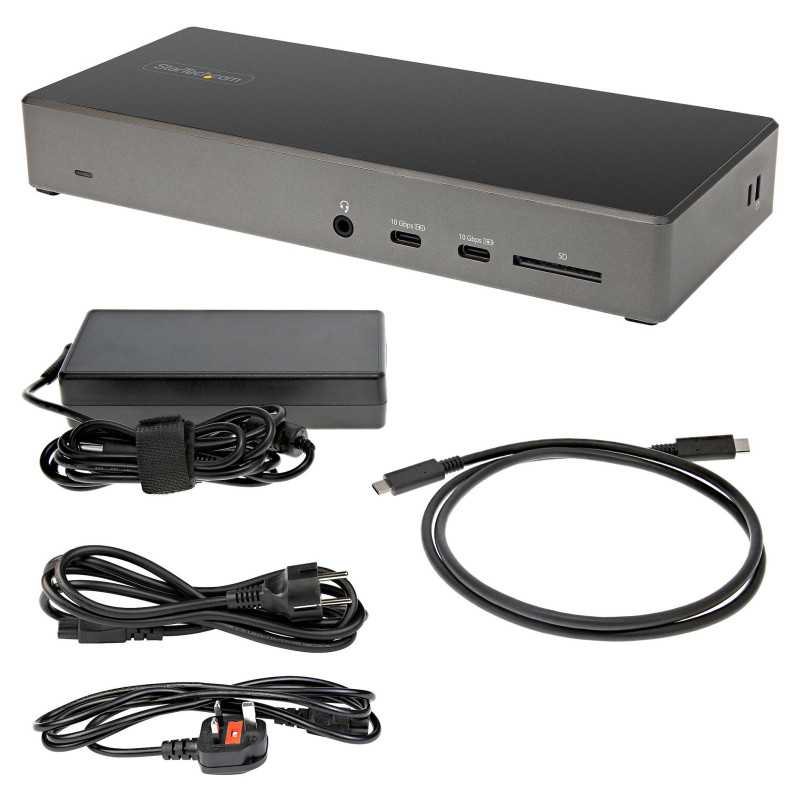

Cables included: USB Type-C to USB Type-C
Feature: AC adapter included
Feature: Quick start guide

Logistics data

Products per master (outer) case: 8 pc(s)
Master (outer) case width: 304 mm
Master (outer) case length: 382 mm
Master (outer) case height: 268 mm
Harmonized System (HS) code: 84733020

Other features

Chipset: Cypress - CYPD4236, Synaptics - VMM5320BJG-R
